LumenaPro

    AQL-882

    Surface Mount Up/Downlight

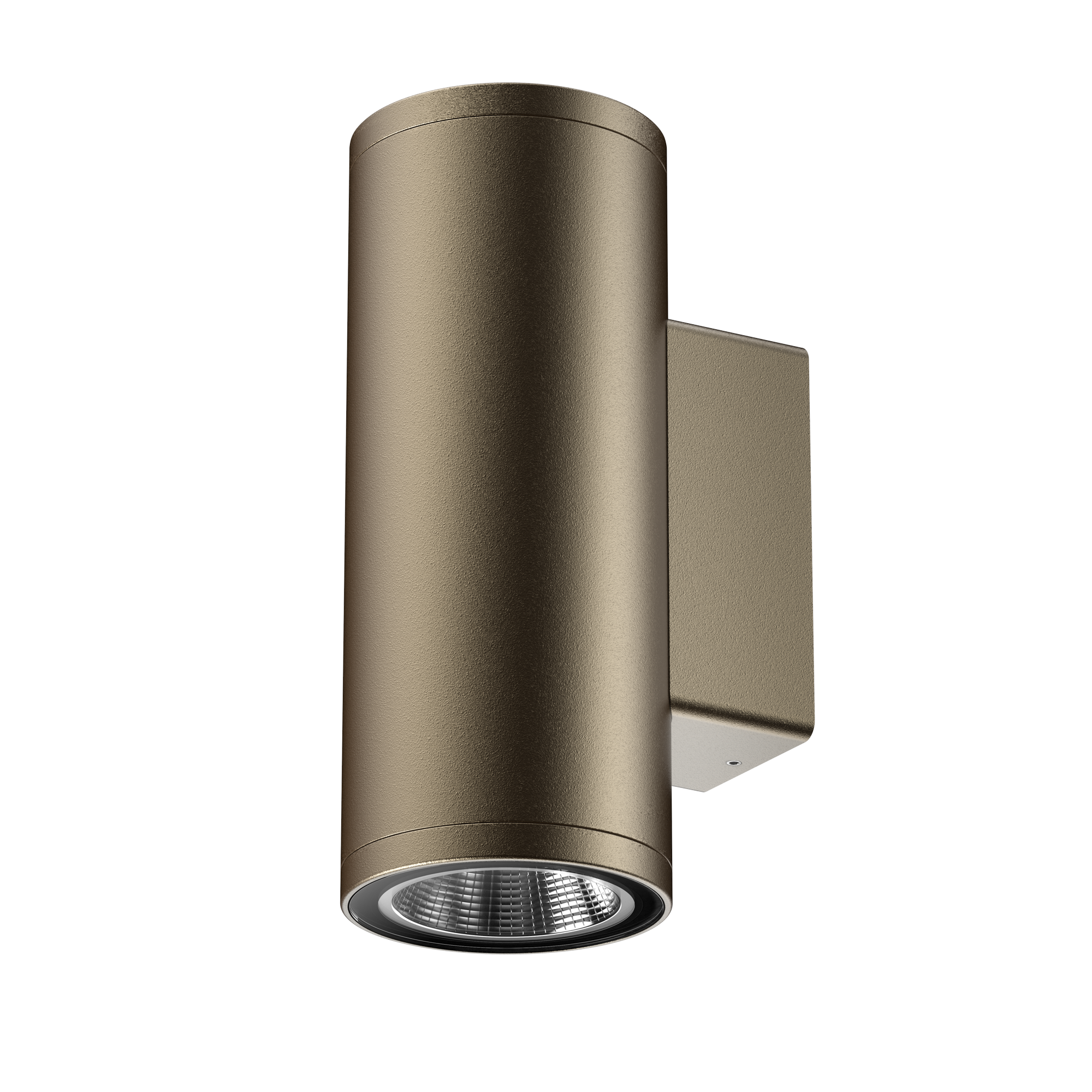

    AQL-882

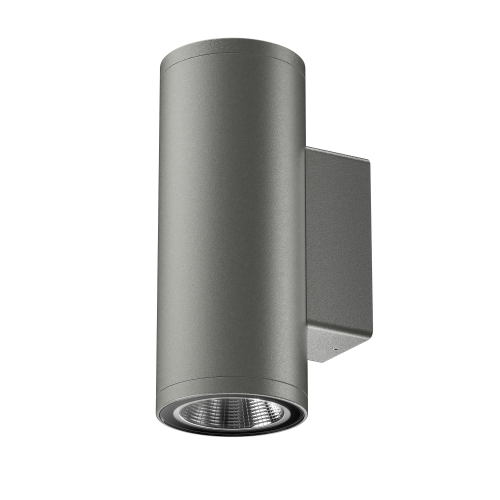

    AQL-882

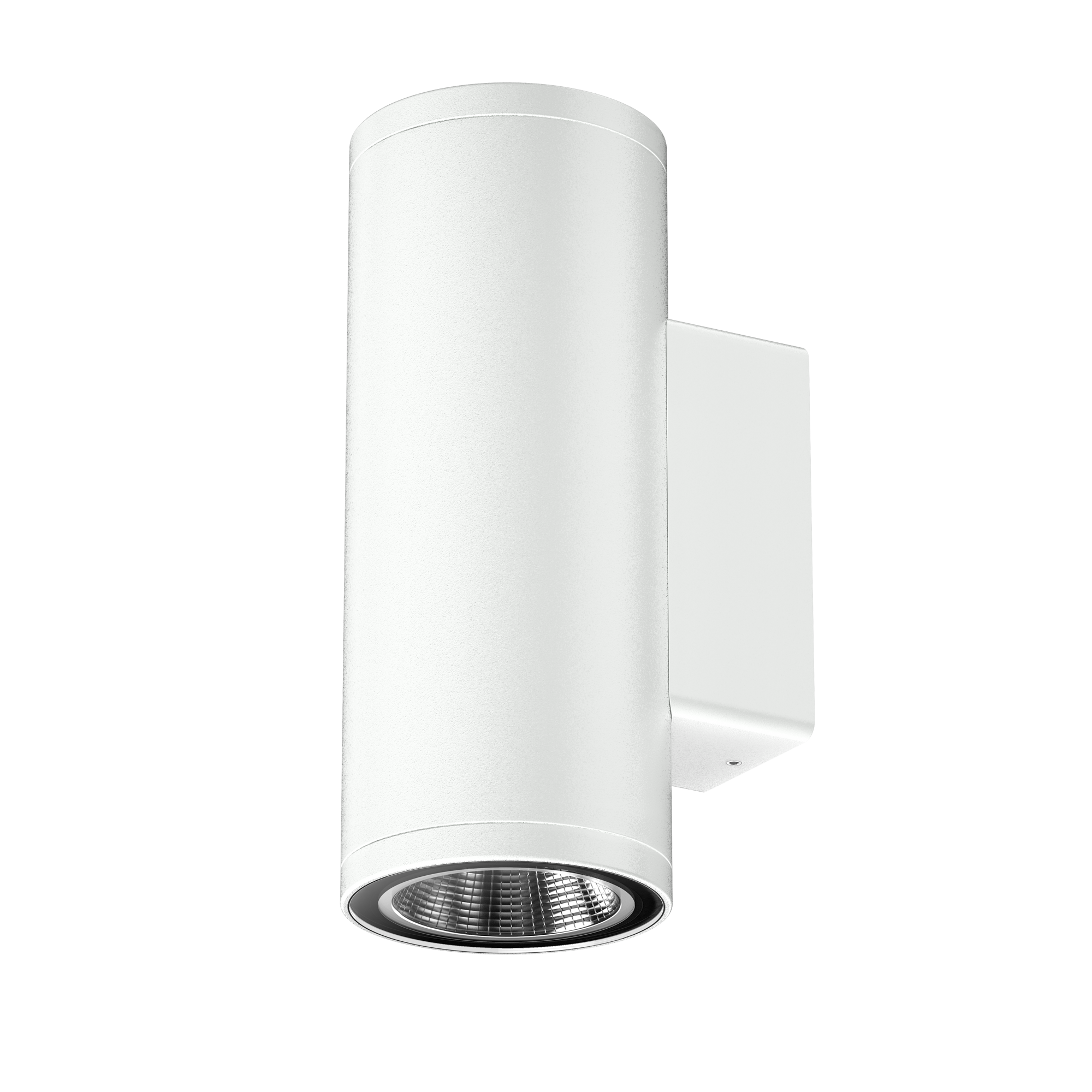

    AQL-882

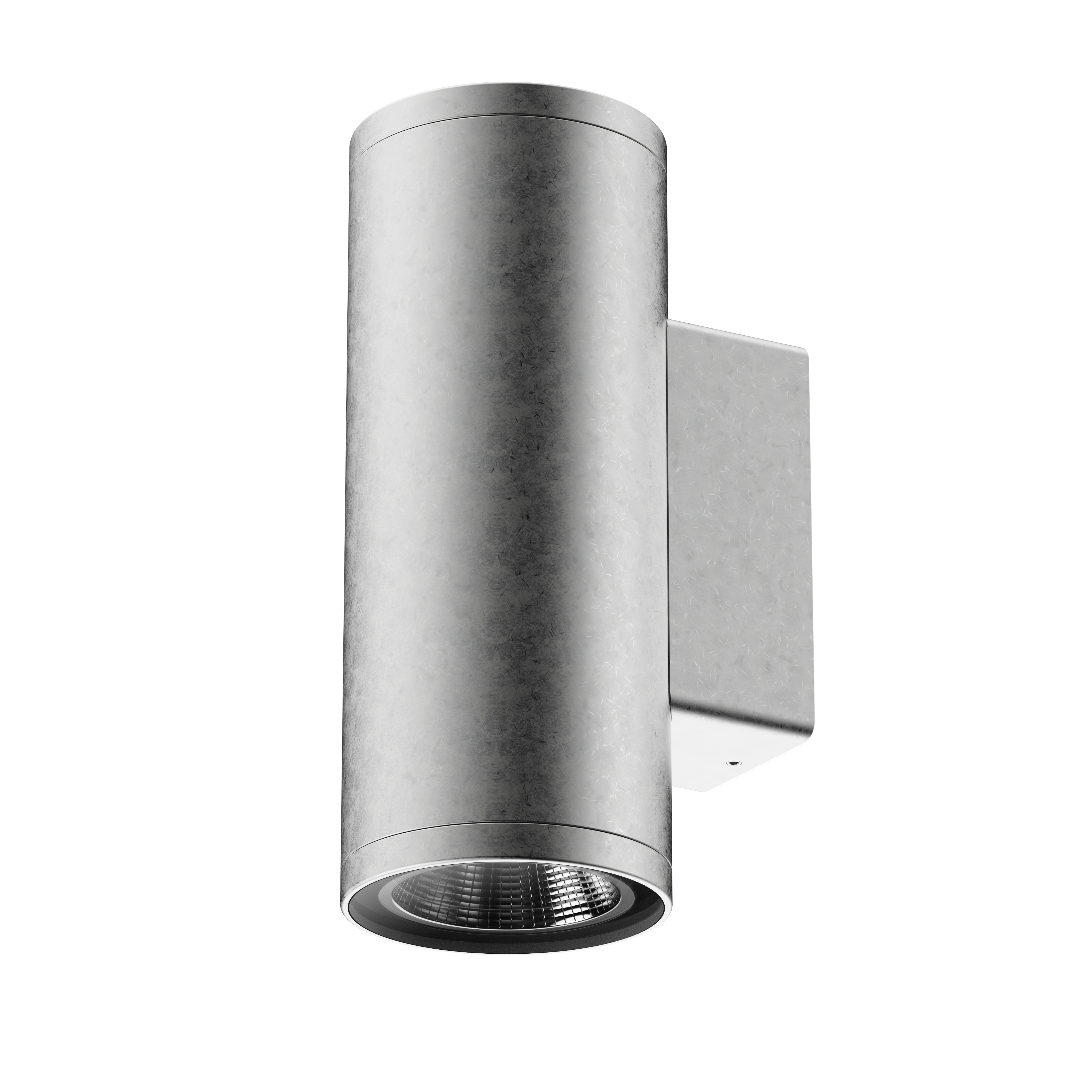

    AQL-882

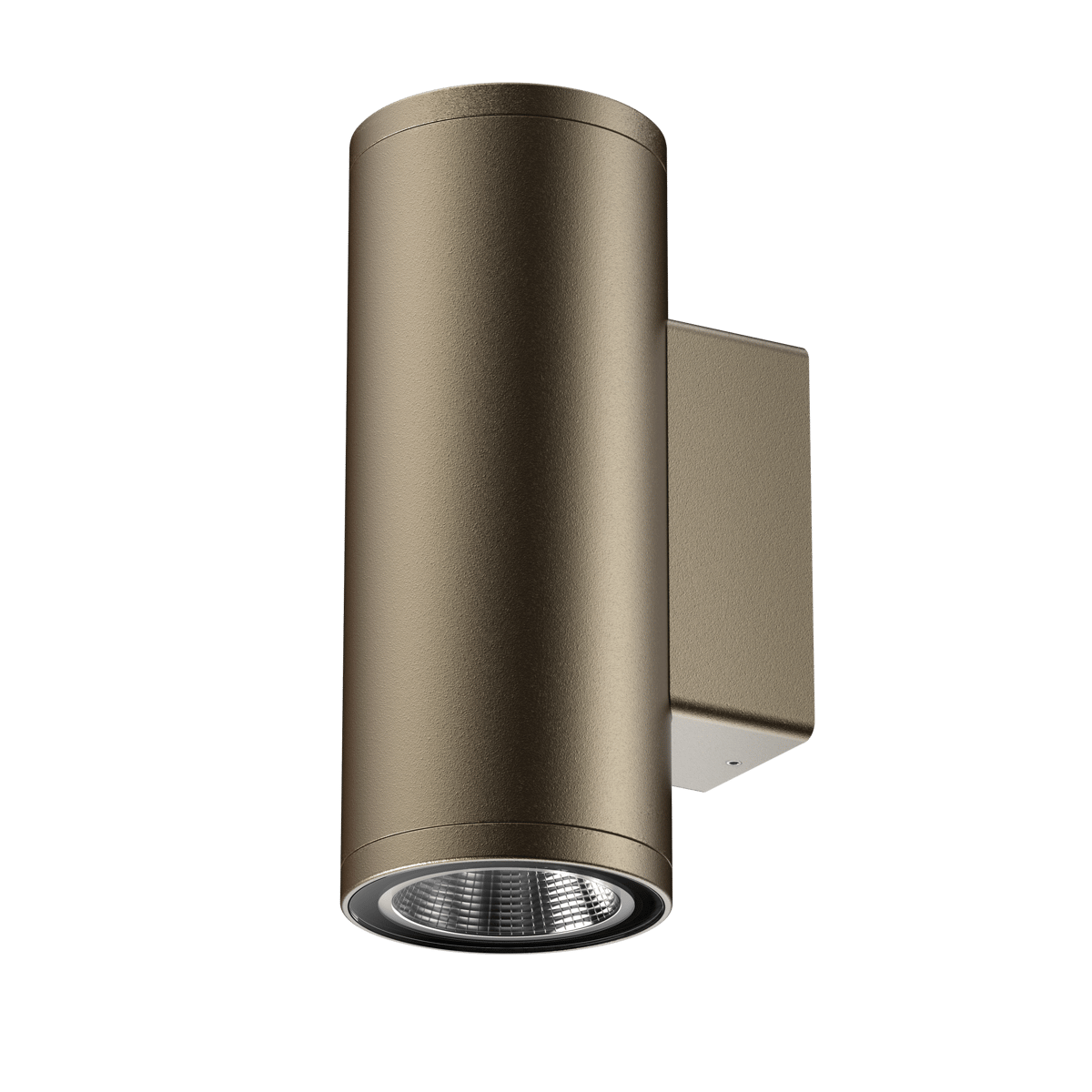

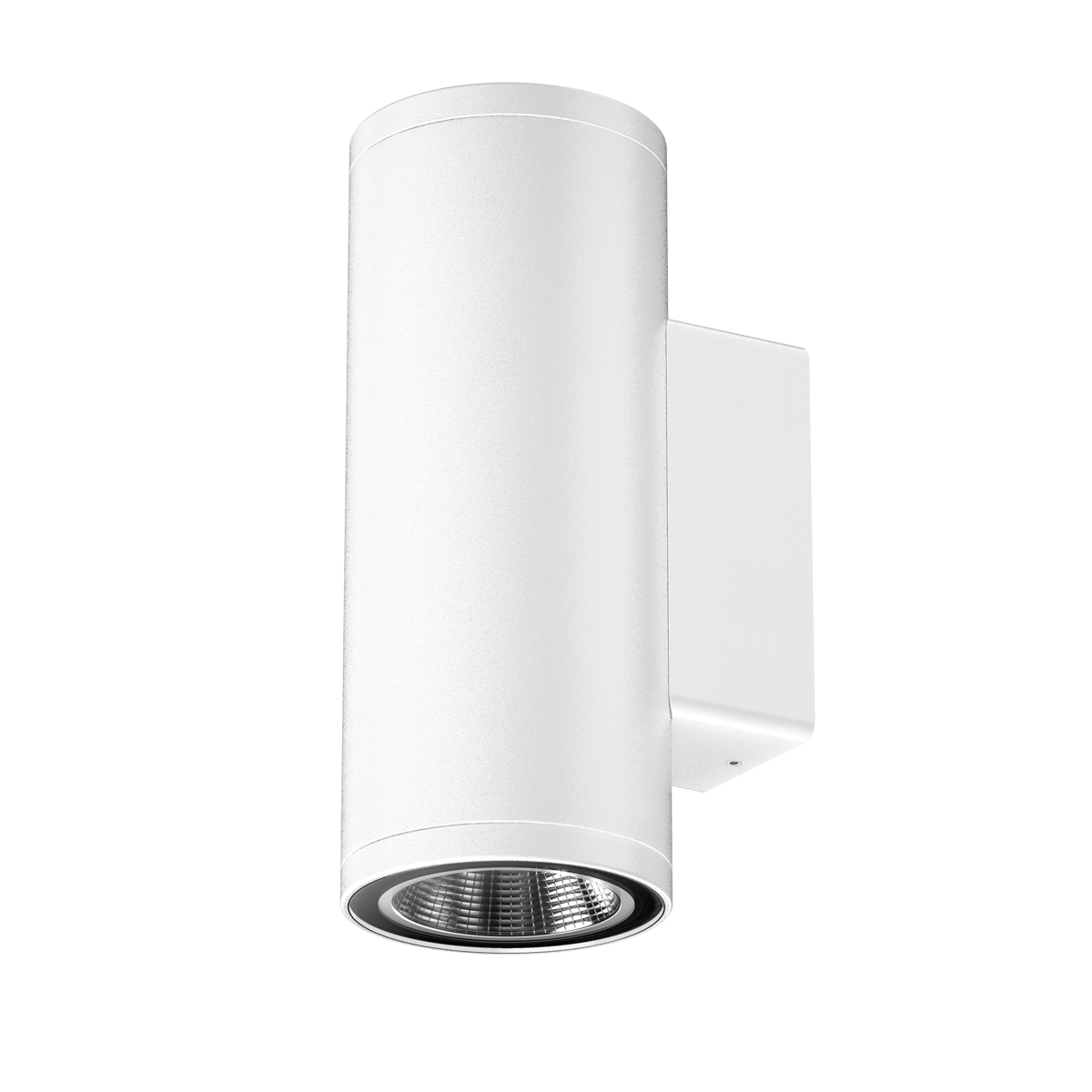

    AQL-882

    Introduction

    The AQL-882 is an advanced, highly configurable wall mount up/downlight for use in architectural and commercial applications.

    Featuring integrated 240V DALI, 24V SELV or remote control gear options along with choices of Ultra Low Glare or High-Efficiency reflector optics, the AQL-881 is also available in any Dulux powder coat finish for the ultimate in project specification flexibility. RGBW and speciality sources such as 98CRI and 2200K are also available.

    The AQL-882 is 100% designed and manufactured in Sydney, Australia.

    Specification

    AQL-882

    LumenaPro

    CNC Machined Aluminium

    Terminal Block

    7 Year Aqualux Warranty

    IP65

    Options

    Body

    • Custom

      Aluminium 6000 Series

    • A1 - Clear

      Aluminium 6000 Series

    • A2 - Black

      Aluminium 6000 Series

    • A3 - Bronze

      Aluminium 6000 Series

    • A4 - Basalt

      Aluminium 6000 Series

    • A8 - White

      Aluminium 6000 Series

    Control Gear

    • 24V DC RGBW

      Dimming: 4CH Low-Side PWM

    • 24V DC 3-Wire

      Dimming: 3-wire PWM 10V Dimming

    • 240V DALI Dimming

      Dimming: DALI Integral

    Light Sources

    • 20W / 2400lm

      2700K

    • 20W / 2400lm

      3000K

    • 20W / 2400lm

      4000K

    • 20W / 1110lm

      RGB+3000K

    Optical

    • Narrow (10°)

      10

    • Medium (25°)

      25

    • Wide (40°)

      40

    • Narrow (15°) Reflector

      15

    • Medium (25°) Reflector

      25

    • Wide (40°) Reflector

      40

    • Extra Wide (60°) Reflector

      60

    Cable

    • T

      Terminal Block

    • S

      500mm 3-Core Standard Cable

    • S

      500mm 6-Core Standard Cable

    Configure order code

    AQL-882

    To configure your product/s, select from the options below.
    Multiple selections are possible to produce your downloadable datasheet/s.

    Clear Filter
    Custom Aluminium 6000 Series A1 - Clear Aluminium 6000 Series A2 - Black Aluminium 6000 Series A3 - Bronze Aluminium 6000 Series A4 - Basalt Aluminium 6000 Series A8 - White Aluminium 6000 Series
    24V DC RGBW 24V DC 3-Wire 240V DALI Dimming
    20W / 2400lm / 2700K 20W / 2400lm / 3000K 20W / 2400lm / 4000K 20W / 1110lm / RGB+3000K
    Narrow (10°) Medium (25°) Wide (40°) Narrow (15°) Reflector Medium (25°) Reflector Wide (40°) Reflector Extra Wide (60°) Reflector
    Terminal Block 500mm 3-Core Standard Cable 500mm 6-Core Standard Cable

    AQL-882 - has 162 variations

    Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
    AQL-882-A0-A0203015T
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A0-A0203025T
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A0-A0203040T
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A0-A0203060T
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 3000K 60 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A0-A0202715T
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A0-A0202725T
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A0-A0202740T
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A0-A0202760T
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 2700K 60 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A0-A0204015T
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A0-A0204025T
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A0-A0204040T
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A0-A0204060T
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 4000K 60 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A1-A0203015T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A1-A0203025T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A1-A0203040T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A1-A0203060T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 3000K 60 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A1-A0202715T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A1-A0202725T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A1-A0202740T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A1-A0202760T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 2700K 60 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A1-A0204015T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A1-A0204025T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A1-A0204040T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A1-A0204060T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 4000K 60 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A2-A0203015T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A2-A0203025T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A2-A0203040T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A2-A0203060T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 3000K 60 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A2-A0202715T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A2-A0202725T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A2-A0202740T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A2-A0202760T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 2700K 60 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A2-A0204015T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A2-A0204025T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A2-A0204040T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A2-A0204060T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 4000K 60 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A3-A0203015T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A3-A0203025T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A3-A0203040T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A3-A0203060T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 3000K 60 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A3-A0202715T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A3-A0202725T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A3-A0202740T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A3-A0202760T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 2700K 60 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A3-A0204015T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A3-A0204025T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A3-A0204040T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A3-A0204060T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 4000K 60 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A4-A0203015T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A4-A0203025T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A4-A0203040T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A4-A0203060T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 3000K 60 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A4-A0202715T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A4-A0202725T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A4-A0202740T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A4-A0202760T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 2700K 60 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A4-A0204015T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A4-A0204025T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A4-A0204040T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A4-A0204060T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 4000K 60 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A8-A0203015T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A8-A0203025T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A8-A0203040T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A8-A0203060T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 3000K 60 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A8-A0202715T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A8-A0202725T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A8-A0202740T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A8-A0202760T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 2700K 60 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A8-A0204015T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A8-A0204025T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A8-A0204040T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A8-A0204060T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 4000K 60 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-882-A0-Z020Z210S
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 1110lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
    PDF
    AQL-882-A0-Z020Z225S
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 1110lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
    PDF
    AQL-882-A0-Z020Z240S
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 1110lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
    PDF
    AQL-882-A1-Z020Z210S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 1110lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
    PDF
    AQL-882-A1-Z020Z225S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 1110lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
    PDF
    AQL-882-A1-Z020Z240S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 1110lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
    PDF
    AQL-882-A2-Z020Z210S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 1110lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
    PDF
    AQL-882-A2-Z020Z225S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 1110lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
    PDF
    AQL-882-A2-Z020Z240S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 1110lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
    PDF
    AQL-882-A3-Z020Z210S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 1110lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
    PDF
    AQL-882-A3-Z020Z225S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 1110lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
    PDF
    AQL-882-A3-Z020Z240S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 1110lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
    PDF
    AQL-882-A4-Z020Z210S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 1110lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
    PDF
    AQL-882-A4-Z020Z225S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 1110lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
    PDF
    AQL-882-A4-Z020Z240S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 1110lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
    PDF
    AQL-882-A8-Z020Z210S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 1110lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
    PDF
    AQL-882-A8-Z020Z225S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 1110lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
    PDF
    AQL-882-A8-Z020Z240S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 1110lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
    PDF
    AQL-882-A0-B0203015S
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A0-B0203025S
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A0-B0203040S
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A0-B0203060S
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 3000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A0-B0202715S
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A0-B0202725S
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A0-B0202740S
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A0-B0202760S
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 2700K 60 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A0-B0204015S
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A0-B0204025S
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A0-B0204040S
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A0-B0204060S
    PDF
    		Custom
    Aluminium 6000 Series    		 20W 2400lm / 4000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A1-B0203015S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A1-B0203025S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A1-B0203040S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A1-B0203060S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 3000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A1-B0202715S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A1-B0202725S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A1-B0202740S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A1-B0202760S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 2700K 60 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A1-B0204015S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A1-B0204025S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A1-B0204040S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A1-B0204060S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2400lm / 4000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A2-B0203015S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A2-B0203025S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A2-B0203040S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A2-B0203060S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 3000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A2-B0202715S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A2-B0202725S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A2-B0202740S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A2-B0202760S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 2700K 60 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A2-B0204015S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A2-B0204025S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A2-B0204040S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A2-B0204060S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2400lm / 4000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A3-B0203015S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A3-B0203025S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A3-B0203040S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A3-B0203060S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 3000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A3-B0202715S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A3-B0202725S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A3-B0202740S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A3-B0202760S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 2700K 60 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A3-B0204015S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A3-B0204025S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A3-B0204040S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A3-B0204060S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2400lm / 4000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A4-B0203015S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A4-B0203025S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A4-B0203040S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A4-B0203060S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 3000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A4-B0202715S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A4-B0202725S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A4-B0202740S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A4-B0202760S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 2700K 60 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A4-B0204015S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A4-B0204025S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A4-B0204040S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A4-B0204060S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2400lm / 4000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A8-B0203015S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A8-B0203025S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A8-B0203040S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A8-B0203060S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 3000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A8-B0202715S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A8-B0202725S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A8-B0202740S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A8-B0202760S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 2700K 60 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A8-B0204015S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A8-B0204025S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A8-B0204040S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-882-A8-B0204060S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2400lm / 4000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF

    Products that work well with your selection

    AQL-156

    AQL-156

    AQL-157

    AQL-157

    AQL-158

    AQL-158

    AQL-180

    AQL-180

    AQL-181

    AQL-181

    AQL-182

    AQL-182

    AQL-190

    AQL-190
