LumenaPro

AQL-881

Surface Mount Downlight

Introduction

The AQL-881 is an advanced, highly configurable wall mount downlight for use in architectural and commercial applications.

Featuring integrated 240V DALI, 24V SELV or remote control gear options along with choices of Ultra Low Glare or High-Efficiency reflector optics, the AQL-881 is available in any Dulux powder coat finish for the ultimate in project specification flexibility. RGBW and speciality sources such as 98CRI and 2200K are also available.

The AQL-881 is 100% designed and manufactured in Sydney, Australia.

Specification

AQL-881

LumenaPro

CNC Machined Aluminium

Terminal Block

7 Year Aqualux Warranty

IP65

Options

Body

  • Custom

    Aluminium 6000 Series

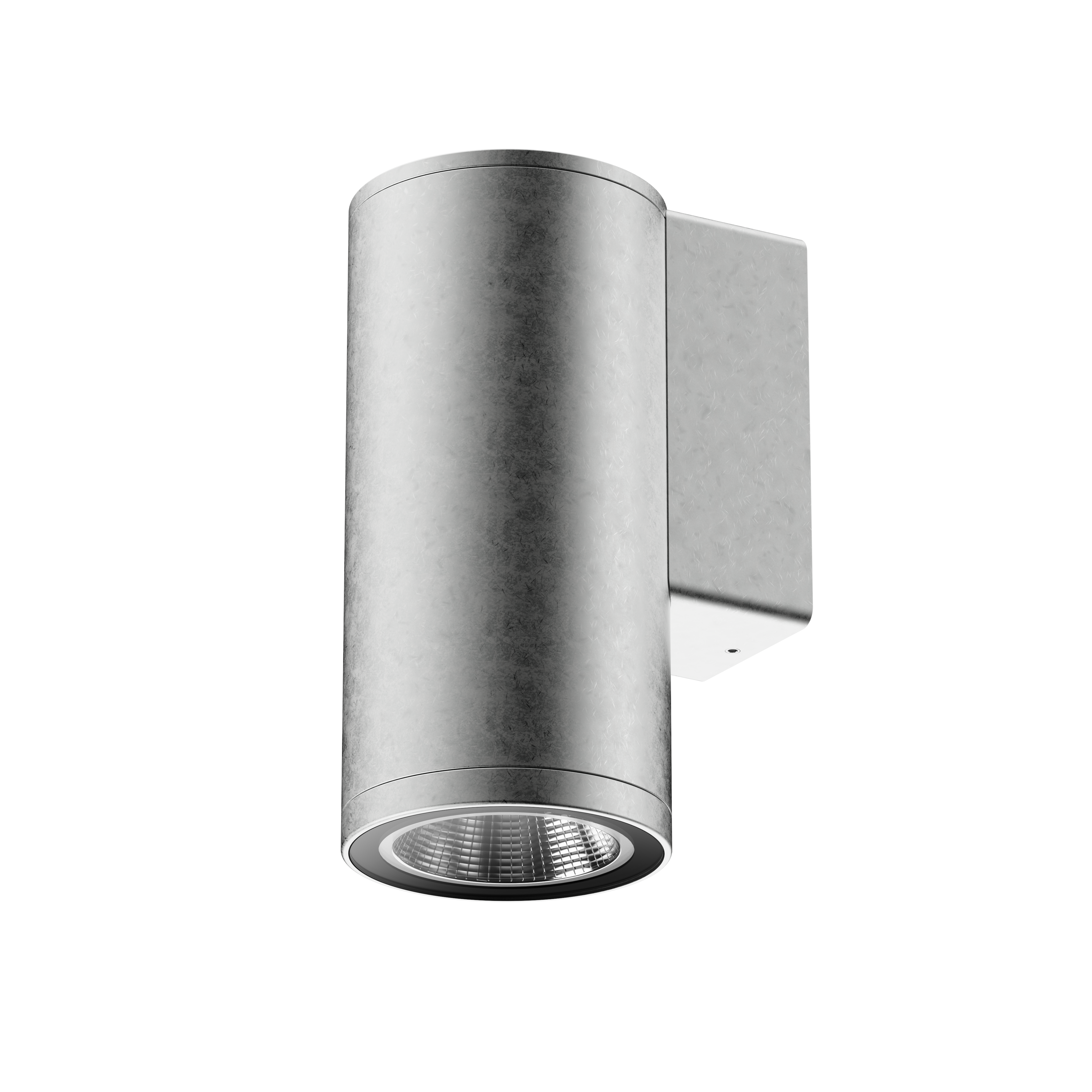

  • A1 - Clear

    Aluminium 6000 Series

  • A2 - Black

    Aluminium 6000 Series

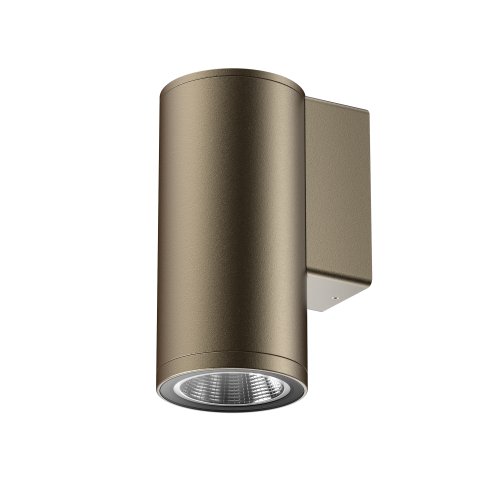

  • A3 - Bronze

    Aluminium 6000 Series

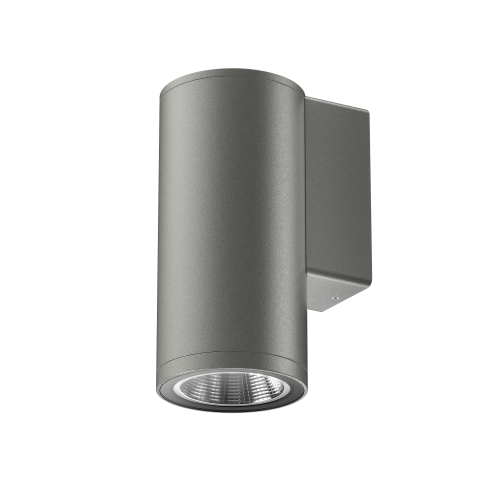

  • A4 - Basalt

    Aluminium 6000 Series

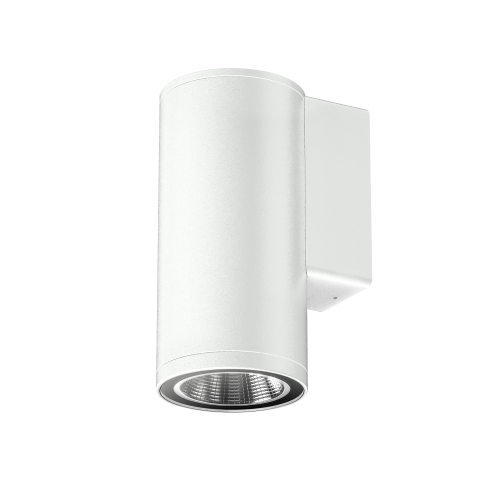

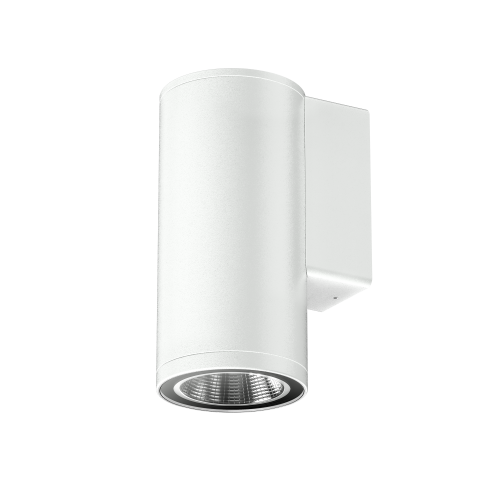

  • A8 - White

    Aluminium 6000 Series

Control Gear

  • 24V DC RGBW

    Dimming: 4CH Low-Side PWM

  • 24V DC 3-Wire

    Dimming: 3-wire PWM 10V Dimming

  • 240V DALI Dimming

    Dimming: DALI Integral

Light Sources

  • 20W / 1000lm

    20W RGB+3000K

  • 15W / 1500lm

    2700K

  • 10W / 1200lm

    2700K

  • 15W / 1500lm

    3000K

  • 10W / 1200lm

    3000K

  • 15W / 1500lm

    4000K

  • 10W / 1200lm

    4000K

Optical

  • Narrow (10°)

    10

  • Medium (25°)

    25

  • Medium (35°)

    35

  • Narrow (15°) Reflector

    15

  • Medium (25°) Reflector

    25

  • Wide (40°) Reflector

    40

  • Extra Wide (60°) Reflector

    60

Cable

  • T

    Terminal Block

  • S

    500mm 6-Core Standard Cable


Configure order code

AQL-881

To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.


AQL-881 - has 159 variations

Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
AQL-881-A0-B0103015T
PDF
Custom
Aluminium 6000 Series
10W 1200lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A0-B0103025T
PDF
Custom
Aluminium 6000 Series
10W 1200lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A0-B0103040T
PDF
Custom
Aluminium 6000 Series
10W 1200lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A0-B0103060T
PDF
Custom
Aluminium 6000 Series
10W 1200lm / 3000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A0-B0102715T
PDF
Custom
Aluminium 6000 Series
10W 1200lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A0-B0102725T
PDF
Custom
Aluminium 6000 Series
10W 1200lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A0-B0102740T
PDF
Custom
Aluminium 6000 Series
10W 1200lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A0-B0102760T
PDF
Custom
Aluminium 6000 Series
10W 1200lm / 2700K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A0-B0104015T
PDF
Custom
Aluminium 6000 Series
10W 1200lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A0-B0104025T
PDF
Custom
Aluminium 6000 Series
10W 1200lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A0-B0104040T
PDF
Custom
Aluminium 6000 Series
10W 1200lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A0-B0104060T
PDF
Custom
Aluminium 6000 Series
10W 1200lm / 4000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A1-B0103015T
PDF
A1 - Clear
Aluminium 6000 Series
10W 1200lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A1-B0103025T
PDF
A1 - Clear
Aluminium 6000 Series
10W 1200lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A1-B0103040T
PDF
A1 - Clear
Aluminium 6000 Series
10W 1200lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A1-B0103060T
PDF
A1 - Clear
Aluminium 6000 Series
10W 1200lm / 3000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A1-B0102715T
PDF
A1 - Clear
Aluminium 6000 Series
10W 1200lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A1-B0102725T
PDF
A1 - Clear
Aluminium 6000 Series
10W 1200lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A1-B0102740T
PDF
A1 - Clear
Aluminium 6000 Series
10W 1200lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A1-B0102760T
PDF
A1 - Clear
Aluminium 6000 Series
10W 1200lm / 2700K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A1-B0104015T
PDF
A1 - Clear
Aluminium 6000 Series
10W 1200lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A1-B0104025T
PDF
A1 - Clear
Aluminium 6000 Series
10W 1200lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A1-B0104040T
PDF
A1 - Clear
Aluminium 6000 Series
10W 1200lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A1-B0104060T
PDF
A1 - Clear
Aluminium 6000 Series
10W 1200lm / 4000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A2-B0103015T
PDF
A2 - Black
Aluminium 6000 Series
10W 1200lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A2-B0103025T
PDF
A2 - Black
Aluminium 6000 Series
10W 1200lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A2-B0103040T
PDF
A2 - Black
Aluminium 6000 Series
10W 1200lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A2-B0103060T
PDF
A2 - Black
Aluminium 6000 Series
10W 1200lm / 3000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A2-B0102715T
PDF
A2 - Black
Aluminium 6000 Series
10W 1200lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A2-B0102725T
PDF
A2 - Black
Aluminium 6000 Series
10W 1200lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A2-B0102740T
PDF
A2 - Black
Aluminium 6000 Series
10W 1200lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A2-B0102760T
PDF
A2 - Black
Aluminium 6000 Series
10W 1200lm / 2700K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A2-B0104015T
PDF
A2 - Black
Aluminium 6000 Series
10W 1200lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A2-B0104025T
PDF
A2 - Black
Aluminium 6000 Series
10W 1200lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A2-B0104040T
PDF
A2 - Black
Aluminium 6000 Series
10W 1200lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A2-B0104060T
PDF
A2 - Black
Aluminium 6000 Series
10W 1200lm / 4000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A3-B0103015T
PDF
A3 - Bronze
Aluminium 6000 Series
10W 1200lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A3-B0103025T
PDF
A3 - Bronze
Aluminium 6000 Series
10W 1200lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A3-B0103040T
PDF
A3 - Bronze
Aluminium 6000 Series
10W 1200lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A3-B0103060T
PDF
A3 - Bronze
Aluminium 6000 Series
10W 1200lm / 3000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A3-B0102715T
PDF
A3 - Bronze
Aluminium 6000 Series
10W 1200lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A3-B0102725T
PDF
A3 - Bronze
Aluminium 6000 Series
10W 1200lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A3-B0102740T
PDF
A3 - Bronze
Aluminium 6000 Series
10W 1200lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A3-B0102760T
PDF
A3 - Bronze
Aluminium 6000 Series
10W 1200lm / 2700K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A3-B0104015T
PDF
A3 - Bronze
Aluminium 6000 Series
10W 1200lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A3-B0104025T
PDF
A3 - Bronze
Aluminium 6000 Series
10W 1200lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A3-B0104040T
PDF
A3 - Bronze
Aluminium 6000 Series
10W 1200lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A3-B0104060T
PDF
A3 - Bronze
Aluminium 6000 Series
10W 1200lm / 4000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A4-B0103015T
PDF
A4 - Basalt
Aluminium 6000 Series
10W 1200lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A4-B0103025T
PDF
A4 - Basalt
Aluminium 6000 Series
10W 1200lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A4-B0103040T
PDF
A4 - Basalt
Aluminium 6000 Series
10W 1200lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A4-B0103060T
PDF
A4 - Basalt
Aluminium 6000 Series
10W 1200lm / 3000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A4-B0102715T
PDF
A4 - Basalt
Aluminium 6000 Series
10W 1200lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A4-B0102725T
PDF
A4 - Basalt
Aluminium 6000 Series
10W 1200lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A4-B0102740T
PDF
A4 - Basalt
Aluminium 6000 Series
10W 1200lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A4-B0102760T
PDF
A4 - Basalt
Aluminium 6000 Series
10W 1200lm / 2700K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A4-B0104015T
PDF
A4 - Basalt
Aluminium 6000 Series
10W 1200lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A4-B0104025T
PDF
A4 - Basalt
Aluminium 6000 Series
10W 1200lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A4-B0104040T
PDF
A4 - Basalt
Aluminium 6000 Series
10W 1200lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A4-B0104060T
PDF
A4 - Basalt
Aluminium 6000 Series
10W 1200lm / 4000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A8-B0103015T
PDF
A8 - White
Aluminium 6000 Series
10W 1200lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A8-B0103025T
PDF
A8 - White
Aluminium 6000 Series
10W 1200lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A8-B0103040T
PDF
A8 - White
Aluminium 6000 Series
10W 1200lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A8-B0103060T
PDF
A8 - White
Aluminium 6000 Series
10W 1200lm / 3000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A8-B0102715T
PDF
A8 - White
Aluminium 6000 Series
10W 1200lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A8-B0102725T
PDF
A8 - White
Aluminium 6000 Series
10W 1200lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A8-B0102740T
PDF
A8 - White
Aluminium 6000 Series
10W 1200lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A8-B0102760T
PDF
A8 - White
Aluminium 6000 Series
10W 1200lm / 2700K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A8-B0104015T
PDF
A8 - White
Aluminium 6000 Series
10W 1200lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A8-B0104025T
PDF
A8 - White
Aluminium 6000 Series
10W 1200lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A8-B0104040T
PDF
A8 - White
Aluminium 6000 Series
10W 1200lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A8-B0104060T
PDF
A8 - White
Aluminium 6000 Series
10W 1200lm / 4000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-881-A0-A0153015T
PDF
Custom
Aluminium 6000 Series
15W 1500lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A0-A0153025T
PDF
Custom
Aluminium 6000 Series
15W 1500lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A0-A0153040T
PDF
Custom
Aluminium 6000 Series
15W 1500lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A0-A0153060T
PDF
Custom
Aluminium 6000 Series
15W 1500lm / 3000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A0-A0152715T
PDF
Custom
Aluminium 6000 Series
15W 1500lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A0-A0152725T
PDF
Custom
Aluminium 6000 Series
15W 1500lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A0-A0152740T
PDF
Custom
Aluminium 6000 Series
15W 1500lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A0-A0152760T
PDF
Custom
Aluminium 6000 Series
15W 1500lm / 2700K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A0-A0154015T
PDF
Custom
Aluminium 6000 Series
15W 1500lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A0-A0154025T
PDF
Custom
Aluminium 6000 Series
15W 1500lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A0-A0154040T
PDF
Custom
Aluminium 6000 Series
15W 1500lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A0-A0154060T
PDF
Custom
Aluminium 6000 Series
15W 1500lm / 4000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A1-A0153015T
PDF
A1 - Clear
Aluminium 6000 Series
15W 1500lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A1-A0153025T
PDF
A1 - Clear
Aluminium 6000 Series
15W 1500lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A1-A0153040T
PDF
A1 - Clear
Aluminium 6000 Series
15W 1500lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A1-A0153060T
PDF
A1 - Clear
Aluminium 6000 Series
15W 1500lm / 3000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A1-A0152715T
PDF
A1 - Clear
Aluminium 6000 Series
15W 1500lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A1-A0152725T
PDF
A1 - Clear
Aluminium 6000 Series
15W 1500lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A1-A0152740T
PDF
A1 - Clear
Aluminium 6000 Series
15W 1500lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A1-A0152760T
PDF
A1 - Clear
Aluminium 6000 Series
15W 1500lm / 2700K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A1-A0154015T
PDF
A1 - Clear
Aluminium 6000 Series
15W 1500lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A1-A0154025T
PDF
A1 - Clear
Aluminium 6000 Series
15W 1500lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A1-A0154040T
PDF
A1 - Clear
Aluminium 6000 Series
15W 1500lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A1-A0154060T
PDF
A1 - Clear
Aluminium 6000 Series
15W 1500lm / 4000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A2-A0153015T
PDF
A2 - Black
Aluminium 6000 Series
15W 1500lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A2-A0153025T
PDF
A2 - Black
Aluminium 6000 Series
15W 1500lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A2-A0153040T
PDF
A2 - Black
Aluminium 6000 Series
15W 1500lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A2-A0153060T
PDF
A2 - Black
Aluminium 6000 Series
15W 1500lm / 3000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A2-A0152715T
PDF
A2 - Black
Aluminium 6000 Series
15W 1500lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A2-A0152725T
PDF
A2 - Black
Aluminium 6000 Series
15W 1500lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A2-A0152740T
PDF
A2 - Black
Aluminium 6000 Series
15W 1500lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A2-A0152760T
PDF
A2 - Black
Aluminium 6000 Series
15W 1500lm / 2700K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A2-A0154015T
PDF
A2 - Black
Aluminium 6000 Series
15W 1500lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A2-A0154025T
PDF
A2 - Black
Aluminium 6000 Series
15W 1500lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A2-A0154040T
PDF
A2 - Black
Aluminium 6000 Series
15W 1500lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A2-A0154060T
PDF
A2 - Black
Aluminium 6000 Series
15W 1500lm / 4000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A3-A0153015T
PDF
A3 - Bronze
Aluminium 6000 Series
15W 1500lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A3-A0153025T
PDF
A3 - Bronze
Aluminium 6000 Series
15W 1500lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A3-A0153040T
PDF
A3 - Bronze
Aluminium 6000 Series
15W 1500lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A3-A0153060T
PDF
A3 - Bronze
Aluminium 6000 Series
15W 1500lm / 3000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A3-A0152715T
PDF
A3 - Bronze
Aluminium 6000 Series
15W 1500lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A3-A0152725T
PDF
A3 - Bronze
Aluminium 6000 Series
15W 1500lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A3-A0152740T
PDF
A3 - Bronze
Aluminium 6000 Series
15W 1500lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A3-A0152760T
PDF
A3 - Bronze
Aluminium 6000 Series
15W 1500lm / 2700K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A3-A0154015T
PDF
A3 - Bronze
Aluminium 6000 Series
15W 1500lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A3-A0154025T
PDF
A3 - Bronze
Aluminium 6000 Series
15W 1500lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A3-A0154040T
PDF
A3 - Bronze
Aluminium 6000 Series
15W 1500lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A3-A0154060T
PDF
A3 - Bronze
Aluminium 6000 Series
15W 1500lm / 4000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A4-A0153015T
PDF
A4 - Basalt
Aluminium 6000 Series
15W 1500lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A4-A0153025T
PDF
A4 - Basalt
Aluminium 6000 Series
15W 1500lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A4-A0153040T
PDF
A4 - Basalt
Aluminium 6000 Series
15W 1500lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A4-A0153060T
PDF
A4 - Basalt
Aluminium 6000 Series
15W 1500lm / 3000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A4-A0152715T
PDF
A4 - Basalt
Aluminium 6000 Series
15W 1500lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A4-A0152725T
PDF
A4 - Basalt
Aluminium 6000 Series
15W 1500lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A4-A0152740T
PDF
A4 - Basalt
Aluminium 6000 Series
15W 1500lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A4-A0152760T
PDF
A4 - Basalt
Aluminium 6000 Series
15W 1500lm / 2700K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A4-A0154015T
PDF
A4 - Basalt
Aluminium 6000 Series
15W 1500lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A4-A0154025T
PDF
A4 - Basalt
Aluminium 6000 Series
15W 1500lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A4-A0154040T
PDF
A4 - Basalt
Aluminium 6000 Series
15W 1500lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A4-A0154060T
PDF
A4 - Basalt
Aluminium 6000 Series
15W 1500lm / 4000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A8-A0153015T
PDF
A8 - White
Aluminium 6000 Series
15W 1500lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A8-A0153025T
PDF
A8 - White
Aluminium 6000 Series
15W 1500lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A8-A0153040T
PDF
A8 - White
Aluminium 6000 Series
15W 1500lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A8-A0153060T
PDF
A8 - White
Aluminium 6000 Series
15W 1500lm / 3000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A8-A0152715T
PDF
A8 - White
Aluminium 6000 Series
15W 1500lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A8-A0152725T
PDF
A8 - White
Aluminium 6000 Series
15W 1500lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A8-A0152740T
PDF
A8 - White
Aluminium 6000 Series
15W 1500lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A8-A0152760T
PDF
A8 - White
Aluminium 6000 Series
15W 1500lm / 2700K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A8-A0154015T
PDF
A8 - White
Aluminium 6000 Series
15W 1500lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A8-A0154025T
PDF
A8 - White
Aluminium 6000 Series
15W 1500lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A8-A0154040T
PDF
A8 - White
Aluminium 6000 Series
15W 1500lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A8-A0154060T
PDF
A8 - White
Aluminium 6000 Series
15W 1500lm / 4000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-881-A1-Z020Z210S
PDF
A1 - Clear
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-881-A1-Z020Z225S
PDF
A1 - Clear
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-881-A1-Z020Z235S
PDF
A1 - Clear
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-881-A2-Z020Z210S
PDF
A2 - Black
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-881-A2-Z020Z225S
PDF
A2 - Black
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-881-A2-Z020Z235S
PDF
A2 - Black
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-881-A3-Z020Z210S
PDF
A3 - Bronze
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-881-A3-Z020Z225S
PDF
A3 - Bronze
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-881-A3-Z020Z235S
PDF
A3 - Bronze
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-881-A4-Z020Z210S
PDF
A4 - Basalt
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-881-A4-Z020Z225S
PDF
A4 - Basalt
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-881-A4-Z020Z235S
PDF
A4 - Basalt
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-881-A8-Z020Z210S
PDF
A8 - White
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-881-A8-Z020Z225S
PDF
A8 - White
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-881-A8-Z020Z235S
PDF
A8 - White
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
