Lumena

AQL-125

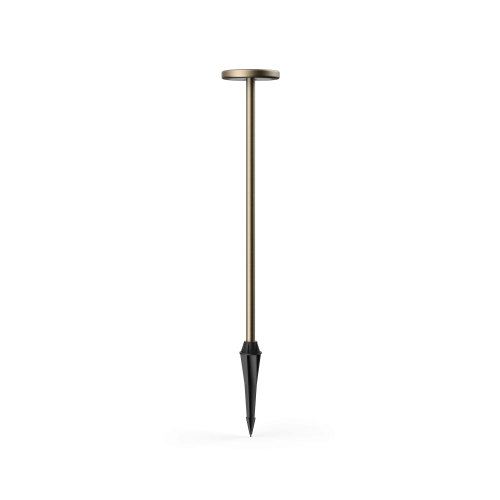

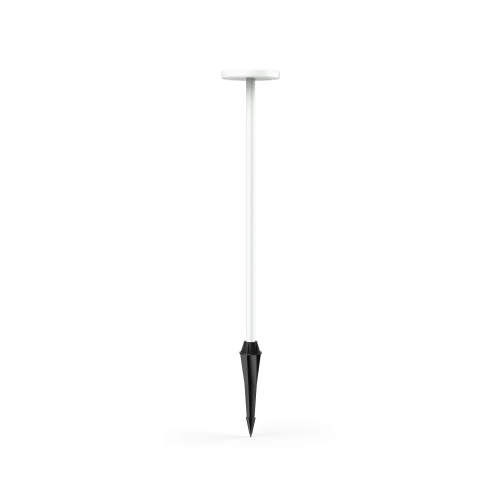

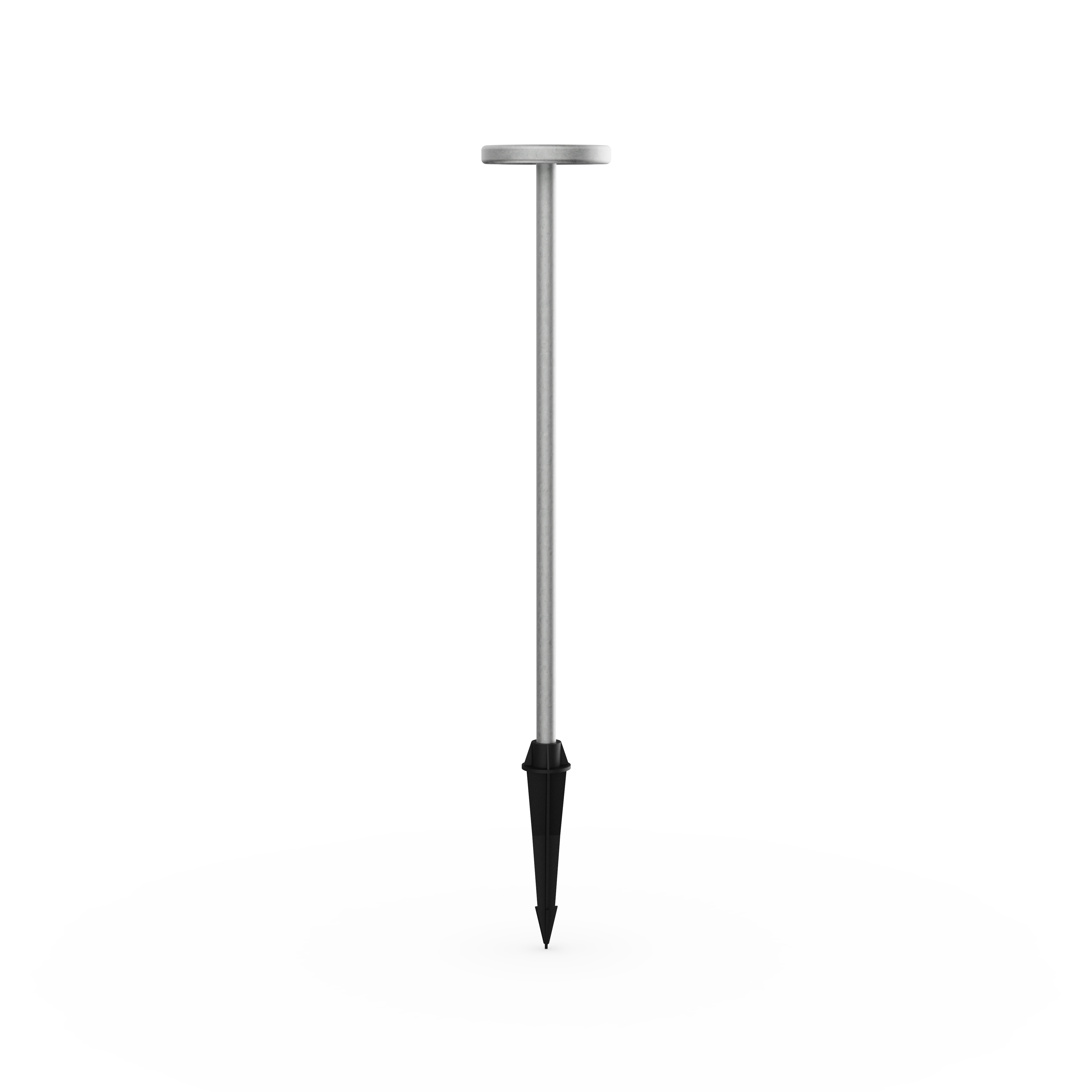

Spike pathlight

Introduction

The AQL-125 is a center mount version of the offset AQL-124, featuring a disc top for more modern settings. Available in spike and surface mount options.

Specification

AQL-125

Lumena

CNC Machined Aluminium

3-Core Anti-Siphon Cable

7 Year Aqualux Warranty

IP65

For surface mount version add /SM to the end of your code

Options

Body

  • A1 - Clear

    Aluminium 6000 Series

  • A2 - Black

    Aluminium 6000 Series

  • A3 - Bronze

    Aluminium 6000 Series

  • A4 - Basalt

    Aluminium 6000 Series

  • A8 - White

    Aluminium 6000 Series

Control Gear

  • 12~24V AC / 24V DC

    Dimming: 3-Wire 10V PWM

Light Sources

  • 4W / 300lm

    2700K

  • 4W / 300lm

    3000K

Optical

  • Diffuse (Frosted)

    DF

Cable

  • A

    1m 3-Core Anti-Siphon Cable


Configure order code

AQL-125

To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.


AQL-125 - has 10 variations

Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
AQL-125-A1-X00430DFA
PDF
A1 - Clear
Aluminium 6000 Series
4W 300lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM 1m 3-Core Anti-Siphon Cable
PDF
AQL-125-A1-X00427DFA
PDF
A1 - Clear
Aluminium 6000 Series
4W 300lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM 1m 3-Core Anti-Siphon Cable
PDF
AQL-125-A2-X00430DFA
PDF
A2 - Black
Aluminium 6000 Series
4W 300lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM 1m 3-Core Anti-Siphon Cable
PDF
AQL-125-A2-X00427DFA
PDF
A2 - Black
Aluminium 6000 Series
4W 300lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM 1m 3-Core Anti-Siphon Cable
PDF
AQL-125-A3-X00430DFA
PDF
A3 - Bronze
Aluminium 6000 Series
4W 300lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM 1m 3-Core Anti-Siphon Cable
PDF
AQL-125-A3-X00427DFA
PDF
A3 - Bronze
Aluminium 6000 Series
4W 300lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM 1m 3-Core Anti-Siphon Cable
PDF
AQL-125-A4-X00430DFA
PDF
A4 - Basalt
Aluminium 6000 Series
4W 300lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM 1m 3-Core Anti-Siphon Cable
PDF
AQL-125-A4-X00427DFA
PDF
A4 - Basalt
Aluminium 6000 Series
4W 300lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM 1m 3-Core Anti-Siphon Cable
PDF
AQL-125-A8-X00430DFA
PDF
A8 - White
Aluminium 6000 Series
4W 300lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM 1m 3-Core Anti-Siphon Cable
PDF
AQL-125-A8-X00427DFA
PDF
A8 - White
Aluminium 6000 Series
4W 300lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM 1m 3-Core Anti-Siphon Cable
PDF
