Introduction

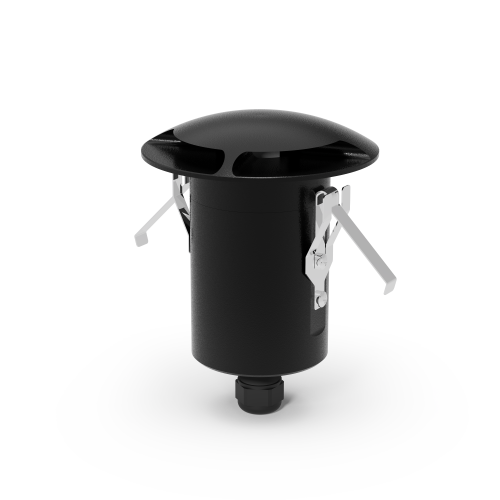

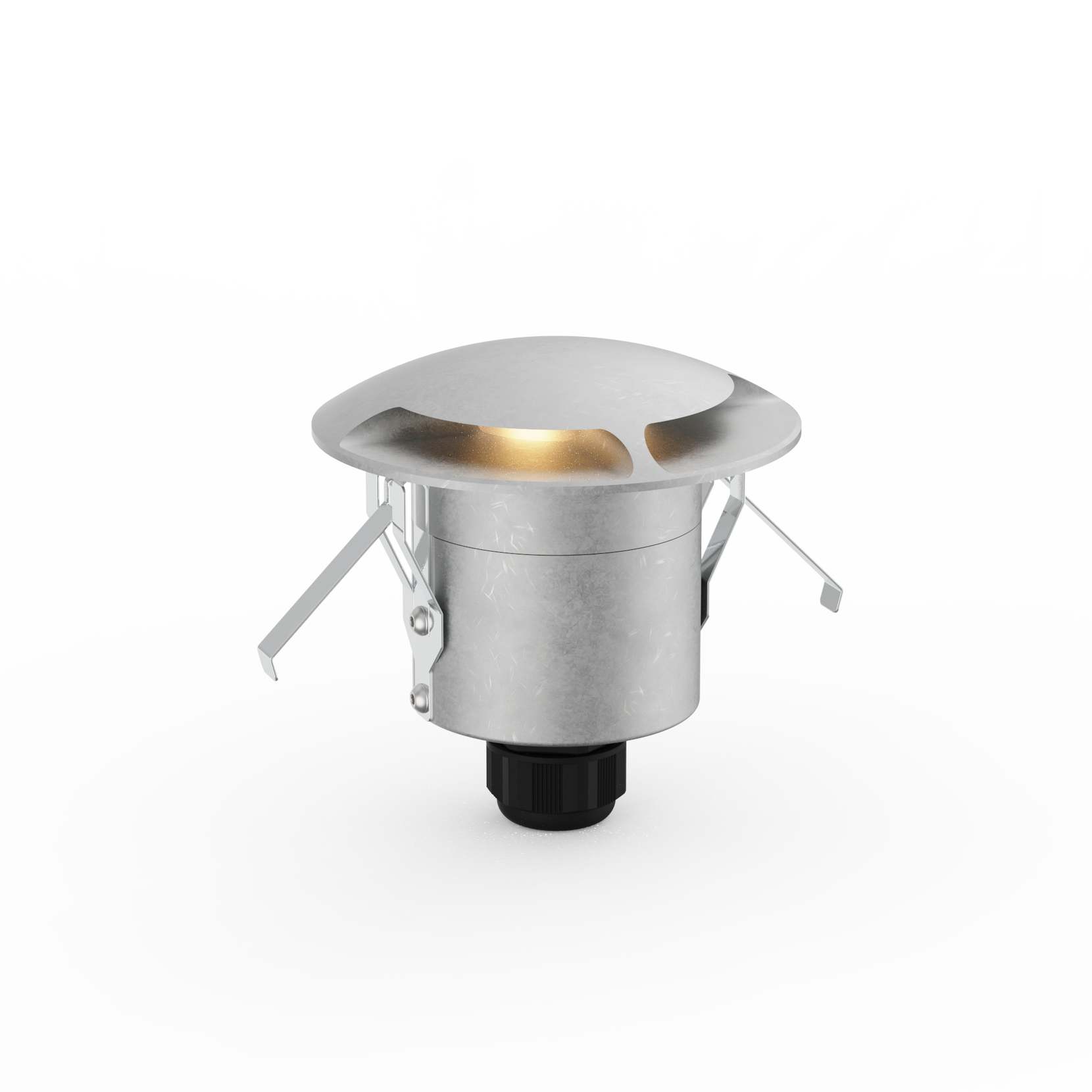

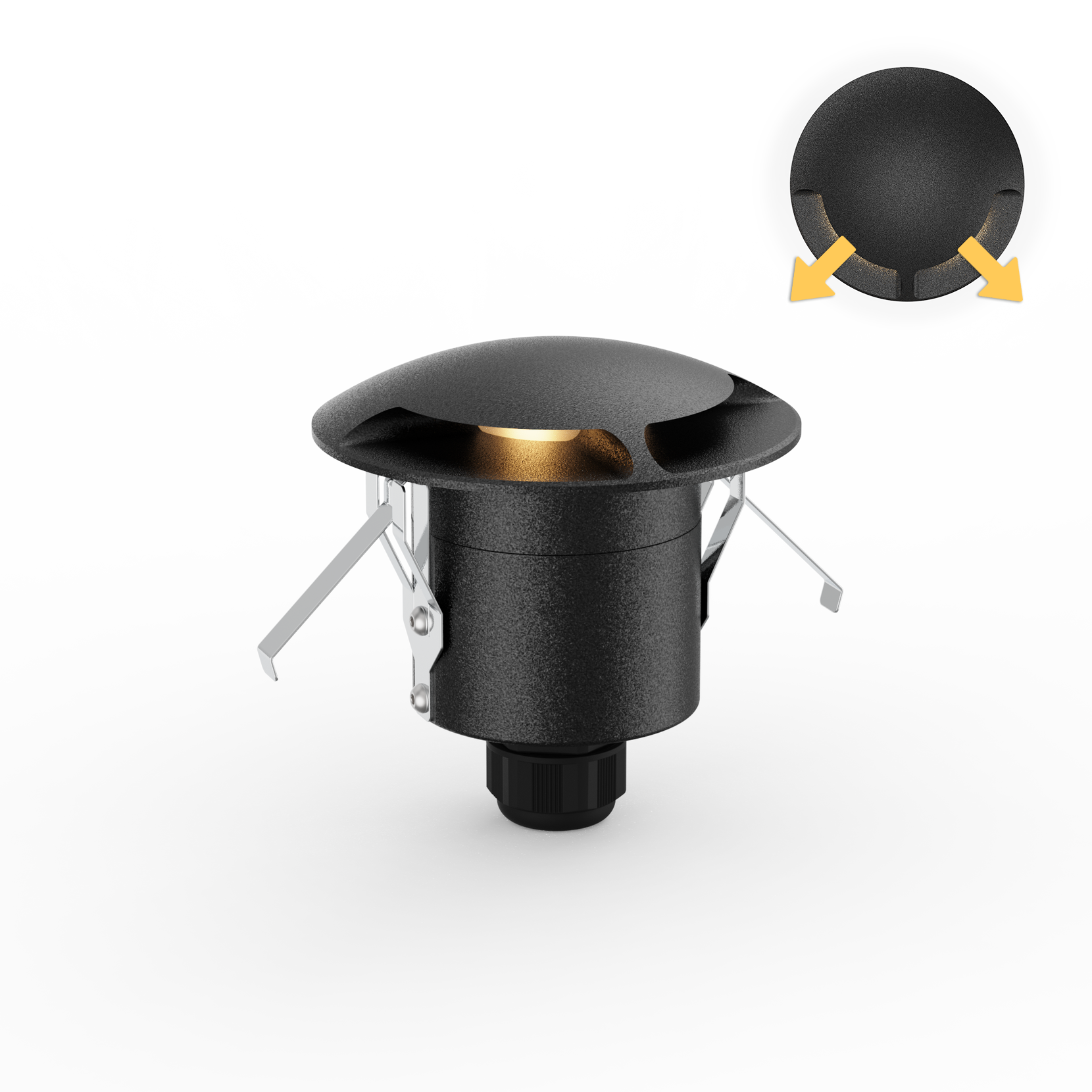

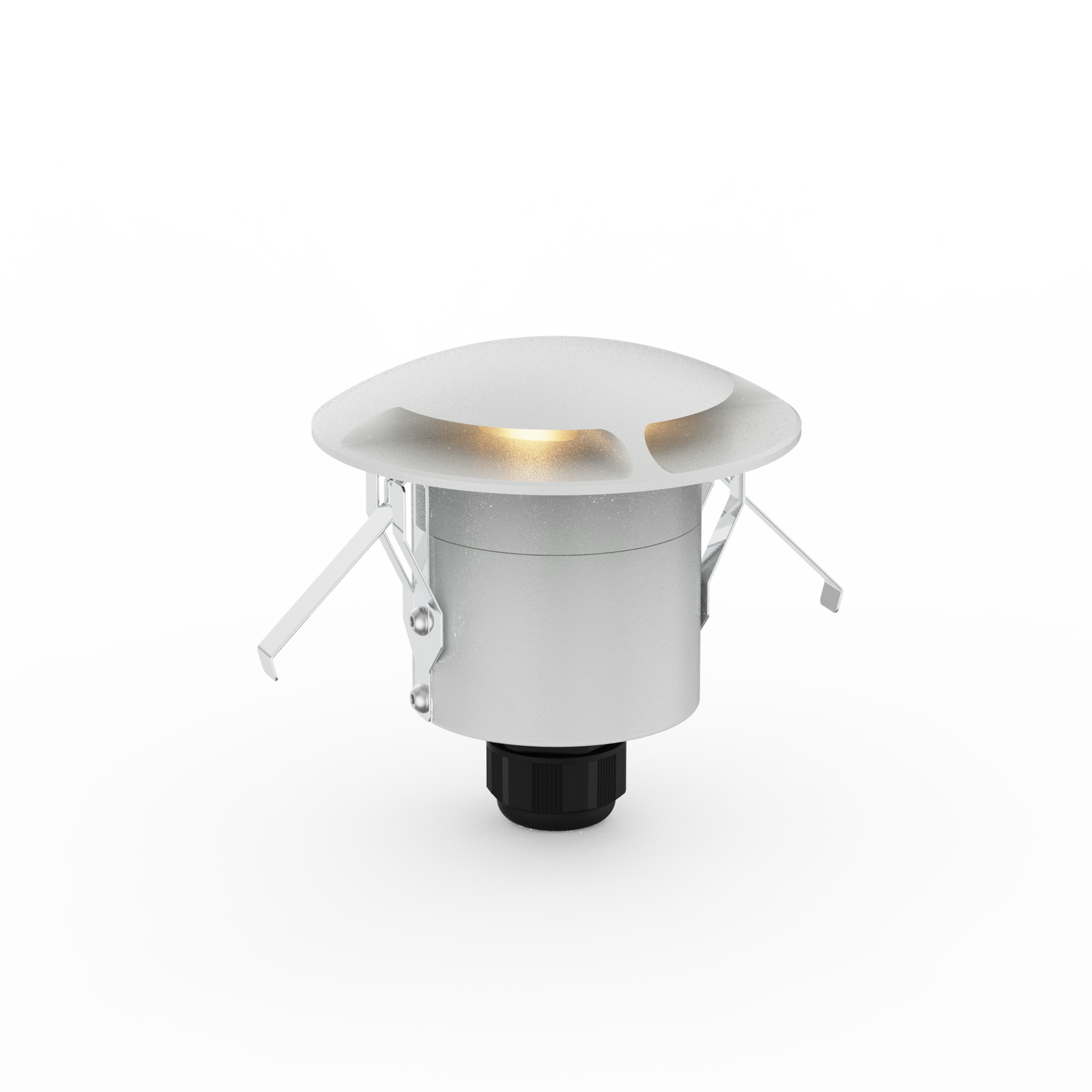

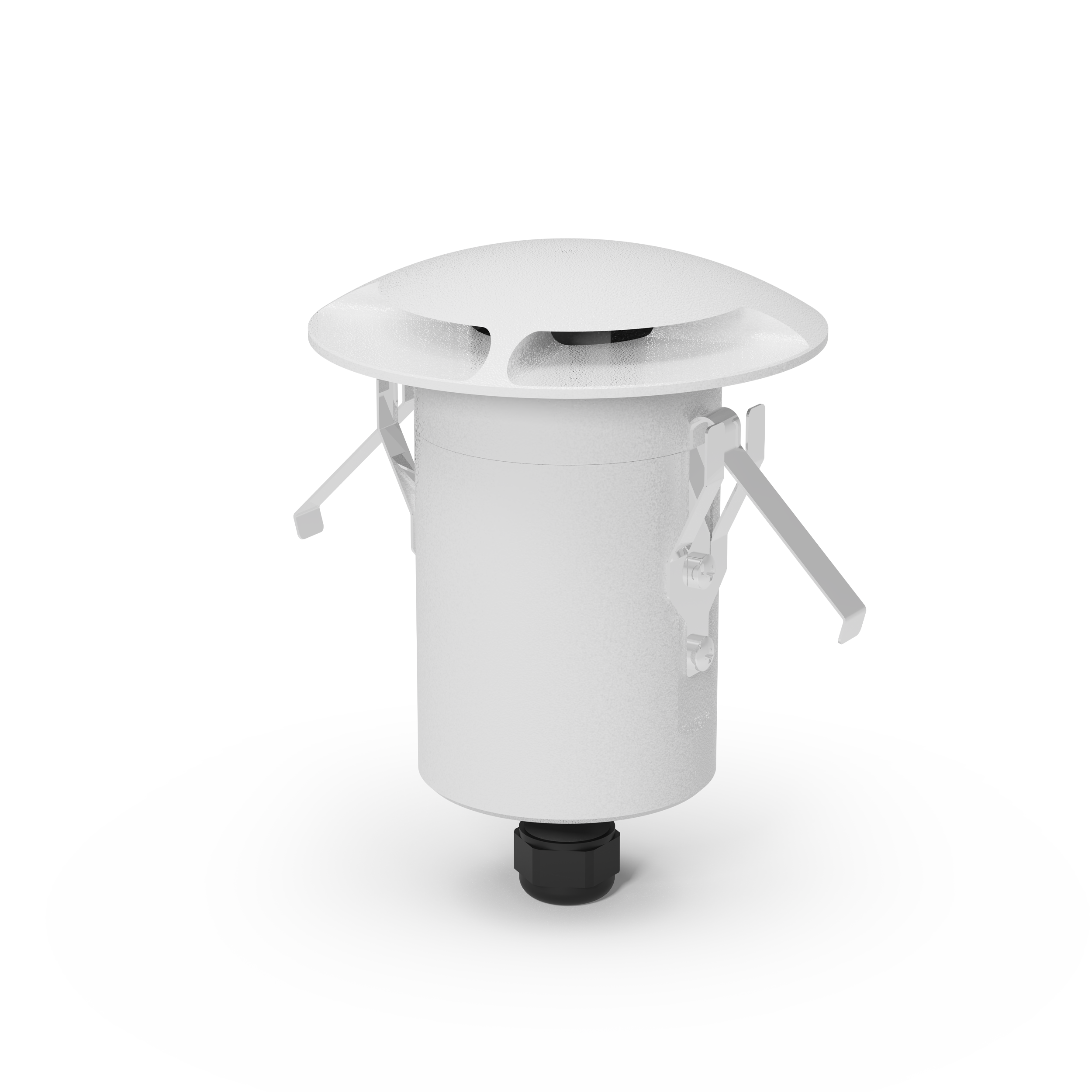

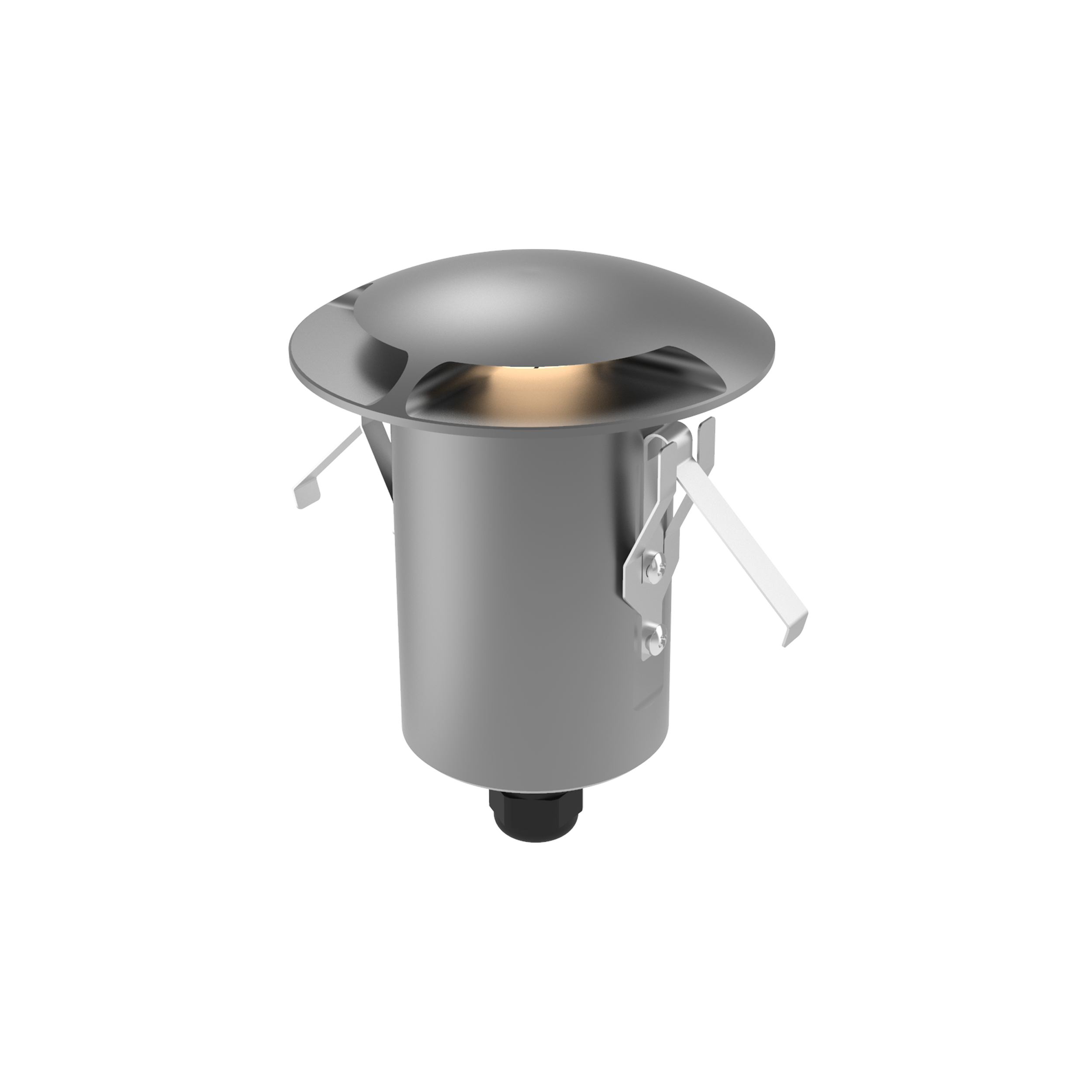

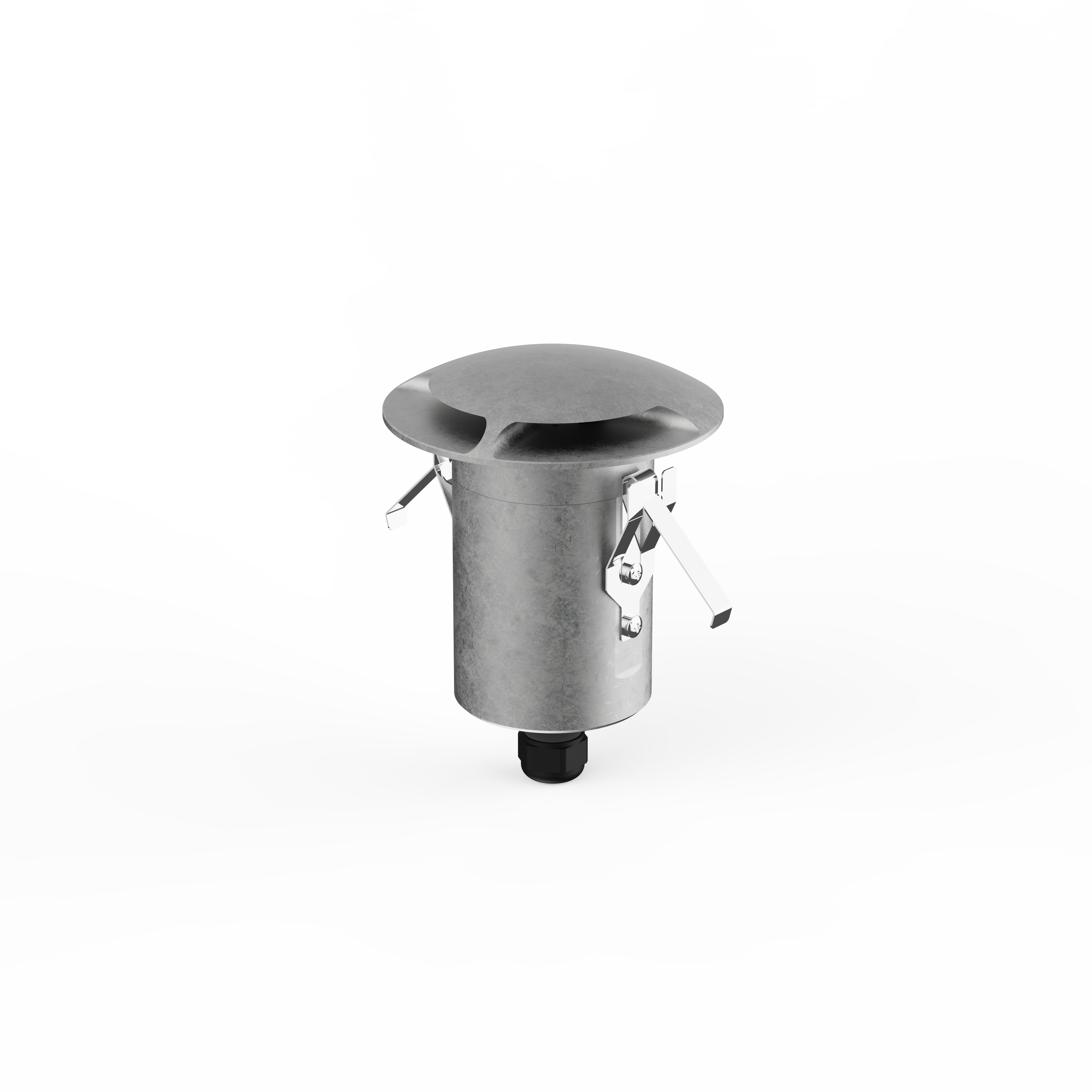

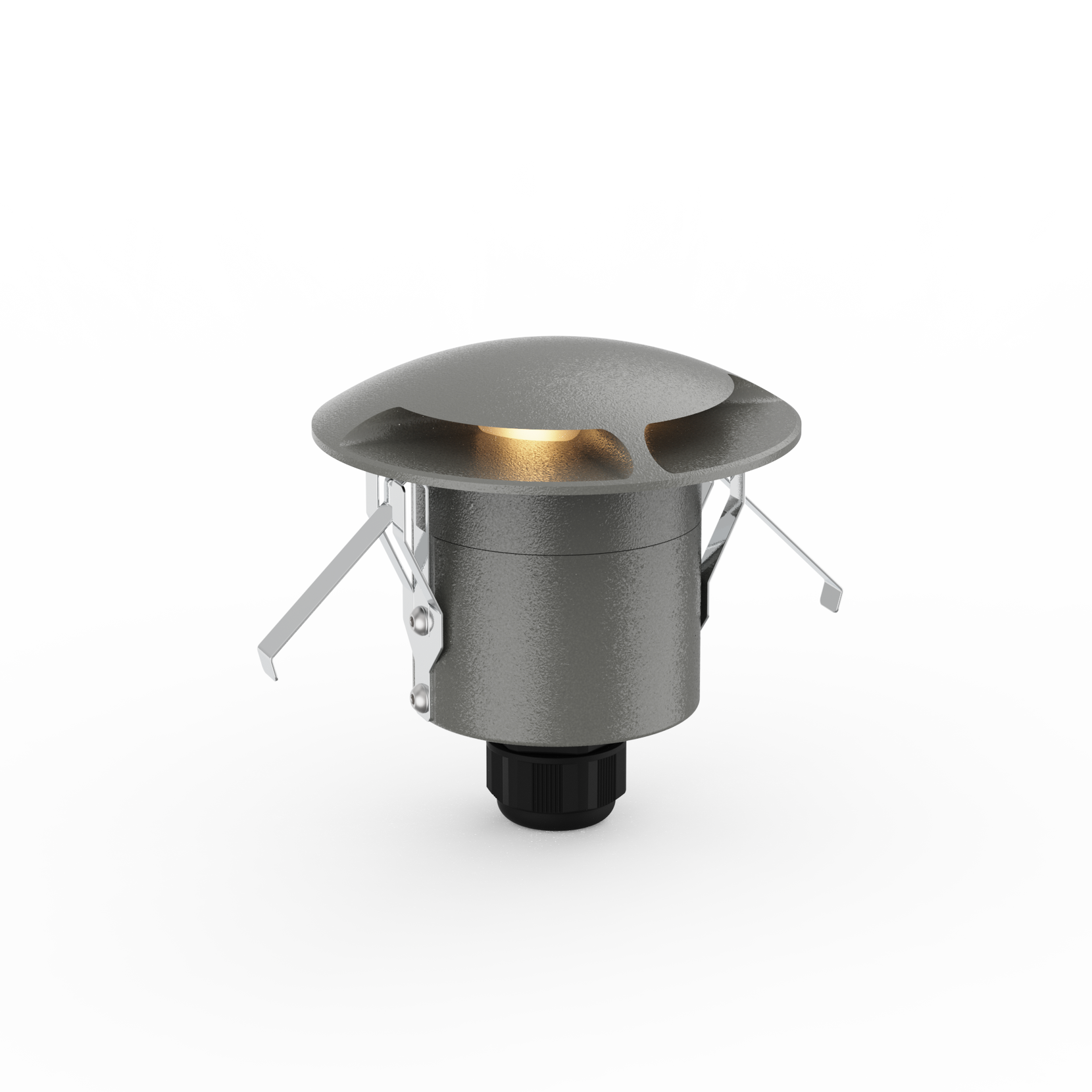

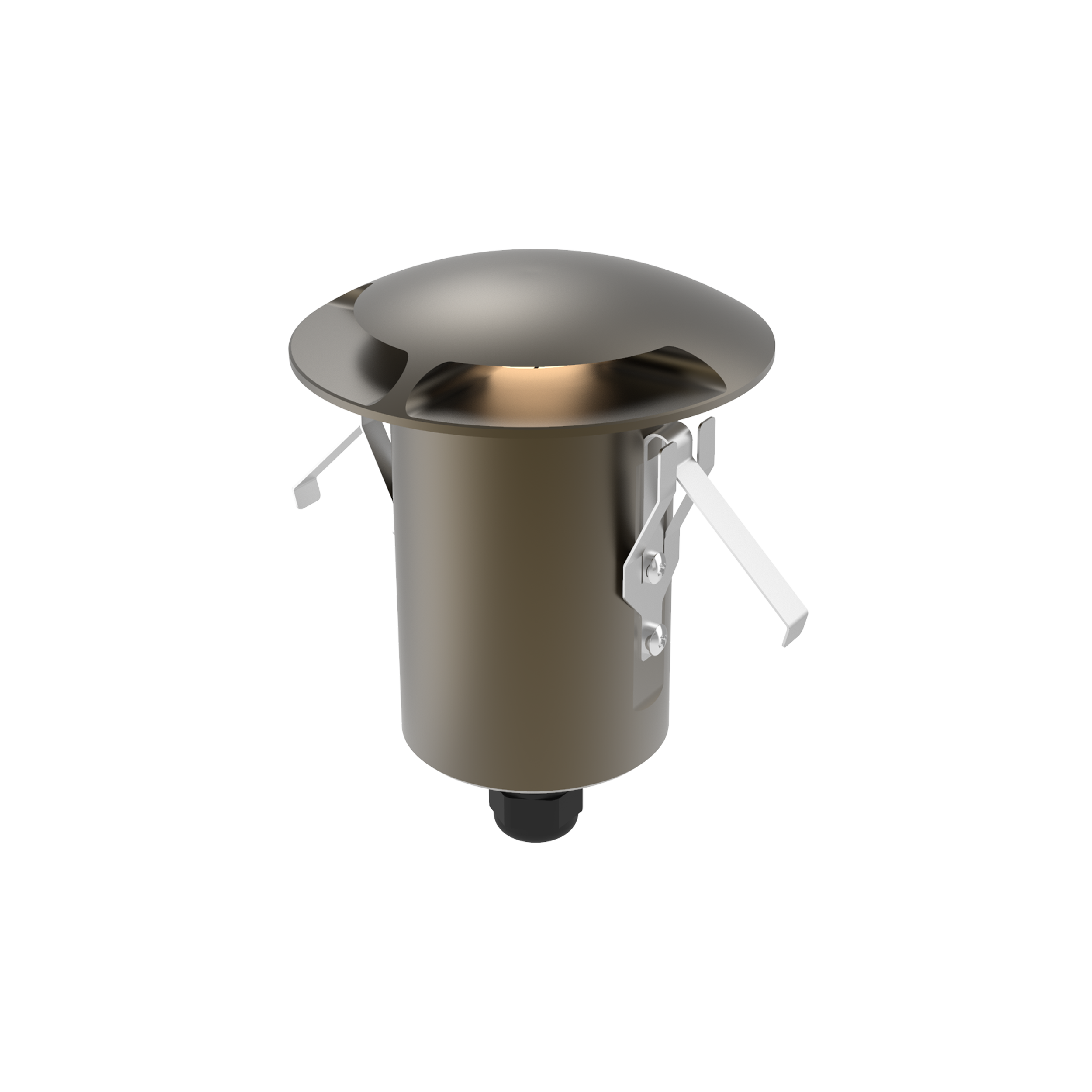

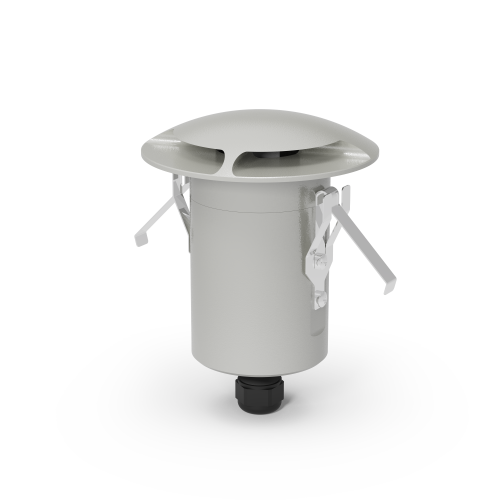

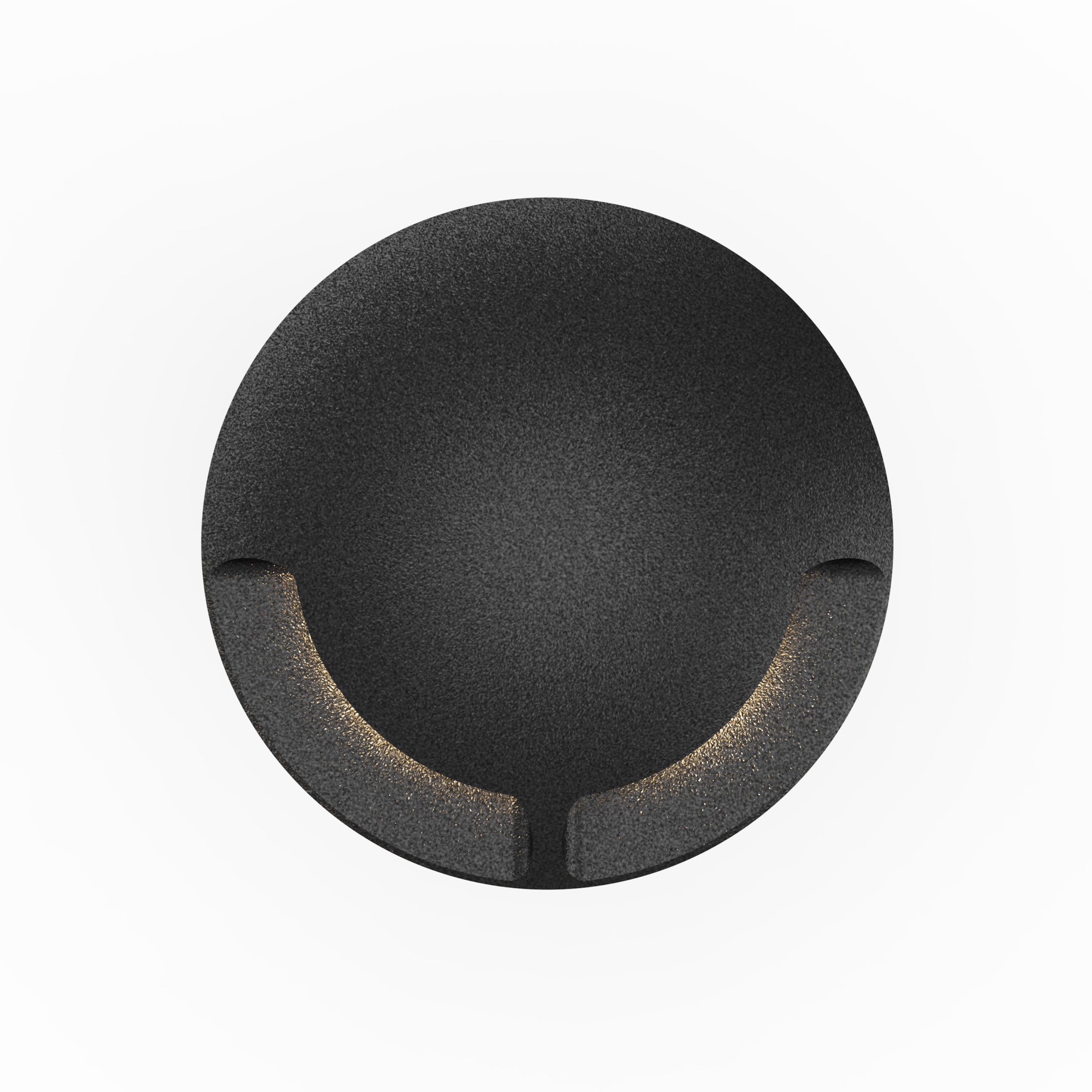

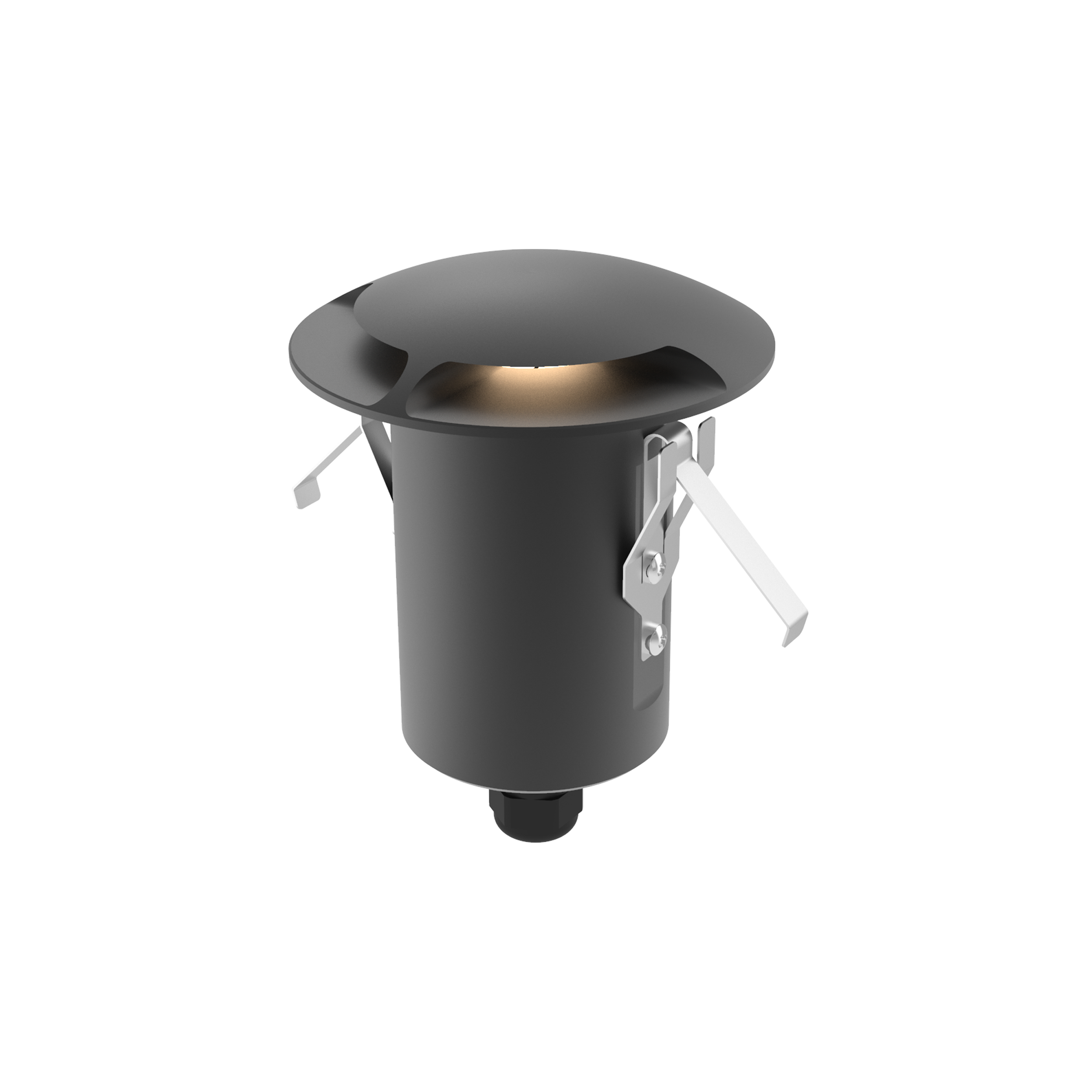

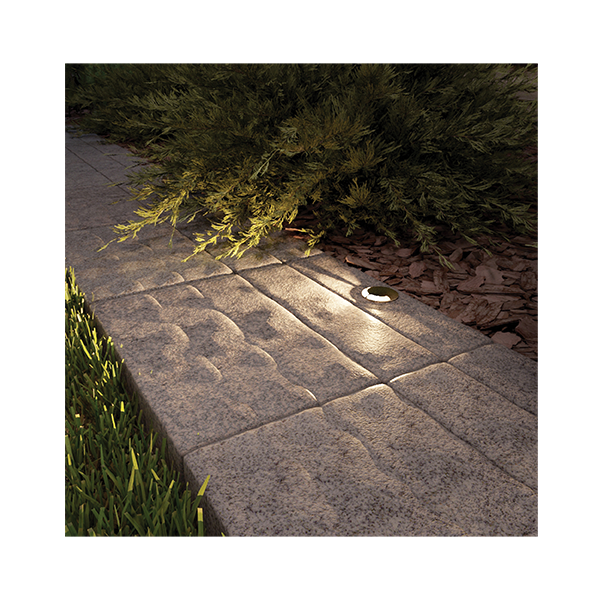

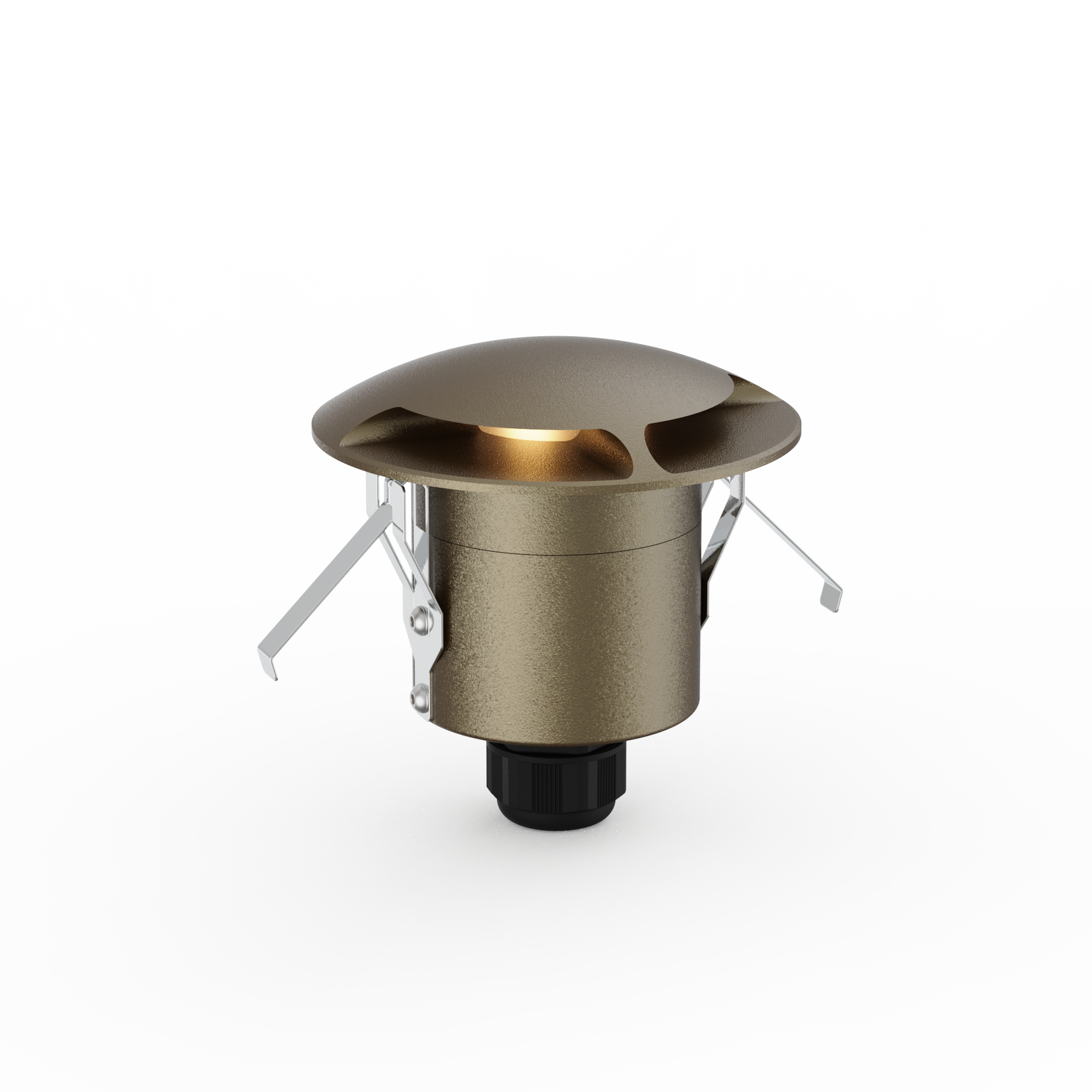

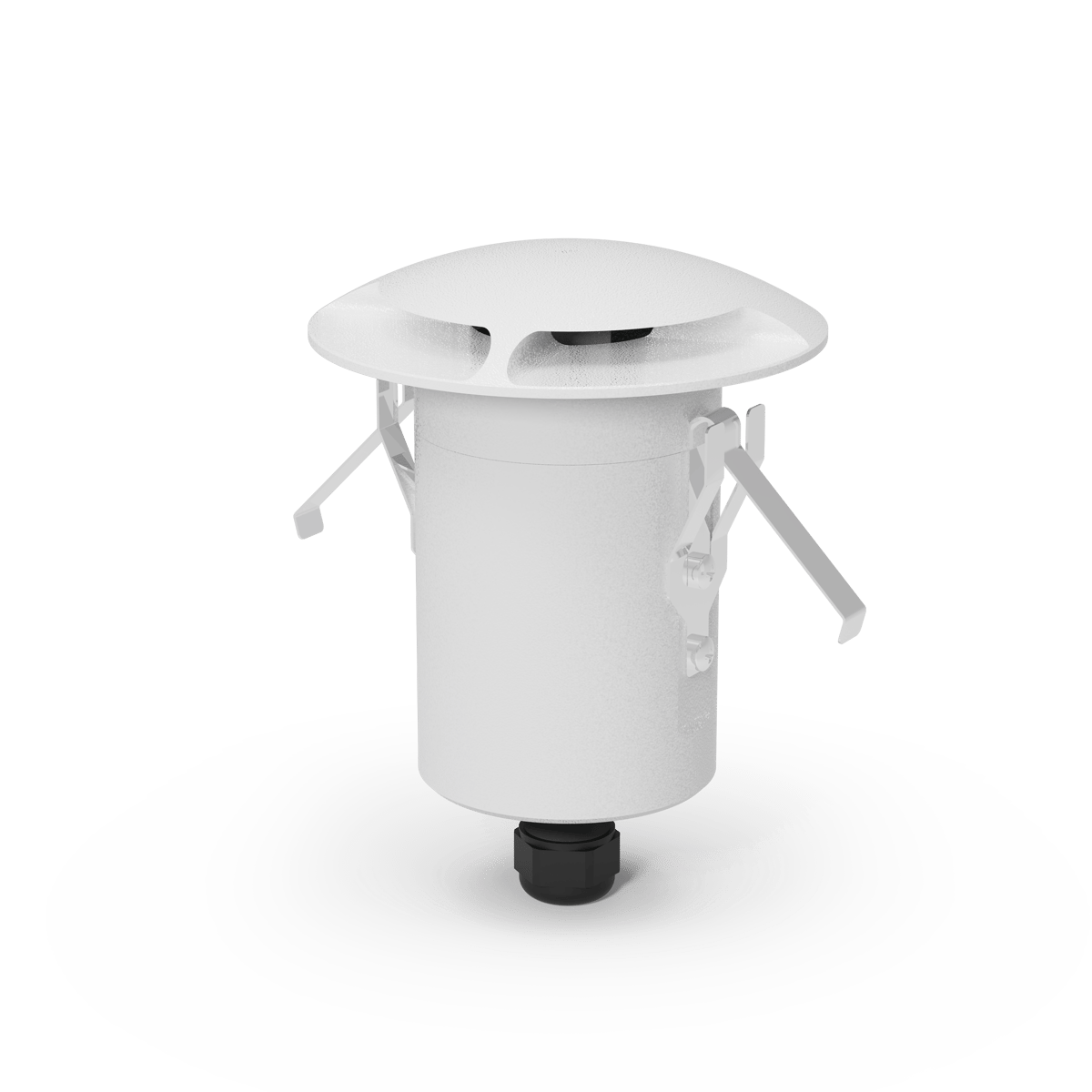

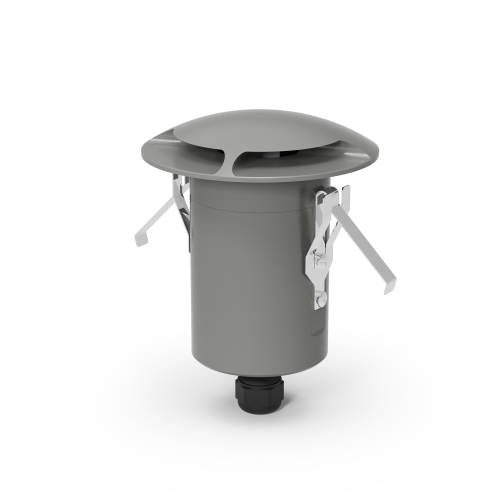

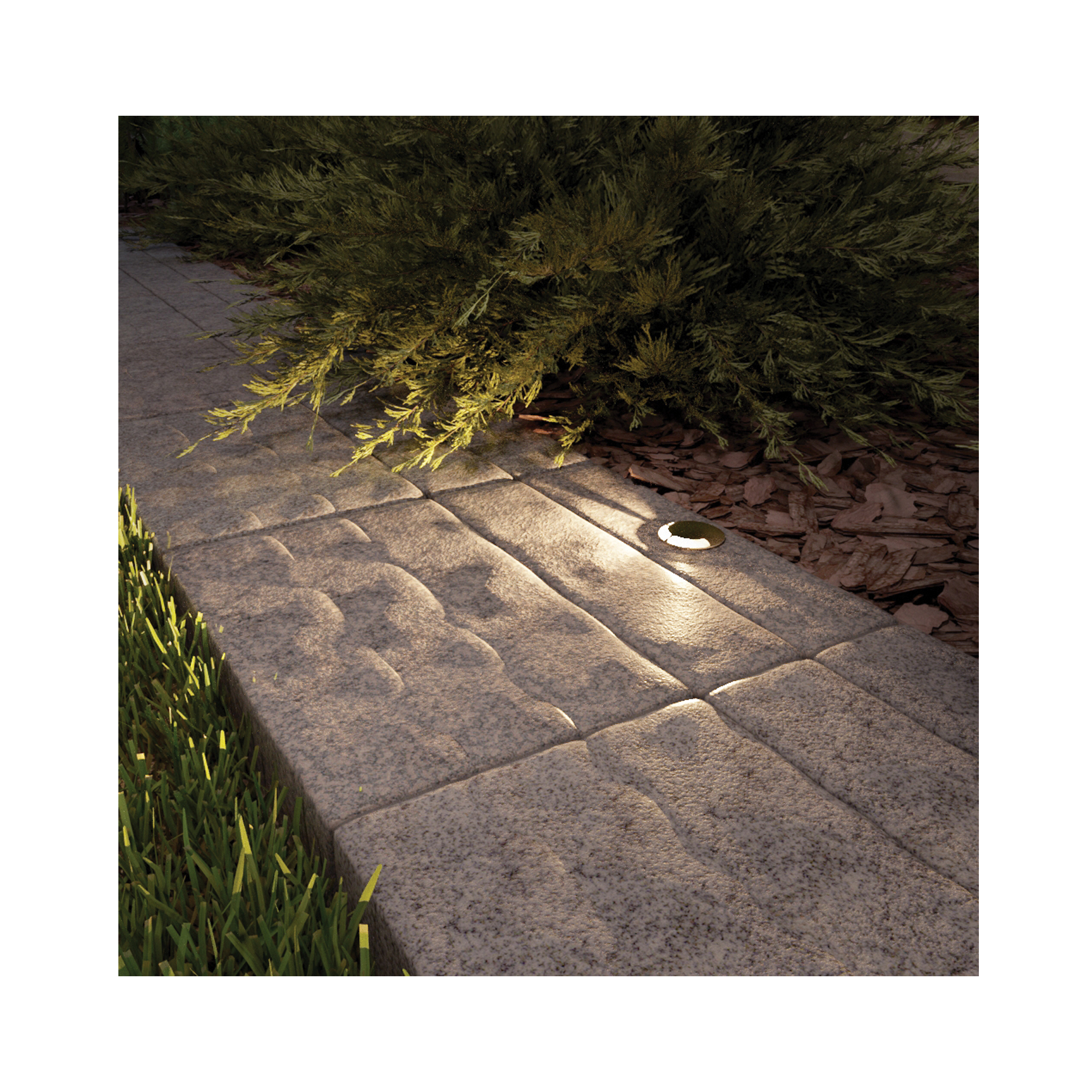

The AQL-165 is a compact, stylish recessed runway light with 180° spread.



Specification

AQL-165

Lumena

CNC Machined & Anodised Aluminium 6061

900mm Aqualux 2-Core Silicone / PTFE Cable

5 Year Aqualux Warranty

IP67

RGBW option to be driven at 50% max total.
Not rated for high-pressure cleaning.

Options

Body

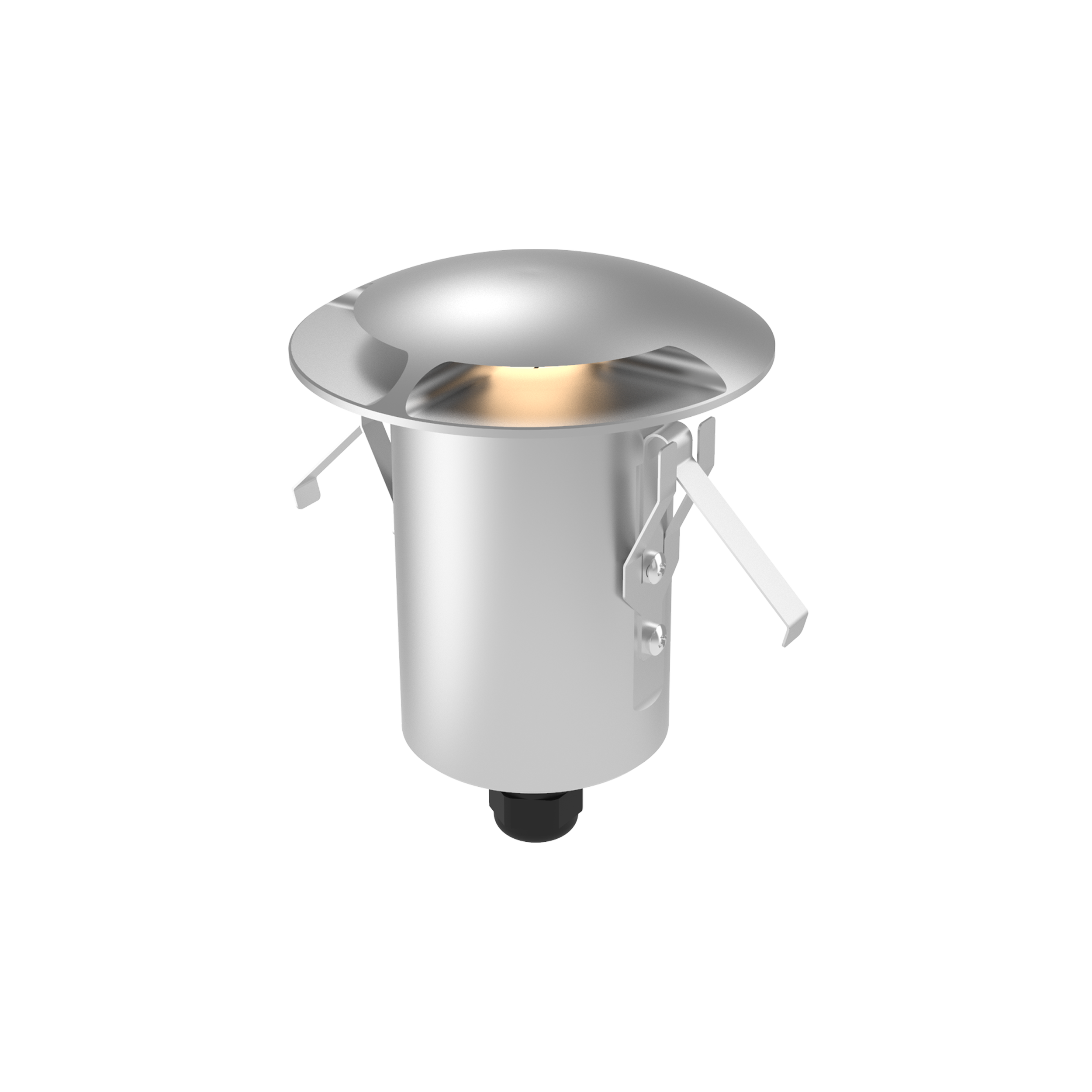

  • Satin Chrome Anodize

    Aluminium 6000 Series

  • Dulux Black Ace 9069116F

    Aluminium 6000 Series

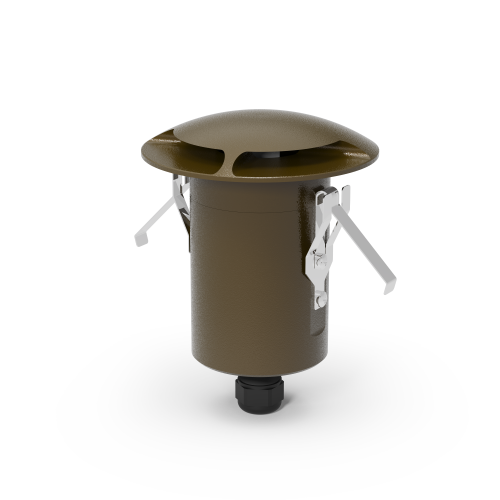

  • Dulux Medium Bronze 9068183K

    Aluminium 6000 Series

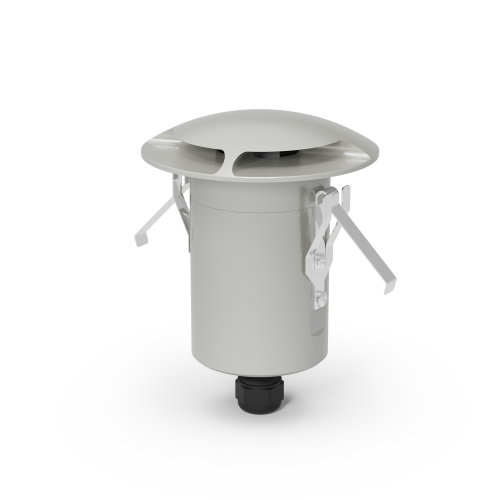

  • Dulux Venerable Silver 9067621K

    Aluminium 6000 Series

Control Gear

  • 12~24V AC / 24V DC

    Dimming: Optional 10V PWM (DC)

  • 24V DC RGBW

    Dimming: 4CH Low-Side PWM

Light Sources

  • 2W / 200lm

    3000K / 300mA

  • 2W / 200lm

    5700K / 300mA

  • 2W / 140lm

    Red / 300mA

  • 2W / 080lm

    Blue / 300mA

  • 2W / 200lm

    Green / 300mA

  • 2W / 140lm

    Amber / 300mA

  • 10W / 470lm

    RGB+3000K

Optical

  • Diffuse (Frosted)

    DF

  • Diffuse (Clear)

    DC

Cable

  • Q

    AqualuxPLUS QuickConnect

Configure order code

AQL-165

To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.

AQL-165 - You have 28 variations with this product

Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
AQL-165-A3-X002RDDCQ
Dulux Medium Bronze 9068183K
Aluminium 6000 Series
2W 140lm / Red / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A4-Z010Z1DFQ
Dulux Venerable Silver 9067621K
Aluminium 6000 Series
10W 470lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
AQL-165-A3-Z010Z1DFQ
Dulux Medium Bronze 9068183K
Aluminium 6000 Series
10W 470lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
AQL-165-A2-Z010Z1DFQ
Dulux Black Ace 9069116F
Aluminium 6000 Series
10W 470lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
AQL-165-A1-Z010Z1DFQ
Satin Chrome Anodize
Aluminium 6000 Series
10W 470lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
AQL-165-A4-X002AMDCQ
Dulux Venerable Silver 9067621K
Aluminium 6000 Series
2W 140lm / Amber / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A4-X002GNDCQ
Dulux Venerable Silver 9067621K
Aluminium 6000 Series
2W 200lm / Green / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A4-X002BUDCQ
Dulux Venerable Silver 9067621K
Aluminium 6000 Series
2W 080lm / Blue / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A4-X002RDDCQ
Dulux Venerable Silver 9067621K
Aluminium 6000 Series
2W 140lm / Red / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A4-X00257DCQ
Dulux Venerable Silver 9067621K
Aluminium 6000 Series
2W 200lm / 5700K / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A4-X00230DCQ
Dulux Venerable Silver 9067621K
Aluminium 6000 Series
2W 200lm / 3000K / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A3-X002AMDCQ
Dulux Medium Bronze 9068183K
Aluminium 6000 Series
2W 140lm / Amber / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A3-X002GNDCQ
Dulux Medium Bronze 9068183K
Aluminium 6000 Series
2W 200lm / Green / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A3-X002BUDCQ
Dulux Medium Bronze 9068183K
Aluminium 6000 Series
2W 080lm / Blue / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A1-X00230DCQ
Satin Chrome Anodize
Aluminium 6000 Series
2W 200lm / 3000K / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A3-X00257DCQ
Dulux Medium Bronze 9068183K
Aluminium 6000 Series
2W 200lm / 5700K / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A3-X00230DCQ
Dulux Medium Bronze 9068183K
Aluminium 6000 Series
2W 200lm / 3000K / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A2-X002AMDCQ
Dulux Black Ace 9069116F
Aluminium 6000 Series
2W 140lm / Amber / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A2-X002GNDCQ
Dulux Black Ace 9069116F
Aluminium 6000 Series
2W 200lm / Green / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A2-X002BUDCQ
Dulux Black Ace 9069116F
Aluminium 6000 Series
2W 080lm / Blue / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A2-X002RDDCQ
Dulux Black Ace 9069116F
Aluminium 6000 Series
2W 140lm / Red / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A2-X00257DCQ
Dulux Black Ace 9069116F
Aluminium 6000 Series
2W 200lm / 5700K / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A2-X00230DCQ
Dulux Black Ace 9069116F
Aluminium 6000 Series
2W 200lm / 3000K / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A1-X002AMDCQ
Satin Chrome Anodize
Aluminium 6000 Series
2W 140lm / Amber / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A1-X002GNDCQ
Satin Chrome Anodize
Aluminium 6000 Series
2W 200lm / Green / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A1-X002BUDCQ
Satin Chrome Anodize
Aluminium 6000 Series
2W 080lm / Blue / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A1-X002RDDCQ
Satin Chrome Anodize
Aluminium 6000 Series
2W 140lm / Red / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-165-A1-X00257DCQ
Satin Chrome Anodize
Aluminium 6000 Series
2W 200lm / 5700K / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect

Aqualux is introducing an updated product code structure throughout 2020. Quotes, invoices and other documents may reference the previous product code structure until we have completed this update.
