Lumena

    AQL-515

    Slimline 90mm grazing light

    AQL-515
    AQL-515
    AQL-515
    AQL-515
    AQL-515
    AQL-515
    AQL-515
    AQL-515
    AQL-515
    AQL-515

    Introduction

    The AQL-515 is a 90mm grazing light suitable for steps, corridors and general wayfinding applications.

    A minimal design language ensures seamless integration with a wide range of interior and exterior scenarios.

    Multiple surface finishes and CCT options provide maximum design choice and configuration flexabililty.

    Specification

    AQL-515

    Lumena

    CNC Machined Brass, CNC Machined Aluminium

    500mm Aqualux 2-Core Silicone / PTFE Cable

    7 Year Aqualux Warranty

    IP65

    Options

    Body

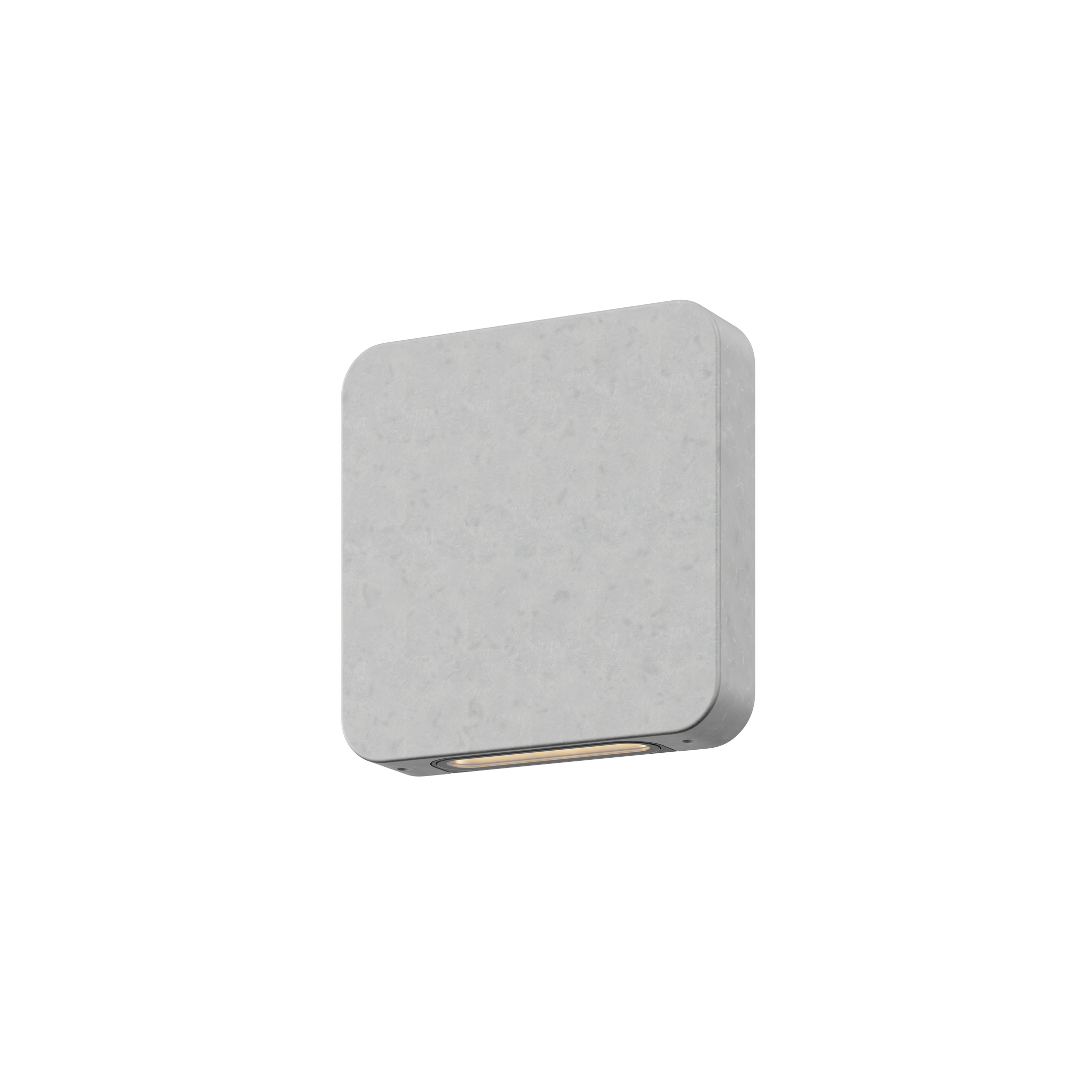

    • A1 - Clear

      Aluminium 6000 Series

    • A2 - Black

      Aluminium 6000 Series

    • A3 - Bronze

      Aluminium 6000 Series

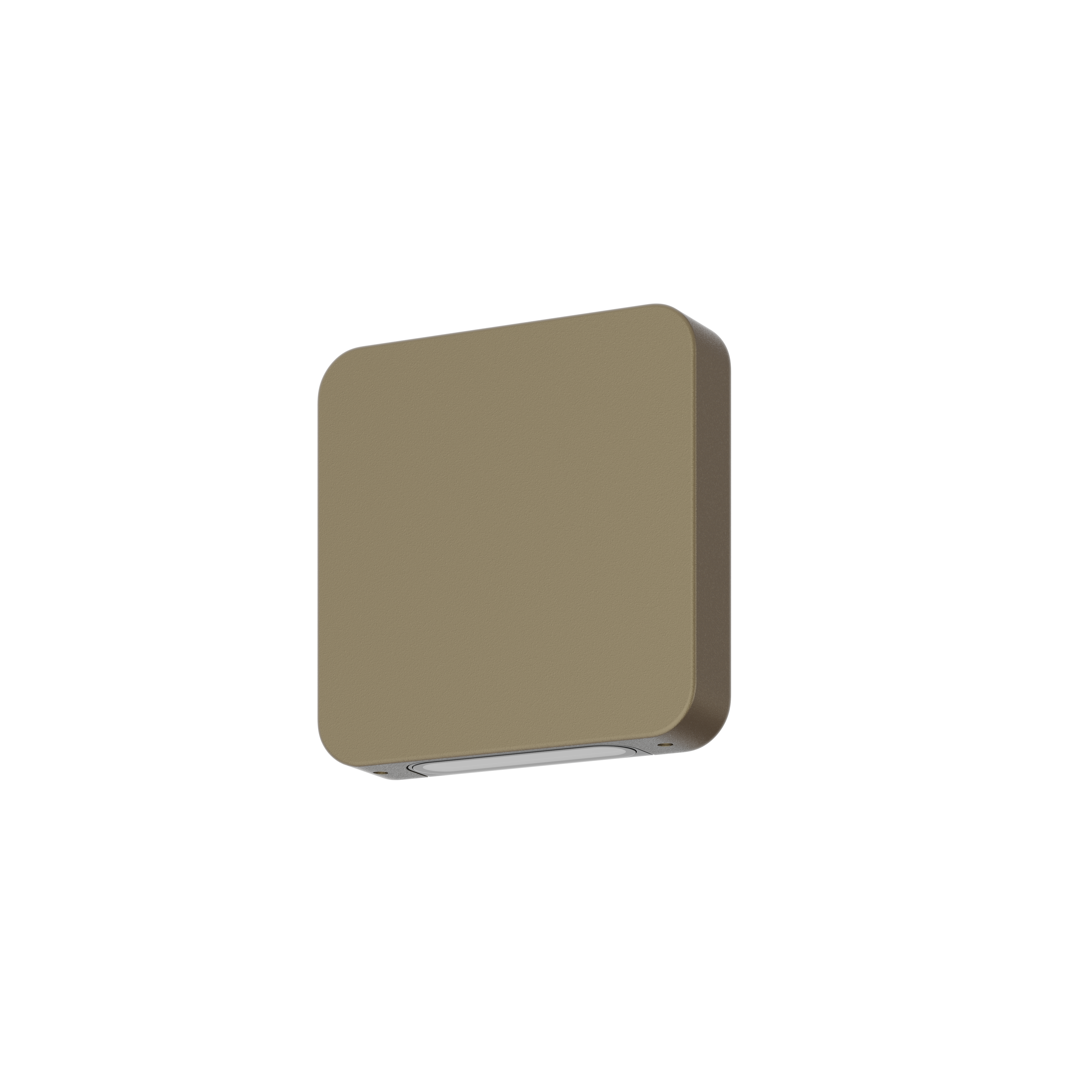

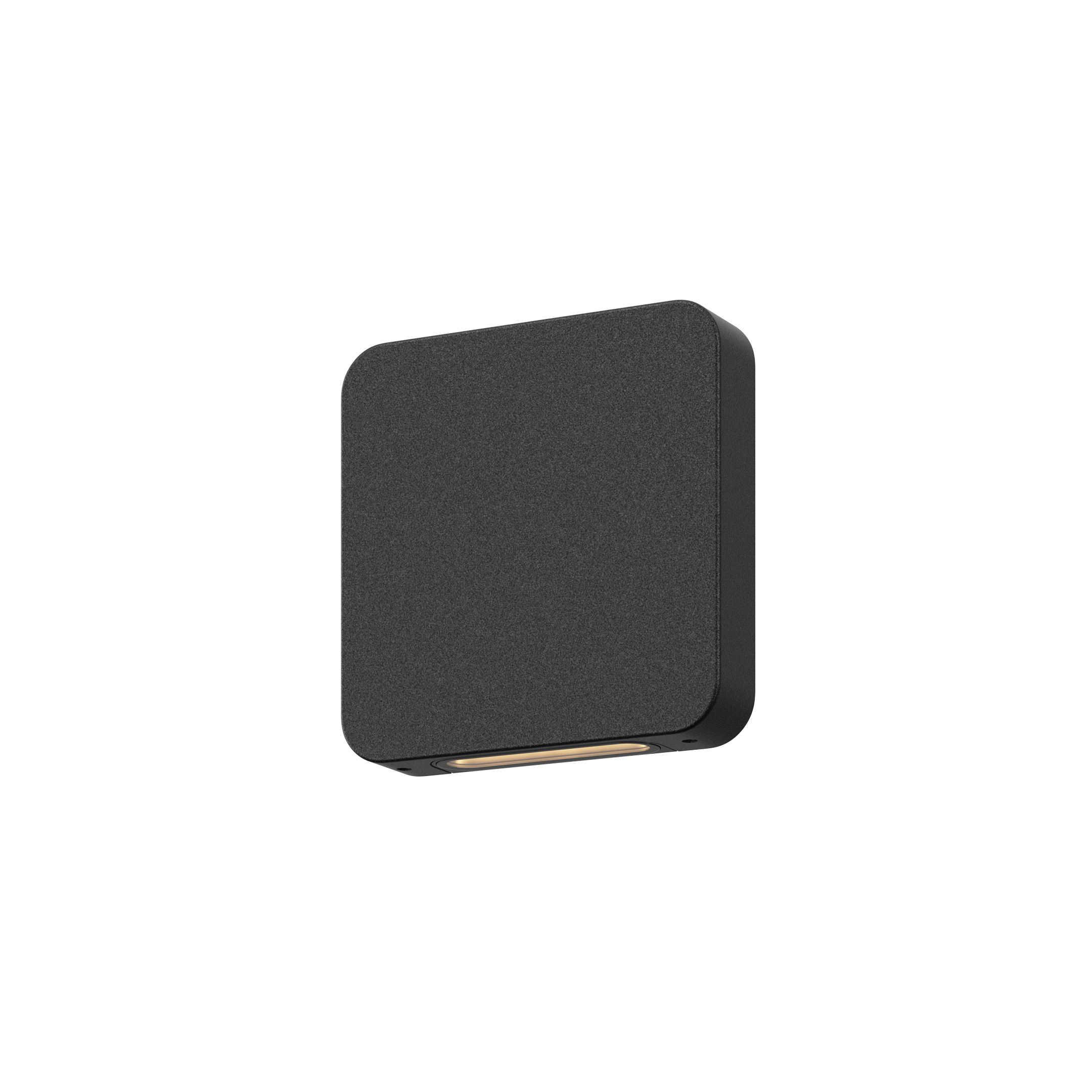

    • A4 - Basalt

      Aluminium 6000 Series

    • B1 - Brushed Chrome

      Brass

    • B2 - Black

      Brass

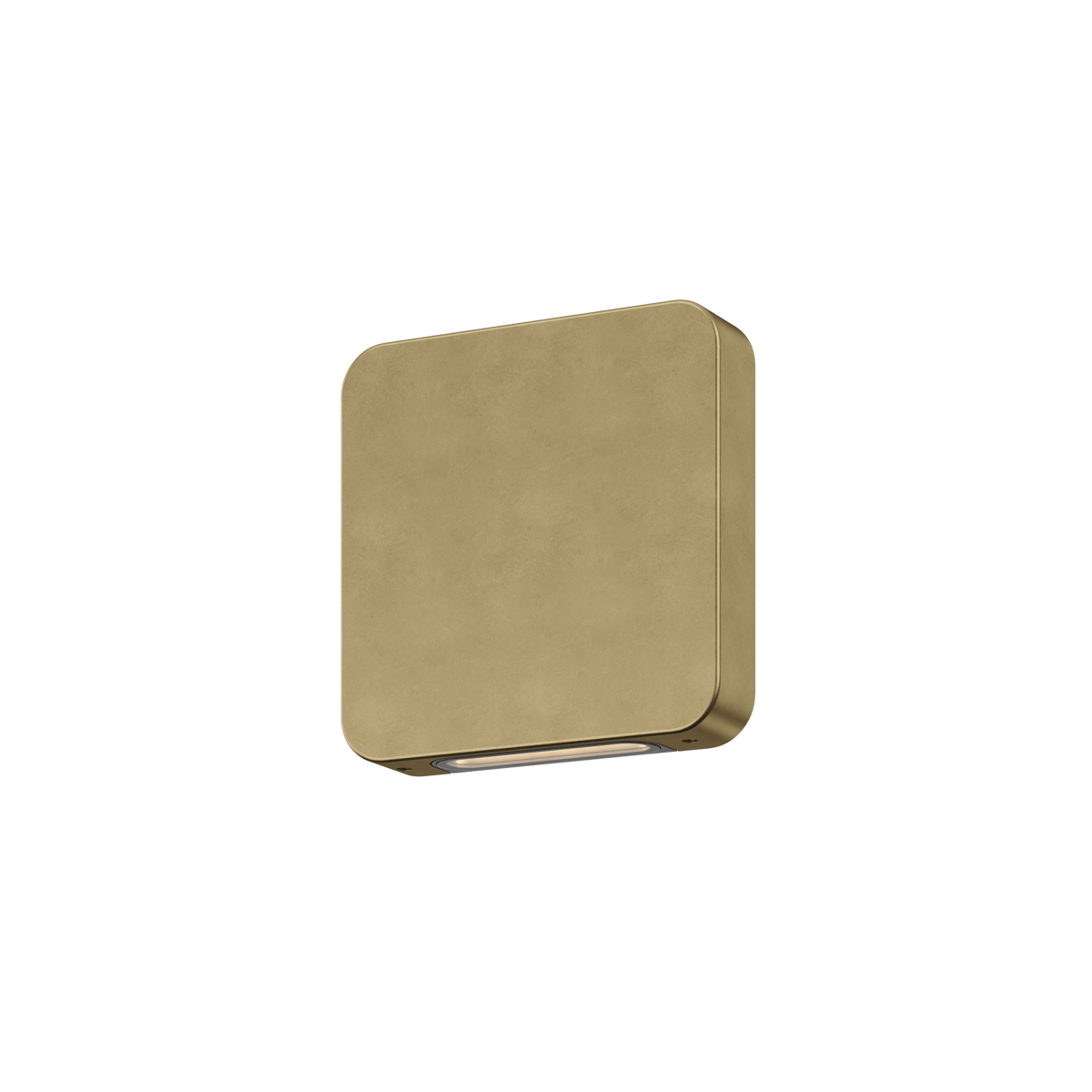

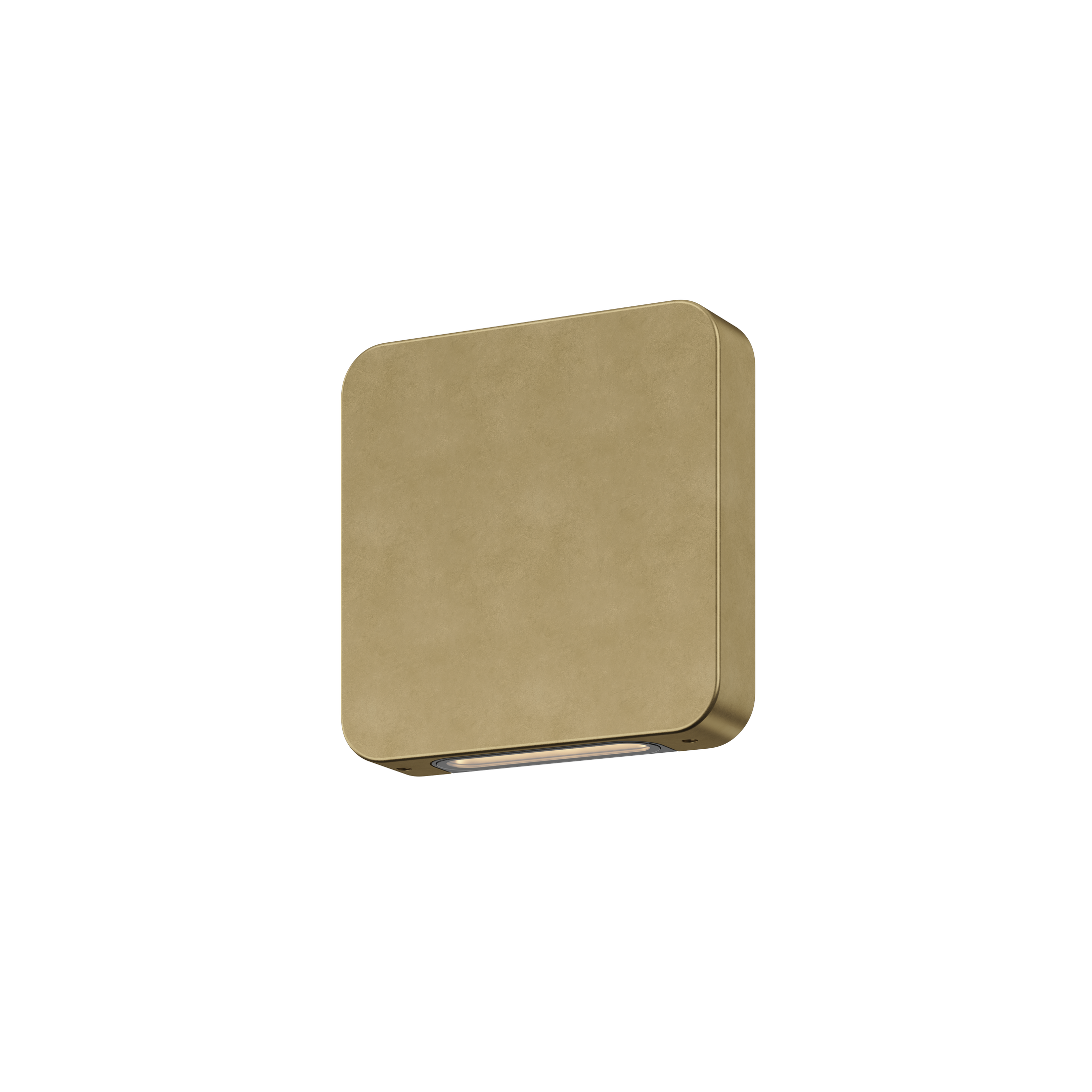

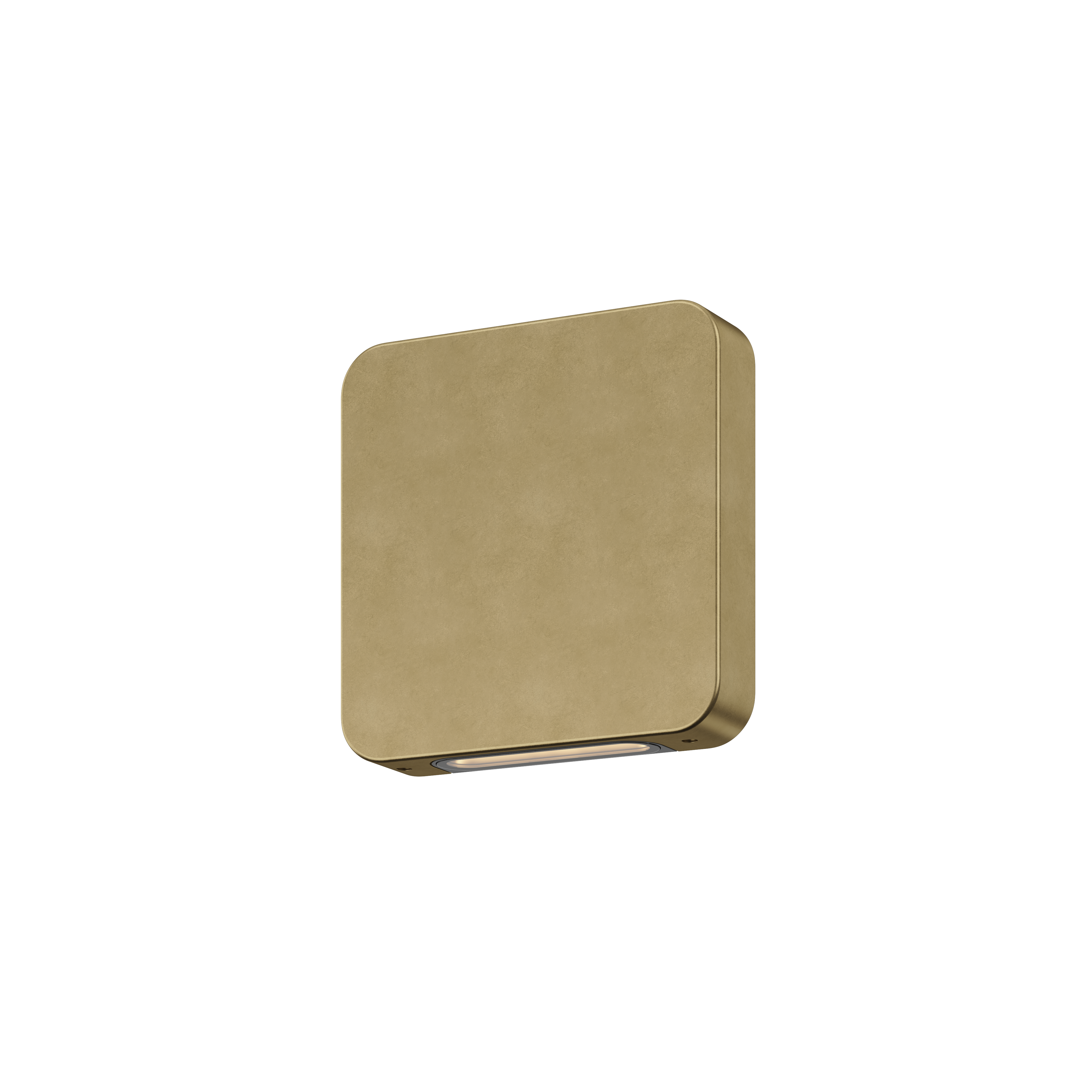

    • B3 - Aged Brass

      Brass

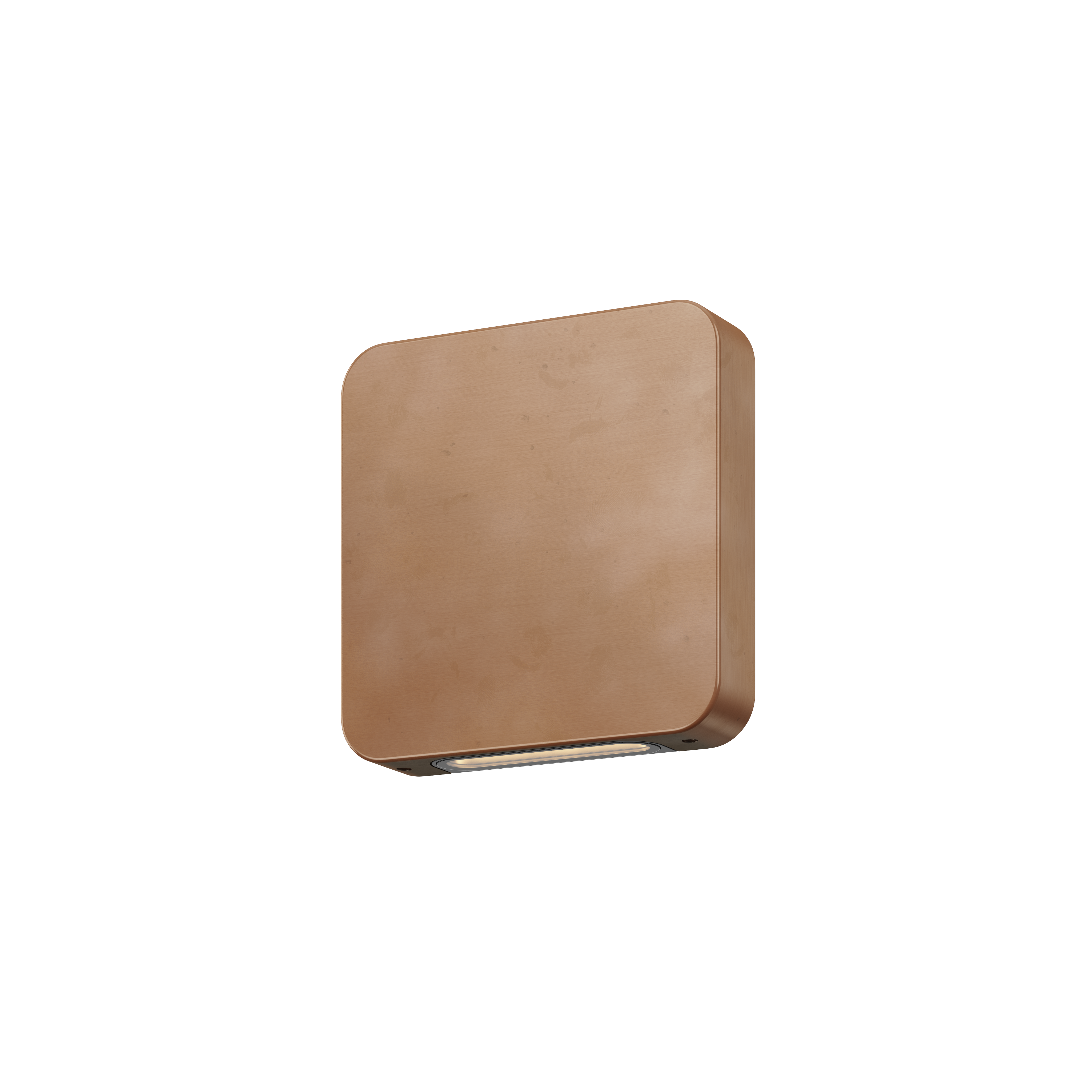

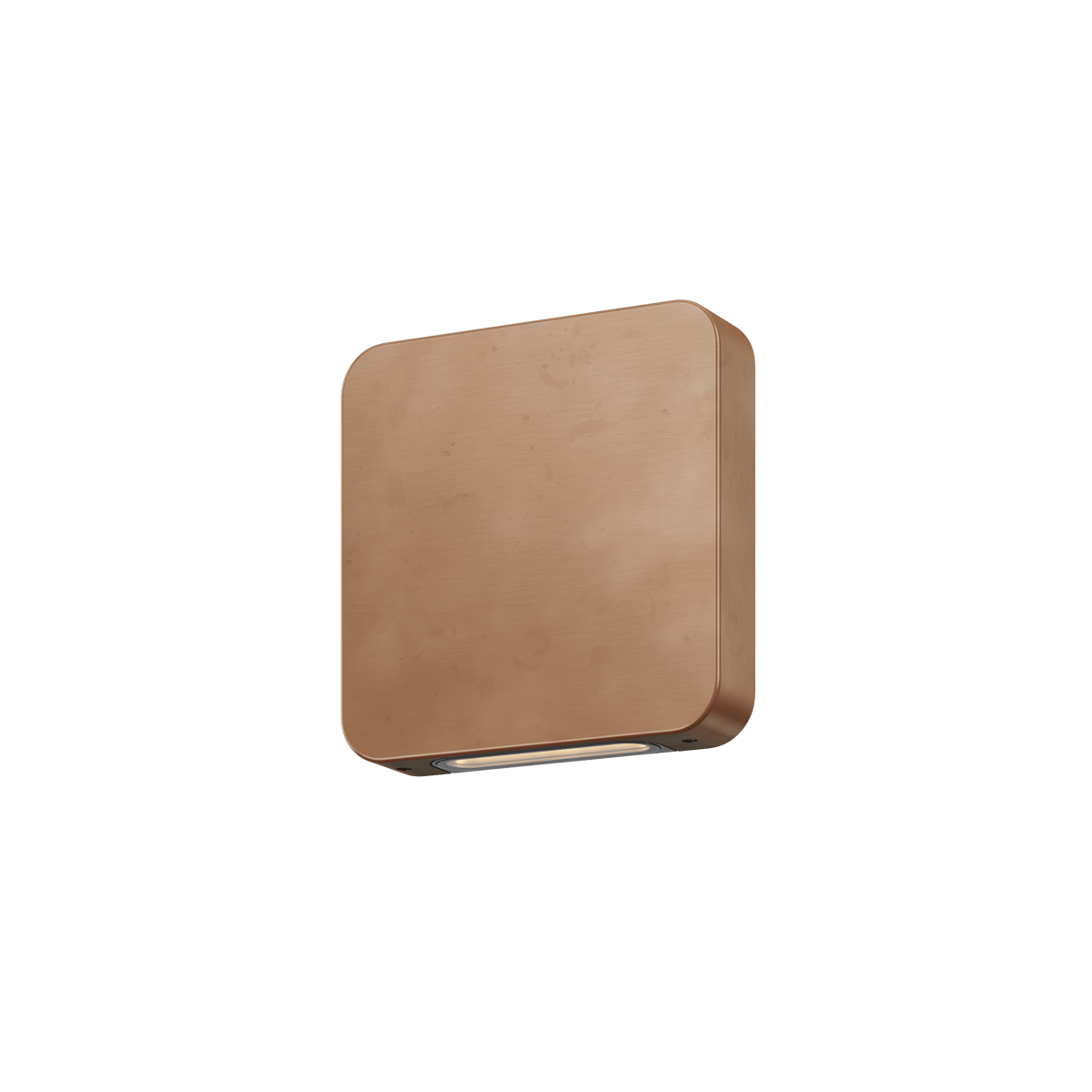

    • B5 - Brushed Copper

      Brass

    • B6 - Natural Waxed

      Brass

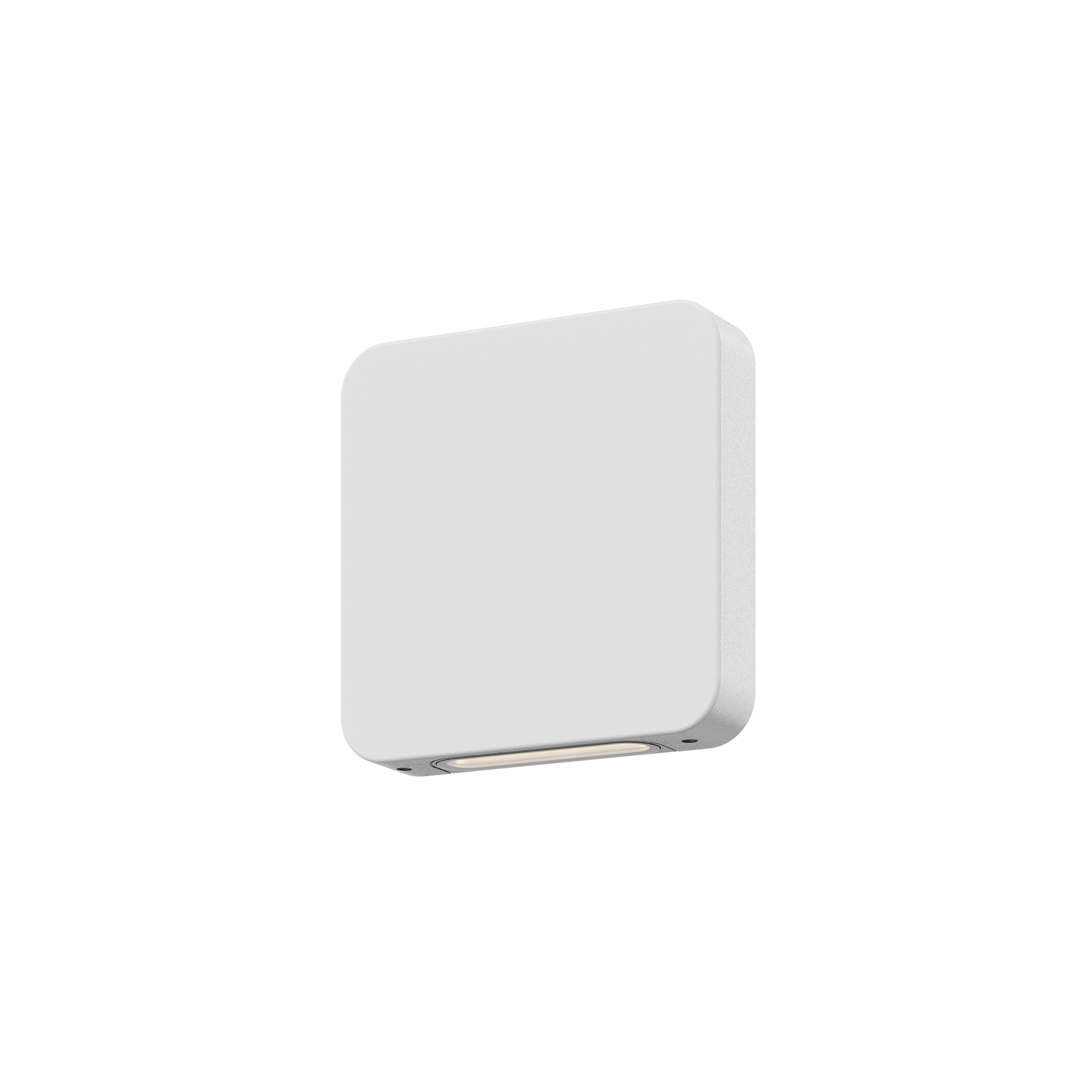

    • A8 - White

      Aluminium 6000 Series

    Control Gear

    • 24V DC 2-Wire

      Dimming: 2-Wire PWM Power

    Light Sources

    • 4W / 590lm

      2200K

    • 4W / 660lm

      2700K

    • 4W / 680lm

      3000K

    • 4W / 710lm

      4000K

    Optical

    • Diffuse (Frosted)

      DF

    Cable

    • S

      500mm 2-Core Standard Cable

    Configure order code

    AQL-515

    To configure your product/s, select from the options below.
    Multiple selections are possible to produce your downloadable datasheet/s.

    Clear Filter
    A1 - Clear Aluminium 6000 Series A2 - Black Aluminium 6000 Series A3 - Bronze Aluminium 6000 Series A4 - Basalt Aluminium 6000 Series B1 - Brushed Chrome Brass B2 - Black Brass B3 - Aged Brass Brass B5 - Brushed Copper Brass B6 - Natural Waxed Brass A8 - White Aluminium 6000 Series
    24V DC 2-Wire
    4W / 590lm / 2200K 4W / 660lm / 2700K 4W / 680lm / 3000K 4W / 710lm / 4000K
    Diffuse (Frosted)
    500mm 2-Core Standard Cable

    AQL-515 - has 40 variations

    Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
    AQL-515-B5-E00430DFS
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B2-E00427DFS
    PDF
    		B2 - Black
    Brass    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B2-E00430DFS
    PDF
    		B2 - Black
    Brass    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B2-E00440DFS
    PDF
    		B2 - Black
    Brass    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B3-E00422DFS
    PDF
    		B3 - Aged Brass
    Brass    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B3-E00427DFS
    PDF
    		B3 - Aged Brass
    Brass    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B3-E00430DFS
    PDF
    		B3 - Aged Brass
    Brass    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B3-E00440DFS
    PDF
    		B3 - Aged Brass
    Brass    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B5-E00422DFS
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B5-E00427DFS
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B2-E00422DFS
    PDF
    		B2 - Black
    Brass    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B5-E00440DFS
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B6-E00422DFS
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B6-E00427DFS
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B6-E00430DFS
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B6-E00440DFS
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A8-E00422DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A8-E00427DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A8-E00430DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A8-E00440DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A3-E00430DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A1-E00427DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A1-E00430DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A1-E00440DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A2-E00422DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A2-E00427DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A2-E00430DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A2-E00440DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A3-E00422DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A3-E00427DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A1-E00422DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A3-E00440DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A4-E00422DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A4-E00427DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A4-E00430DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-A4-E00440DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B1-E00422DFS
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B1-E00427DFS
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B1-E00430DFS
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-515-B1-E00440DFS
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
