Phoenix

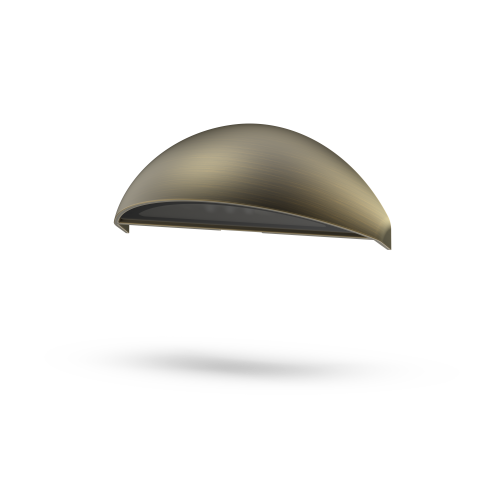

AQL-510
Step Light
Introduction

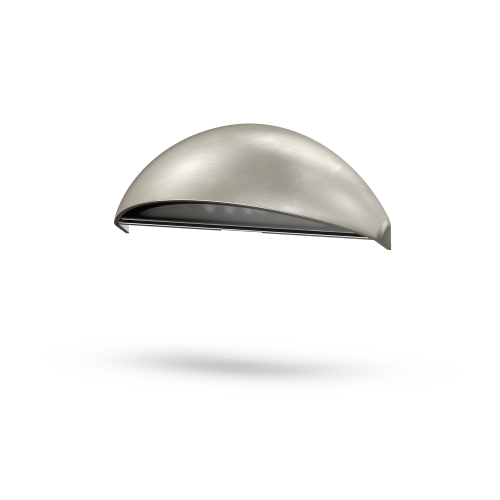

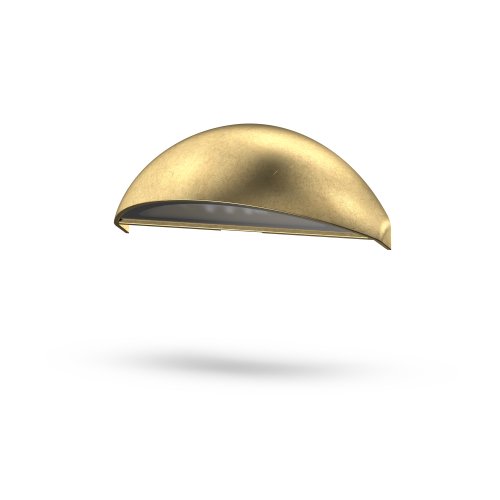

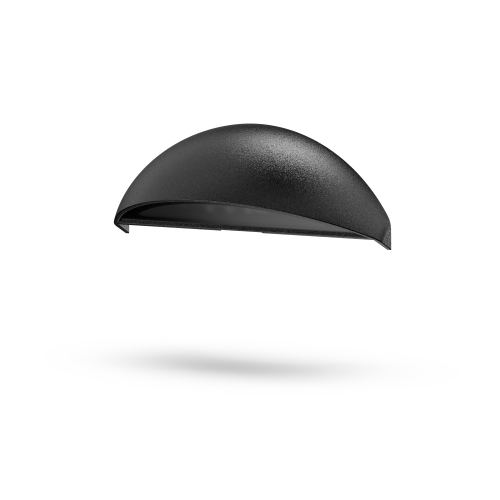

Cast brass with 5 finish options the AQL-510 is our most popular LED wall light. Throwing light out at an angle rather than straight down means more light is projected away from the wall rather than down it resulting in more light on the pathway.
Specification
AQL-510
Phoenix
Solid Cast Brass
500mm 3 Core Aqualux Cable
7 Year Aqualux Warranty
IP65
Configure order code
AQL-510
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQL-510 - has 30 variations
Product Code
Downloads
Body
Rated Power
Light Source
Optical
Control Gear
Dimming
Cable
Downloads
AQL-510-B1-B00430DFS
B1 - Brushed Chrome
Brass
4W
400lm /
3000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-510-B6-B00440DFS
B6 - Natural Waxed
Brass
4W
400lm /
4000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-510-B6-B00427DFS
B6 - Natural Waxed
Brass
4W
400lm /
2700K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-510-B6-B00430DFS
B6 - Natural Waxed
Brass
4W
400lm /
3000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-510-B5-B00440DFS
B5 - Brushed Copper
Brass
4W
400lm /
4000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-510-B5-B00427DFS
B5 - Brushed Copper
Brass
4W
400lm /
2700K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-510-B5-B00430DFS
B5 - Brushed Copper
Brass
4W
400lm /
3000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-510-B3-B00440DFS
B3 - Aged Brass
Brass
4W
400lm /
4000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-510-B3-B00427DFS
B3 - Aged Brass
Brass
4W
400lm /
2700K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-510-B3-B00430DFS
B3 - Aged Brass
Brass
4W
400lm /
3000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-510-B2-B00440DFS
B2 - Black
Brass
4W
400lm /
4000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-510-B2-B00427DFS
B2 - Black
Brass
4W
400lm /
2700K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-510-B2-B00430DFS
B2 - Black
Brass
4W
400lm /
3000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-510-B1-B00440DFS
B1 - Brushed Chrome
Brass
4W
400lm /
4000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-510-B1-B00427DFS
B1 - Brushed Chrome
Brass
4W
400lm /
2700K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-510-B1-E00430DFS
B1 - Brushed Chrome
Brass
4W
400lm /
3000K
DF
24V DC 2-Wire
2-Wire PWM Power
500mm 2-Core Standard Cable
AQL-510-B6-E00440DFS
B6 - Natural Waxed
Brass
4W
400lm /
4000K
DF
24V DC 2-Wire
2-Wire PWM Power
500mm 2-Core Standard Cable
AQL-510-B6-E00427DFS
B6 - Natural Waxed
Brass
4W
400lm /
2700K
DF
24V DC 2-Wire
2-Wire PWM Power
500mm 2-Core Standard Cable
AQL-510-B5-E00440DFS
B5 - Brushed Copper
Brass
4W
400lm /
4000K
DF
24V DC 2-Wire
2-Wire PWM Power
500mm 2-Core Standard Cable
AQL-510-B5-E00427DFS
B5 - Brushed Copper
Brass
4W
400lm /
2700K
DF
24V DC 2-Wire
2-Wire PWM Power
500mm 2-Core Standard Cable
AQL-510-B3-E00440DFS
B3 - Aged Brass
Brass
4W
400lm /
4000K
DF
24V DC 2-Wire
2-Wire PWM Power
500mm 2-Core Standard Cable
AQL-510-B3-E00427DFS
B3 - Aged Brass
Brass
4W
400lm /
2700K
DF
24V DC 2-Wire
2-Wire PWM Power
500mm 2-Core Standard Cable
AQL-510-B2-E00440DFS
B2 - Black
Brass
4W
400lm /
4000K
DF
24V DC 2-Wire
2-Wire PWM Power
500mm 2-Core Standard Cable
AQL-510-B2-E00427DFS
B2 - Black
Brass
4W
400lm /
2700K
DF
24V DC 2-Wire
2-Wire PWM Power
500mm 2-Core Standard Cable
AQL-510-B1-E00440DFS
B1 - Brushed Chrome
Brass
4W
400lm /
4000K
DF
24V DC 2-Wire
2-Wire PWM Power
500mm 2-Core Standard Cable
AQL-510-B1-E00427DFS
B1 - Brushed Chrome
Brass
4W
400lm /
2700K
DF
24V DC 2-Wire
2-Wire PWM Power
500mm 2-Core Standard Cable
AQL-510-B6-E00430DFS
B6 - Natural Waxed
Brass
4W
400lm /
3000K
DF
24V DC 2-Wire
2-Wire PWM Power
500mm 2-Core Standard Cable
AQL-510-B5-E00430DFS
B5 - Brushed Copper
Brass
4W
400lm /
3000K
DF
24V DC 2-Wire
2-Wire PWM Power
500mm 2-Core Standard Cable
AQL-510-B3-E00430DFS
B3 - Aged Brass
Brass
4W
400lm /
3000K
DF
24V DC 2-Wire
2-Wire PWM Power
500mm 2-Core Standard Cable
AQL-510-B2-E00430DFS
B2 - Black
Brass
4W
400lm /
3000K
DF
24V DC 2-Wire
2-Wire PWM Power
500mm 2-Core Standard Cable
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQL-510 - has 30 variations
| Product Code | Downloads | Body | Rated Power | Light Source | Optical | Control Gear | Dimming | Cable | Downloads | |
|---|---|---|---|---|---|---|---|---|---|---|
| AQL-510-B1-B00430DFS | B1 - Brushed Chrome Brass |
4W | 400lm / 3000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-510-B6-B00440DFS | B6 - Natural Waxed Brass |
4W | 400lm / 4000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-510-B6-B00427DFS | B6 - Natural Waxed Brass |
4W | 400lm / 2700K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-510-B6-B00430DFS | B6 - Natural Waxed Brass |
4W | 400lm / 3000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-510-B5-B00440DFS | B5 - Brushed Copper Brass |
4W | 400lm / 4000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-510-B5-B00427DFS | B5 - Brushed Copper Brass |
4W | 400lm / 2700K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-510-B5-B00430DFS | B5 - Brushed Copper Brass |
4W | 400lm / 3000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-510-B3-B00440DFS | B3 - Aged Brass Brass |
4W | 400lm / 4000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-510-B3-B00427DFS | B3 - Aged Brass Brass |
4W | 400lm / 2700K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-510-B3-B00430DFS | B3 - Aged Brass Brass |
4W | 400lm / 3000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-510-B2-B00440DFS | B2 - Black Brass |
4W | 400lm / 4000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-510-B2-B00427DFS | B2 - Black Brass |
4W | 400lm / 2700K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-510-B2-B00430DFS | B2 - Black Brass |
4W | 400lm / 3000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-510-B1-B00440DFS | B1 - Brushed Chrome Brass |
4W | 400lm / 4000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-510-B1-B00427DFS | B1 - Brushed Chrome Brass |
4W | 400lm / 2700K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-510-B1-E00430DFS | B1 - Brushed Chrome Brass |
4W | 400lm / 3000K | DF | 24V DC 2-Wire | 2-Wire PWM Power | 500mm 2-Core Standard Cable | |||
| AQL-510-B6-E00440DFS | B6 - Natural Waxed Brass |
4W | 400lm / 4000K | DF | 24V DC 2-Wire | 2-Wire PWM Power | 500mm 2-Core Standard Cable | |||
| AQL-510-B6-E00427DFS | B6 - Natural Waxed Brass |
4W | 400lm / 2700K | DF | 24V DC 2-Wire | 2-Wire PWM Power | 500mm 2-Core Standard Cable | |||
| AQL-510-B5-E00440DFS | B5 - Brushed Copper Brass |
4W | 400lm / 4000K | DF | 24V DC 2-Wire | 2-Wire PWM Power | 500mm 2-Core Standard Cable | |||
| AQL-510-B5-E00427DFS | B5 - Brushed Copper Brass |
4W | 400lm / 2700K | DF | 24V DC 2-Wire | 2-Wire PWM Power | 500mm 2-Core Standard Cable | |||
| AQL-510-B3-E00440DFS | B3 - Aged Brass Brass |
4W | 400lm / 4000K | DF | 24V DC 2-Wire | 2-Wire PWM Power | 500mm 2-Core Standard Cable | |||
| AQL-510-B3-E00427DFS | B3 - Aged Brass Brass |
4W | 400lm / 2700K | DF | 24V DC 2-Wire | 2-Wire PWM Power | 500mm 2-Core Standard Cable | |||
| AQL-510-B2-E00440DFS | B2 - Black Brass |
4W | 400lm / 4000K | DF | 24V DC 2-Wire | 2-Wire PWM Power | 500mm 2-Core Standard Cable | |||
| AQL-510-B2-E00427DFS | B2 - Black Brass |
4W | 400lm / 2700K | DF | 24V DC 2-Wire | 2-Wire PWM Power | 500mm 2-Core Standard Cable | |||
| AQL-510-B1-E00440DFS | B1 - Brushed Chrome Brass |
4W | 400lm / 4000K | DF | 24V DC 2-Wire | 2-Wire PWM Power | 500mm 2-Core Standard Cable | |||
| AQL-510-B1-E00427DFS | B1 - Brushed Chrome Brass |
4W | 400lm / 2700K | DF | 24V DC 2-Wire | 2-Wire PWM Power | 500mm 2-Core Standard Cable | |||
| AQL-510-B6-E00430DFS | B6 - Natural Waxed Brass |
4W | 400lm / 3000K | DF | 24V DC 2-Wire | 2-Wire PWM Power | 500mm 2-Core Standard Cable | |||
| AQL-510-B5-E00430DFS | B5 - Brushed Copper Brass |
4W | 400lm / 3000K | DF | 24V DC 2-Wire | 2-Wire PWM Power | 500mm 2-Core Standard Cable | |||
| AQL-510-B3-E00430DFS | B3 - Aged Brass Brass |
4W | 400lm / 3000K | DF | 24V DC 2-Wire | 2-Wire PWM Power | 500mm 2-Core Standard Cable | |||
| AQL-510-B2-E00430DFS | B2 - Black Brass |
4W | 400lm / 3000K | DF | 24V DC 2-Wire | 2-Wire PWM Power | 500mm 2-Core Standard Cable |
