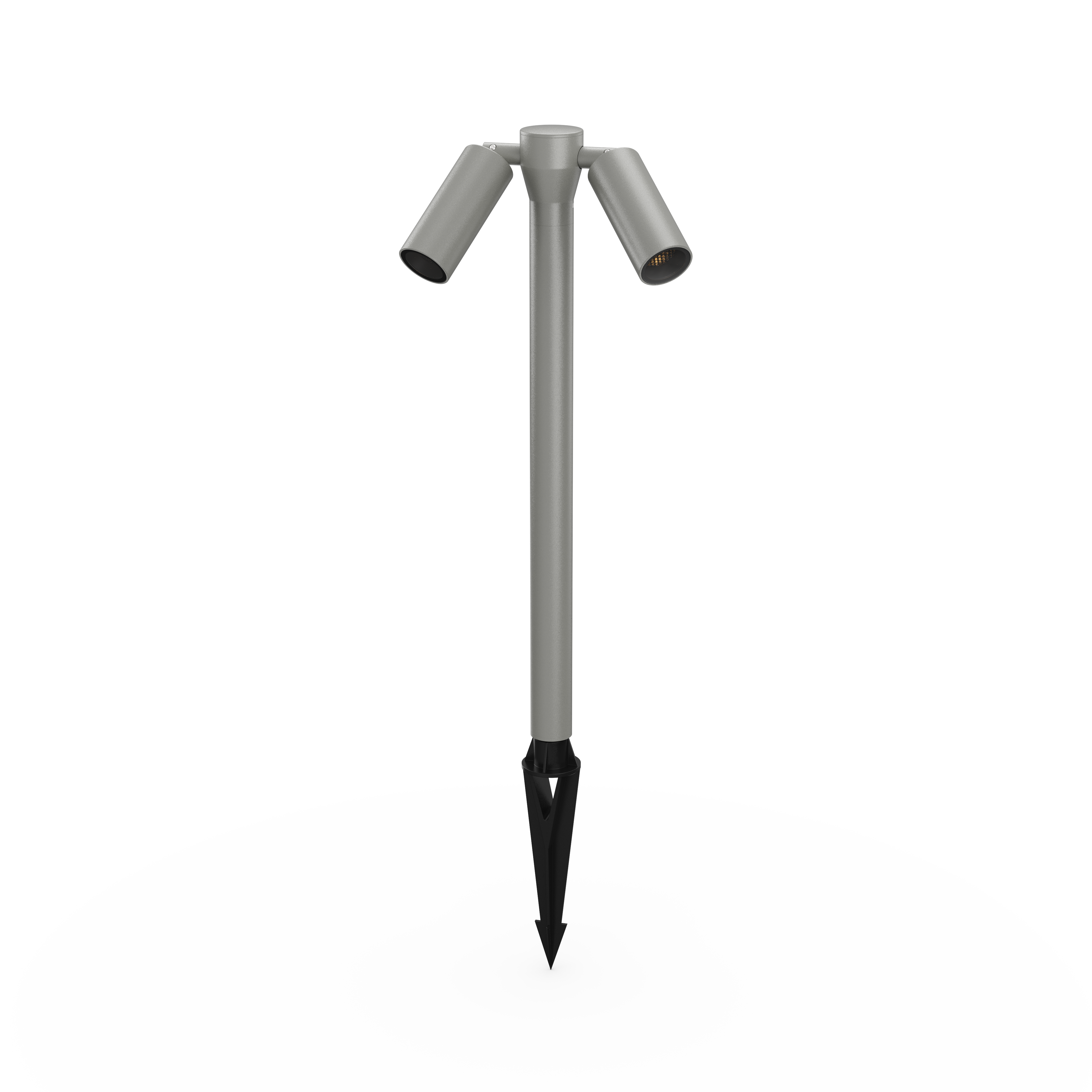

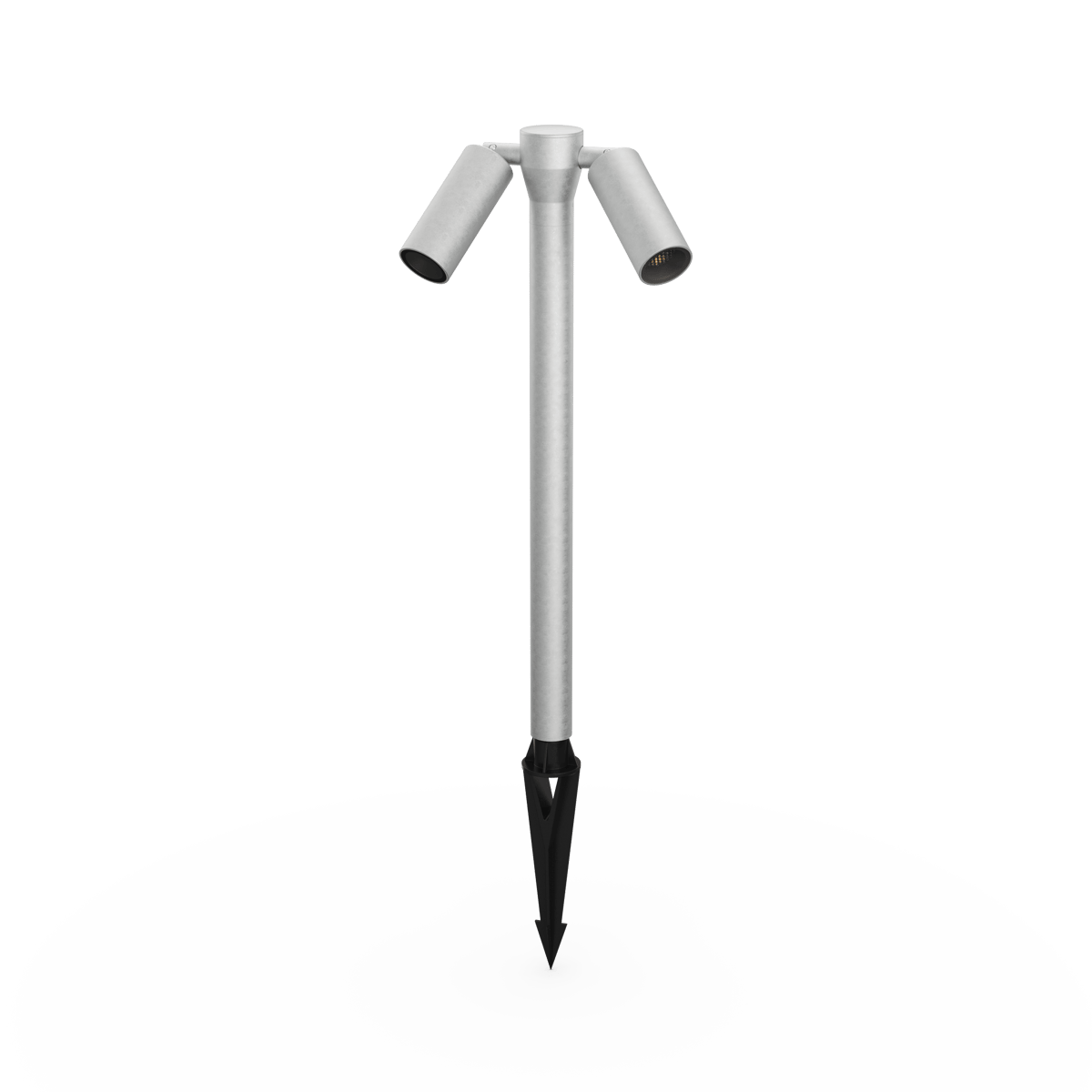

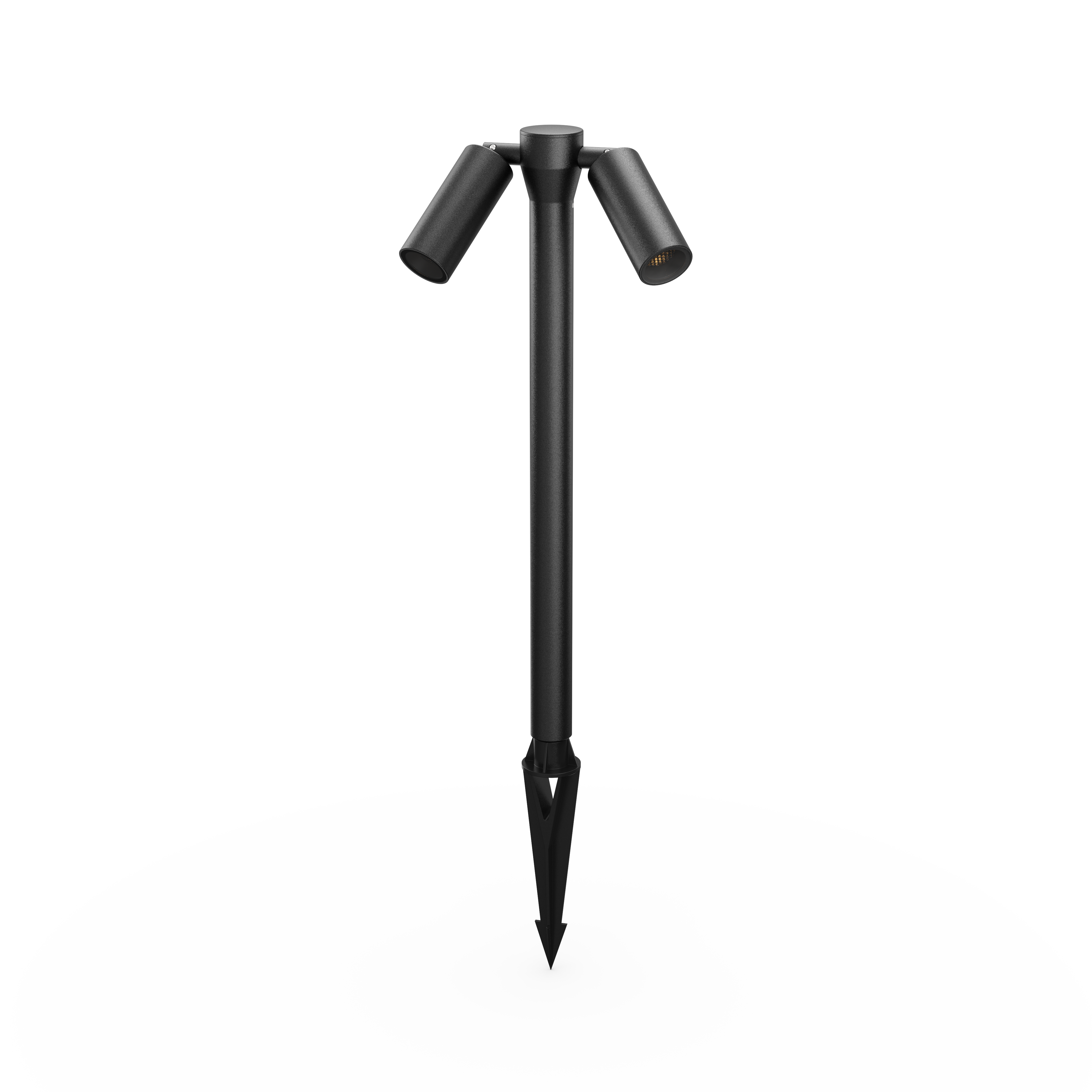

Lumena

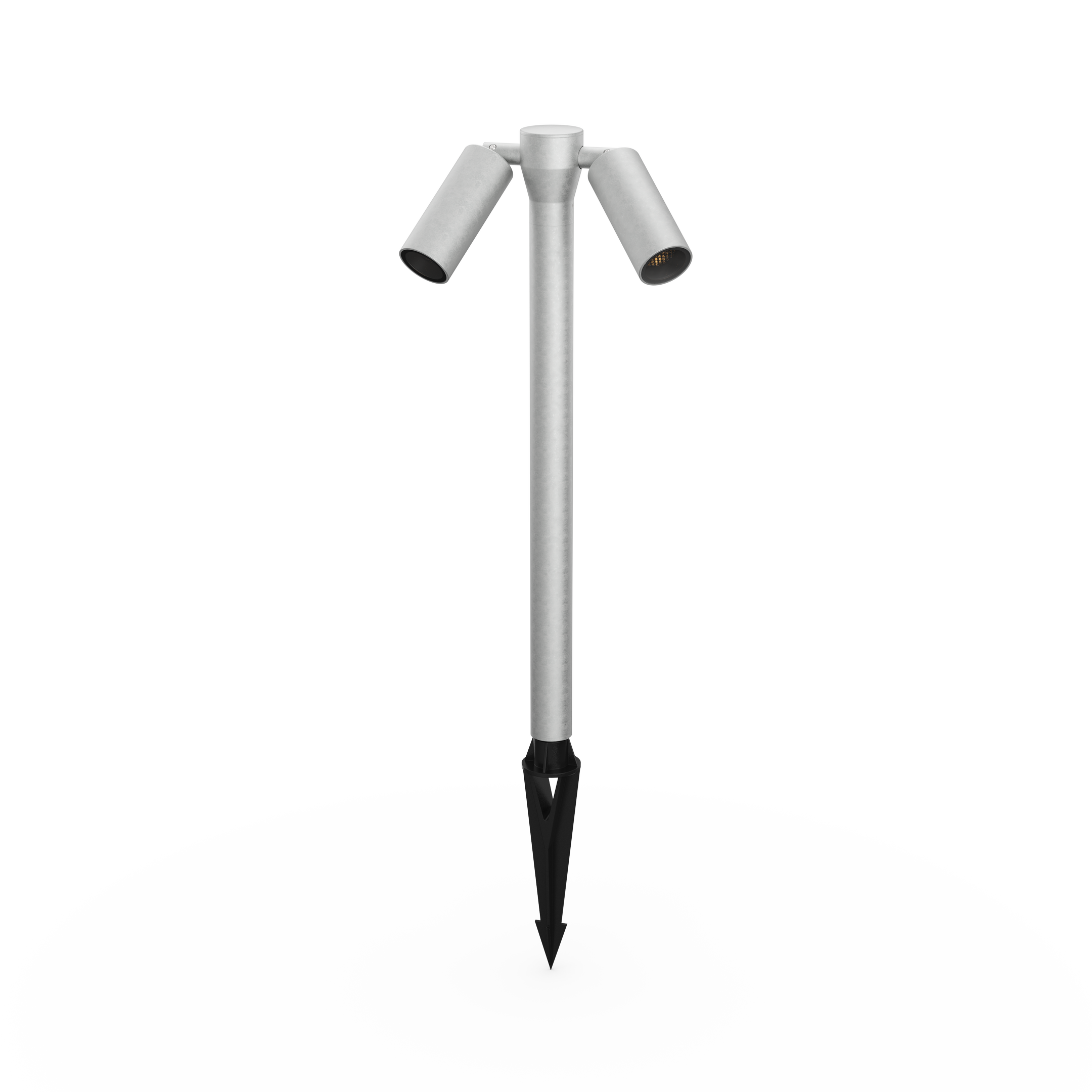

    AQL-245

    Twin Posable Path Light

    AQL-245
    AQL-245
    AQL-245
    AQL-245
    AQL-245

    Introduction

    The AQL-245 is a twin posable path light with a refined, 360 degree adjustment mechanism for targeted pathway illumination.

    Specification

    AQL-245

    Lumena

    CNC Machined Aluminium

    3-Core Anti-Siphon Cable

    7 Year Aqualux Warranty

    IP65

    Available in 400mm and 600mm heights.

    Options

    Body

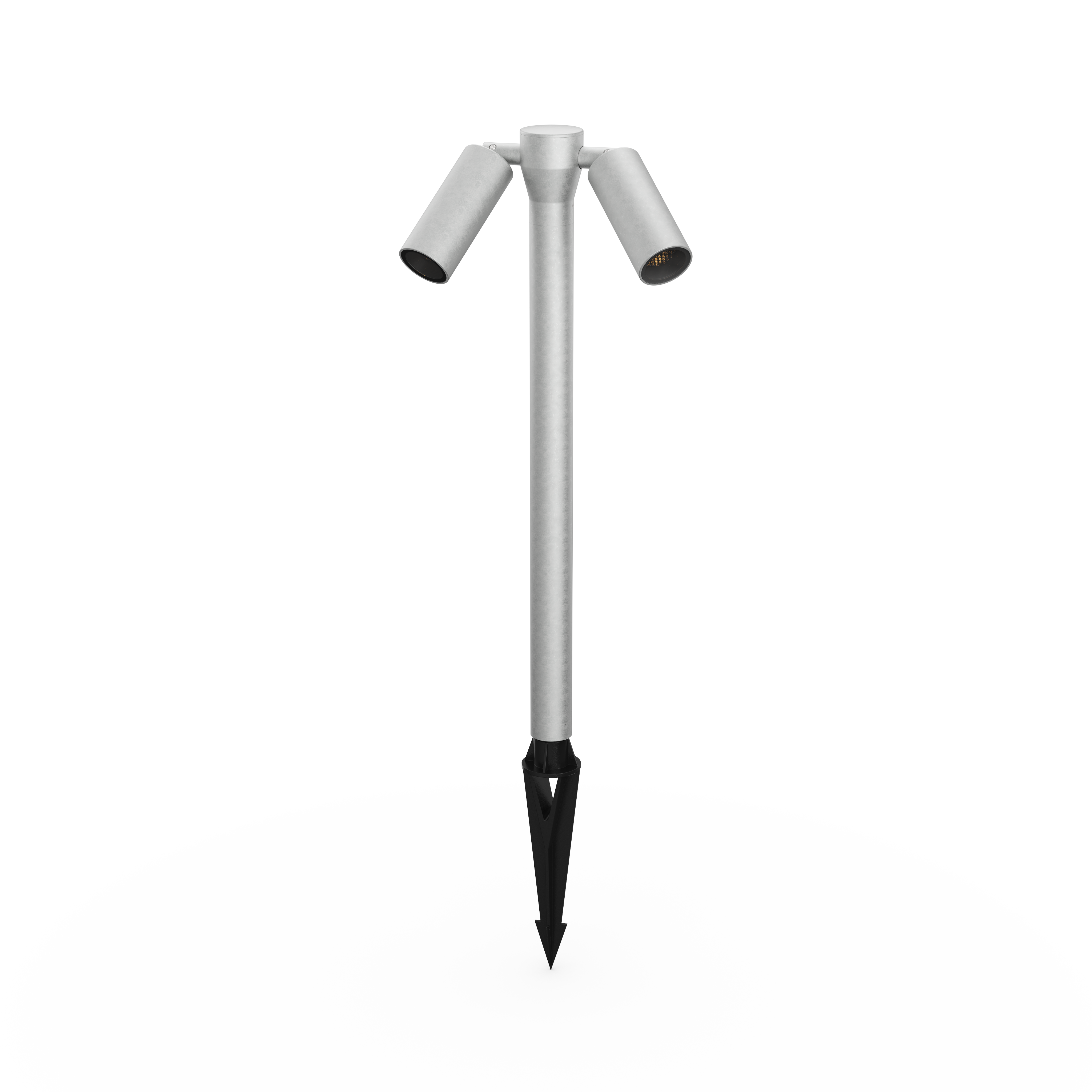

    • A1 - Clear

      Aluminium 6000 Series

    • A2 - Black

      Aluminium 6000 Series

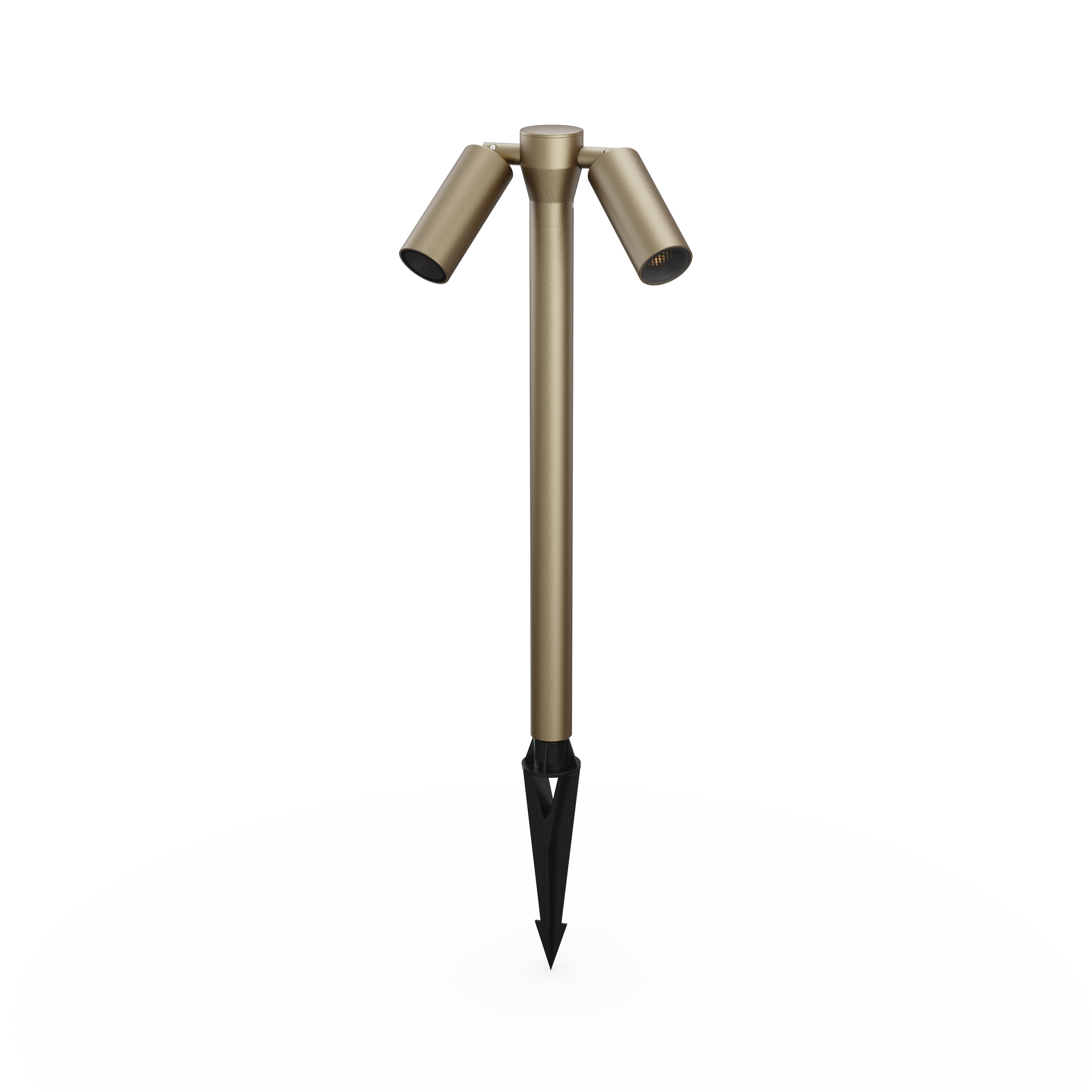

    • A3 - Bronze

      Aluminium 6000 Series

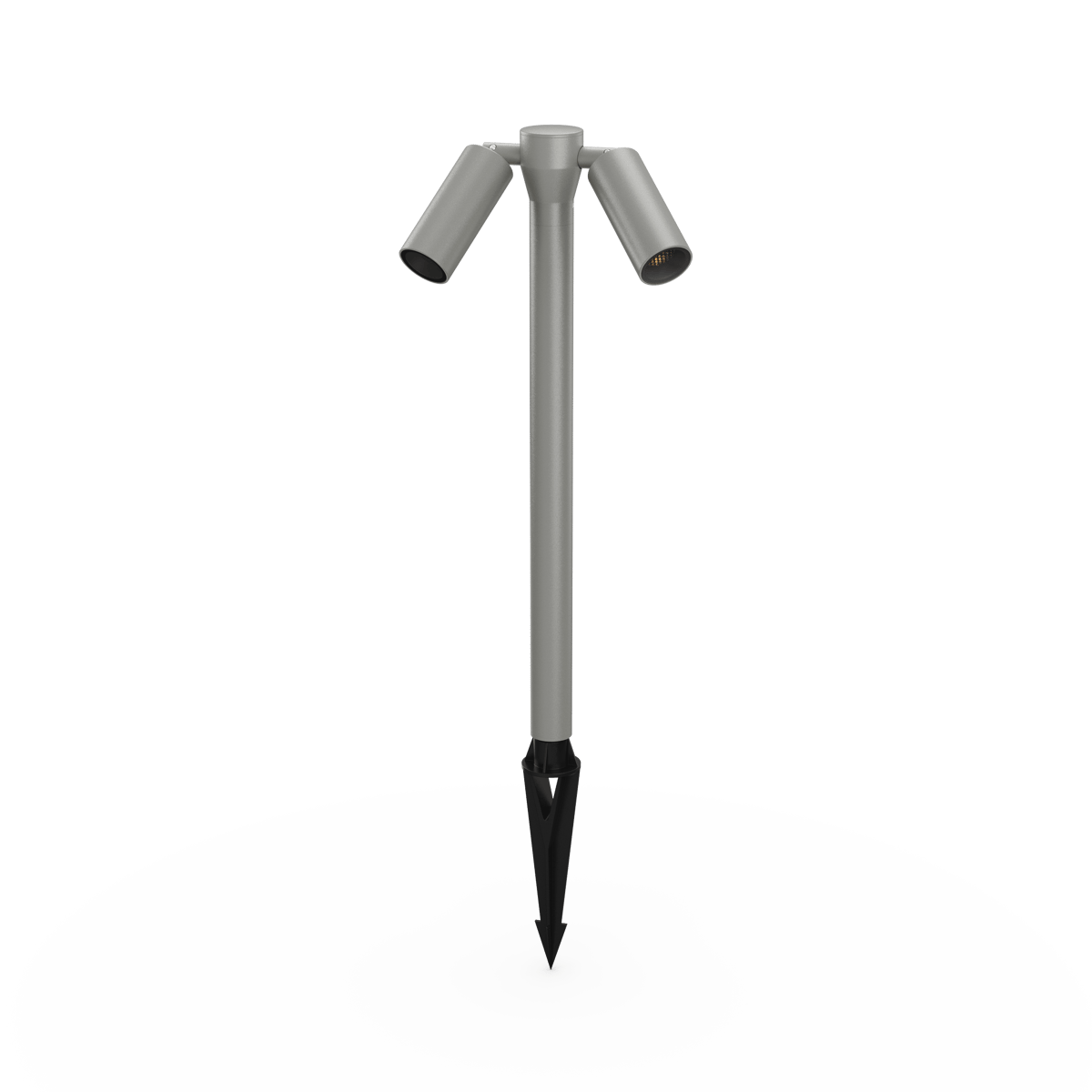

    • A4 - Basalt

      Aluminium 6000 Series

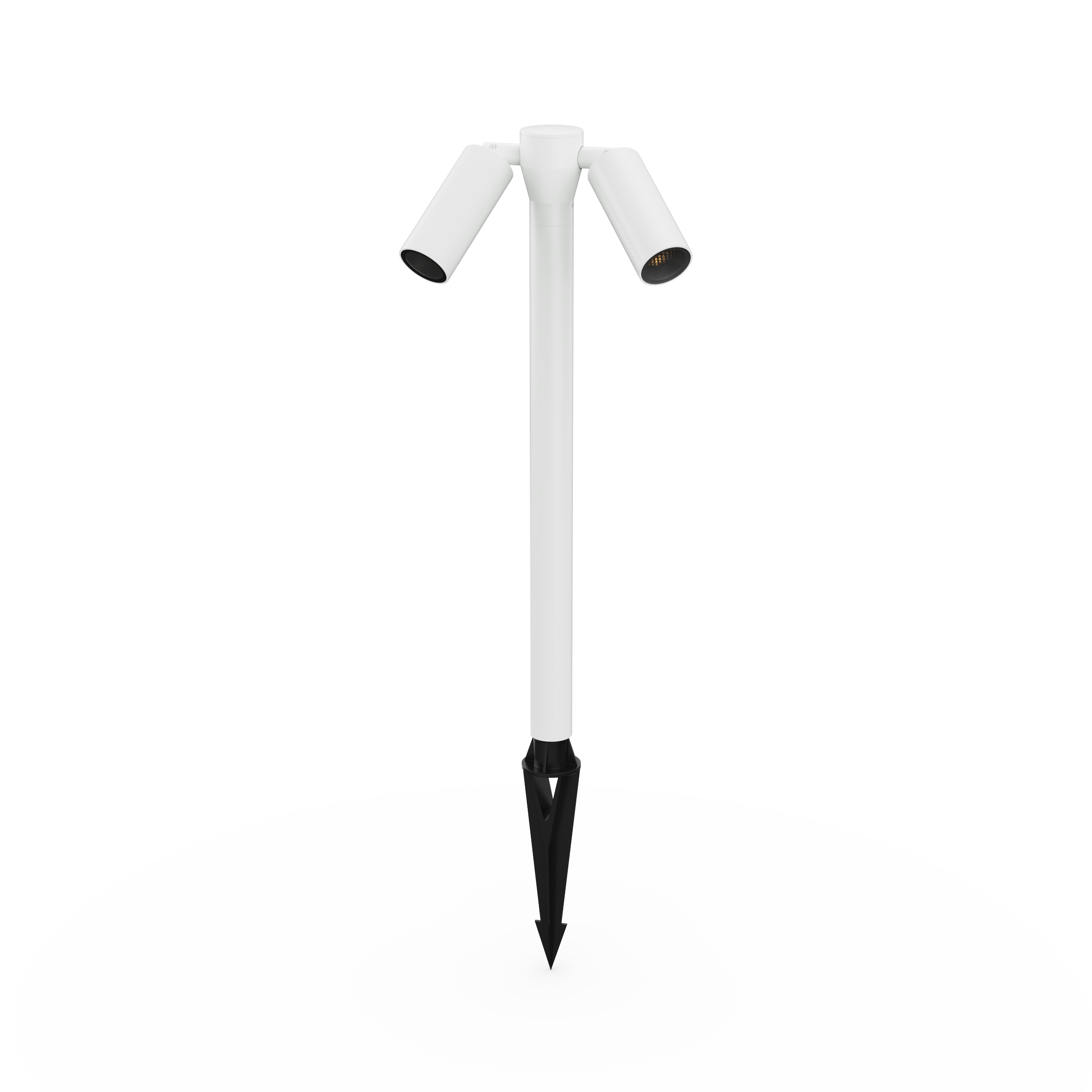

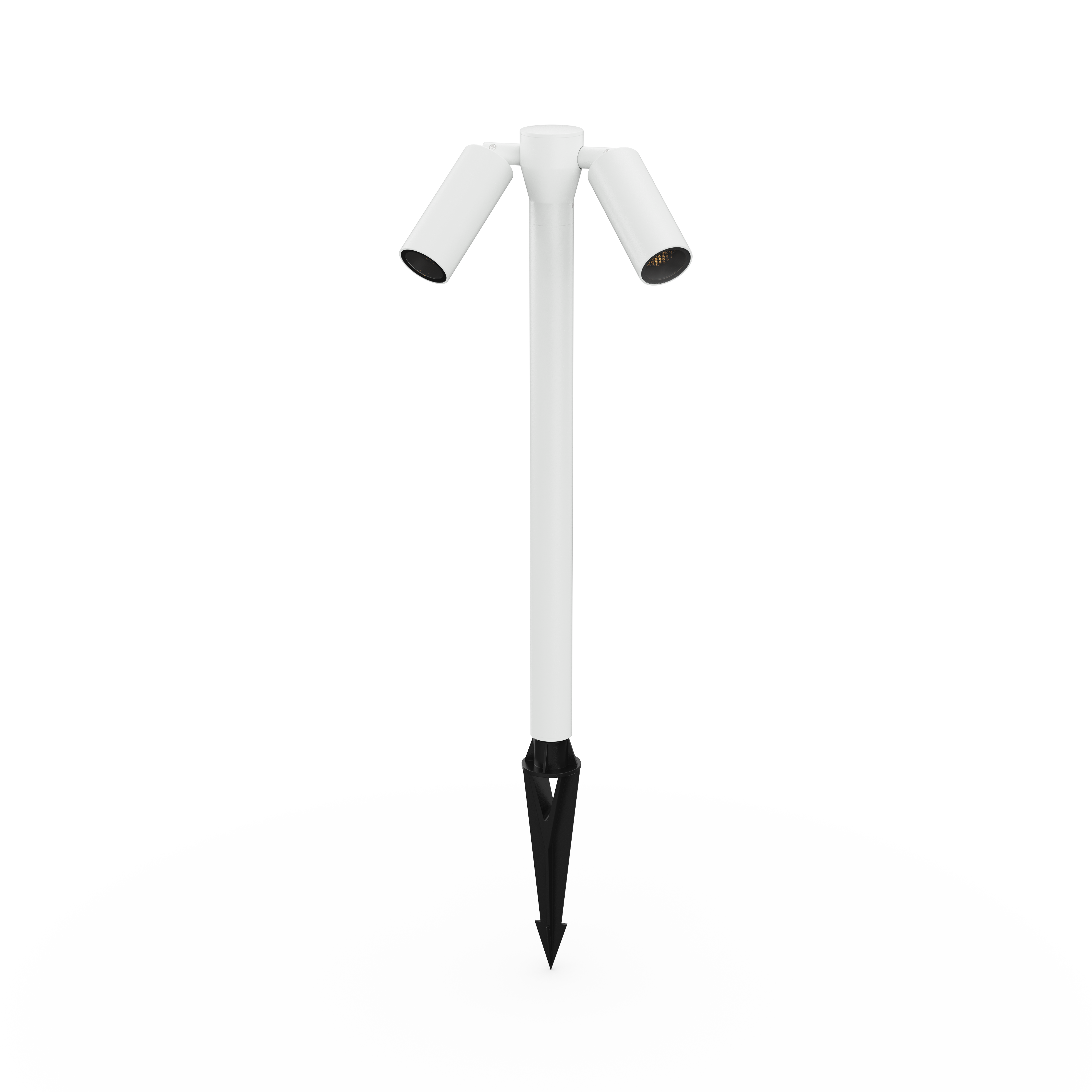

    • A8 - White

      Aluminium 6000 Series

    Control Gear

    • 24V DC 3-Wire

      Dimming: 3-wire PWM 10V Dimming

    Light Sources

    • 8W / 600lm

      2700K

    • 14W / 1100lm

      2700K

    • 8W / 600lm

      3000K

    • 14W / 1100lm

      3000K

    • 8W / 640lm

      4000K

    • 14W / 1200lm

      4000K

    • 8W / 640lm

      5700K

    • 14W / 1200lm

      5700K

    Optical

    • Oval (25x50)

      O1

    • Wide (36°)

      36

    • Medium (20°)

      20

    • Narrow (15°)

      15

    Cable

    • A

      500mm 3-Core Anti-Siphon Cable

    Configure order code

    AQL-245

    To configure your product/s, select from the options below.
    Multiple selections are possible to produce your downloadable datasheet/s.

    Clear Filter
    A1 - Clear Aluminium 6000 Series A2 - Black Aluminium 6000 Series A3 - Bronze Aluminium 6000 Series A4 - Basalt Aluminium 6000 Series A8 - White Aluminium 6000 Series
    24V DC 3-Wire
    8W / 600lm / 2700K 14W / 1100lm / 2700K 8W / 600lm / 3000K 14W / 1100lm / 3000K 8W / 640lm / 4000K 14W / 1200lm / 4000K 8W / 640lm / 5700K 14W / 1200lm / 5700K
    Oval (25x50) Wide (36°) Medium (20°) Narrow (15°)
    500mm 3-Core Anti-Siphon Cable

    AQL-245 - has 160 variations

    Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
    AQL-245-A1-B00430O1A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 600lm / 3000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0043036A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 600lm / 3000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0043020A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 600lm / 3000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0043015A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 600lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B00730O1A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 14W 1100lm / 3000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0073036A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 14W 1100lm / 3000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0073020A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 14W 1100lm / 3000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0073015A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 14W 1100lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B00427O1A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 600lm / 2700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0042736A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 600lm / 2700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0042720A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 600lm / 2700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0042715A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 600lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B00727O1A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 14W 1100lm / 2700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0072736A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 14W 1100lm / 2700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0072720A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 14W 1100lm / 2700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0072715A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 14W 1100lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B00430O1A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 600lm / 3000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0043036A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 600lm / 3000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0043020A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 600lm / 3000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0043015A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 600lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B00730O1A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 14W 1100lm / 3000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0073036A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 14W 1100lm / 3000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0073020A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 14W 1100lm / 3000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0073015A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 14W 1100lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B00427O1A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 600lm / 2700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0042736A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 600lm / 2700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0042720A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 600lm / 2700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0042715A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 600lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B00727O1A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 14W 1100lm / 2700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0072736A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 14W 1100lm / 2700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0072720A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 14W 1100lm / 2700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0072715A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 14W 1100lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B00430O1A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 600lm / 3000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0043036A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 600lm / 3000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0043020A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 600lm / 3000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0043015A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 600lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B00730O1A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 14W 1100lm / 3000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0073036A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 14W 1100lm / 3000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0073020A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 14W 1100lm / 3000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0073015A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 14W 1100lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B00427O1A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 600lm / 2700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0042736A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 600lm / 2700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0042720A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 600lm / 2700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0042715A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 600lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B00727O1A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 14W 1100lm / 2700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0072736A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 14W 1100lm / 2700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0072720A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 14W 1100lm / 2700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0072715A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 14W 1100lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B00430O1A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 600lm / 3000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0043036A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 600lm / 3000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0043020A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 600lm / 3000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0043015A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 600lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B00730O1A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 14W 1100lm / 3000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0073036A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 14W 1100lm / 3000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0073020A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 14W 1100lm / 3000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0073015A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 14W 1100lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B00427O1A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 600lm / 2700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0042736A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 600lm / 2700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0042720A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 600lm / 2700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0042715A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 600lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B00727O1A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 14W 1100lm / 2700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0072736A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 14W 1100lm / 2700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0072720A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 14W 1100lm / 2700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0072715A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 14W 1100lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B00430O1A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 600lm / 3000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0043036A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 600lm / 3000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0043020A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 600lm / 3000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0043015A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 600lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B00730O1A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 14W 1100lm / 3000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0073036A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 14W 1100lm / 3000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0073020A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 14W 1100lm / 3000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0073015A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 14W 1100lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B00427O1A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 600lm / 2700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0042736A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 600lm / 2700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0042720A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 600lm / 2700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0042715A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 600lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B00727O1A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 14W 1100lm / 2700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0072736A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 14W 1100lm / 2700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0072720A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 14W 1100lm / 2700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0072715A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 14W 1100lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B00457O1A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 640lm / 5700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0045736A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 640lm / 5700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0045720A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 640lm / 5700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0045715A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 640lm / 5700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B00757O1A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 14W 1200lm / 5700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0075736A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 14W 1200lm / 5700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0075720A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 14W 1200lm / 5700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0075715A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 14W 1200lm / 5700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B00440O1A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 640lm / 4000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0044036A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 640lm / 4000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0044020A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 640lm / 4000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0044015A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 640lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B00740O1A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 14W 1200lm / 4000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0074036A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 14W 1200lm / 4000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0074020A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 14W 1200lm / 4000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A1-B0074015A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 14W 1200lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B00457O1A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 640lm / 5700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0045736A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 640lm / 5700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0045720A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 640lm / 5700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0045715A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 640lm / 5700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B00757O1A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 14W 1200lm / 5700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0075736A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 14W 1200lm / 5700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0075720A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 14W 1200lm / 5700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0075715A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 14W 1200lm / 5700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B00440O1A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 640lm / 4000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0044036A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 640lm / 4000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0044020A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 640lm / 4000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0044015A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 640lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B00740O1A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 14W 1200lm / 4000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0074036A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 14W 1200lm / 4000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0074020A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 14W 1200lm / 4000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A2-B0074015A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 14W 1200lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B00457O1A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 640lm / 5700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0045736A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 640lm / 5700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0045720A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 640lm / 5700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0045715A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 640lm / 5700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B00757O1A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 14W 1200lm / 5700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0075736A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 14W 1200lm / 5700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0075720A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 14W 1200lm / 5700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0075715A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 14W 1200lm / 5700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B00440O1A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 640lm / 4000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0044036A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 640lm / 4000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0044020A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 640lm / 4000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0044015A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 640lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B00740O1A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 14W 1200lm / 4000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0074036A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 14W 1200lm / 4000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0074020A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 14W 1200lm / 4000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A3-B0074015A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 14W 1200lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B00457O1A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 640lm / 5700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0045736A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 640lm / 5700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0045720A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 640lm / 5700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0045715A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 640lm / 5700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B00757O1A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 14W 1200lm / 5700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0075736A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 14W 1200lm / 5700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0075720A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 14W 1200lm / 5700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0075715A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 14W 1200lm / 5700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B00440O1A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 640lm / 4000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0044036A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 640lm / 4000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0044020A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 640lm / 4000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0044015A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 640lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B00740O1A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 14W 1200lm / 4000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0074036A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 14W 1200lm / 4000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0074020A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 14W 1200lm / 4000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A4-B0074015A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 14W 1200lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B00457O1A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 640lm / 5700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0045736A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 640lm / 5700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0045720A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 640lm / 5700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0045715A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 640lm / 5700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B00757O1A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 14W 1200lm / 5700K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0075736A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 14W 1200lm / 5700K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0075720A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 14W 1200lm / 5700K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0075715A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 14W 1200lm / 5700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B00440O1A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 640lm / 4000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0044036A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 640lm / 4000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0044020A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 640lm / 4000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0044015A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 640lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B00740O1A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 14W 1200lm / 4000K O1 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0074036A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 14W 1200lm / 4000K 36 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0074020A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 14W 1200lm / 4000K 20 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-245-A8-B0074015A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 14W 1200lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF

    Products that work well with your selection

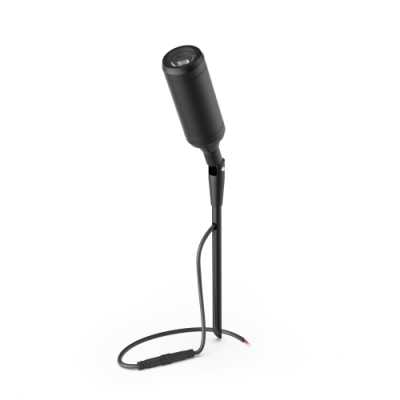

    AQL-115

    AQL-115

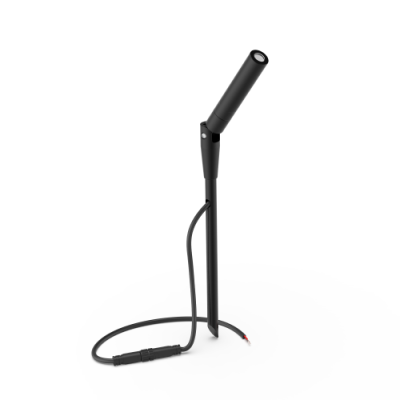

    AQL-116

    AQL-116

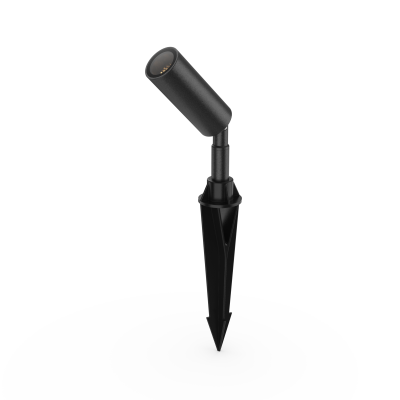

    AQL-117

    AQL-117

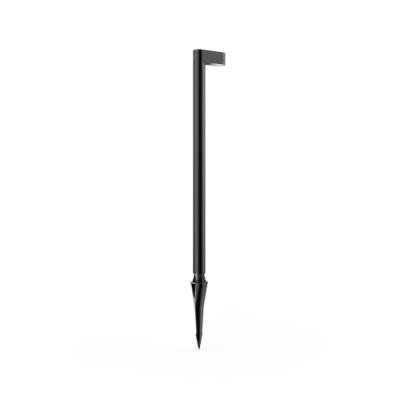

    AQL-120

    AQL-120

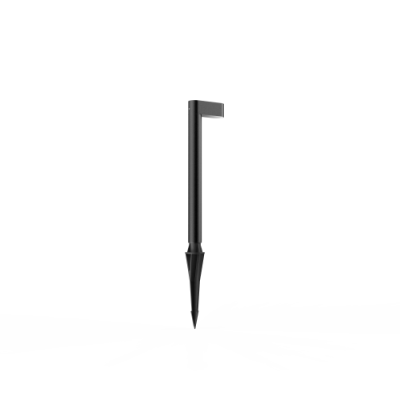

    AQL-121

    AQL-121

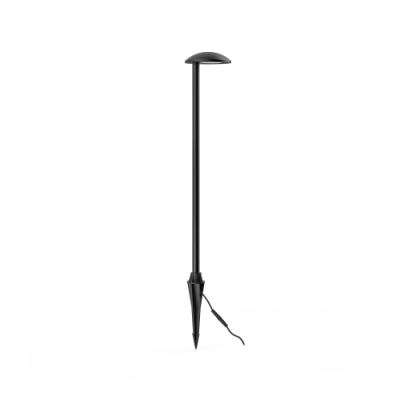

    AQL-122

    AQL-122

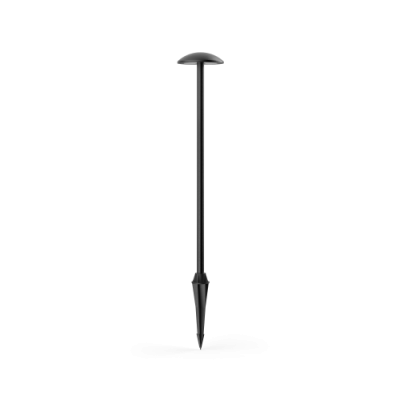

    AQL-123

    AQL-123
