    Introduction

    The AQL-182 is a high-output projector designed for architectural and commercial lighting applications with a mounting large base allowing for 240V integration.

    Available in high power white or RGBW LEDs with a wide varierty of optics, the AQL-182 is perfect to illuminate a variety of external facades and features.

    RCM Approval Due Q4 2024

    Specification

    AQL-182

    LumenaPro

    CNC Machined Aluminium

    Terminal Block

    7 Year Aqualux Warranty

    IP65

    RCM Approval Due Q4 2024

    Options

    Body

    • A1 - Clear

      Aluminium 6000 Series

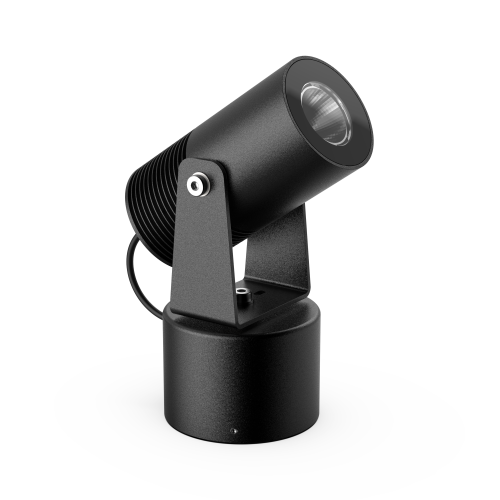

    • A2 - Black

      Aluminium 6000 Series

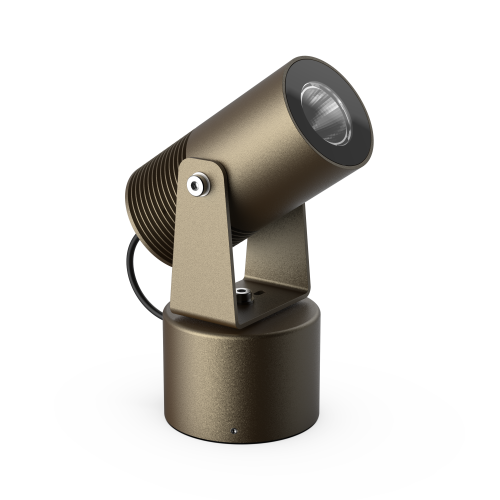

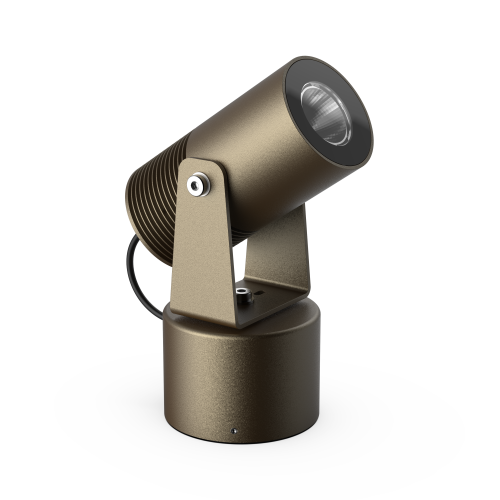

    • A3 - Bronze

      Aluminium 6000 Series

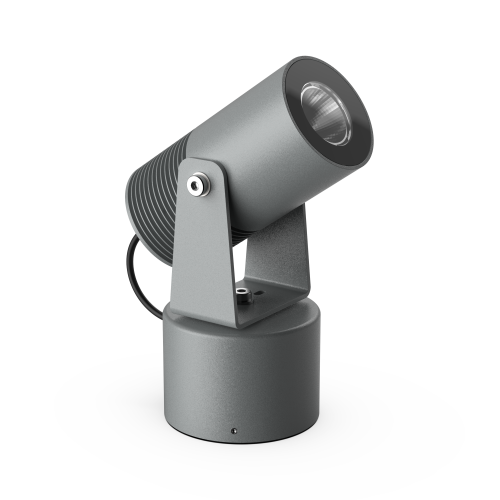

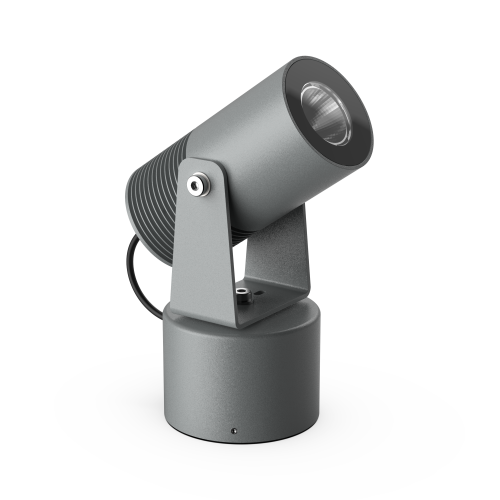

    • A4 - Basalt

      Aluminium 6000 Series

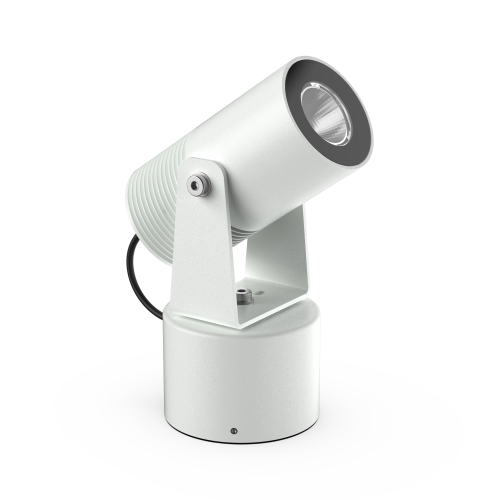

    • A8 - White

      Aluminium 6000 Series

    Control Gear

    • 24V DC RGBW

      Dimming: 4CH Low-Side PWM

    • 24V DC 3-Wire

      Dimming: 3-wire PWM 10V Dimming

    • 240V DALI Dimming

      Dimming: DALI Integral

    Light Sources

    • 20W / 1000lm

      20W RGB+3000K

    • 20W / 2322lm

      2200K

    • 20W / 2284lm

      2700K

    • 20W / 2380lm

      3000K

    • 20W / 2404lm

      3500K

    • 20W / 2410lm

      4000K

    Optical

    • Narrow (10°)

      10

    • Medium (25°)

      25

    • Medium (35°)

      35

    • Narrow (15°) Reflector

      15

    • Medium (25°) Reflector

      25

    • Wide (40°) Reflector

      40

    • Wide Wide (50°) Reflector

      50

    Cable

    • T

      Terminal Block

    Configure order code

    AQL-182

    To configure your product/s, select from the options below.
    Multiple selections are possible to produce your downloadable datasheet/s.

    Clear Filter
    A1 - Clear Aluminium 6000 Series A2 - Black Aluminium 6000 Series A3 - Bronze Aluminium 6000 Series A4 - Basalt Aluminium 6000 Series A8 - White Aluminium 6000 Series
    24V DC RGBW 24V DC 3-Wire 240V DALI Dimming
    20W / 1000lm / 20W RGB+3000K 20W / 2322lm / 2200K 20W / 2284lm / 2700K 20W / 2380lm / 3000K 20W / 2404lm / 3500K 20W / 2410lm / 4000K
    Narrow (10°) Medium (25°) Medium (35°) Narrow (15°) Reflector Medium (25°) Reflector Wide (40°) Reflector Wide Wide (50°) Reflector
    Terminal Block

    AQL-182 - has 215 variations

    Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
    AQL-182-A1-Z020Z210T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 1000lm / 20W RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM Terminal Block
    PDF
    AQL-182-A1-Z020Z225T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 1000lm / 20W RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM Terminal Block
    PDF
    AQL-182-A1-Z020Z235T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 1000lm / 20W RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM Terminal Block
    PDF
    AQL-182-A2-Z020Z210T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 1000lm / 20W RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM Terminal Block
    PDF
    AQL-182-A2-Z020Z225T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 1000lm / 20W RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM Terminal Block
    PDF
    AQL-182-A2-Z020Z235T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 1000lm / 20W RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM Terminal Block
    PDF
    AQL-182-A3-Z020Z210T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 1000lm / 20W RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM Terminal Block
    PDF
    AQL-182-A3-Z020Z225T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 1000lm / 20W RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM Terminal Block
    PDF
    AQL-182-A3-Z020Z235T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 1000lm / 20W RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM Terminal Block
    PDF
    AQL-182-A4-Z020Z210T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 1000lm / 20W RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM Terminal Block
    PDF
    AQL-182-A4-Z020Z225T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 1000lm / 20W RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM Terminal Block
    PDF
    AQL-182-A4-Z020Z235T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 1000lm / 20W RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM Terminal Block
    PDF
    AQL-182-A8-Z020Z210T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 1000lm / 20W RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM Terminal Block
    PDF
    AQL-182-A8-Z020Z225T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 1000lm / 20W RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM Terminal Block
    PDF
    AQL-182-A8-Z020Z235T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 1000lm / 20W RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM Terminal Block
    PDF
    AQL-182-A1-B0203015T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2380lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0203025T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2380lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0203040T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2380lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0203050T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2380lm / 3000K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0204015T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2410lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0204025T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2410lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0204040T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2410lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0204050T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2410lm / 4000K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0202715T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2284lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0202725T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2284lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0202740T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2284lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0202750T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2284lm / 2700K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0202215T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2322lm / 2200K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0202225T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2322lm / 2200K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0202240T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2322lm / 2200K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0202250T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2322lm / 2200K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0203515T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2404lm / 3500K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0203525T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2404lm / 3500K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0203540T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2404lm / 3500K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-B0203550T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2404lm / 3500K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A1-A0203015T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2380lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0203025T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2380lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0203040T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2380lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0203050T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2380lm / 3000K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0204015T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2410lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0204025T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2410lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0204040T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2410lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0204050T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2410lm / 4000K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0202715T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2284lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0202725T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2284lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0202740T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2284lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0202750T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2284lm / 2700K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0202215T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2322lm / 2200K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0202225T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2322lm / 2200K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0202240T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2322lm / 2200K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0202250T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2322lm / 2200K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0203515T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2404lm / 3500K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0203525T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2404lm / 3500K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0203540T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2404lm / 3500K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A1-A0203550T
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 20W 2404lm / 3500K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-B0203015T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2380lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0203025T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2380lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0203040T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2380lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0203050T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2380lm / 3000K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0204015T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2410lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0204025T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2410lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0204040T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2410lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0204050T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2410lm / 4000K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0202715T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2284lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0202725T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2284lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0202740T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2284lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0202750T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2284lm / 2700K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0202215T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2322lm / 2200K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0202225T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2322lm / 2200K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0202240T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2322lm / 2200K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0202250T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2322lm / 2200K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0203515T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2404lm / 3500K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0203525T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2404lm / 3500K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0203540T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2404lm / 3500K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-B0203550T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2404lm / 3500K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A2-A0203015T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2380lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0203025T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2380lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0203040T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2380lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0203050T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2380lm / 3000K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0204015T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2410lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0204025T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2410lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0204040T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2410lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0204050T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2410lm / 4000K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0202715T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2284lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0202725T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2284lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0202740T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2284lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0202750T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2284lm / 2700K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0202215T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2322lm / 2200K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0202225T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2322lm / 2200K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0202240T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2322lm / 2200K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0202250T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2322lm / 2200K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0203515T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2404lm / 3500K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0203525T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2404lm / 3500K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0203540T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2404lm / 3500K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A2-A0203550T
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 20W 2404lm / 3500K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-B0203015T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2380lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0203025T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2380lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0203040T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2380lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0203050T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2380lm / 3000K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0204015T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2410lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0204025T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2410lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0204040T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2410lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0204050T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2410lm / 4000K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0202715T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2284lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0202725T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2284lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0202740T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2284lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0202750T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2284lm / 2700K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0202215T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2322lm / 2200K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0202225T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2322lm / 2200K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0202240T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2322lm / 2200K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0202250T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2322lm / 2200K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0203515T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2404lm / 3500K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0203525T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2404lm / 3500K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0203540T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2404lm / 3500K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-B0203550T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2404lm / 3500K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A3-A0203015T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2380lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0203025T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2380lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0203040T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2380lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0203050T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2380lm / 3000K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0204015T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2410lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0204025T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2410lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0204040T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2410lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0204050T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2410lm / 4000K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0202715T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2284lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0202725T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2284lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0202740T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2284lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0202750T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2284lm / 2700K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0202215T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2322lm / 2200K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0202225T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2322lm / 2200K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0202240T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2322lm / 2200K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0202250T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2322lm / 2200K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0203515T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2404lm / 3500K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0203525T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2404lm / 3500K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0203540T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2404lm / 3500K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A3-A0203550T
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 20W 2404lm / 3500K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-B0203015T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2380lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0203025T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2380lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0203040T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2380lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0203050T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2380lm / 3000K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0204015T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2410lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0204025T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2410lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0204040T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2410lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0204050T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2410lm / 4000K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0202715T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2284lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0202725T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2284lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0202740T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2284lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0202750T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2284lm / 2700K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0202215T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2322lm / 2200K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0202225T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2322lm / 2200K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0202240T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2322lm / 2200K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0202250T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2322lm / 2200K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0203515T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2404lm / 3500K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0203525T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2404lm / 3500K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0203540T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2404lm / 3500K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-B0203550T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2404lm / 3500K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A4-A0203015T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2380lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0203025T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2380lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0203040T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2380lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0203050T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2380lm / 3000K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0204015T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2410lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0204025T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2410lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0204040T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2410lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0204050T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2410lm / 4000K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0202715T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2284lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0202725T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2284lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0202740T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2284lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0202750T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2284lm / 2700K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0202215T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2322lm / 2200K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0202225T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2322lm / 2200K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0202240T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2322lm / 2200K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0202250T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2322lm / 2200K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0203515T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2404lm / 3500K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0203525T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2404lm / 3500K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0203540T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2404lm / 3500K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A4-A0203550T
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 20W 2404lm / 3500K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-B0203015T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2380lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0203025T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2380lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0203040T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2380lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0203050T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2380lm / 3000K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0204015T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2410lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0204025T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2410lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0204040T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2410lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0204050T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2410lm / 4000K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0202715T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2284lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0202725T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2284lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0202740T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2284lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0202750T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2284lm / 2700K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0202215T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2322lm / 2200K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0202225T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2322lm / 2200K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0202240T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2322lm / 2200K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0202250T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2322lm / 2200K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0203515T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2404lm / 3500K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0203525T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2404lm / 3500K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0203540T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2404lm / 3500K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-B0203550T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2404lm / 3500K 50 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
    PDF
    AQL-182-A8-A0203015T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2380lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0203025T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2380lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0203040T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2380lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0203050T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2380lm / 3000K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0204015T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2410lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0204025T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2410lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0204040T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2410lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0204050T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2410lm / 4000K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0202715T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2284lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0202725T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2284lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0202740T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2284lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0202750T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2284lm / 2700K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0202215T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2322lm / 2200K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0202225T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2322lm / 2200K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0202240T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2322lm / 2200K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0202250T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2322lm / 2200K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0203515T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2404lm / 3500K 15 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0203525T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2404lm / 3500K 25 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0203540T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2404lm / 3500K 40 240V DALI Dimming DALI Integral Terminal Block
    PDF
    AQL-182-A8-A0203550T
    PDF
    		A8 - White
    Aluminium 6000 Series    		 20W 2404lm / 3500K 50 240V DALI Dimming DALI Integral Terminal Block
    PDF

    Products that work well with your selection

    AQL-156

    AQL-156

    AQL-157

    AQL-157

    AQL-158

    AQL-158

    AQL-180

    AQL-180

    AQL-181

    AQL-181

    AQL-190

    AQL-190

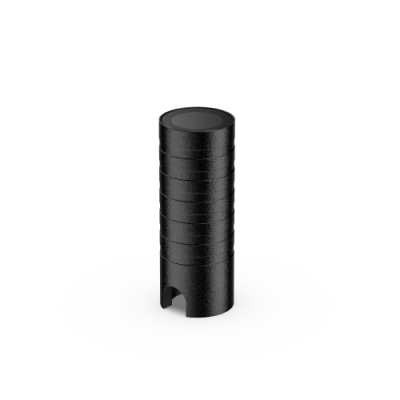

    AQL-191

    AQL-191
