Lumena

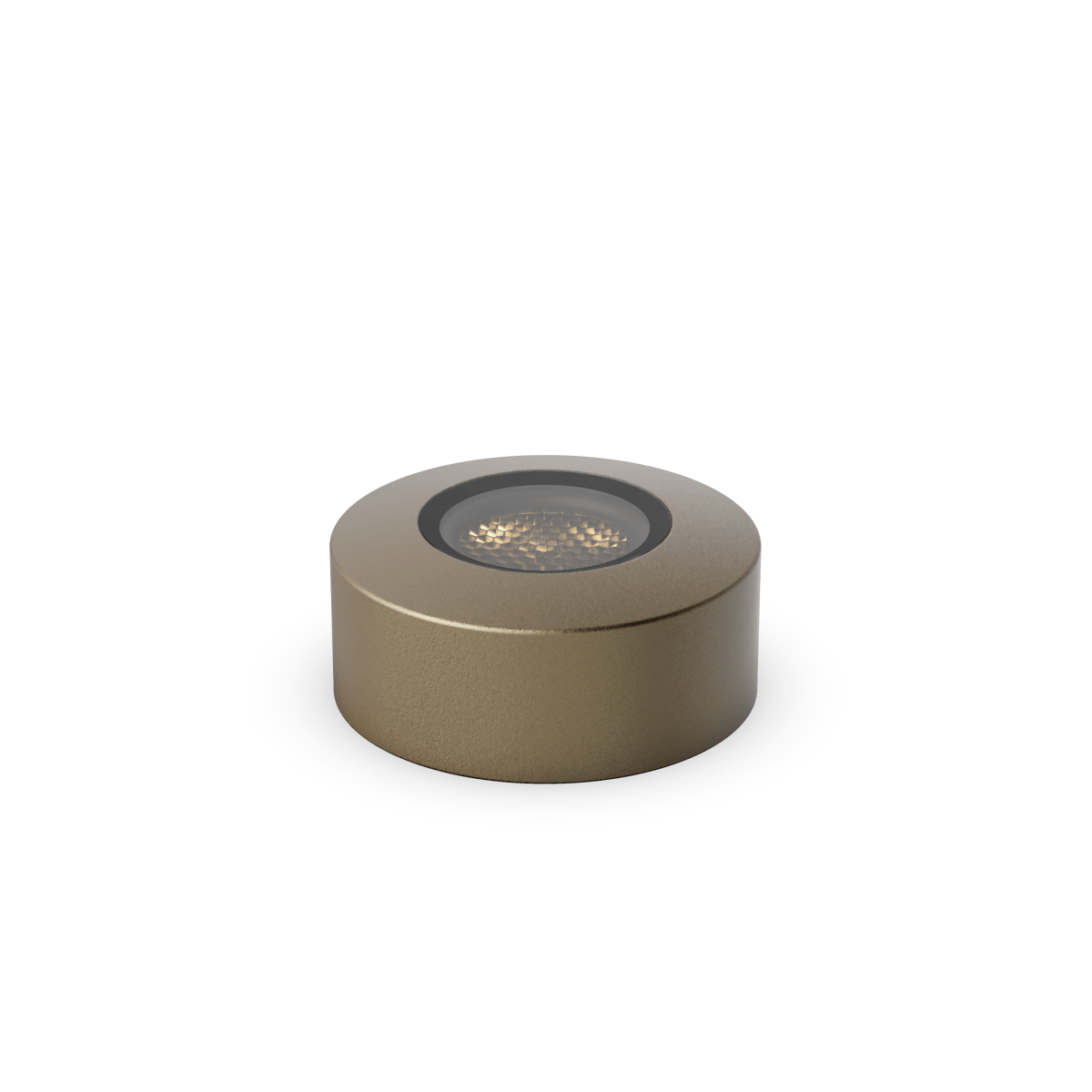

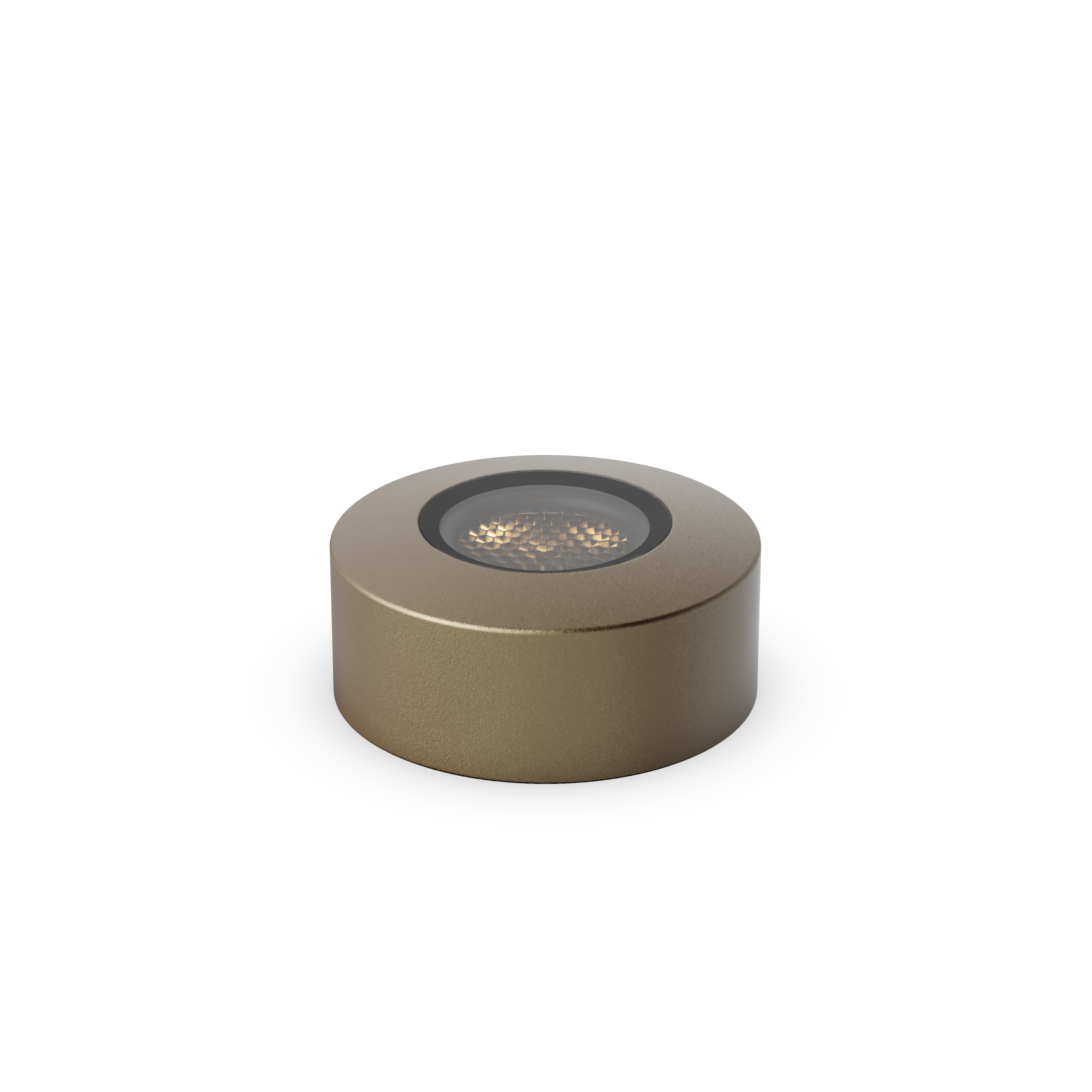

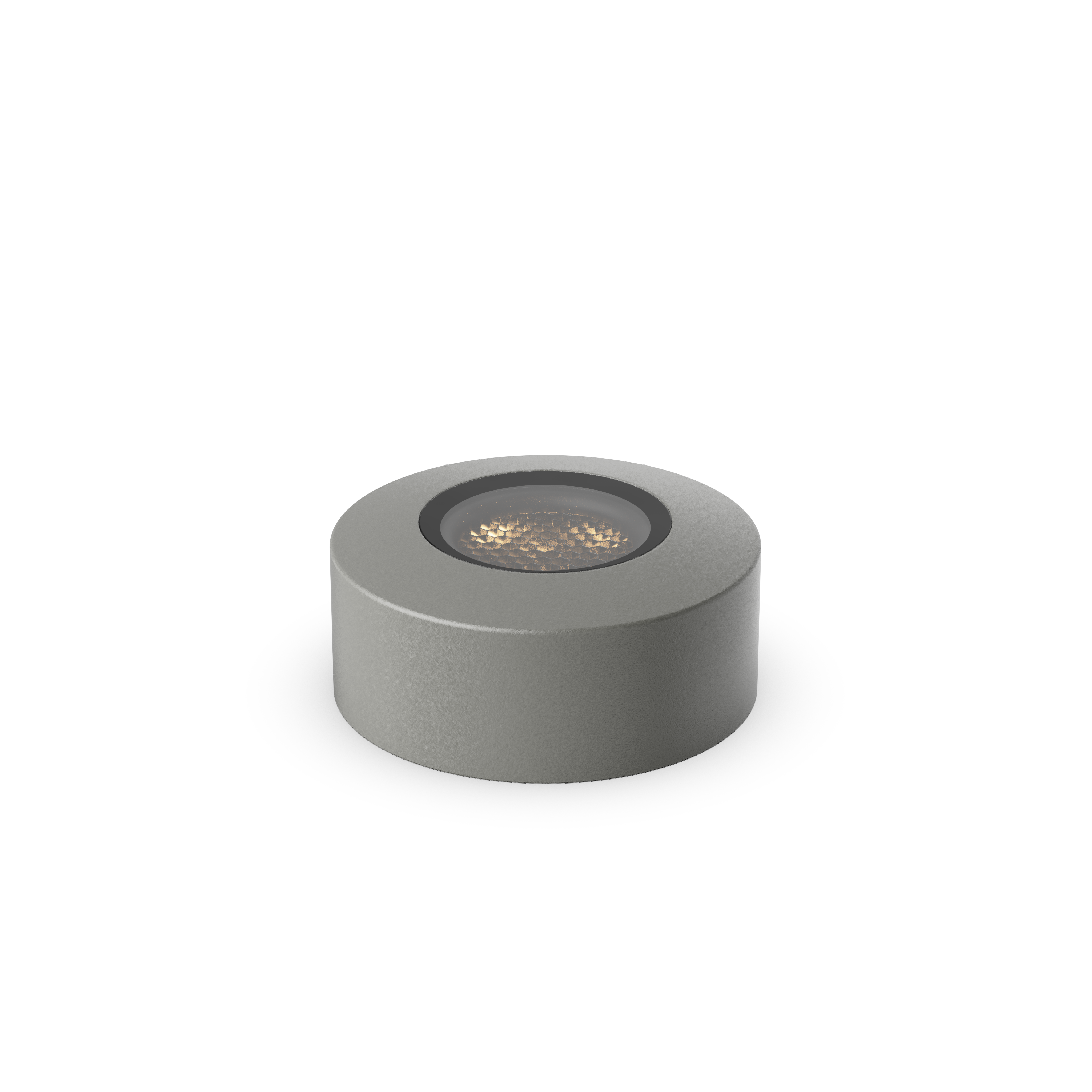

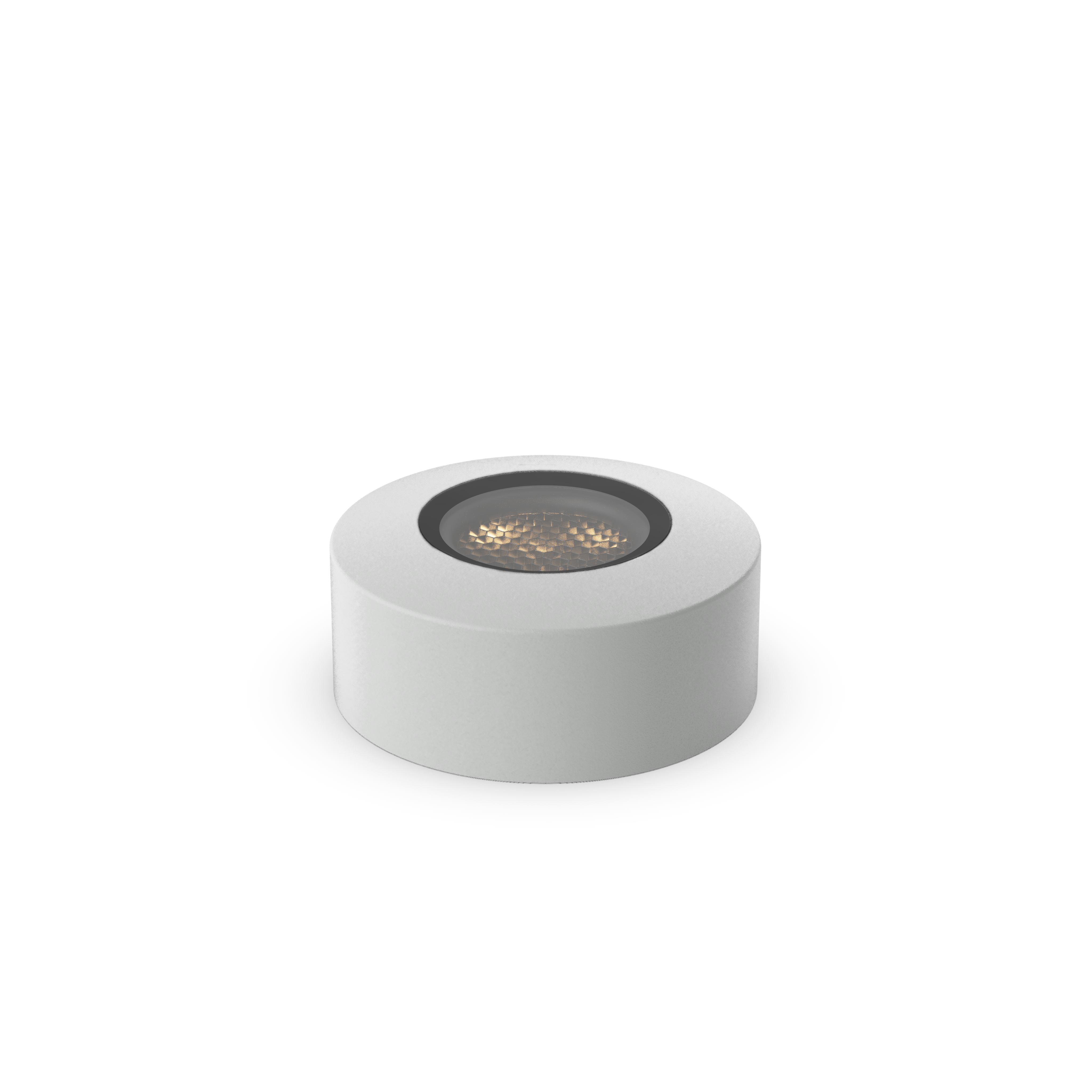

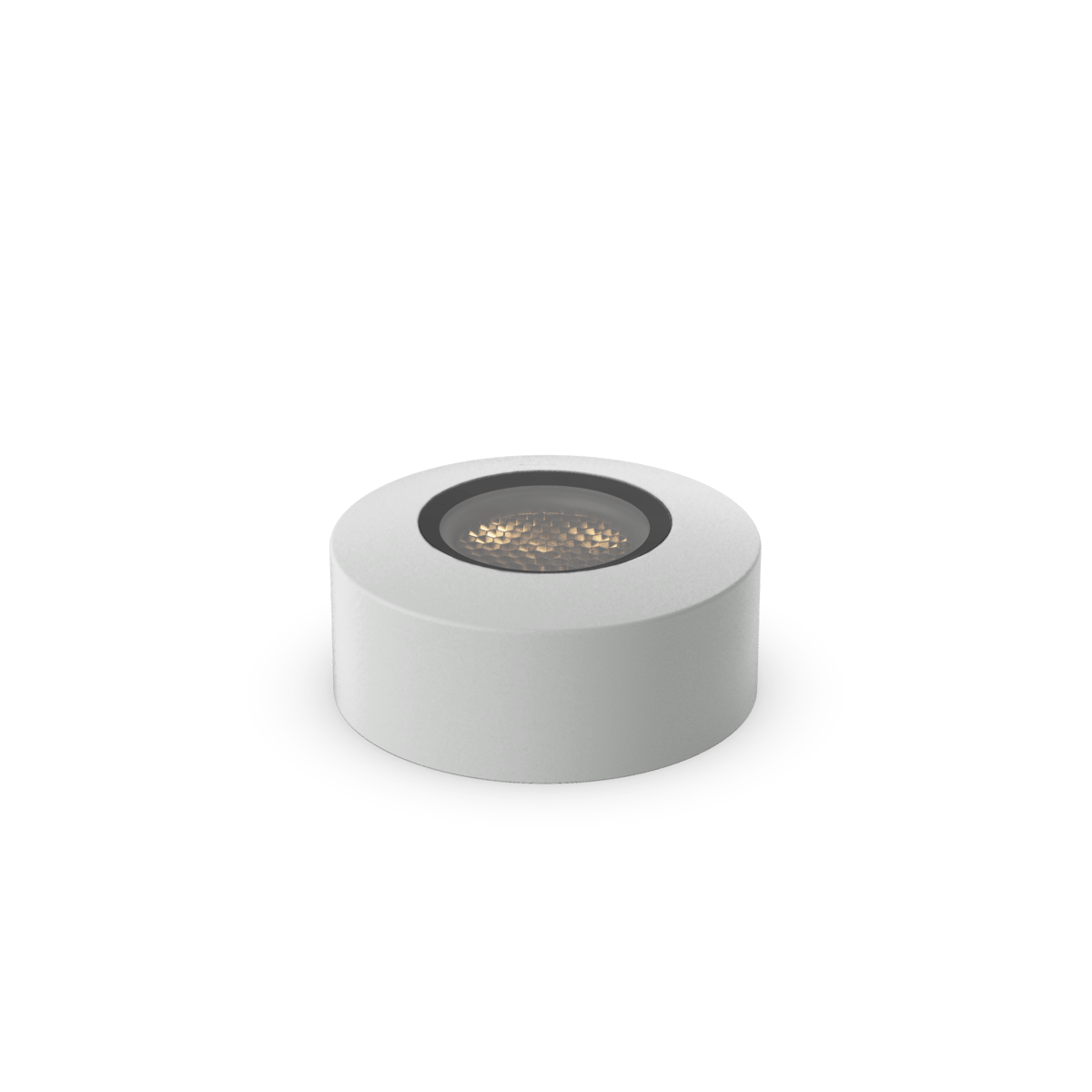

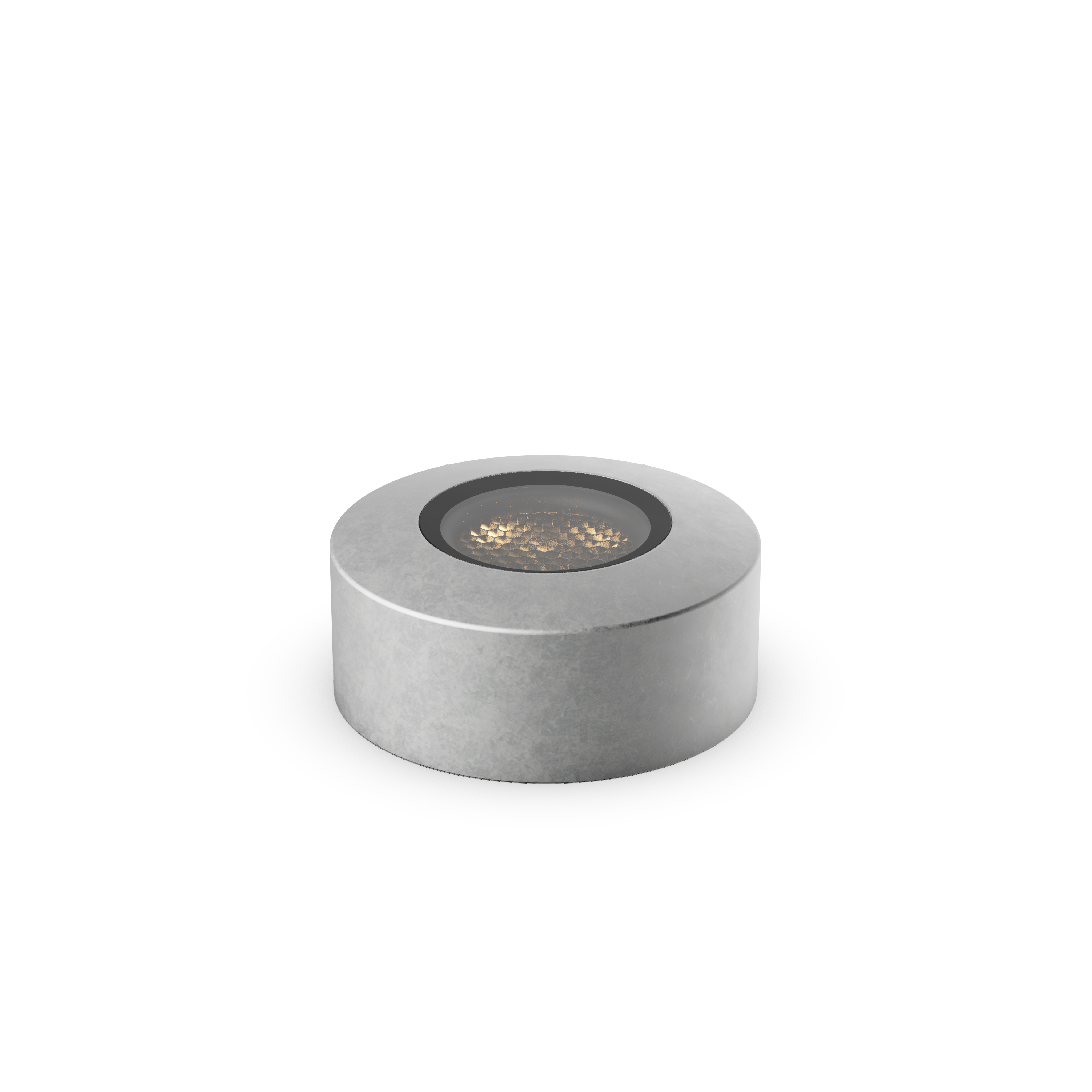

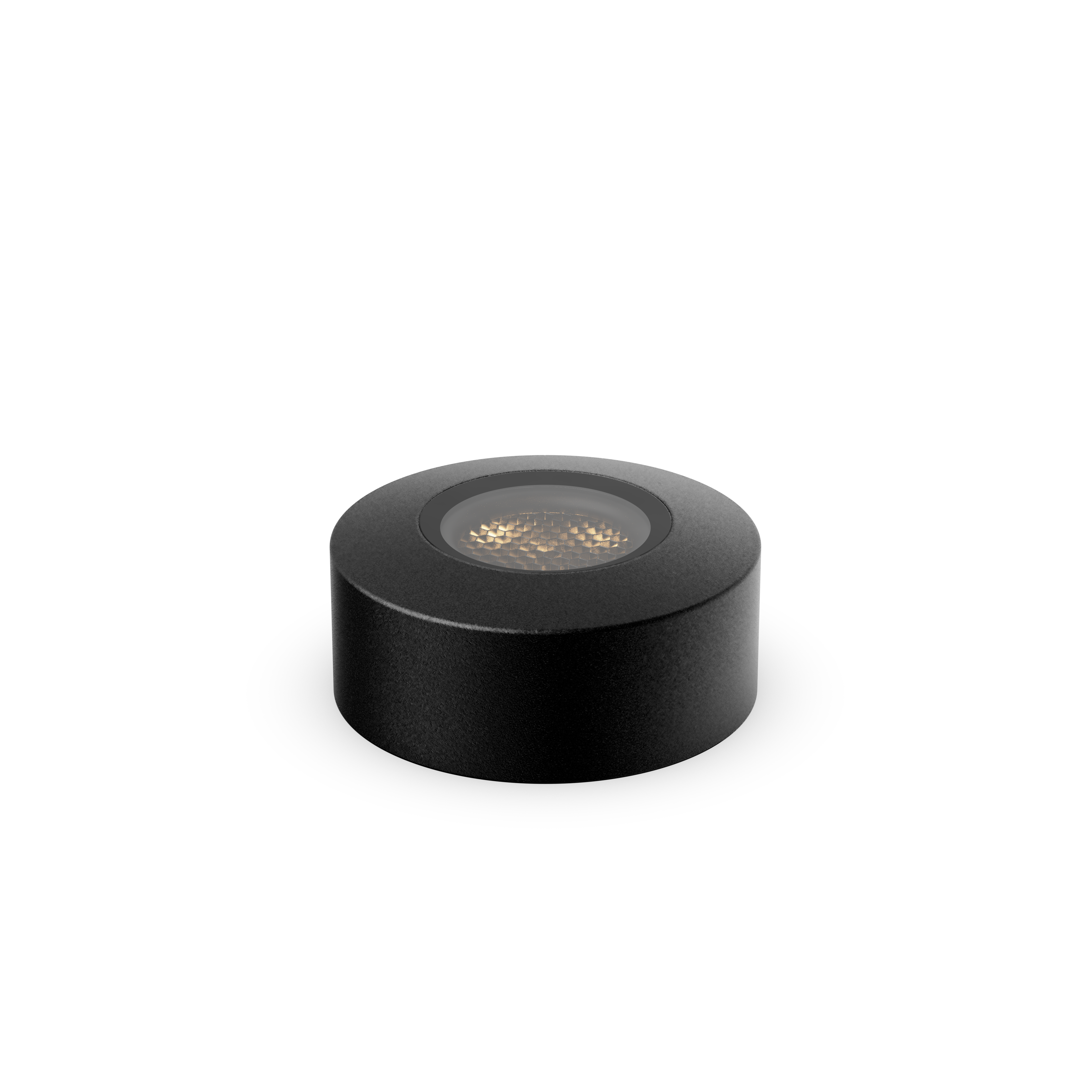

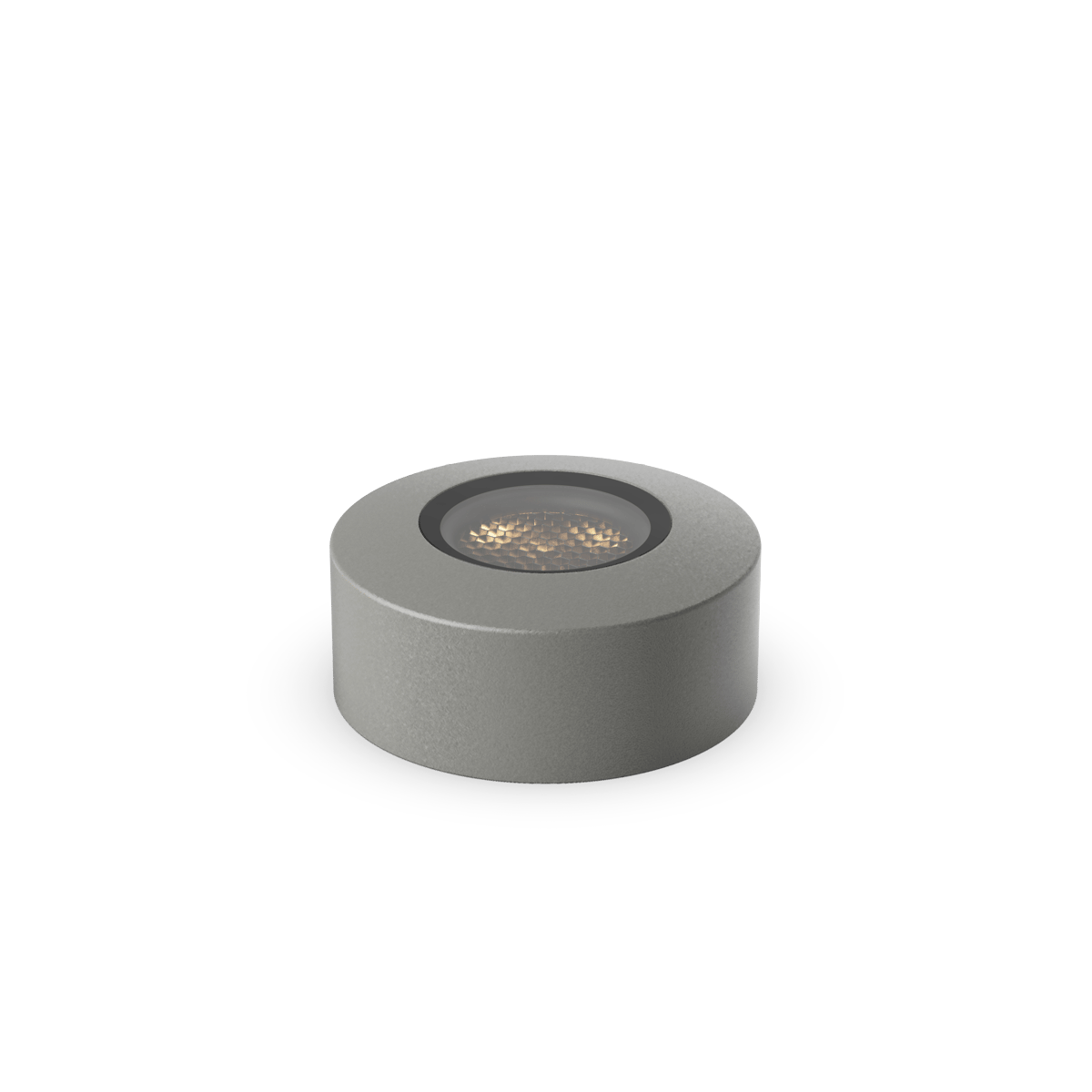

AQL-175

Pucklight

Introduction

The AQL-175 has been utilised in many applications including veranda downlighting, alcove uplighting and cabinet illumination to name a few.

Specification

AQL-175

Lumena

CNC Machined & Anodised Aluminium 6061

1M Aqualux PLUS QuickConnect

5 Year Aqualux Warranty

IP67

Options

Body

  • Silver Reign

    Aluminium 6000 Series

  • Black Ace

    Aluminium 6000 Series

  • Medium Bronze

    Aluminium 6000 Series

  • Venerable Silver

    Aluminium 6000 Series

Control Gear

  • 12~24V AC / 24V DC

    Dimming: Optional 10V PWM (DC)

Light Sources

  • 4W / 300lm

    3000K / 300mA

  • 7W / 550lm

    3000K / 550mA

  • 4W / 320lm

    5700K / 300mA

  • 7W / 600lm

    5700K / 550mA

  • 4W / 300lm

    2700K / 300mA

  • 7W / 550lm

    2700K / 550mA

Optical

  • Narrow (10°)

    10

  • Medium (25°)

    25

  • Wide (40°)

    40

Cable

  • S

    1m Aqualux Cable

Configure order code

AQL-175

To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.

Silver Reign Aluminium 6000 Series Black Ace Aluminium 6000 Series Medium Bronze Aluminium 6000 Series Venerable Silver Aluminium 6000 Series
12~24V AC / 24V DC
4W / 300lm / 3000K / 300mA 7W / 550lm / 3000K / 550mA 4W / 320lm / 5700K / 300mA 7W / 600lm / 5700K / 550mA 4W / 300lm / 2700K / 300mA 7W / 550lm / 2700K / 550mA
Narrow (10°) Medium (25°) Wide (40°)
1m Aqualux Cable

AQL-175 - has 72 variations

Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
AQL-175-A4-X0075710S
PDF
Venerable Silver
Aluminium 6000 Series		 7W 600lm / 5700K / 550mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A1-X0072740S
PDF
Silver Reign
Aluminium 6000 Series		 7W 550lm / 2700K / 550mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A1-X0072725S
PDF
Silver Reign
Aluminium 6000 Series		 7W 550lm / 2700K / 550mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A1-X0072710S
PDF
Silver Reign
Aluminium 6000 Series		 7W 550lm / 2700K / 550mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A1-X0042740S
PDF
Silver Reign
Aluminium 6000 Series		 4W 300lm / 2700K / 300mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A1-X0042725S
PDF
Silver Reign
Aluminium 6000 Series		 4W 300lm / 2700K / 300mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A1-X0042710S
PDF
Silver Reign
Aluminium 6000 Series		 4W 300lm / 2700K / 300mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A4-X0075740S
PDF
Venerable Silver
Aluminium 6000 Series		 7W 600lm / 5700K / 550mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A4-X0075725S
PDF
Venerable Silver
Aluminium 6000 Series		 7W 600lm / 5700K / 550mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A2-X0042710S
PDF
Black Ace
Aluminium 6000 Series		 4W 300lm / 2700K / 300mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A4-X0045740S
PDF
Venerable Silver
Aluminium 6000 Series		 4W 320lm / 5700K / 300mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A4-X0045725S
PDF
Venerable Silver
Aluminium 6000 Series		 4W 320lm / 5700K / 300mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A4-X0045710S
PDF
Venerable Silver
Aluminium 6000 Series		 4W 320lm / 5700K / 300mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A4-X0073040S
PDF
Venerable Silver
Aluminium 6000 Series		 7W 550lm / 3000K / 550mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A4-X0073025S
PDF
Venerable Silver
Aluminium 6000 Series		 7W 550lm / 3000K / 550mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A4-X0073010S
PDF
Venerable Silver
Aluminium 6000 Series		 7W 550lm / 3000K / 550mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A4-X0043040S
PDF
Venerable Silver
Aluminium 6000 Series		 4W 300lm / 3000K / 300mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A4-X0043025S
PDF
Venerable Silver
Aluminium 6000 Series		 4W 300lm / 3000K / 300mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A3-X0072710S
PDF
Medium Bronze
Aluminium 6000 Series		 7W 550lm / 2700K / 550mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A4-X0072740S
PDF
Venerable Silver
Aluminium 6000 Series		 7W 550lm / 2700K / 550mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A4-X0072725S
PDF
Venerable Silver
Aluminium 6000 Series		 7W 550lm / 2700K / 550mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A4-X0072710S
PDF
Venerable Silver
Aluminium 6000 Series		 7W 550lm / 2700K / 550mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A4-X0042740S
PDF
Venerable Silver
Aluminium 6000 Series		 4W 300lm / 2700K / 300mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A4-X0042725S
PDF
Venerable Silver
Aluminium 6000 Series		 4W 300lm / 2700K / 300mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A4-X0042710S
PDF
Venerable Silver
Aluminium 6000 Series		 4W 300lm / 2700K / 300mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A3-X0072740S
PDF
Medium Bronze
Aluminium 6000 Series		 7W 550lm / 2700K / 550mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A3-X0072725S
PDF
Medium Bronze
Aluminium 6000 Series		 7W 550lm / 2700K / 550mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A4-X0043010S
PDF
Venerable Silver
Aluminium 6000 Series		 4W 300lm / 3000K / 300mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A3-X0042740S
PDF
Medium Bronze
Aluminium 6000 Series		 4W 300lm / 2700K / 300mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A3-X0042725S
PDF
Medium Bronze
Aluminium 6000 Series		 4W 300lm / 2700K / 300mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A3-X0042710S
PDF
Medium Bronze
Aluminium 6000 Series		 4W 300lm / 2700K / 300mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A2-X0072740S
PDF
Black Ace
Aluminium 6000 Series		 7W 550lm / 2700K / 550mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A2-X0072725S
PDF
Black Ace
Aluminium 6000 Series		 7W 550lm / 2700K / 550mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A2-X0072710S
PDF
Black Ace
Aluminium 6000 Series		 7W 550lm / 2700K / 550mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A2-X0042740S
PDF
Black Ace
Aluminium 6000 Series		 4W 300lm / 2700K / 300mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A2-X0042725S
PDF
Black Ace
Aluminium 6000 Series		 4W 300lm / 2700K / 300mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A1-X0075710S
PDF
Silver Reign
Aluminium 6000 Series		 7W 600lm / 5700K / 550mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A2-X0073040S
PDF
Black Ace
Aluminium 6000 Series		 7W 550lm / 3000K / 550mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A2-X0073025S
PDF
Black Ace
Aluminium 6000 Series		 7W 550lm / 3000K / 550mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A2-X0073010S
PDF
Black Ace
Aluminium 6000 Series		 7W 550lm / 3000K / 550mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A2-X0043040S
PDF
Black Ace
Aluminium 6000 Series		 4W 300lm / 3000K / 300mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A2-X0043025S
PDF
Black Ace
Aluminium 6000 Series		 4W 300lm / 3000K / 300mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A2-X0043010S
PDF
Black Ace
Aluminium 6000 Series		 4W 300lm / 3000K / 300mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A1-X0075740S
PDF
Silver Reign
Aluminium 6000 Series		 7W 600lm / 5700K / 550mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A1-X0075725S
PDF
Silver Reign
Aluminium 6000 Series		 7W 600lm / 5700K / 550mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A2-X0045710S
PDF
Black Ace
Aluminium 6000 Series		 4W 320lm / 5700K / 300mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A1-X0045740S
PDF
Silver Reign
Aluminium 6000 Series		 4W 320lm / 5700K / 300mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A1-X0045725S
PDF
Silver Reign
Aluminium 6000 Series		 4W 320lm / 5700K / 300mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A1-X0045710S
PDF
Silver Reign
Aluminium 6000 Series		 4W 320lm / 5700K / 300mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A1-X0073040S
PDF
Silver Reign
Aluminium 6000 Series		 7W 550lm / 3000K / 550mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A1-X0073025S
PDF
Silver Reign
Aluminium 6000 Series		 7W 550lm / 3000K / 550mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A1-X0073010S
PDF
Silver Reign
Aluminium 6000 Series		 7W 550lm / 3000K / 550mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A1-X0043040S
PDF
Silver Reign
Aluminium 6000 Series		 4W 300lm / 3000K / 300mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A1-X0043025S
PDF
Silver Reign
Aluminium 6000 Series		 4W 300lm / 3000K / 300mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A3-X0073010S
PDF
Medium Bronze
Aluminium 6000 Series		 7W 550lm / 3000K / 550mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A3-X0075740S
PDF
Medium Bronze
Aluminium 6000 Series		 7W 600lm / 5700K / 550mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A3-X0075725S
PDF
Medium Bronze
Aluminium 6000 Series		 7W 600lm / 5700K / 550mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A3-X0075710S
PDF
Medium Bronze
Aluminium 6000 Series		 7W 600lm / 5700K / 550mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A3-X0045740S
PDF
Medium Bronze
Aluminium 6000 Series		 4W 320lm / 5700K / 300mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A3-X0045725S
PDF
Medium Bronze
Aluminium 6000 Series		 4W 320lm / 5700K / 300mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A3-X0045710S
PDF
Medium Bronze
Aluminium 6000 Series		 4W 320lm / 5700K / 300mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A3-X0073040S
PDF
Medium Bronze
Aluminium 6000 Series		 7W 550lm / 3000K / 550mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A3-X0073025S
PDF
Medium Bronze
Aluminium 6000 Series		 7W 550lm / 3000K / 550mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A1-X0043010S
PDF
Silver Reign
Aluminium 6000 Series		 4W 300lm / 3000K / 300mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A3-X0043040S
PDF
Medium Bronze
Aluminium 6000 Series		 4W 300lm / 3000K / 300mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A3-X0043025S
PDF
Medium Bronze
Aluminium 6000 Series		 4W 300lm / 3000K / 300mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A3-X0043010S
PDF
Medium Bronze
Aluminium 6000 Series		 4W 300lm / 3000K / 300mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A2-X0075740S
PDF
Black Ace
Aluminium 6000 Series		 7W 600lm / 5700K / 550mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A2-X0075725S
PDF
Black Ace
Aluminium 6000 Series		 7W 600lm / 5700K / 550mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A2-X0075710S
PDF
Black Ace
Aluminium 6000 Series		 7W 600lm / 5700K / 550mA 10 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A2-X0045740S
PDF
Black Ace
Aluminium 6000 Series		 4W 320lm / 5700K / 300mA 40 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF
AQL-175-A2-X0045725S
PDF
Black Ace
Aluminium 6000 Series		 4W 320lm / 5700K / 300mA 25 12~24V AC / 24V DC Optional 10V PWM (DC) 1m Aqualux Cable
PDF

Aqualux is introducing an updated product code structure throughout 2021.
