Lumena

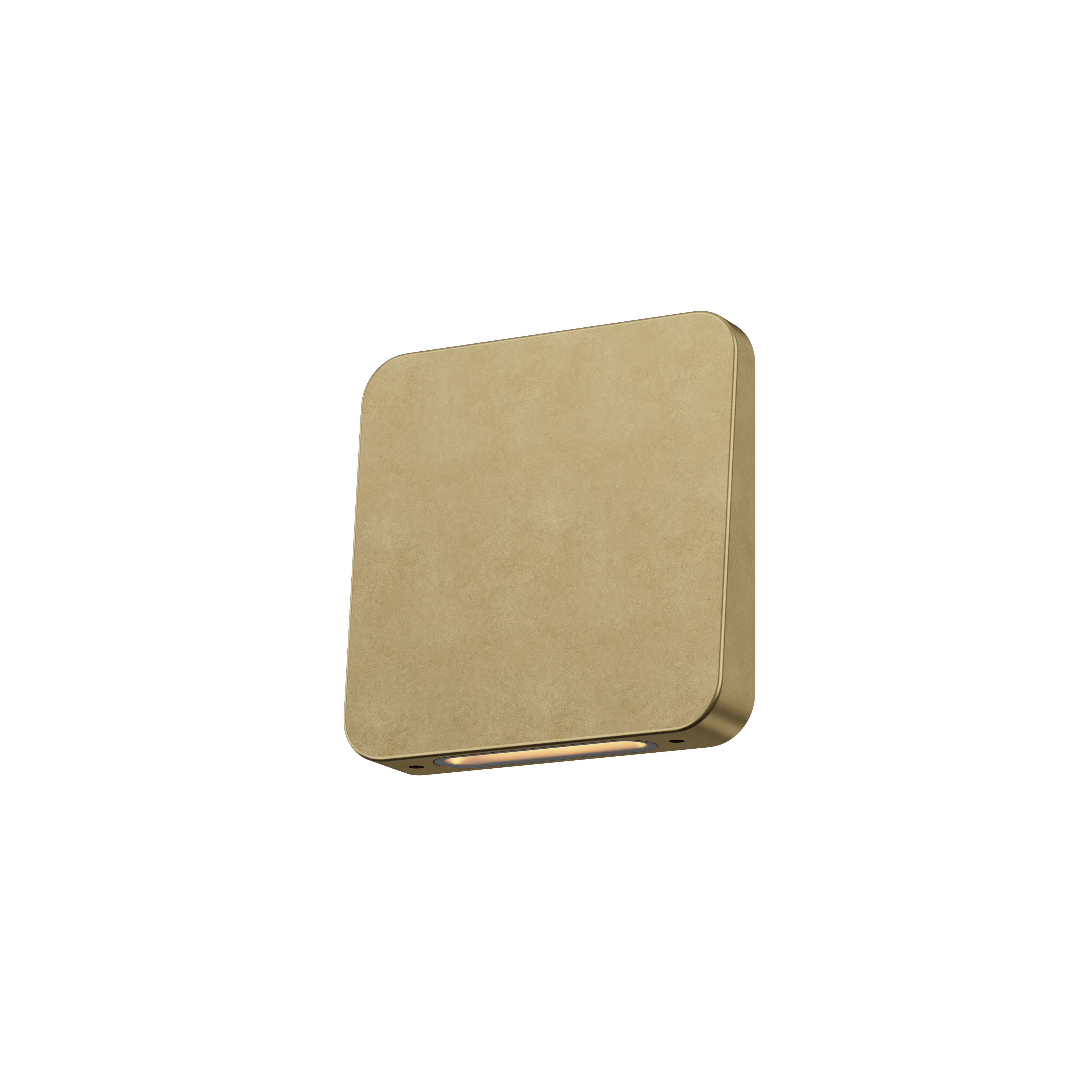

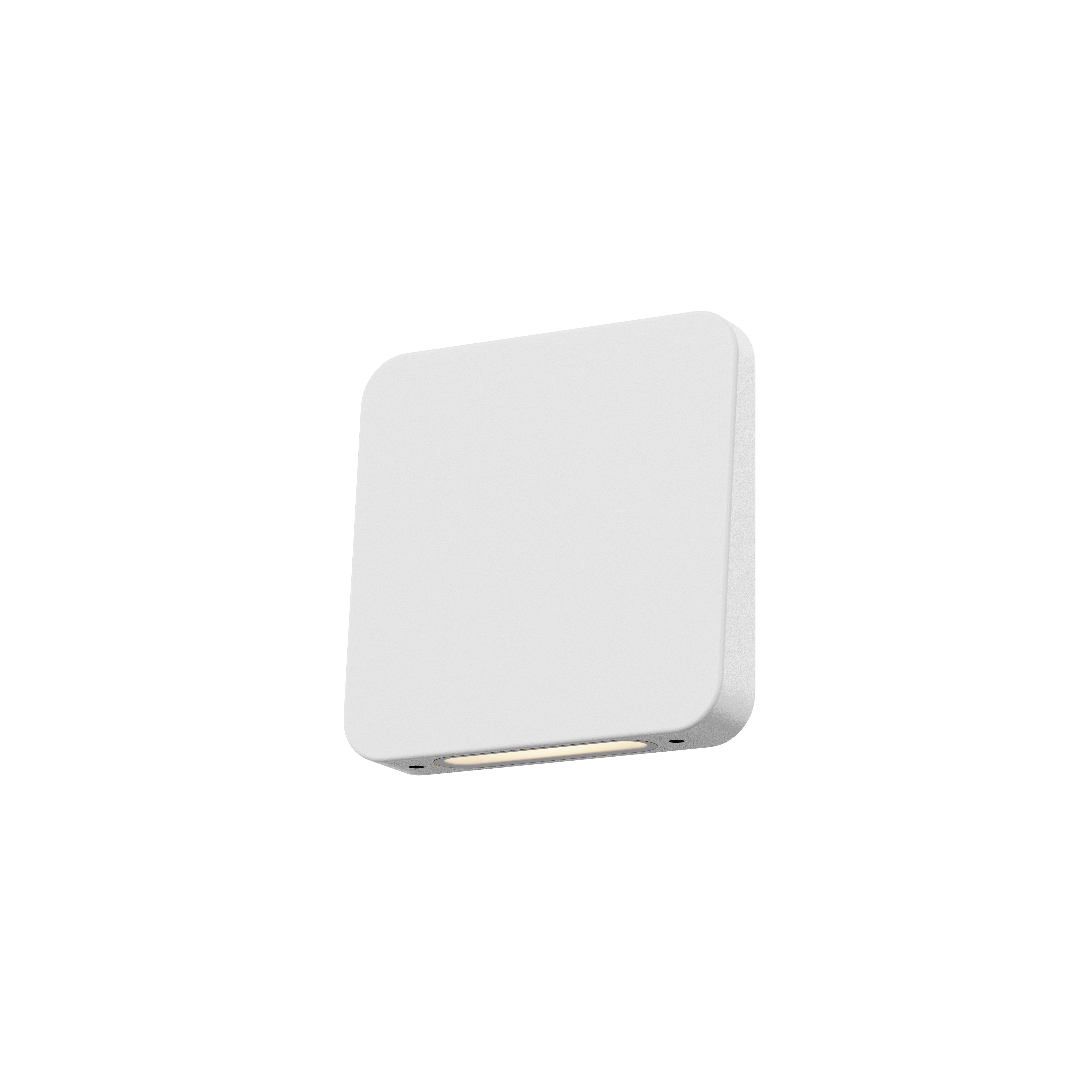

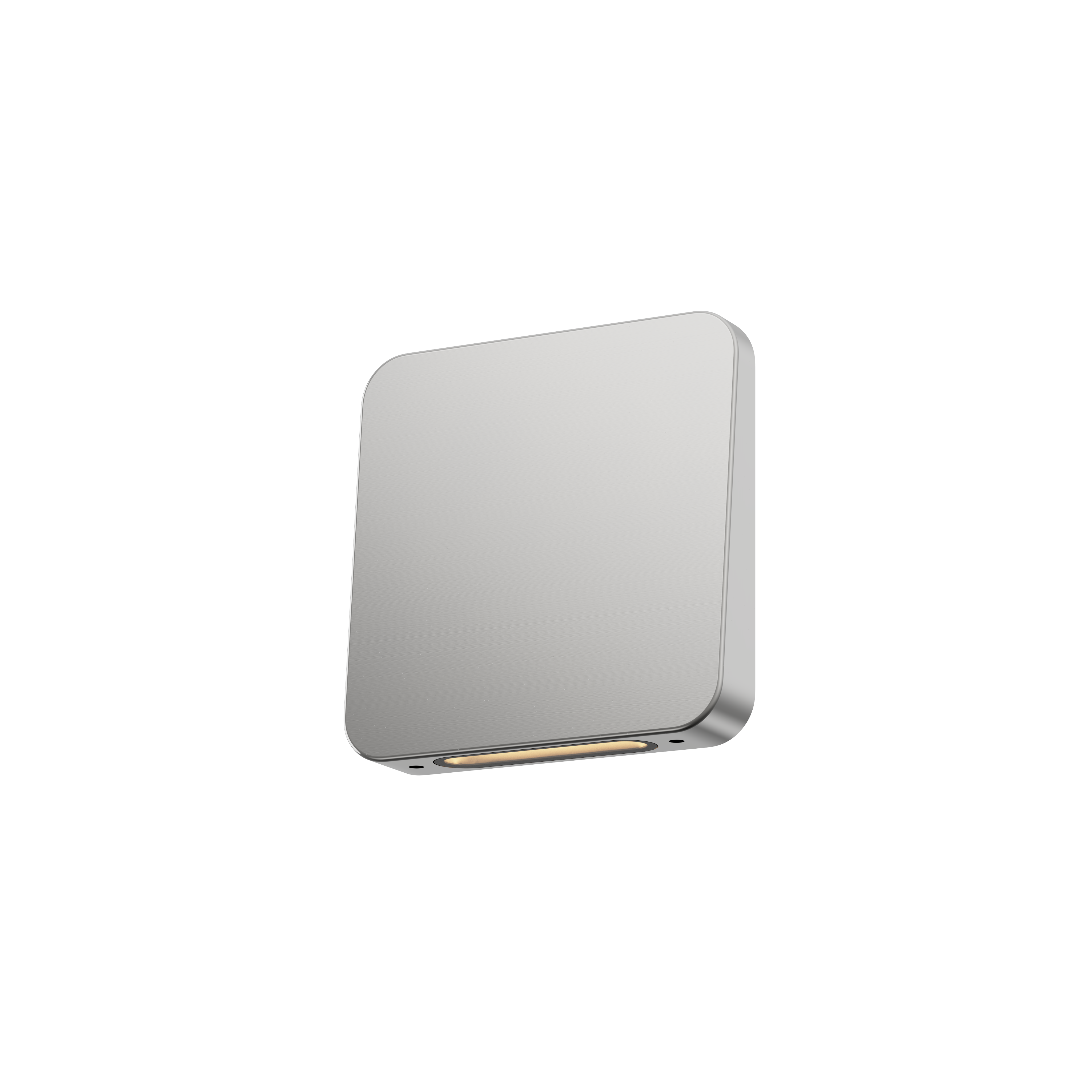

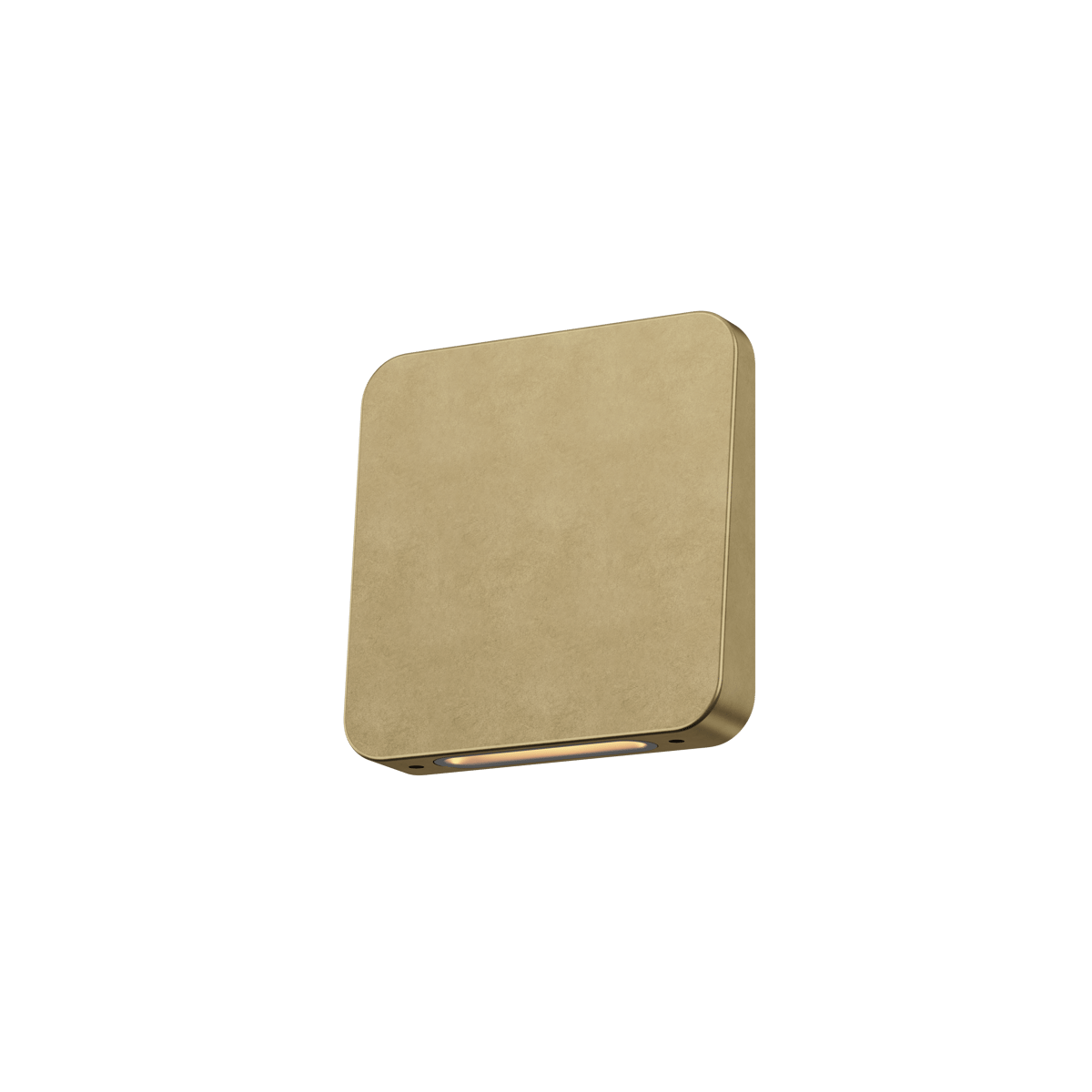

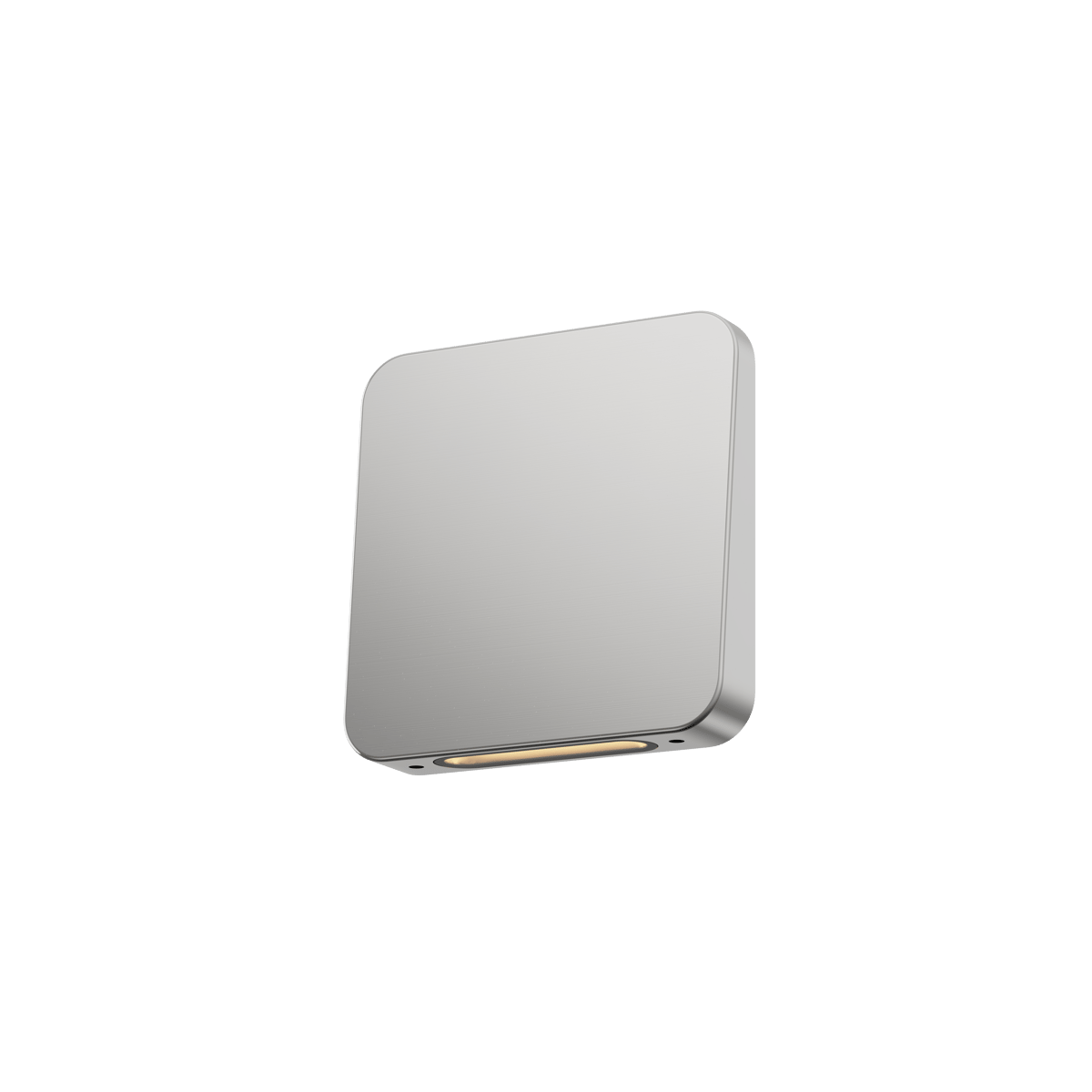

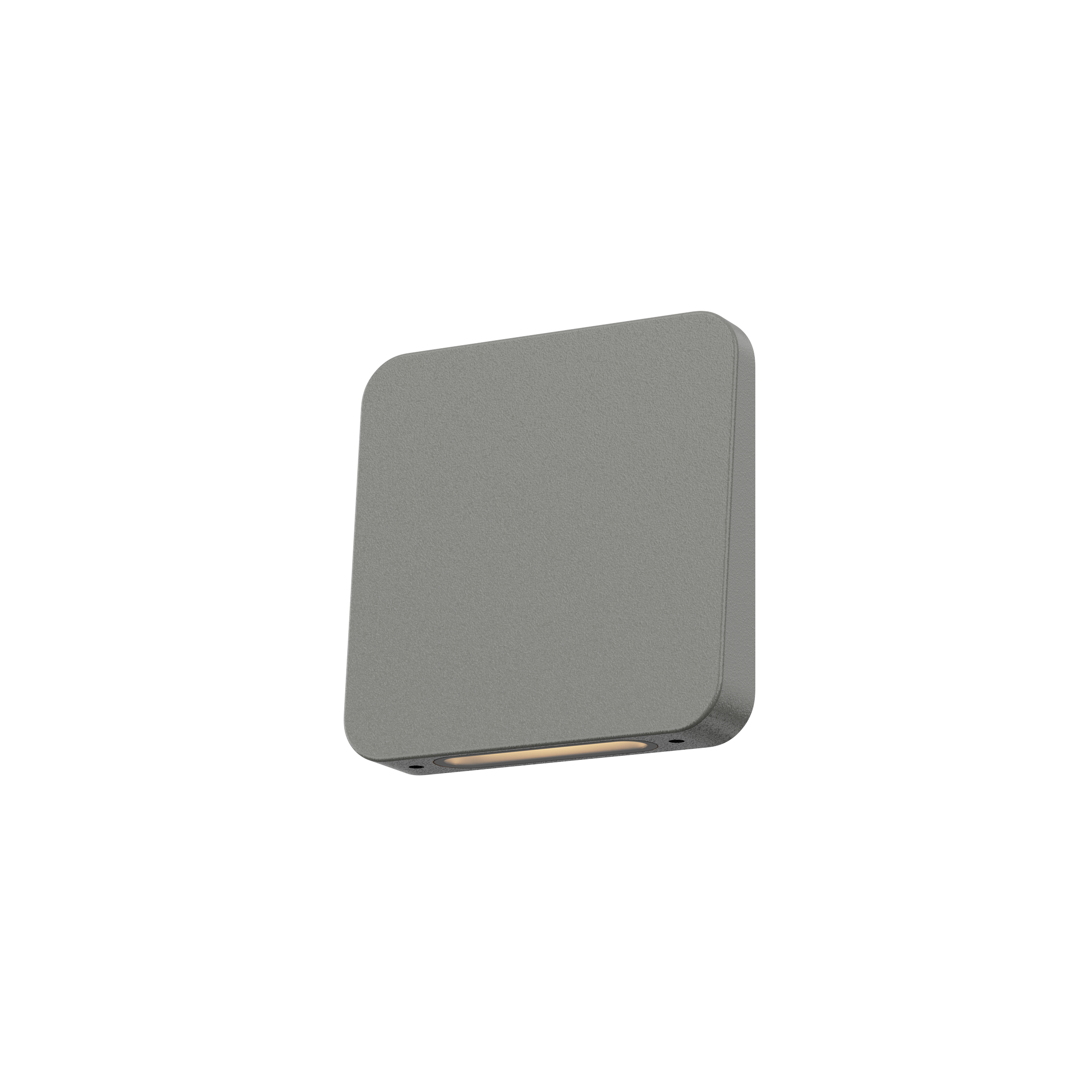

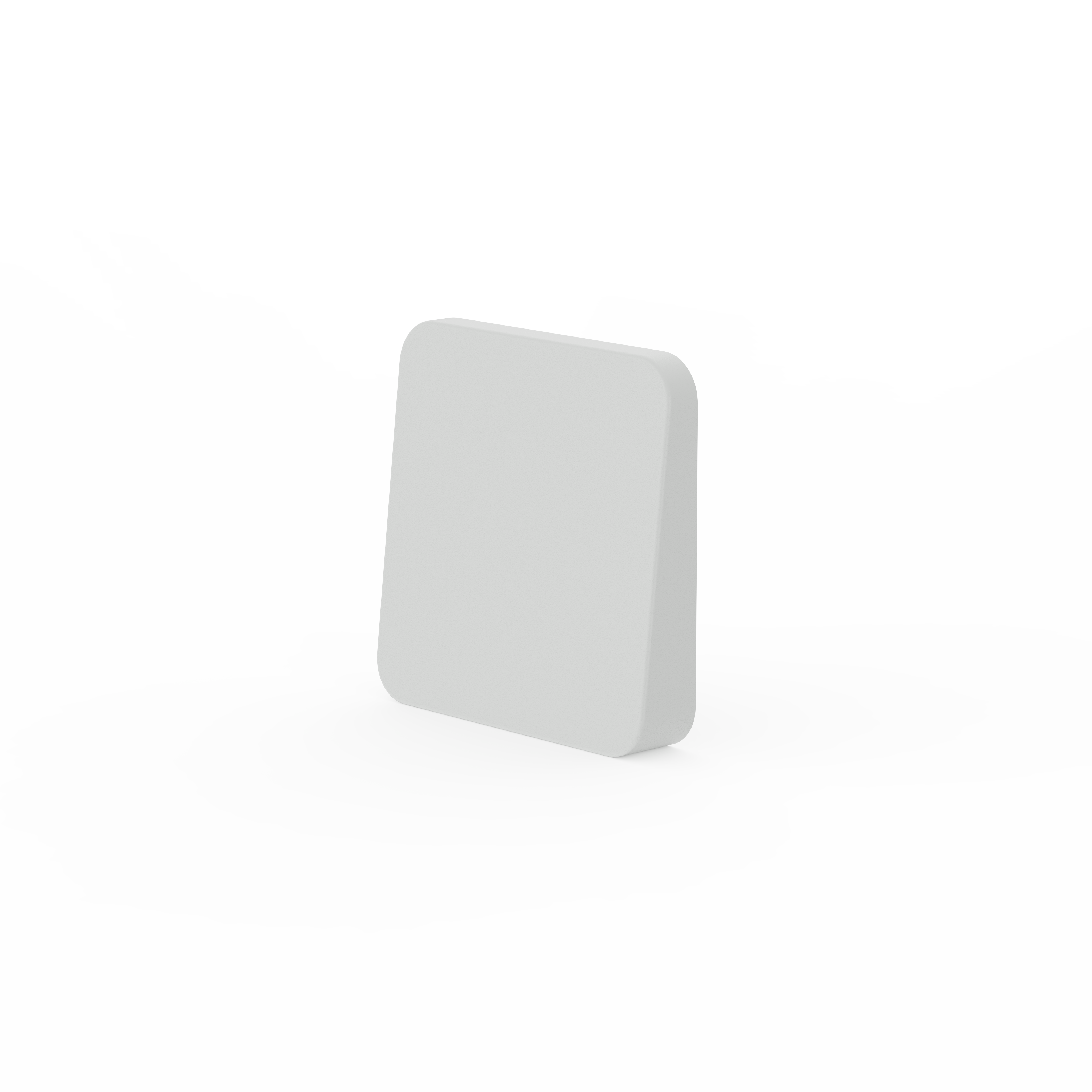

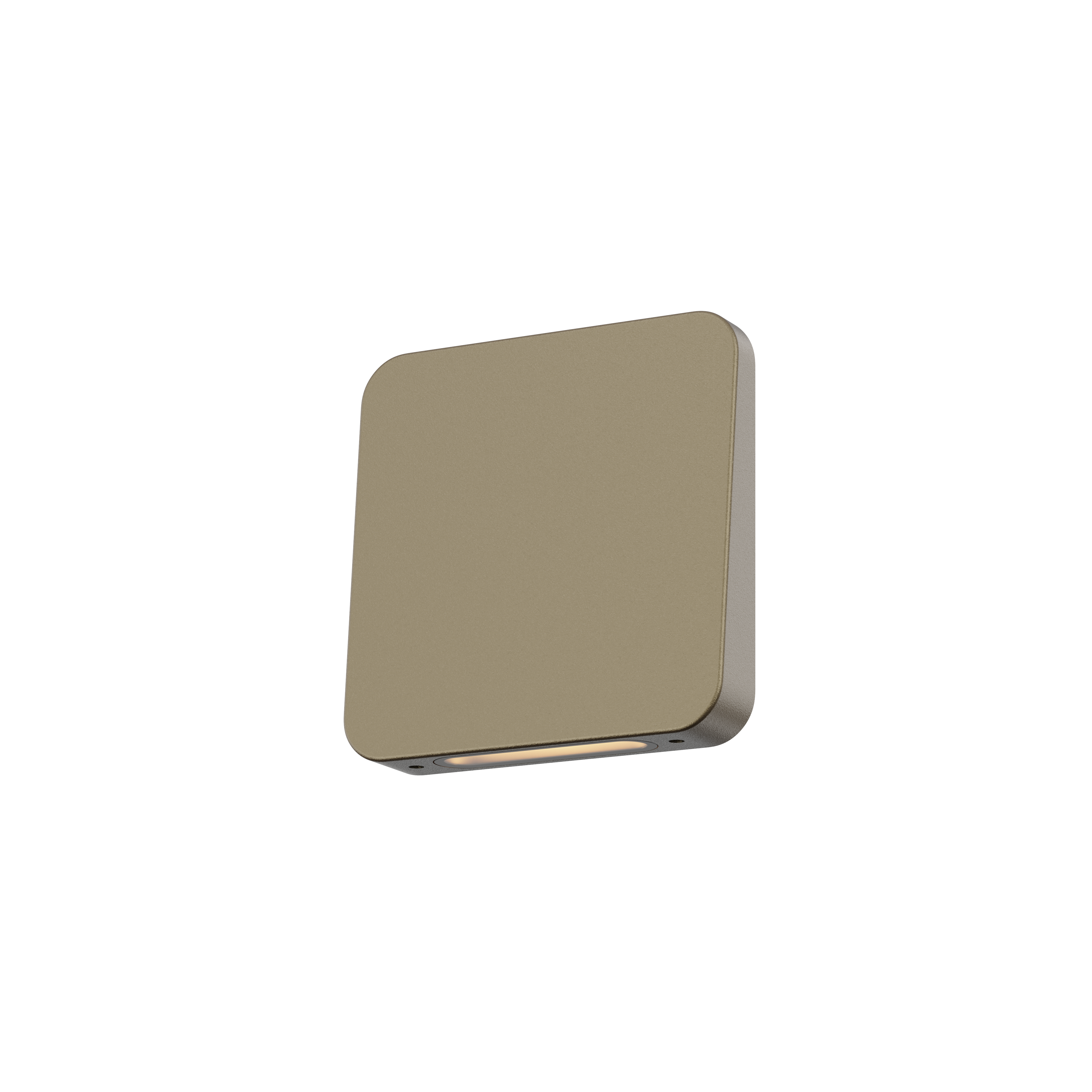

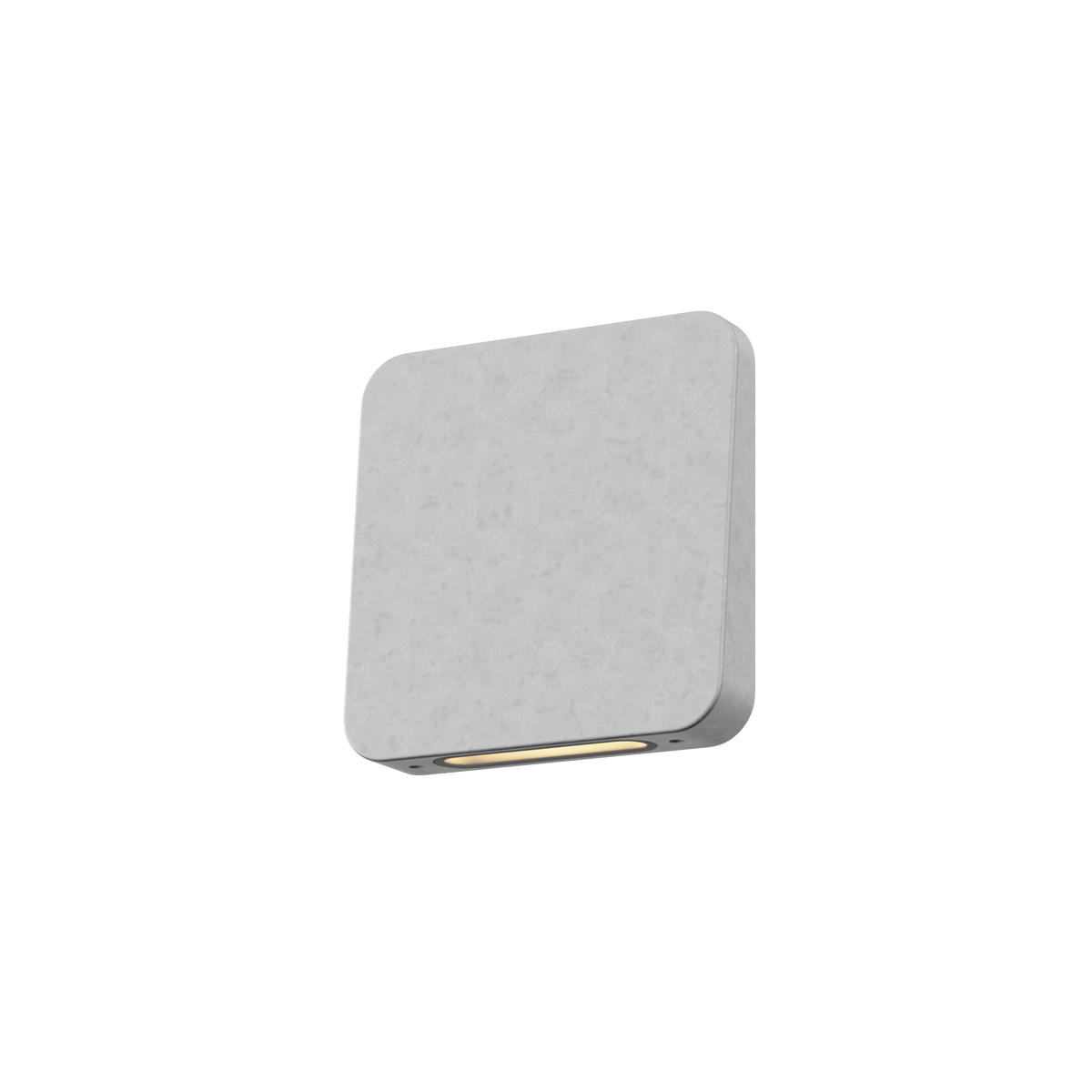

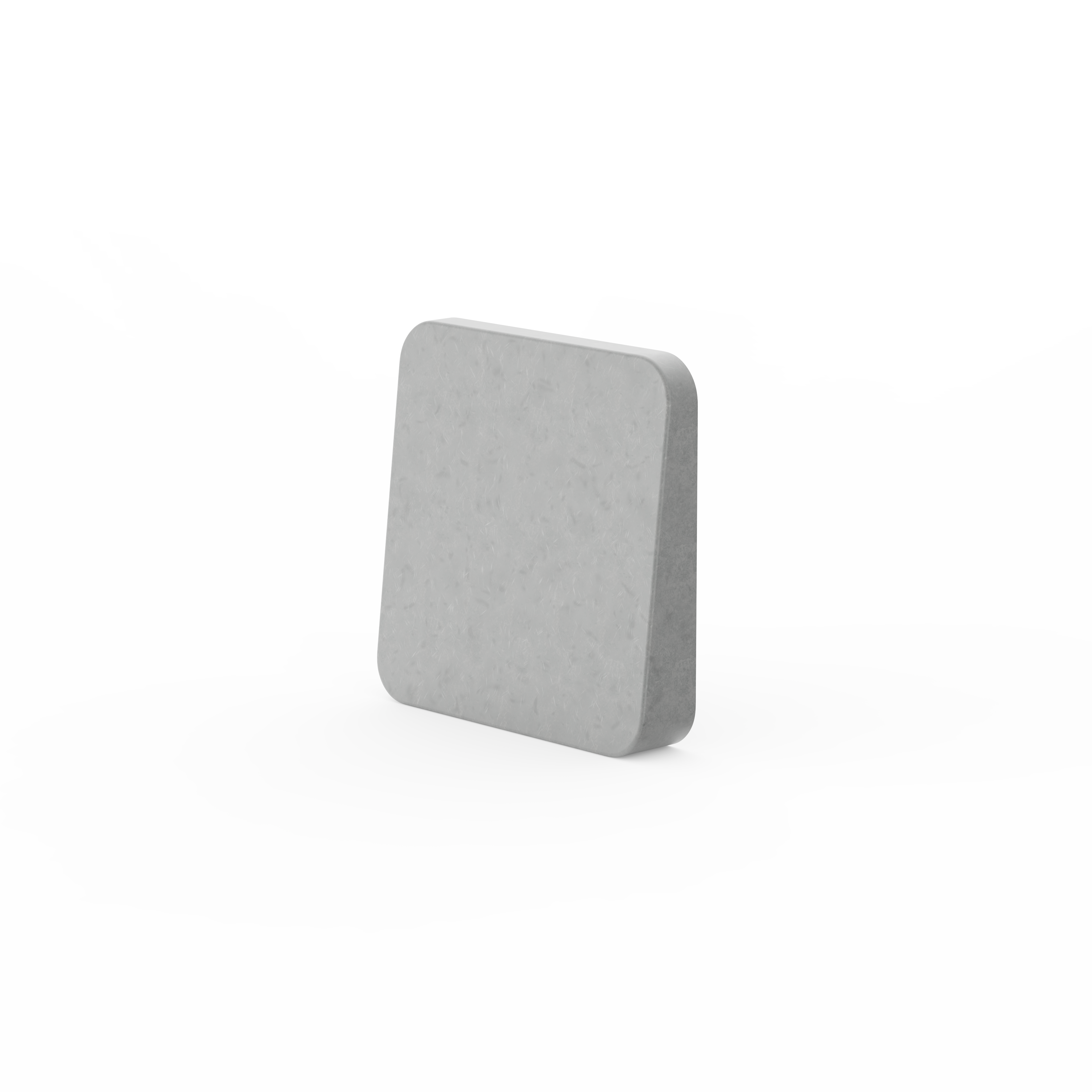

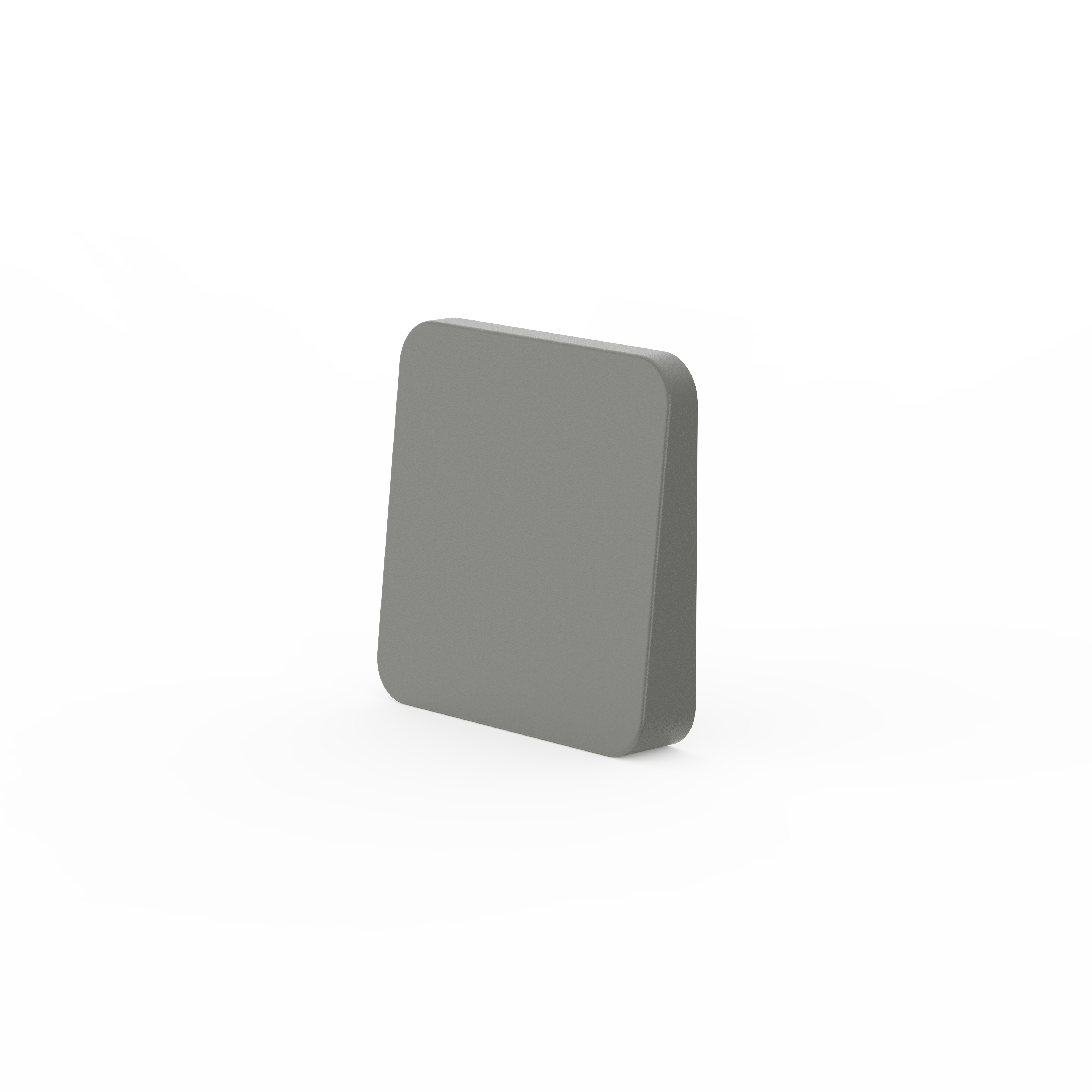

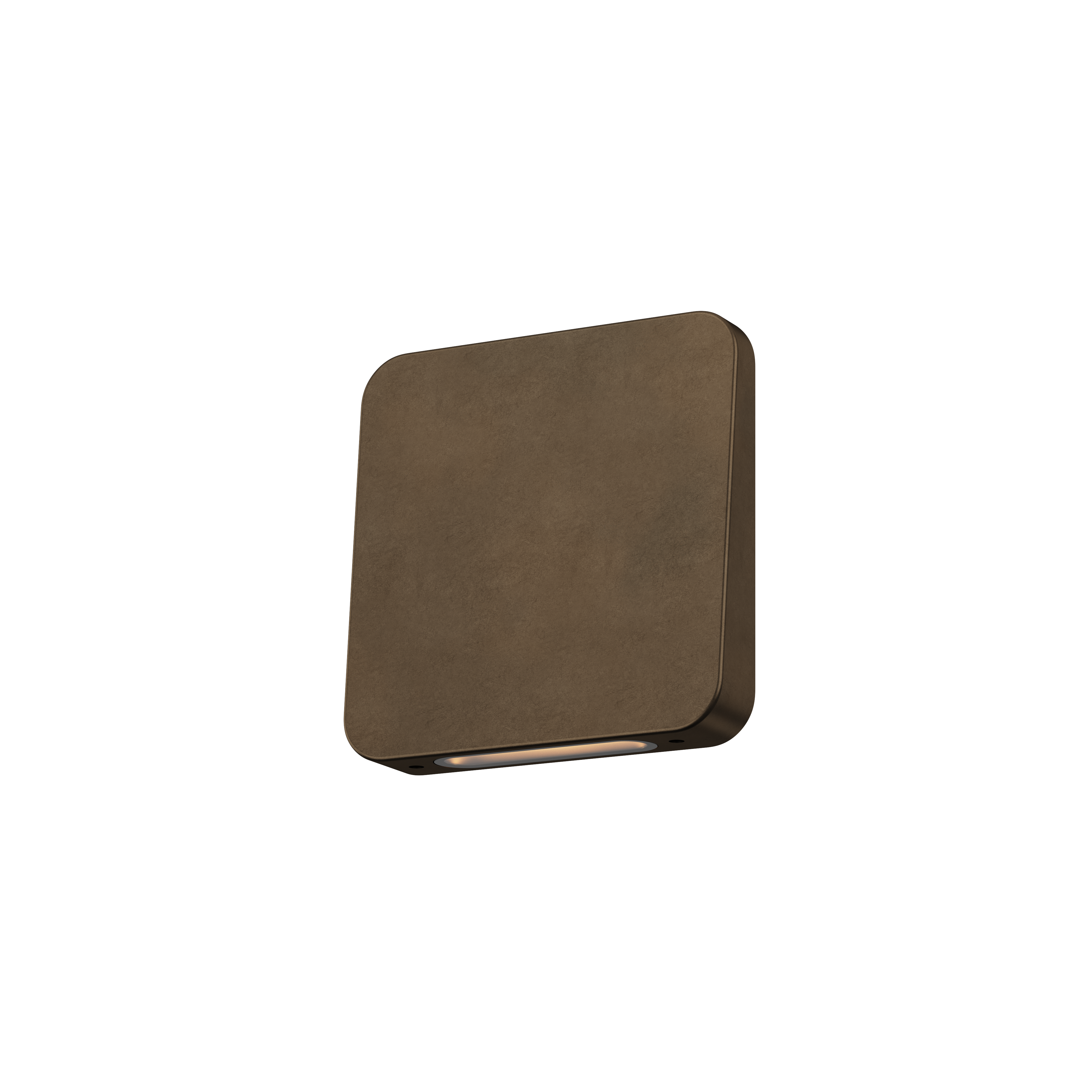

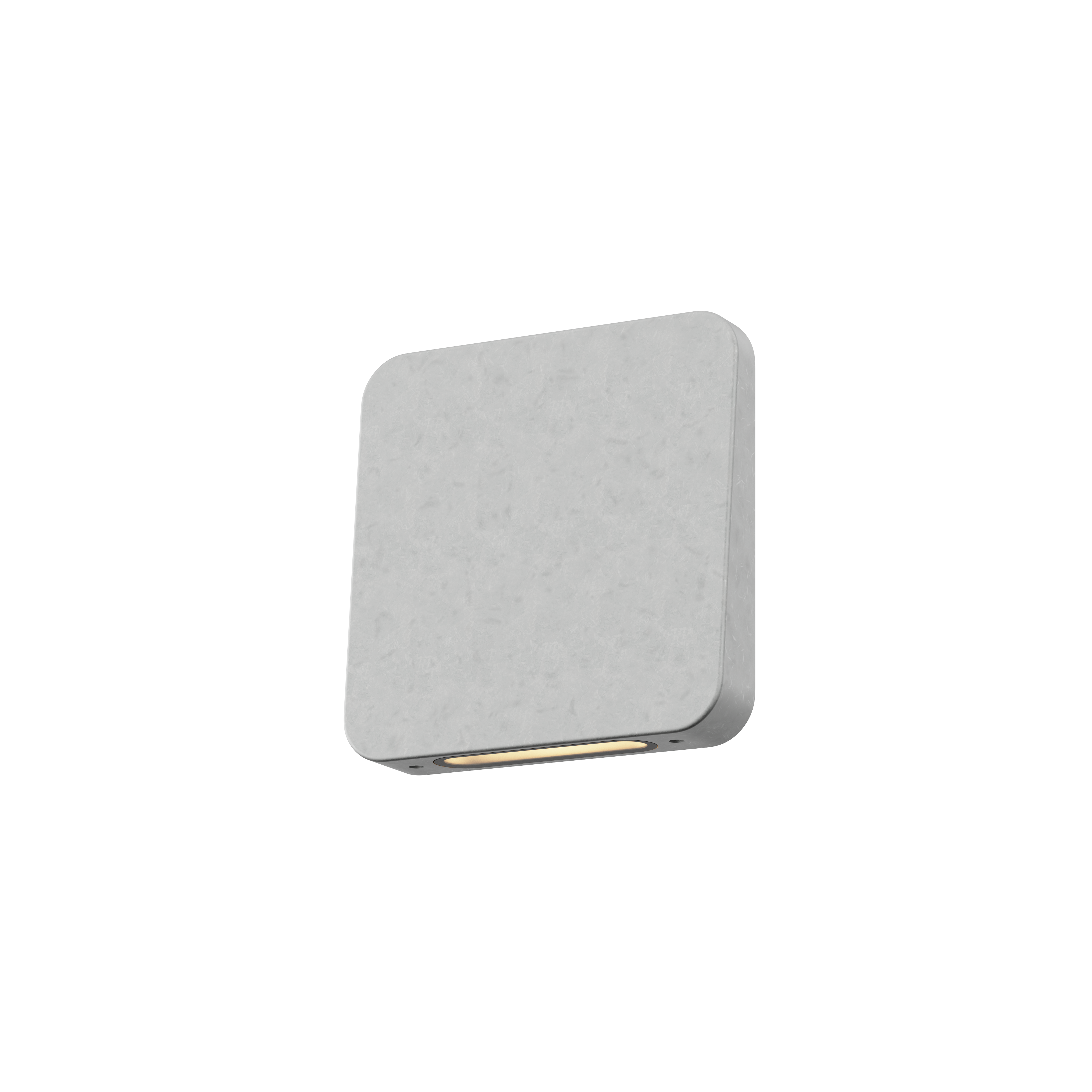

    AQL-512

    90mm tapered grazing light

    AQL-512
    AQL-512
    AQL-512
    AQL-512
    AQL-512

    Introduction

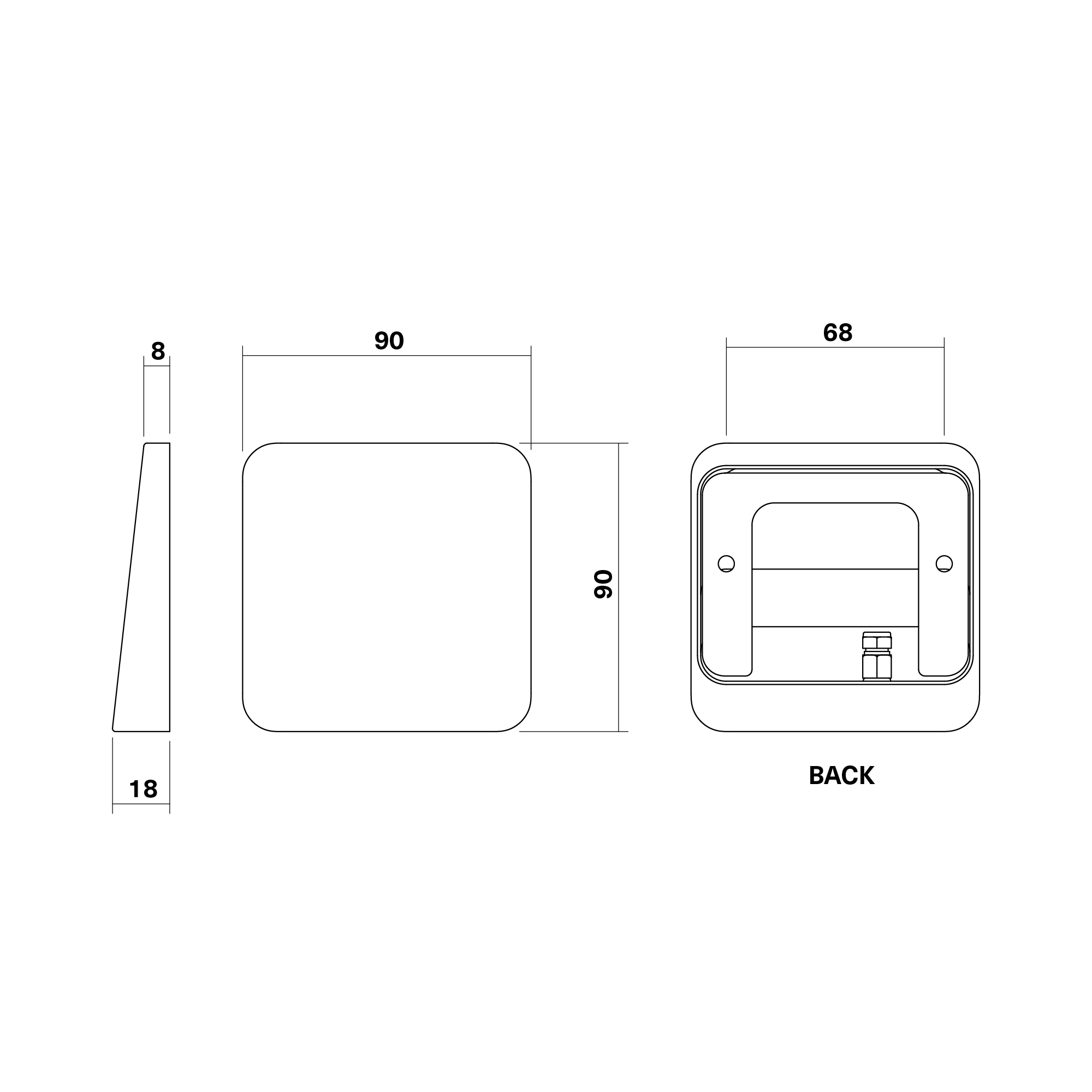

    The AQL-512 is a functional, pool-area compliant grazing light that is also perfect in minimal wayfinding and step lighting applications. At 90mm wide, it will fit on most posts and columns allowing flexible design and installation scenarios.

    Specification

    AQL-512

    Lumena

    CNC Machined Aluminium

    900mm Aqualux 2-Core Silicone / PTFE Cable, 500mm Aqualux 2-Core Silicone / PTFE Cable

    7 Year Aqualux Warranty

    IP65

    2-wire 24VDC PWM dimming (same as LED strip)

    Options

    Body

    • A1 - Clear

      Aluminium 6000 Series

    • A2 - Black

      Aluminium 6000 Series

    • A3 - Bronze

      Aluminium 6000 Series

    • A4 - Basalt

      Aluminium 6000 Series

    • B1 - Brushed Chrome

      Brass

    • B2 - Black

      Brass

    • B3 - Aged Brass

      Brass

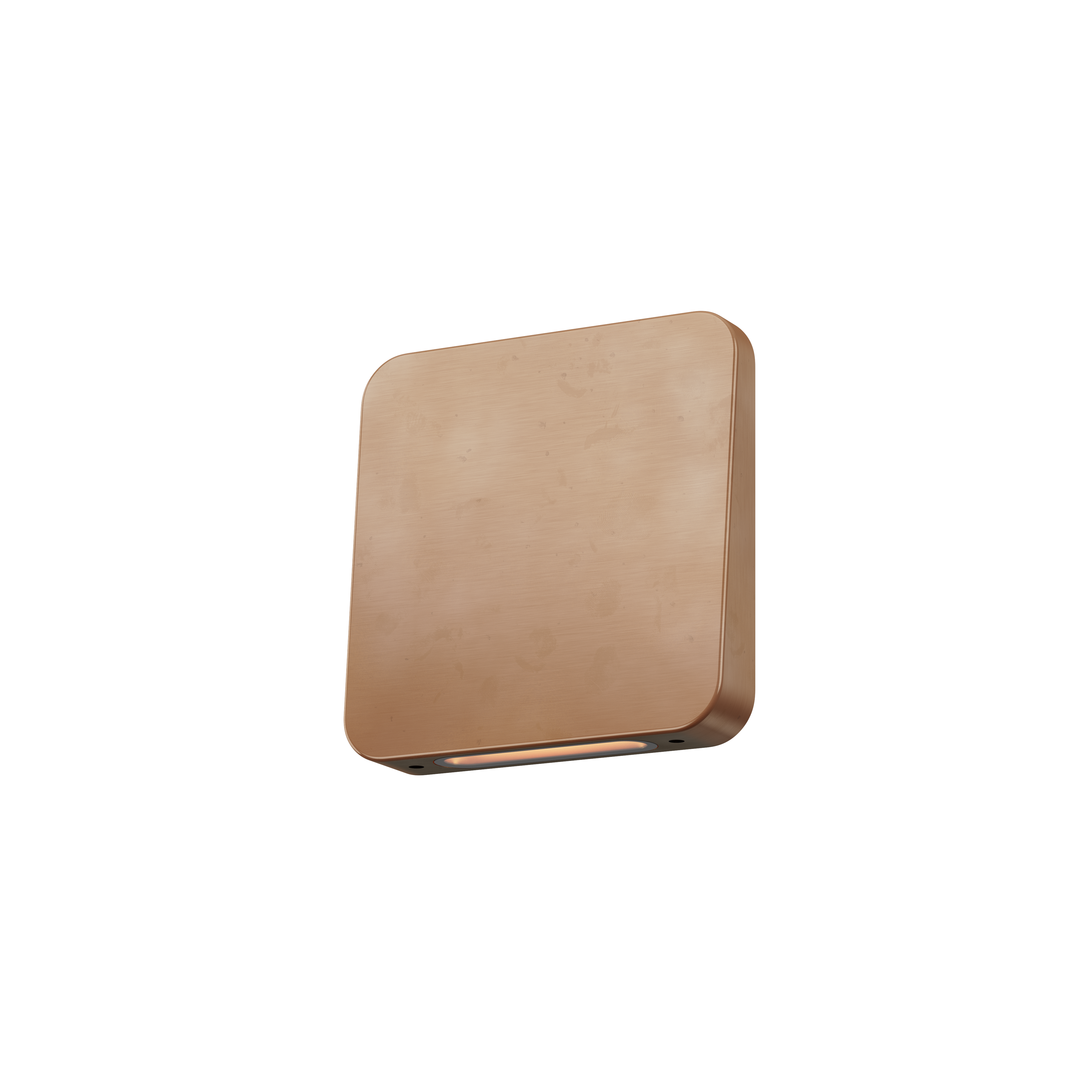

    • B5 - Brushed Copper

      Brass

    • B6 - Natural Waxed

      Brass

    • A8 - White

      Aluminium 6000 Series

    Control Gear

    • 24V DC 2-Wire

      Dimming: 2-Wire PWM Power

    Light Sources

    • 4W / 590lm

      2200K

    • 4W / 660lm

      2700K

    • 4W / 680lm

      3000K

    • 4W / 710lm

      4000K

    Optical

    • Diffuse (Frosted)

      DF

    Cable

    • S

      500mm 2-Core Standard Cable

    Configure order code

    AQL-512

    To configure your product/s, select from the options below.
    Multiple selections are possible to produce your downloadable datasheet/s.

    Clear Filter
    A1 - Clear Aluminium 6000 Series A2 - Black Aluminium 6000 Series A3 - Bronze Aluminium 6000 Series A4 - Basalt Aluminium 6000 Series B1 - Brushed Chrome Brass B2 - Black Brass B3 - Aged Brass Brass B5 - Brushed Copper Brass B6 - Natural Waxed Brass A8 - White Aluminium 6000 Series
    24V DC 2-Wire
    4W / 590lm / 2200K 4W / 660lm / 2700K 4W / 680lm / 3000K 4W / 710lm / 4000K
    Diffuse (Frosted)
    500mm 2-Core Standard Cable

    AQL-512 - has 40 variations

    Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
    AQL-512-B5-E00430DFS
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B2-E00427DFS
    PDF
    		B2 - Black
    Brass    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B2-E00430DFS
    PDF
    		B2 - Black
    Brass    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B2-E00440DFS
    PDF
    		B2 - Black
    Brass    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B3-E00422DFS
    PDF
    		B3 - Aged Brass
    Brass    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B3-E00427DFS
    PDF
    		B3 - Aged Brass
    Brass    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B3-E00430DFS
    PDF
    		B3 - Aged Brass
    Brass    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B3-E00440DFS
    PDF
    		B3 - Aged Brass
    Brass    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B5-E00422DFS
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B5-E00427DFS
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B2-E00422DFS
    PDF
    		B2 - Black
    Brass    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B5-E00440DFS
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B6-E00422DFS
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B6-E00427DFS
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B6-E00430DFS
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B6-E00440DFS
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A8-E00422DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A8-E00427DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A8-E00430DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A8-E00440DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A3-E00430DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A1-E00427DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A1-E00430DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A1-E00440DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A2-E00422DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A2-E00427DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A2-E00430DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A2-E00440DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A3-E00422DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A3-E00427DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A1-E00422DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A3-E00440DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A4-E00422DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A4-E00427DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A4-E00430DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-A4-E00440DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B1-E00422DFS
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 590lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B1-E00427DFS
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B1-E00430DFS
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-512-B1-E00440DFS
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 710lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
