Lumena

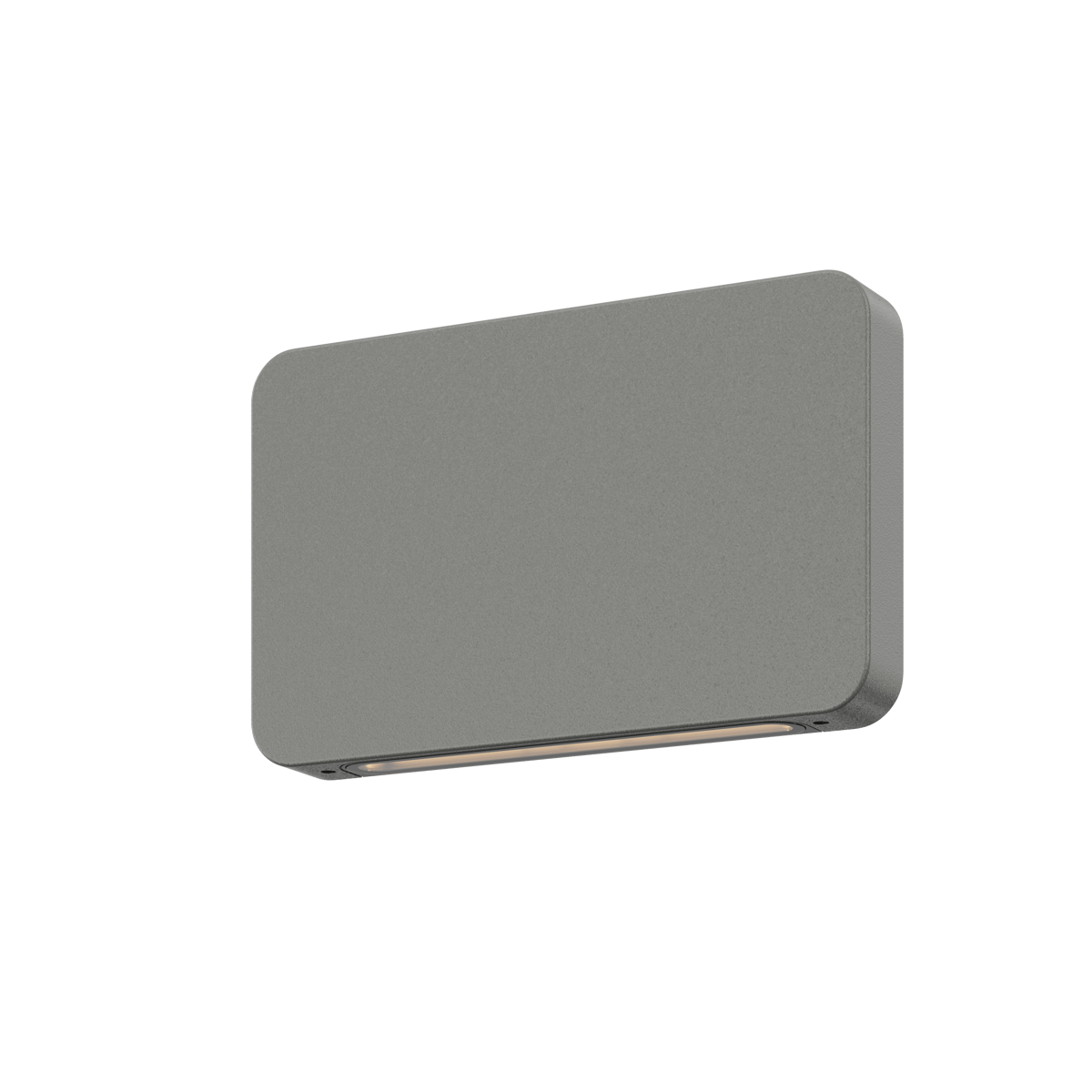

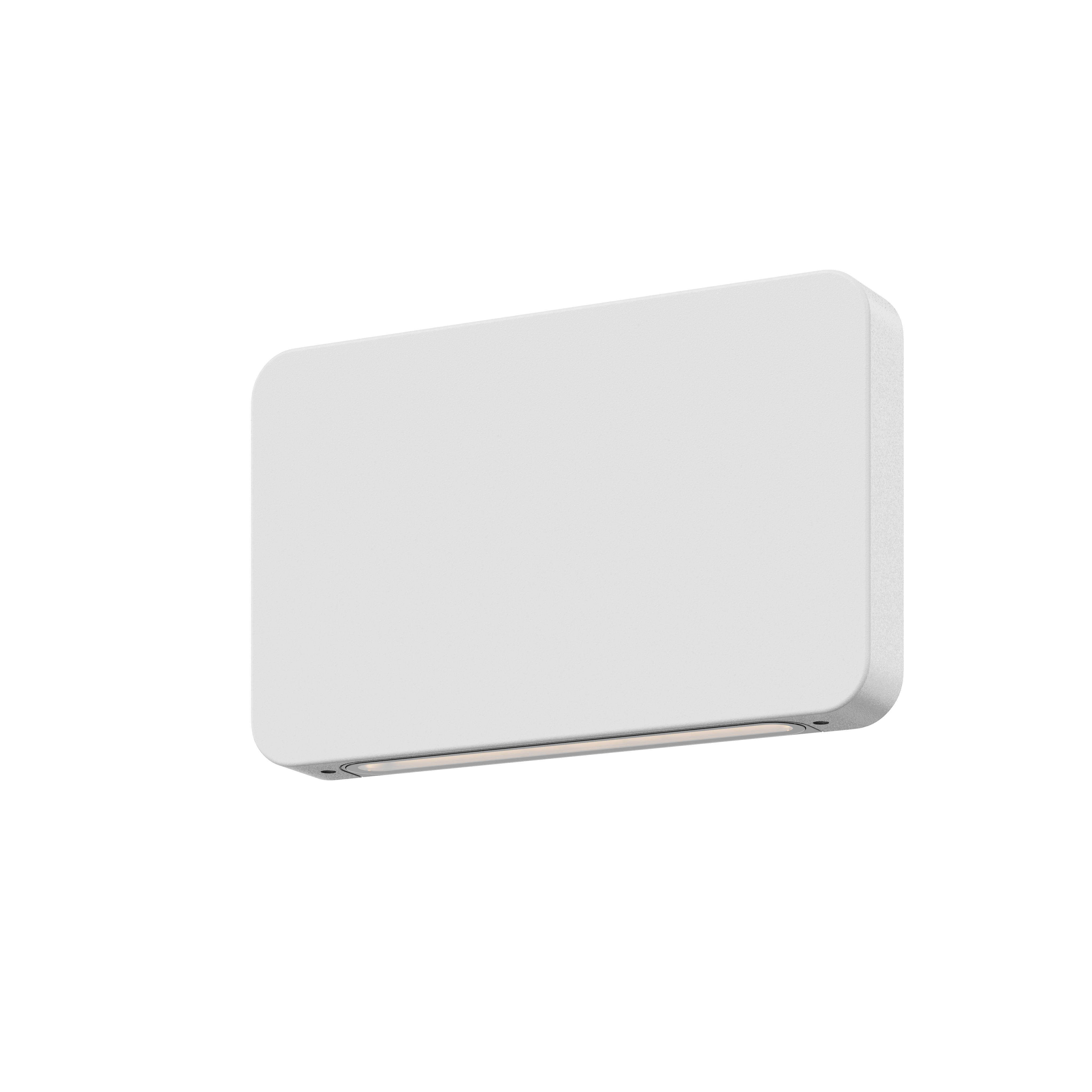

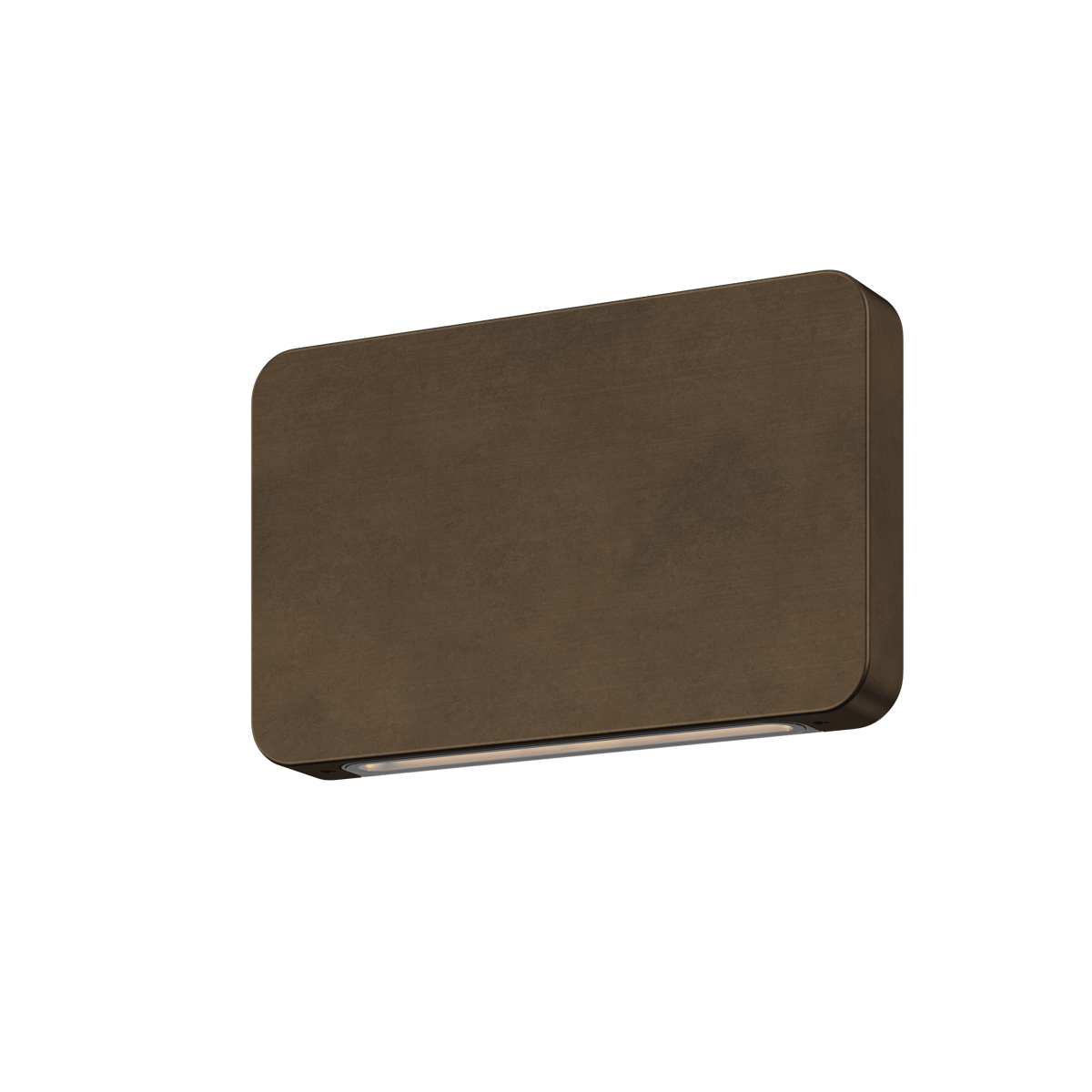

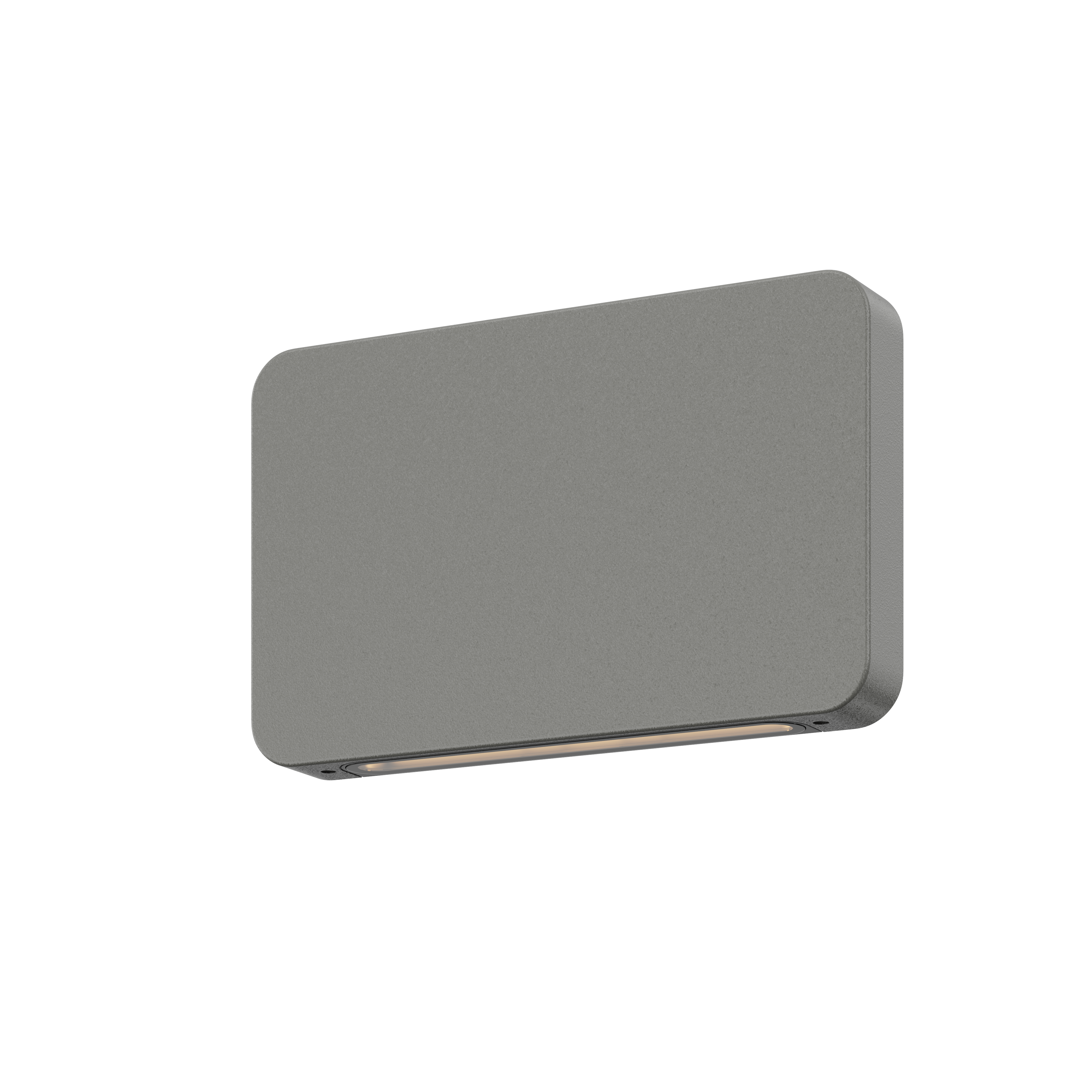

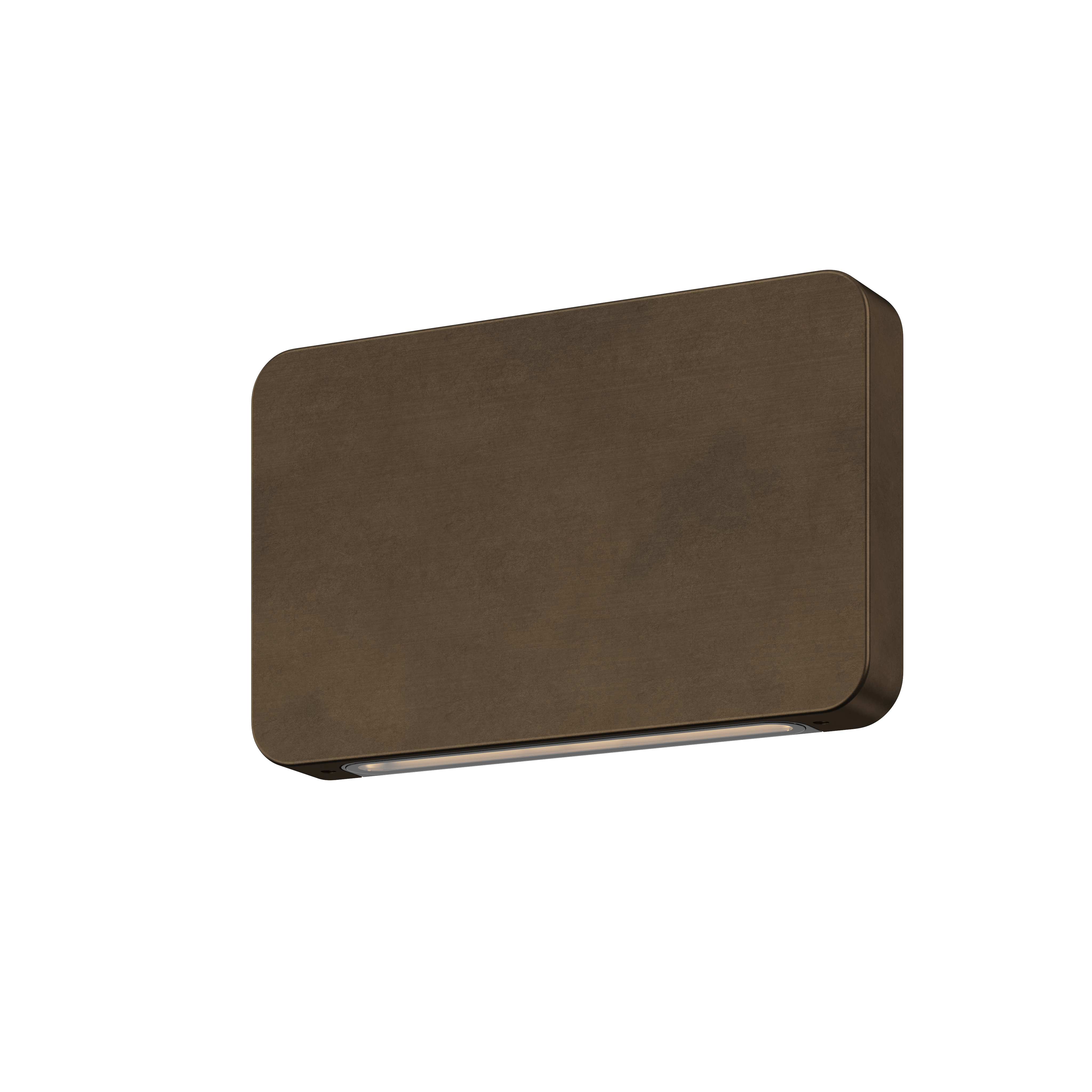

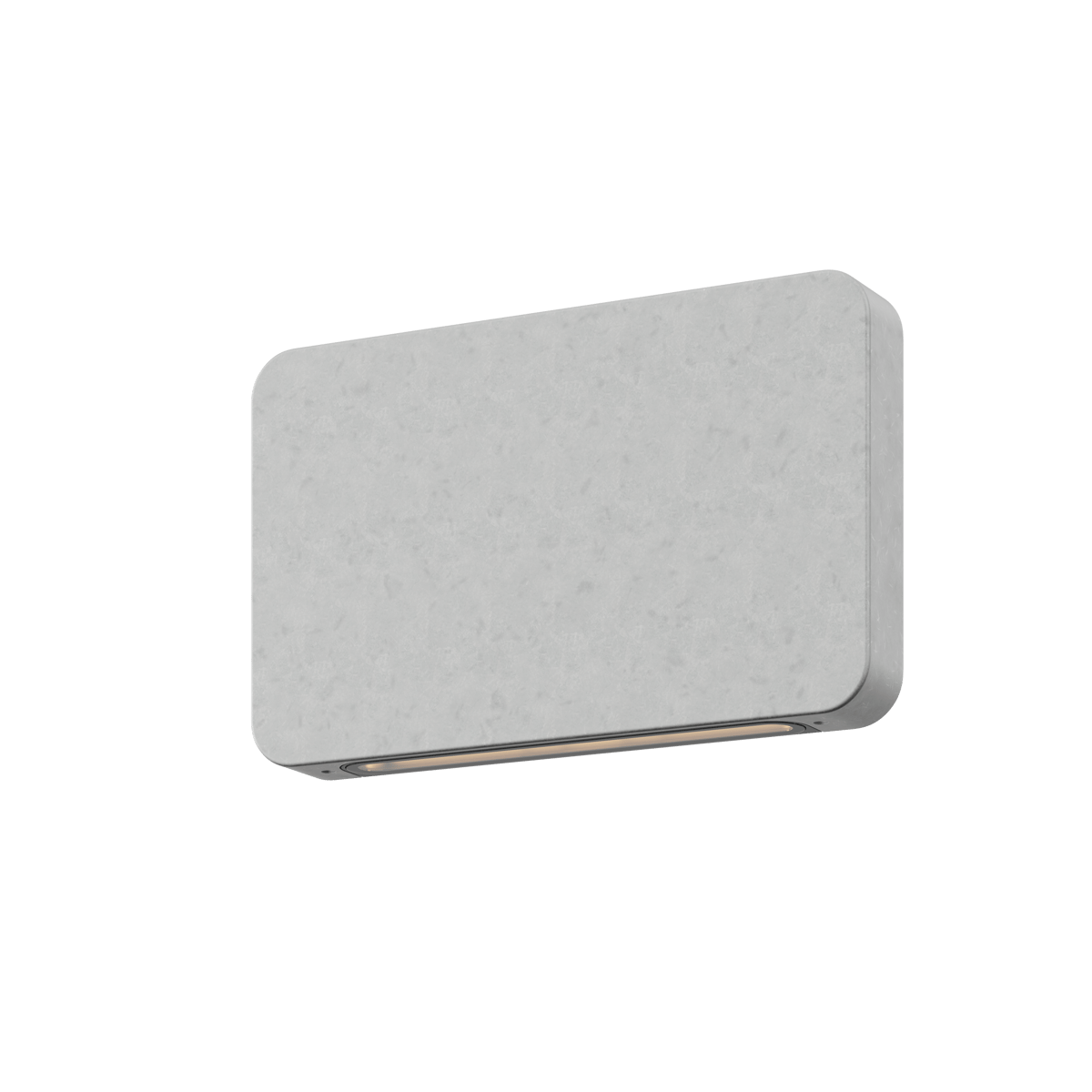

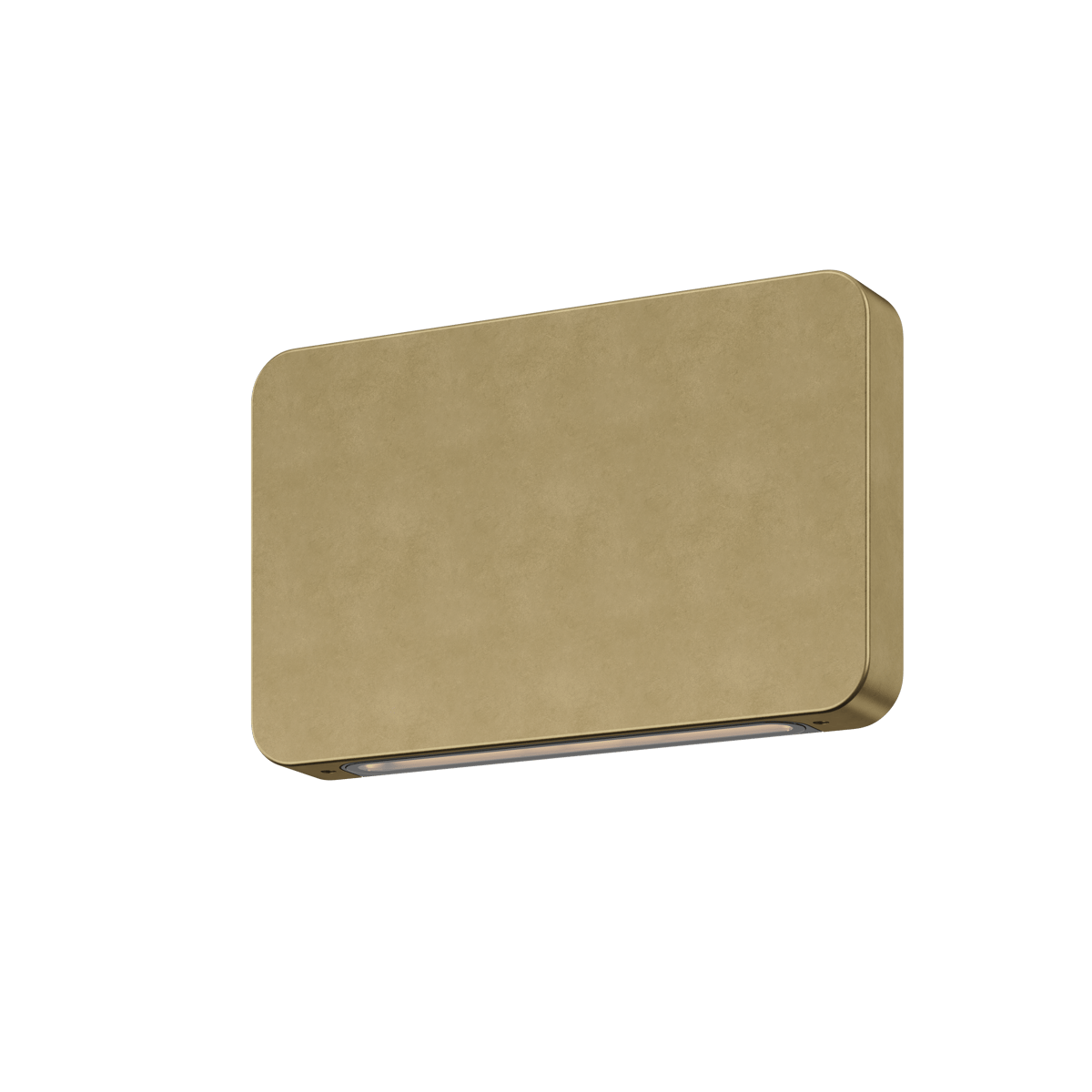

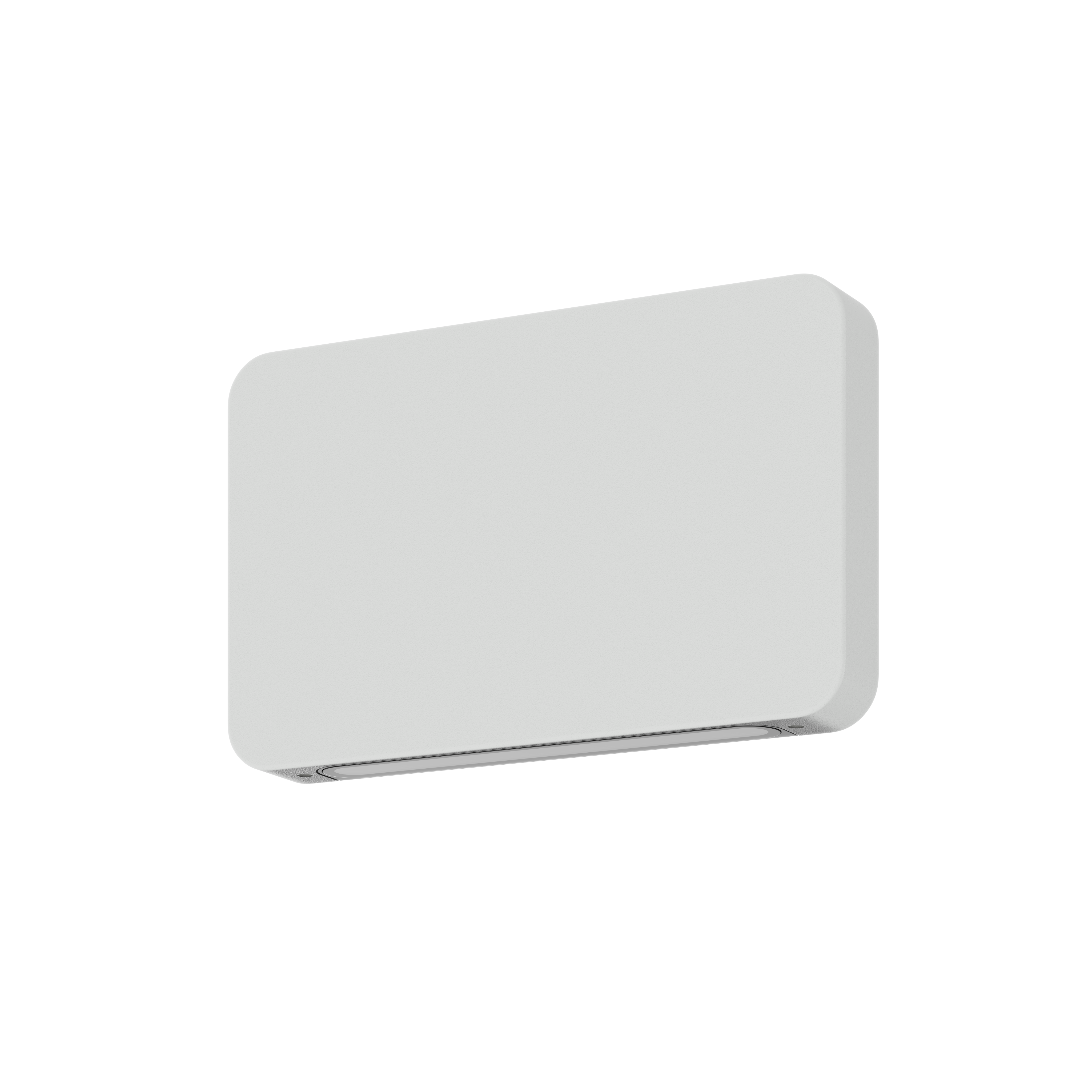

    AQL-516

    Slimline grazing light

    AQL-516
    AQL-516
    AQL-516
    AQL-516
    AQL-516
    AQL-516
    AQL-516
    AQL-516
    AQL-516
    AQL-516

    Introduction

    The AQL-516 is a 145mm grazing light suitable for steps, corridors and general wayfinding applications.

    A minimal design language ensures seamless integration with a wide range of interior and exterior scenarios.

    Multiple surface finishes and CCT options provide maximum design choice and configuration flexibility.

    Specification

    AQL-516

    Lumena

    CNC Machined Brass, CNC Machined Aluminium

    500mm Aqualux 2-Core Silicone / PTFE Cable

    7 Year Aqualux Warranty

    IP65

    Options

    Body

    • A1 - Clear

      Aluminium 6000 Series

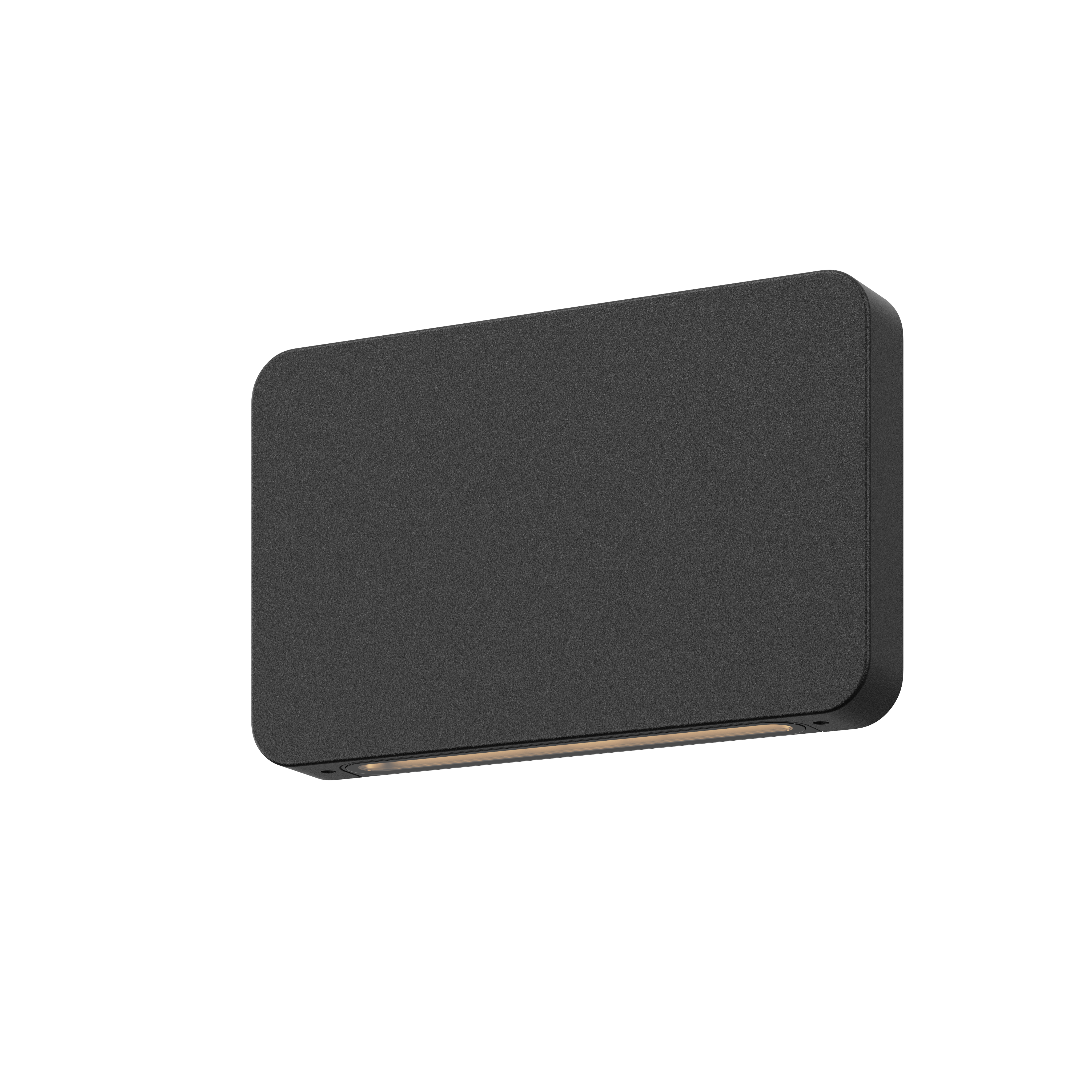

    • A2 - Black

      Aluminium 6000 Series

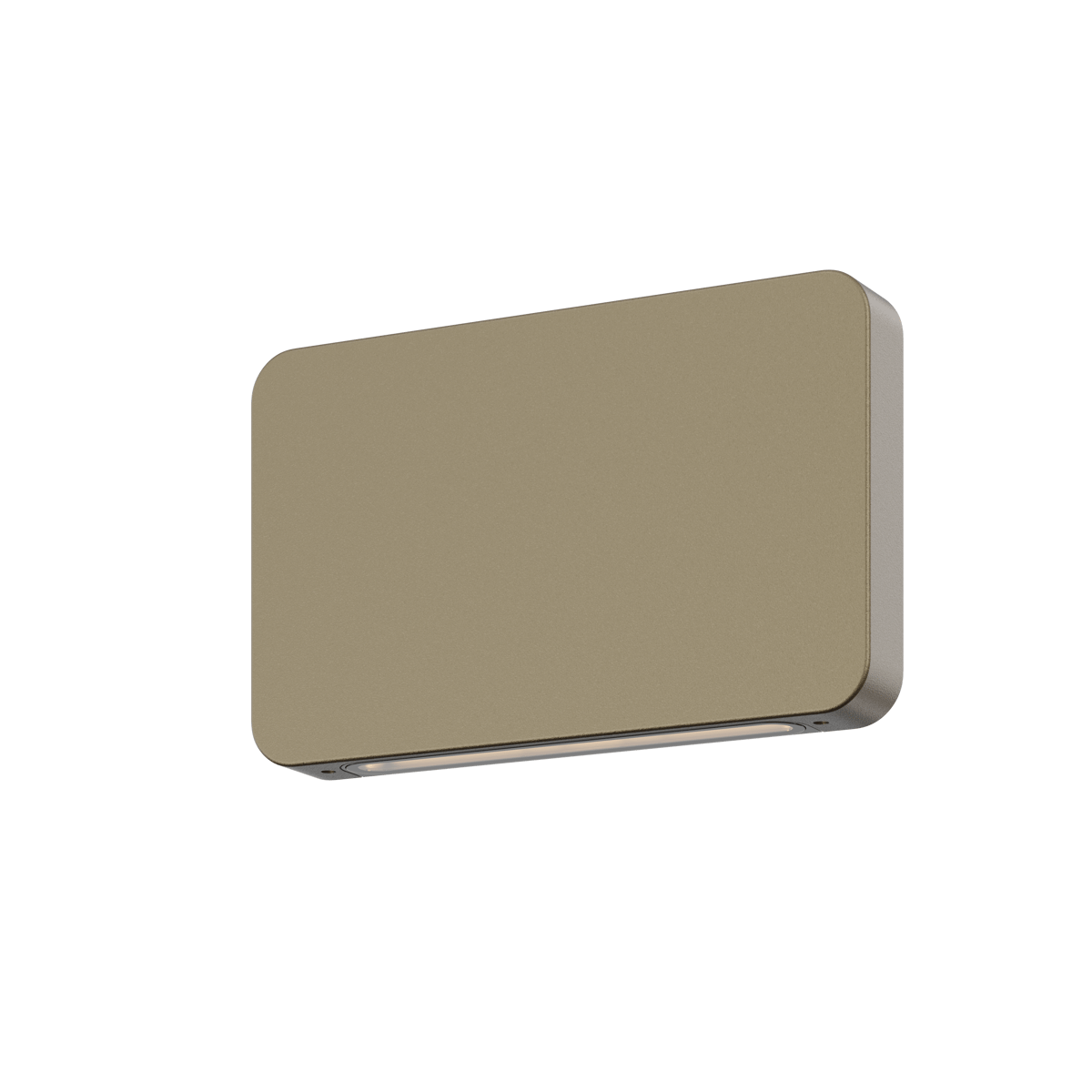

    • A3 - Bronze

      Aluminium 6000 Series

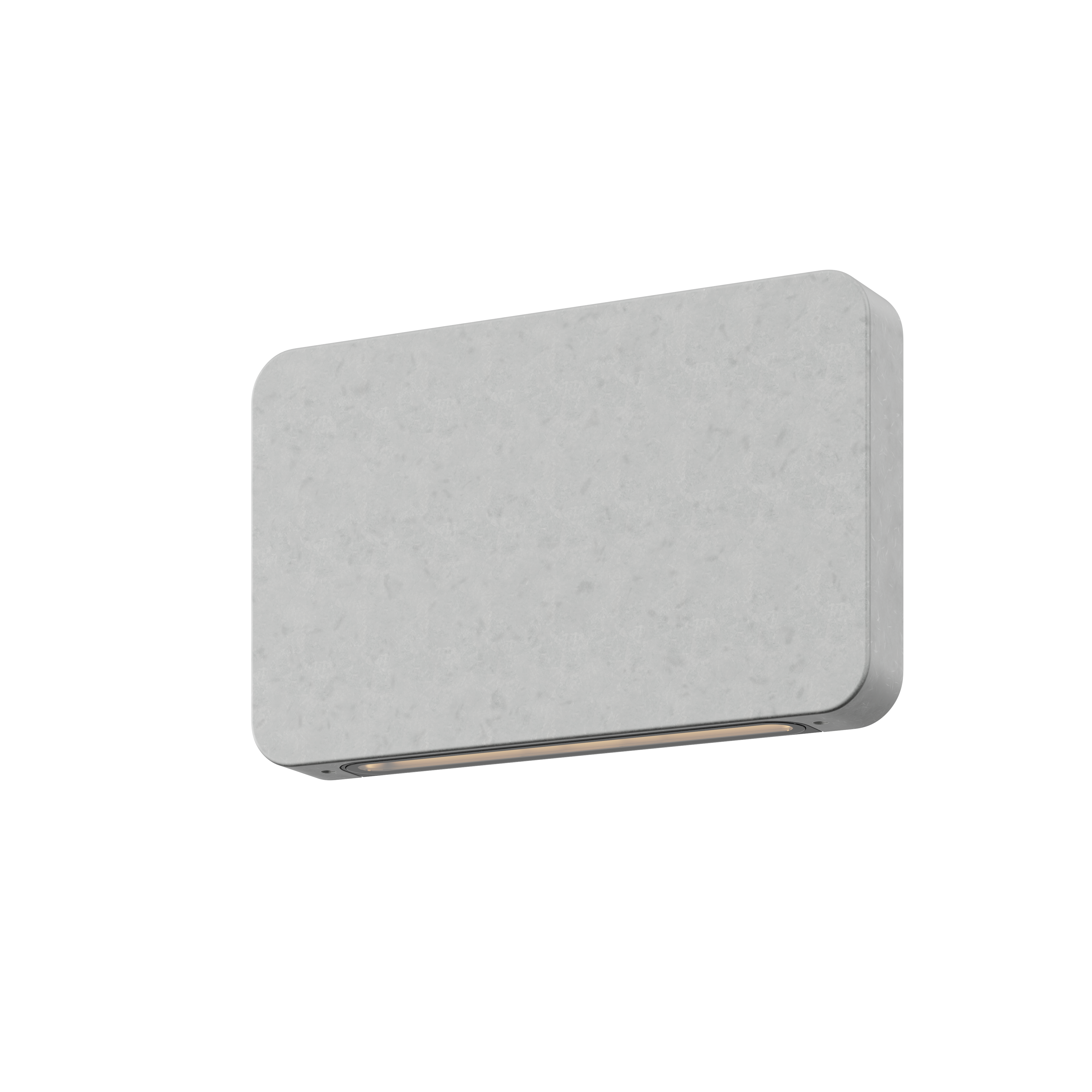

    • A4 - Basalt

      Aluminium 6000 Series

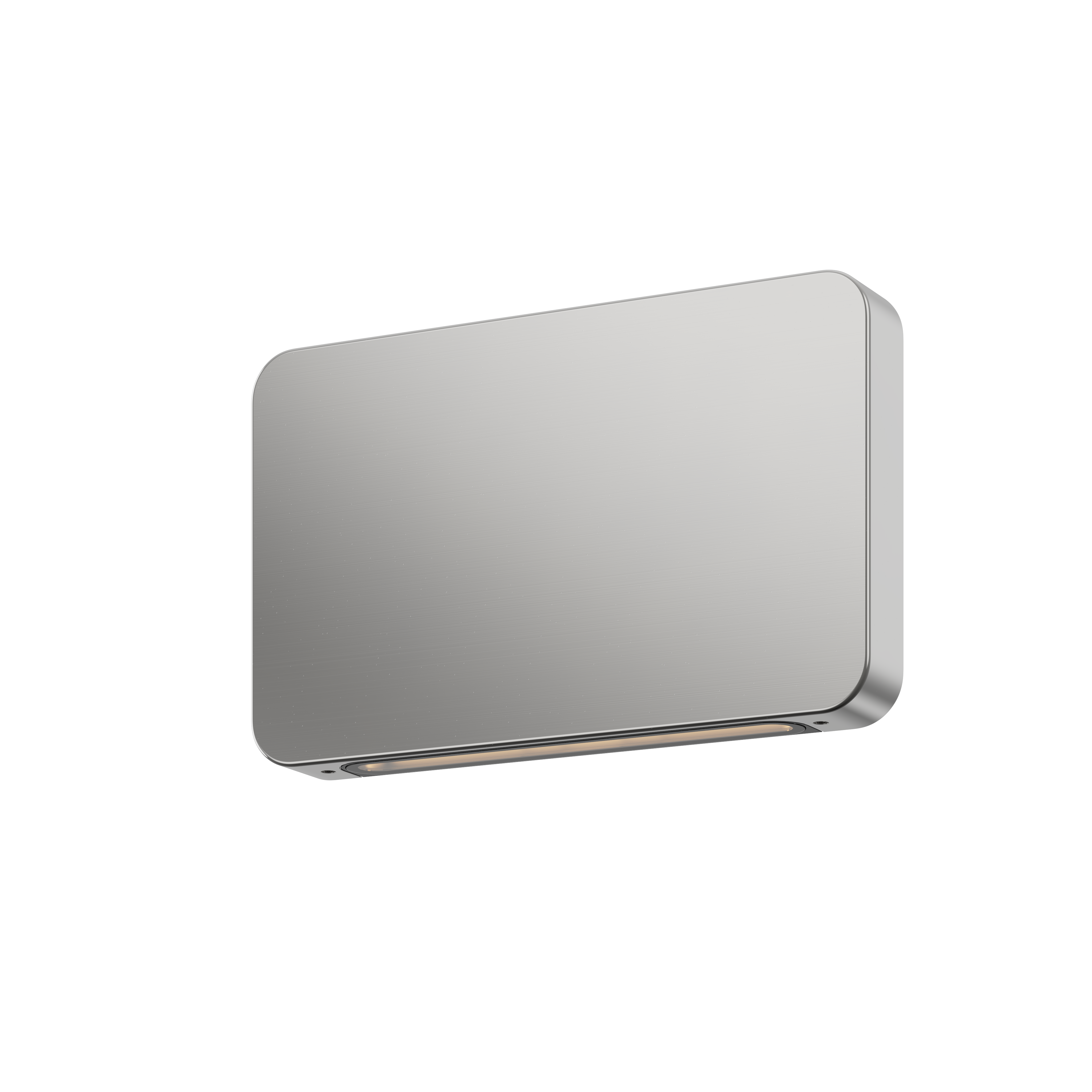

    • B1 - Brushed Chrome

      Brass

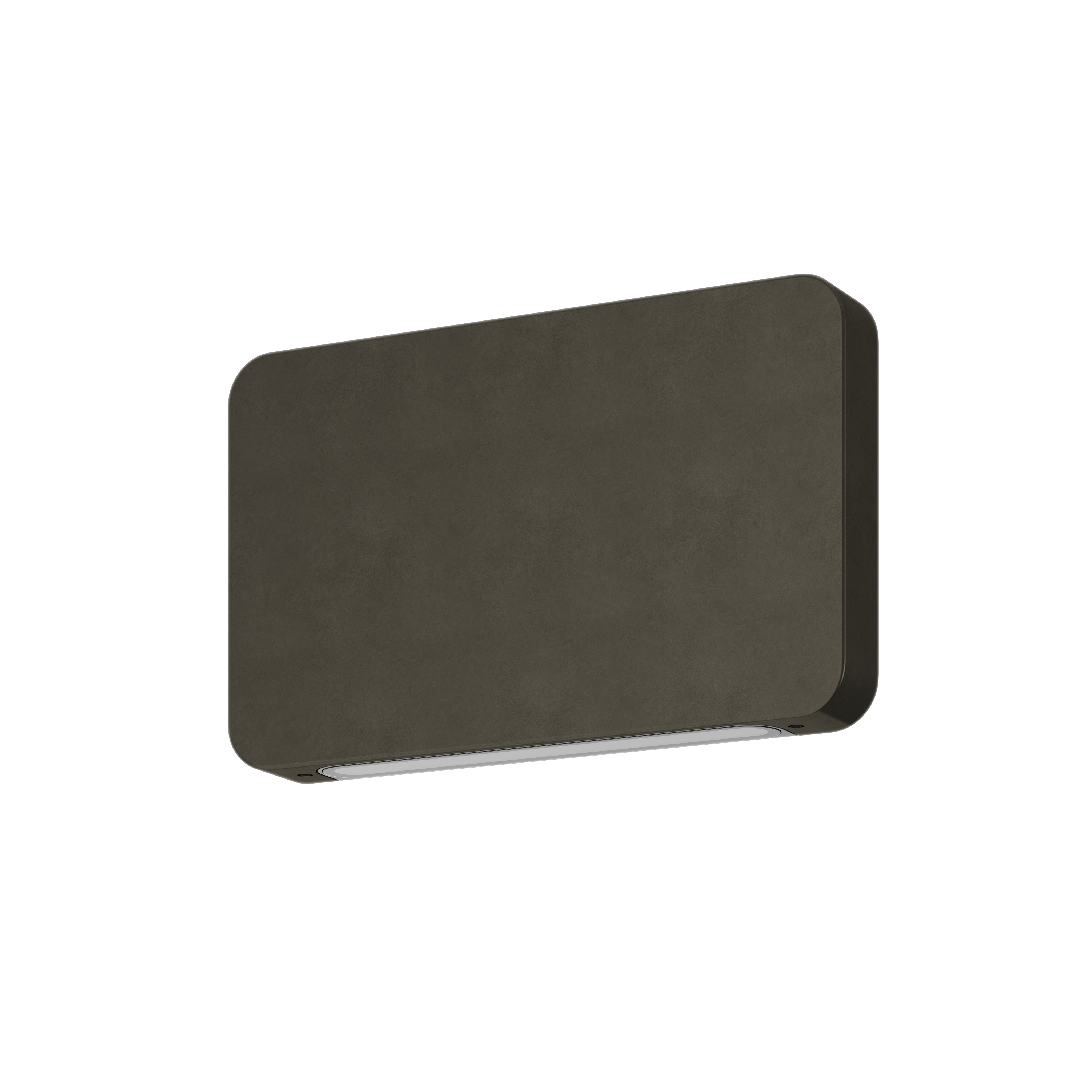

    • B2 - Black

      Brass

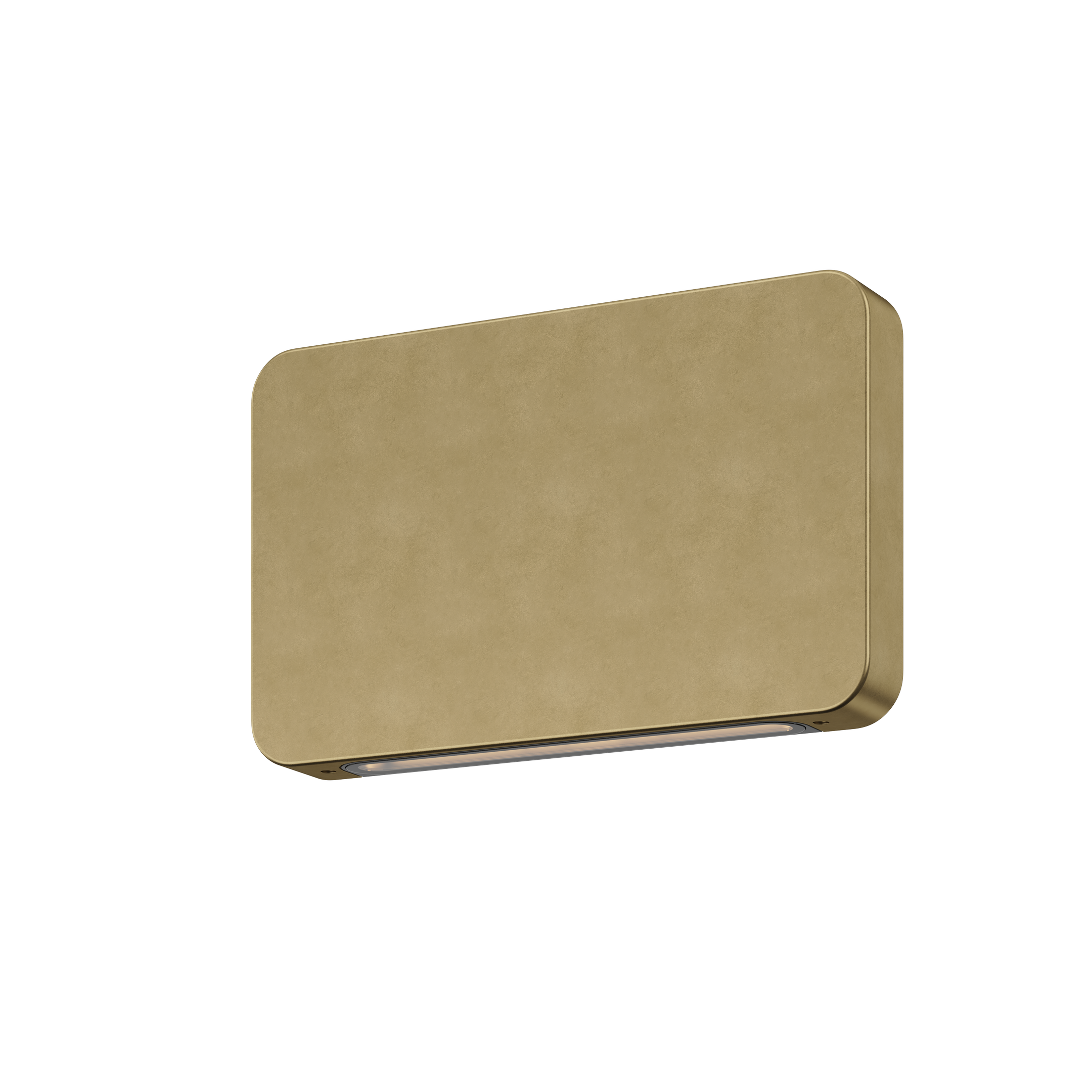

    • B3 - Aged Brass

      Brass

    • B5 - Brushed Copper

      Brass

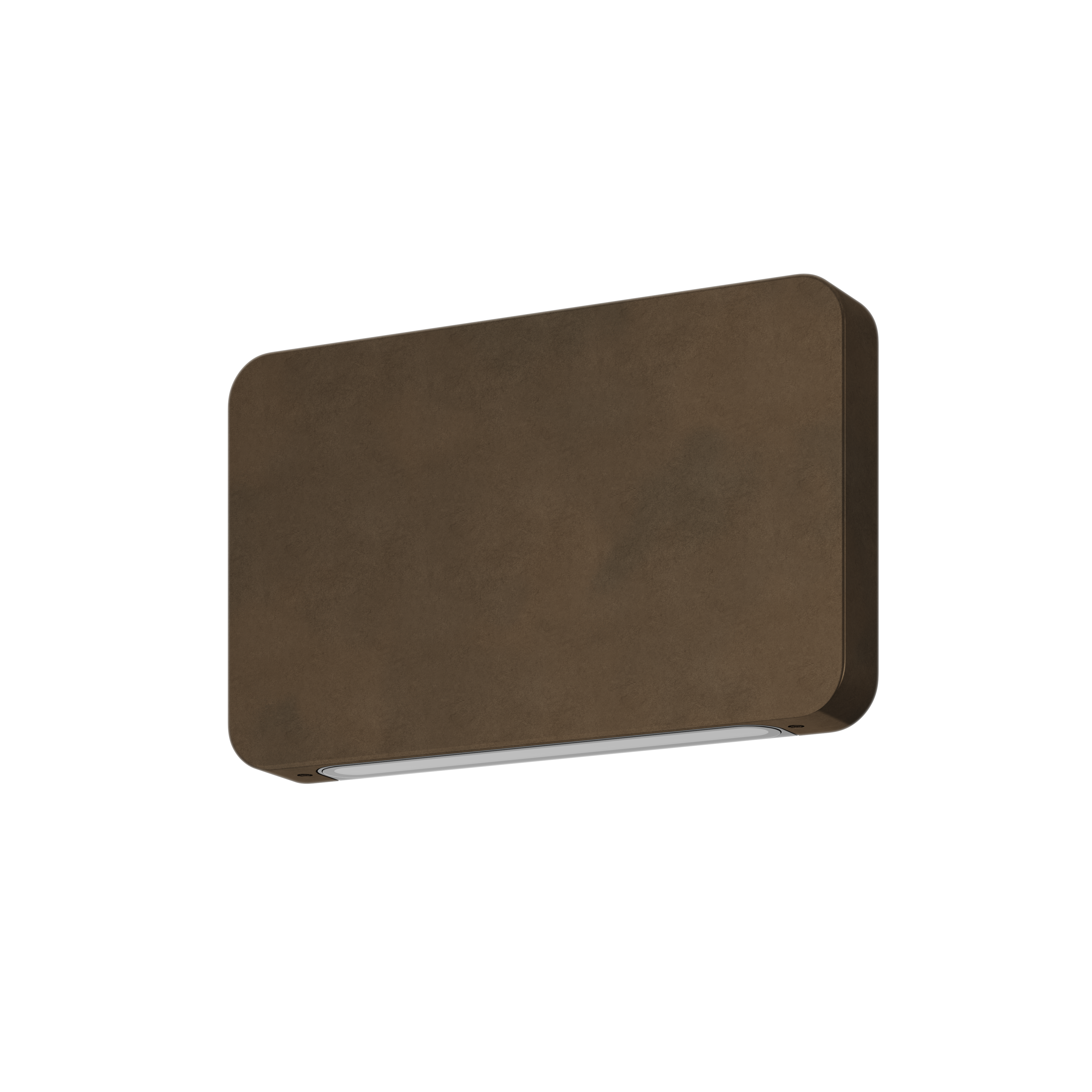

    • B6 - Natural Waxed

      Brass

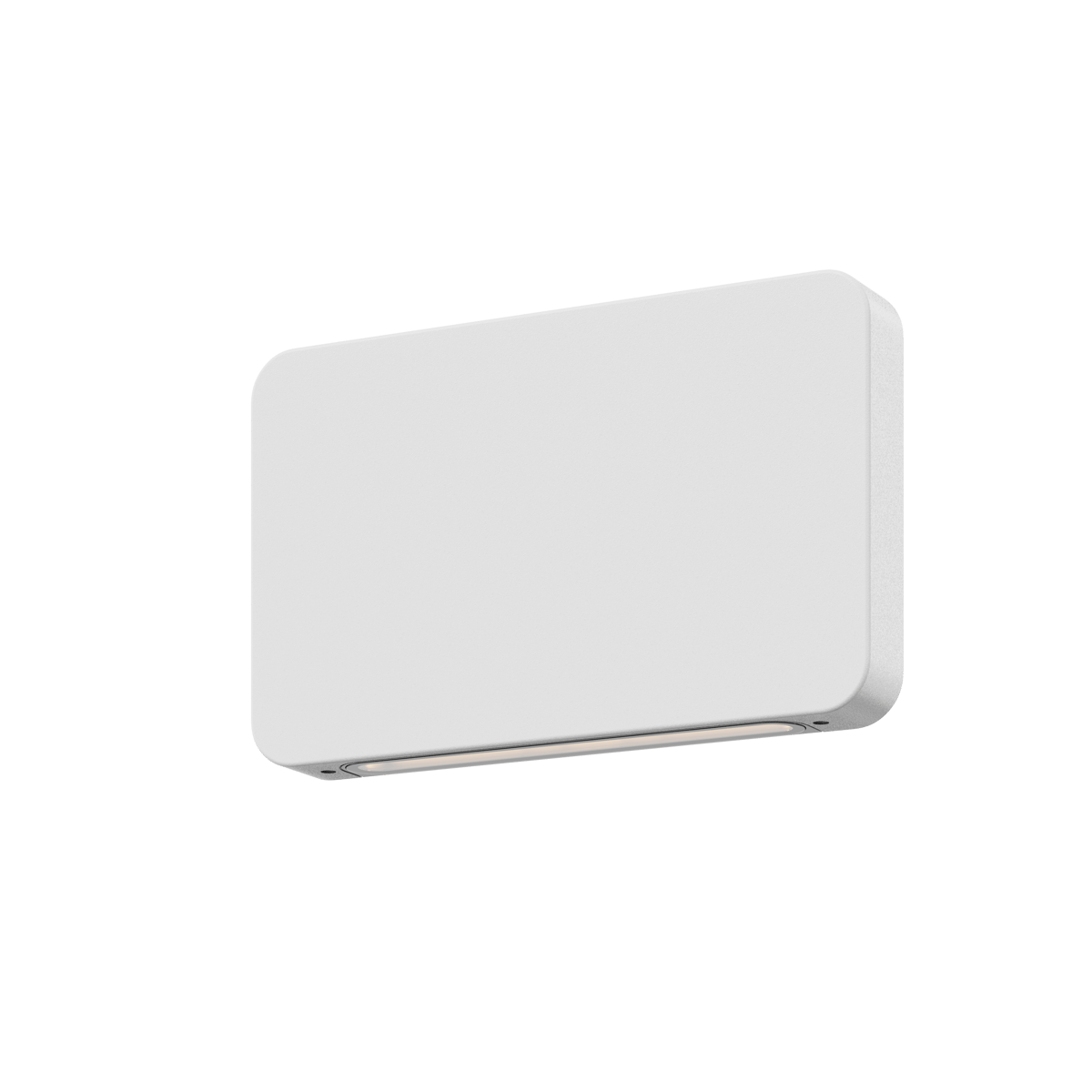

    • A8 - White

      Aluminium 6000 Series

    Control Gear

    • 24V DC 2-Wire

      Dimming: 2-Wire PWM Power

    Light Sources

    • 6W / 880lm

      2200K

    • 6W / 990lm

      2700K

    • 6W / 1020lm

      3000K

    • 6W / 1040lm

      4000K

    Optical

    • Diffuse (Frosted)

      DF

    Cable

    • S

      500mm 2-Core Standard Cable

    Configure order code

    AQL-516

    To configure your product/s, select from the options below.
    Multiple selections are possible to produce your downloadable datasheet/s.

    Clear Filter
    A1 - Clear Aluminium 6000 Series A2 - Black Aluminium 6000 Series A3 - Bronze Aluminium 6000 Series A4 - Basalt Aluminium 6000 Series B1 - Brushed Chrome Brass B2 - Black Brass B3 - Aged Brass Brass B5 - Brushed Copper Brass B6 - Natural Waxed Brass A8 - White Aluminium 6000 Series
    24V DC 2-Wire
    6W / 880lm / 2200K 6W / 990lm / 2700K 6W / 1020lm / 3000K 6W / 1040lm / 4000K
    Diffuse (Frosted)
    500mm 2-Core Standard Cable

    AQL-516 - has 40 variations

    Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
    AQL-516-B5-E00630DFS
    PDF
    		B5 - Brushed Copper
    Brass    		 6W 1020lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B2-E00627DFS
    PDF
    		B2 - Black
    Brass    		 6W 990lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B2-E00630DFS
    PDF
    		B2 - Black
    Brass    		 6W 1020lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B2-E00640DFS
    PDF
    		B2 - Black
    Brass    		 6W 1040lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B3-E00622DFS
    PDF
    		B3 - Aged Brass
    Brass    		 6W 880lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B3-E00627DFS
    PDF
    		B3 - Aged Brass
    Brass    		 6W 990lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B3-E00630DFS
    PDF
    		B3 - Aged Brass
    Brass    		 6W 1020lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B3-E00640DFS
    PDF
    		B3 - Aged Brass
    Brass    		 6W 1040lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B5-E00622DFS
    PDF
    		B5 - Brushed Copper
    Brass    		 6W 880lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B5-E00627DFS
    PDF
    		B5 - Brushed Copper
    Brass    		 6W 990lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B2-E00622DFS
    PDF
    		B2 - Black
    Brass    		 6W 880lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B5-E00640DFS
    PDF
    		B5 - Brushed Copper
    Brass    		 6W 1040lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B6-E00622DFS
    PDF
    		B6 - Natural Waxed
    Brass    		 6W 880lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B6-E00627DFS
    PDF
    		B6 - Natural Waxed
    Brass    		 6W 990lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B6-E00630DFS
    PDF
    		B6 - Natural Waxed
    Brass    		 6W 1020lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B6-E00640DFS
    PDF
    		B6 - Natural Waxed
    Brass    		 6W 1040lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A8-E00622DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 6W 880lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A8-E00627DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 6W 990lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A8-E00630DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 6W 1020lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A8-E00640DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 6W 1040lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A3-E00630DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 6W 1020lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A1-E00627DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 6W 990lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A1-E00630DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 6W 1020lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A1-E00640DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 6W 1040lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A2-E00622DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 6W 880lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A2-E00627DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 6W 990lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A2-E00630DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 6W 1020lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A2-E00640DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 6W 1040lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A3-E00622DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 6W 880lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A3-E00627DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 6W 990lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A1-E00622DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 6W 880lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A3-E00640DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 6W 1040lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A4-E00622DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 6W 880lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A4-E00627DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 6W 990lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A4-E00630DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 6W 1020lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-A4-E00640DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 6W 1040lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B1-E00622DFS
    PDF
    		B1 - Brushed Chrome
    Brass    		 6W 880lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B1-E00627DFS
    PDF
    		B1 - Brushed Chrome
    Brass    		 6W 990lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B1-E00630DFS
    PDF
    		B1 - Brushed Chrome
    Brass    		 6W 1020lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-516-B1-E00640DFS
    PDF
    		B1 - Brushed Chrome
    Brass    		 6W 1040lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
