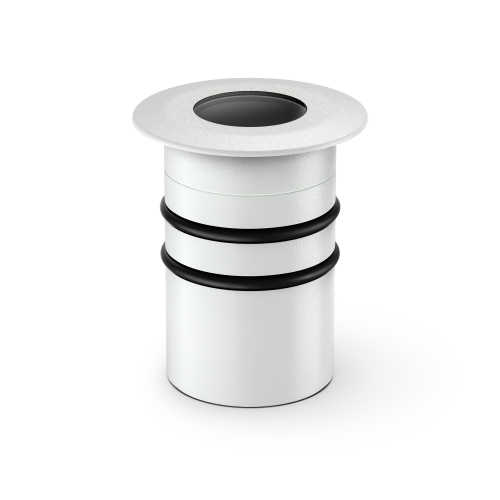

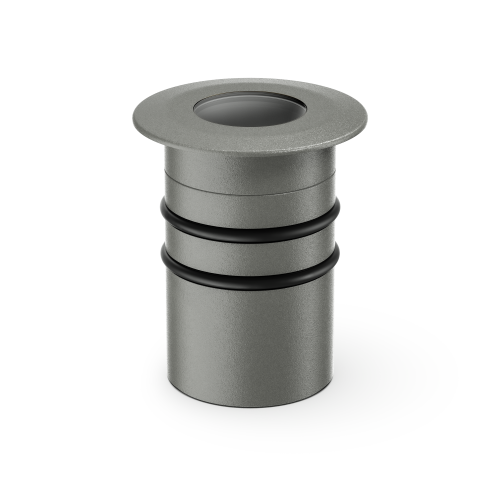

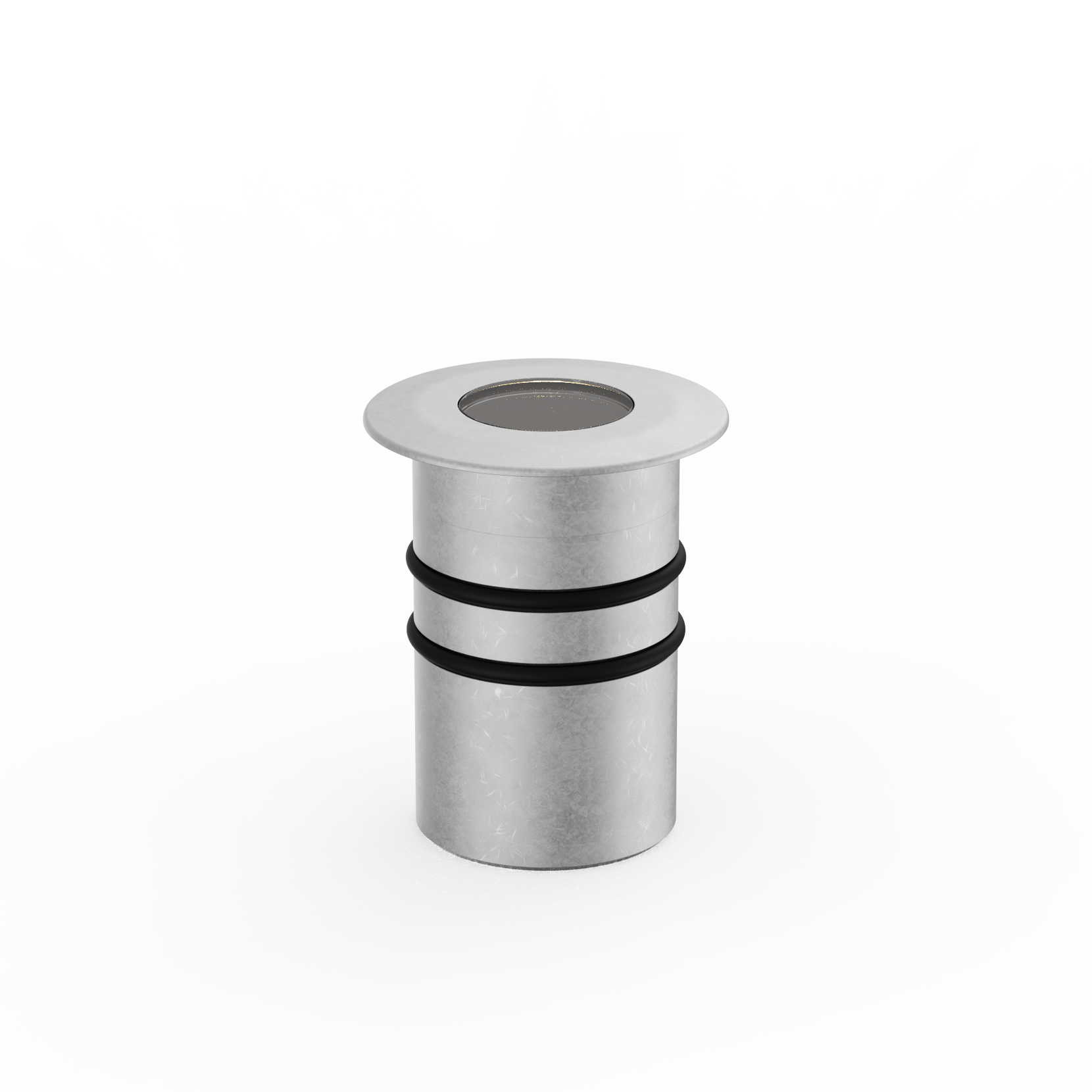

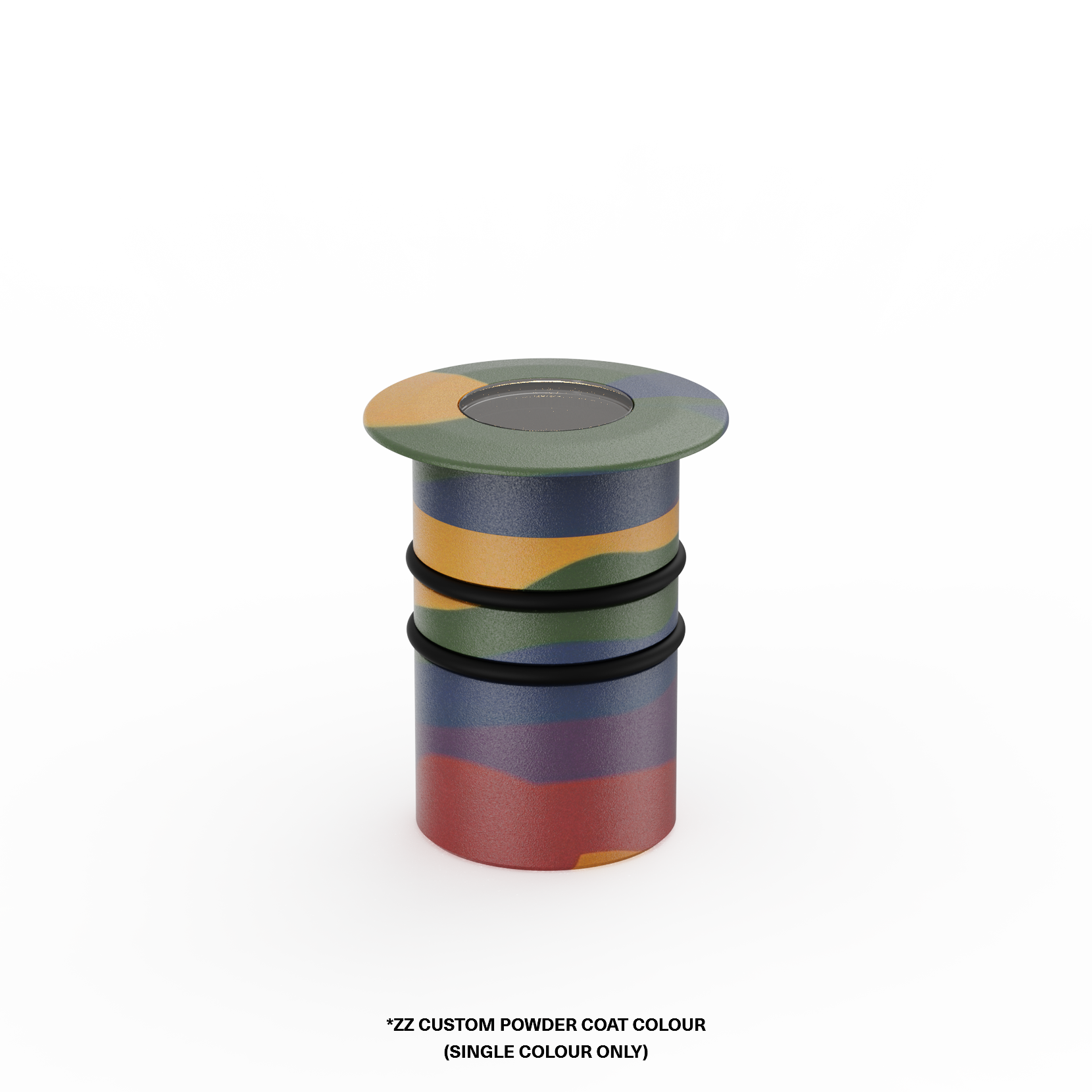

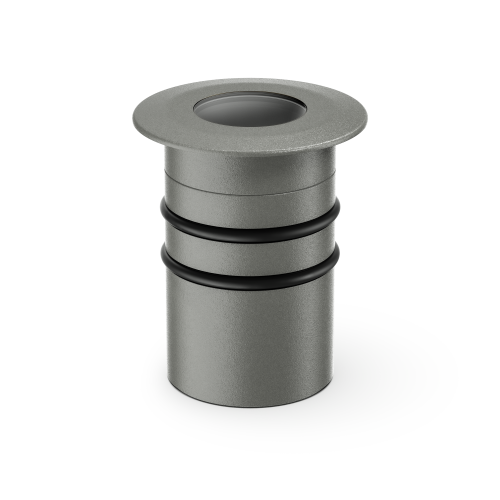

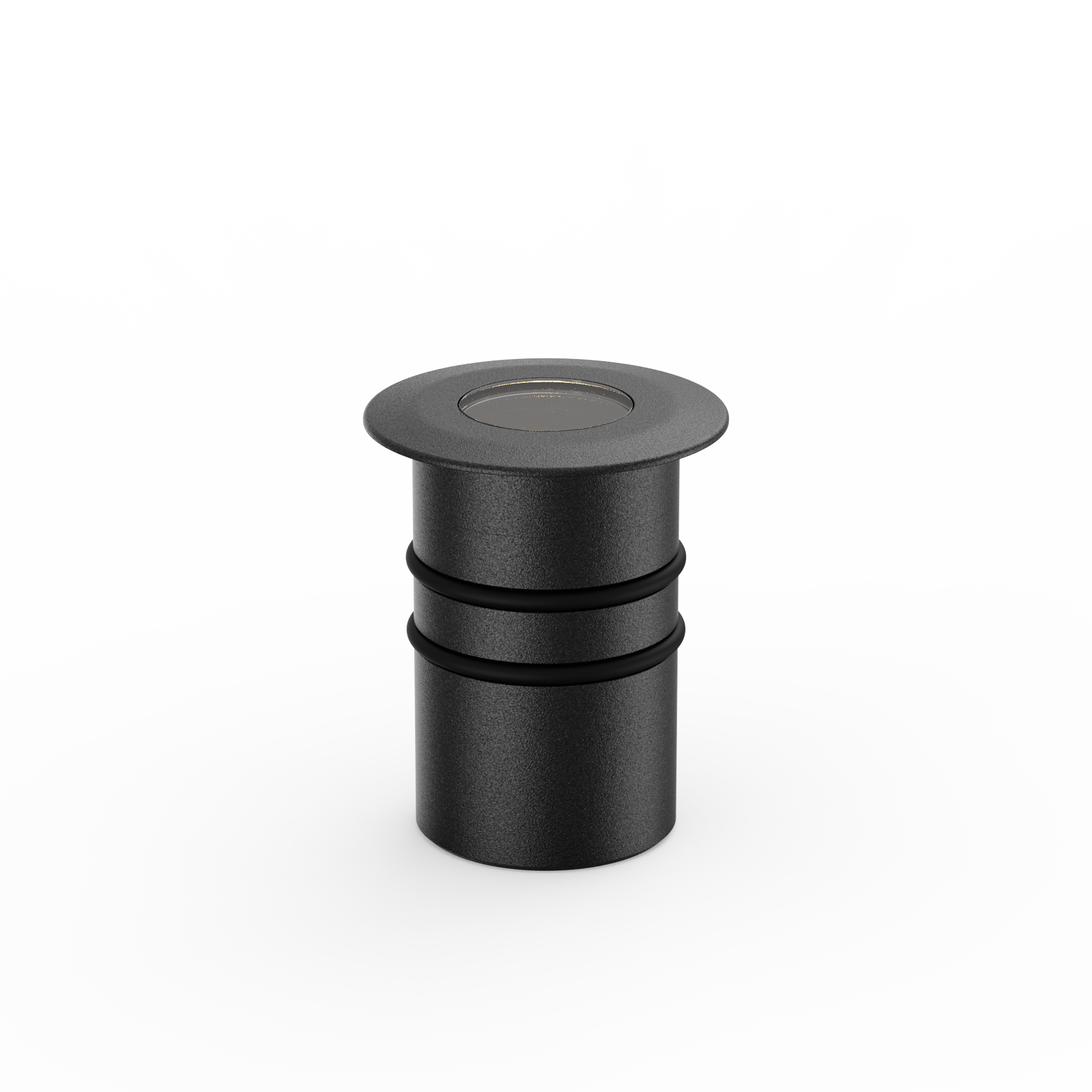

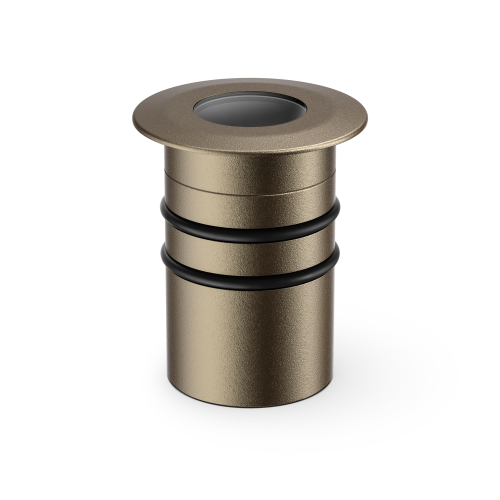

Lumena

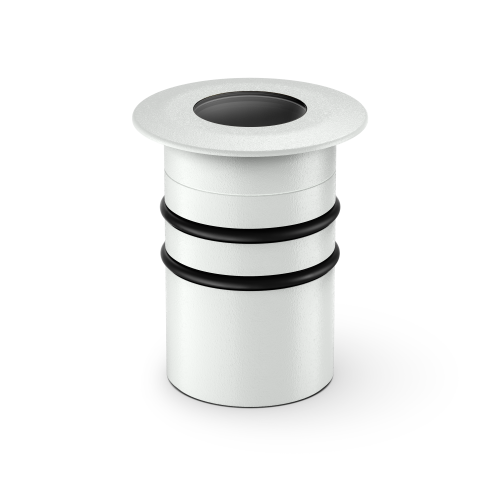

    AQL-154

    Low Glare Uplight

    AQL-154
    AQL-154
    AQL-154
    AQL-154

    Introduction

    The AQL-154 features a deeply recessed light source for increased glare control and discrete illumination. Perfect for uplighting where glare control is a priority.

    Specification

    AQL-154

    Lumena

    CNC Machined Aluminium

    1M Aqualux PLUS QuickConnect

    7 Year Aqualux Warranty

    IP67

    Ultra low glare / Compact body / Multiple optics options

    Options

    Body

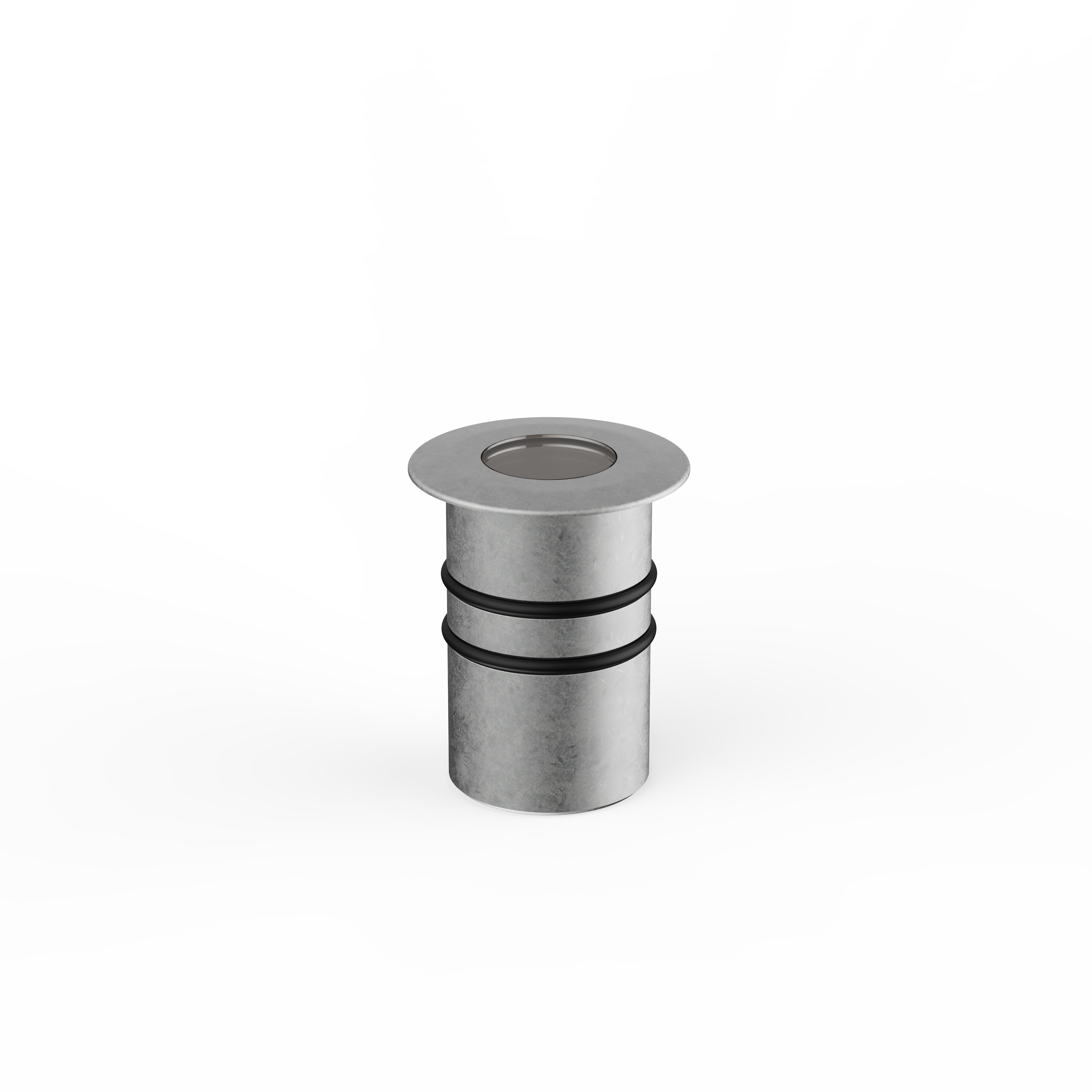

    • A1 - Silver

      Aluminium 6000 Series

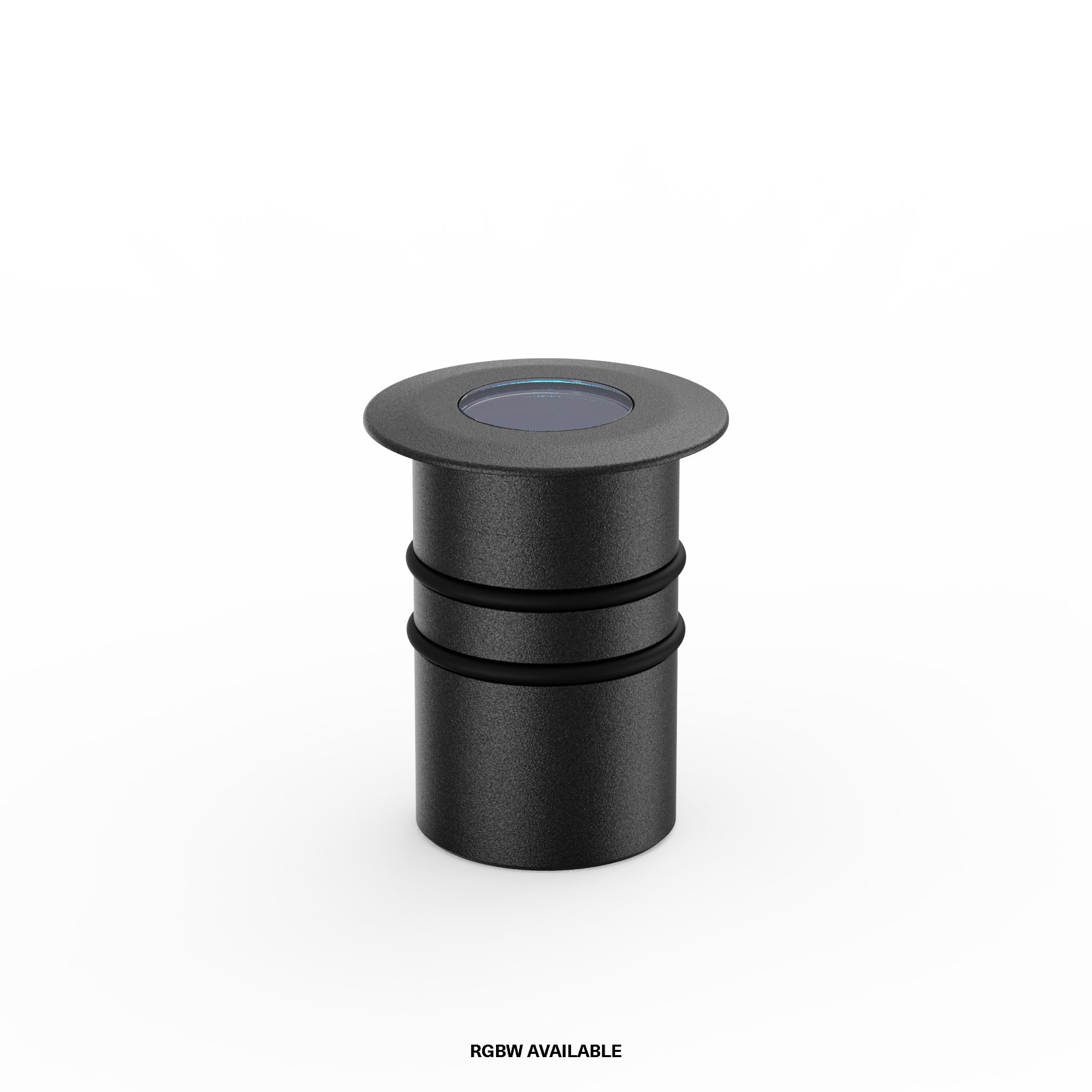

    • A2 - Black

      Aluminium 6000 Series

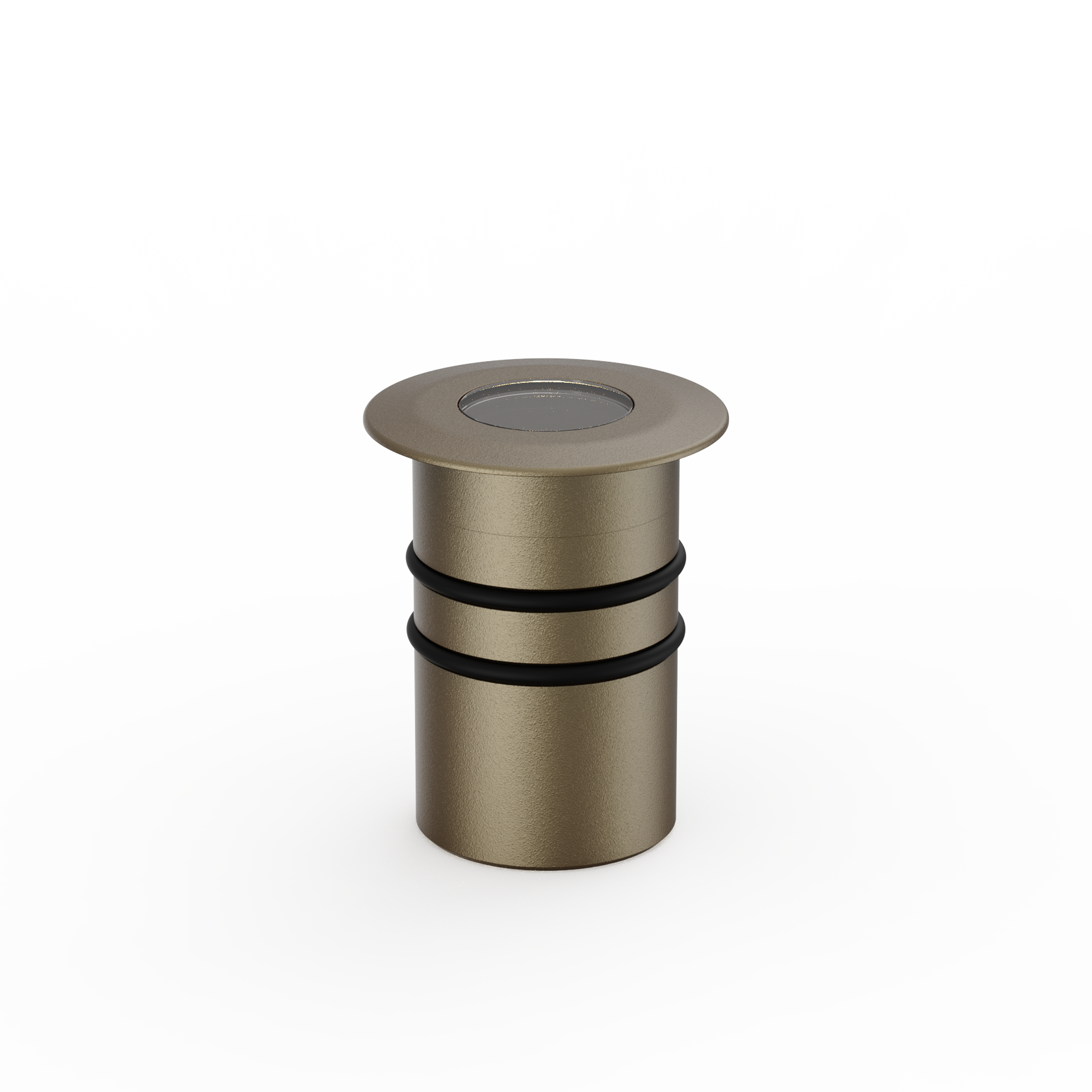

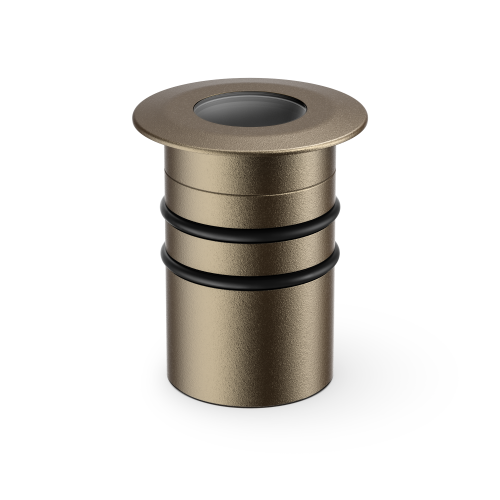

    • A3 - Bronze

      Aluminium 6000 Series

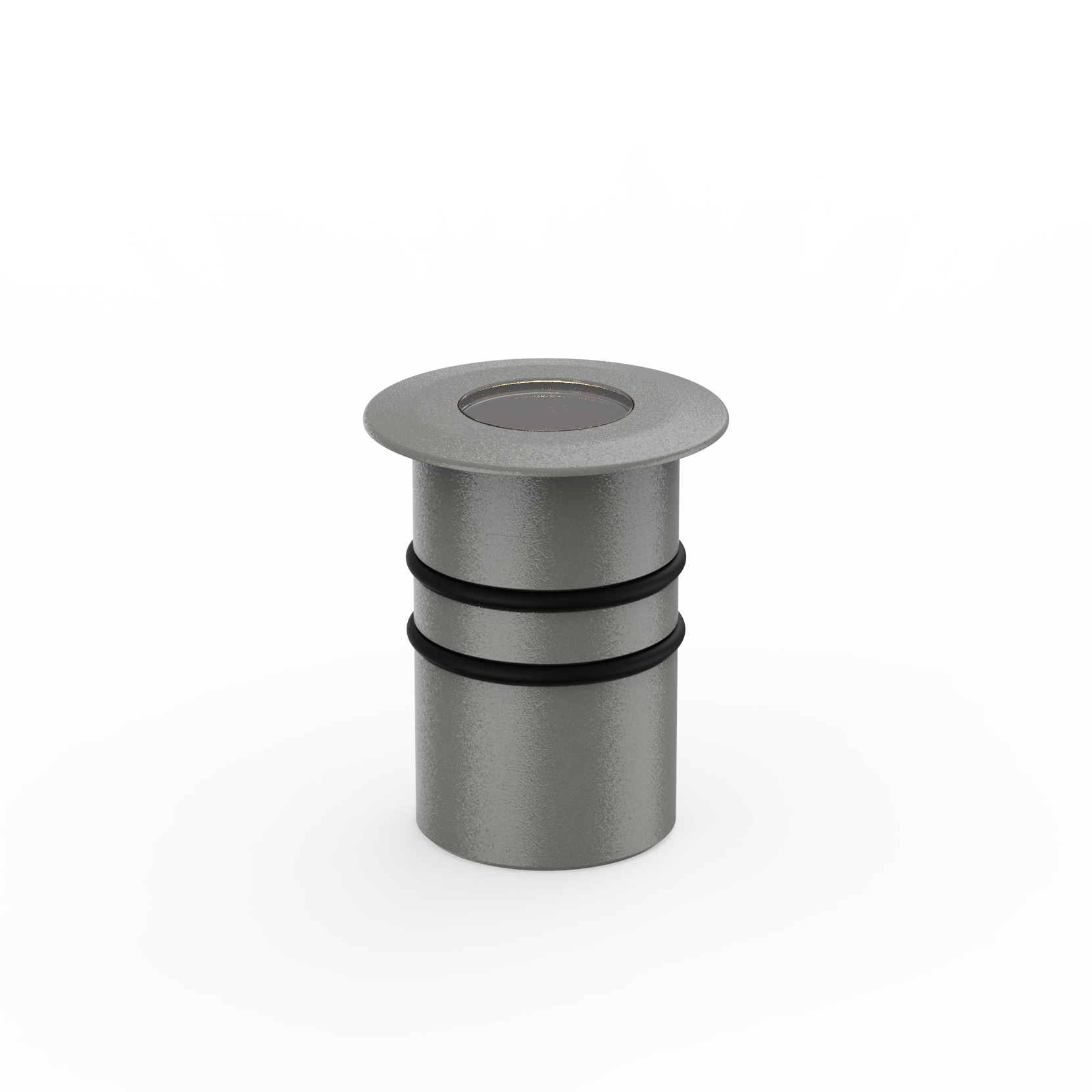

    • A4 - Basalt

      Aluminium 6000 Series

    • B1 - Brushed Chrome

      Brass

    • B2 - Black

      Brass

    • B3 - Aged Brass

      Brass

    • B5 - Brushed Copper

      Brass

    • B6 - Natural Waxed

      Brass

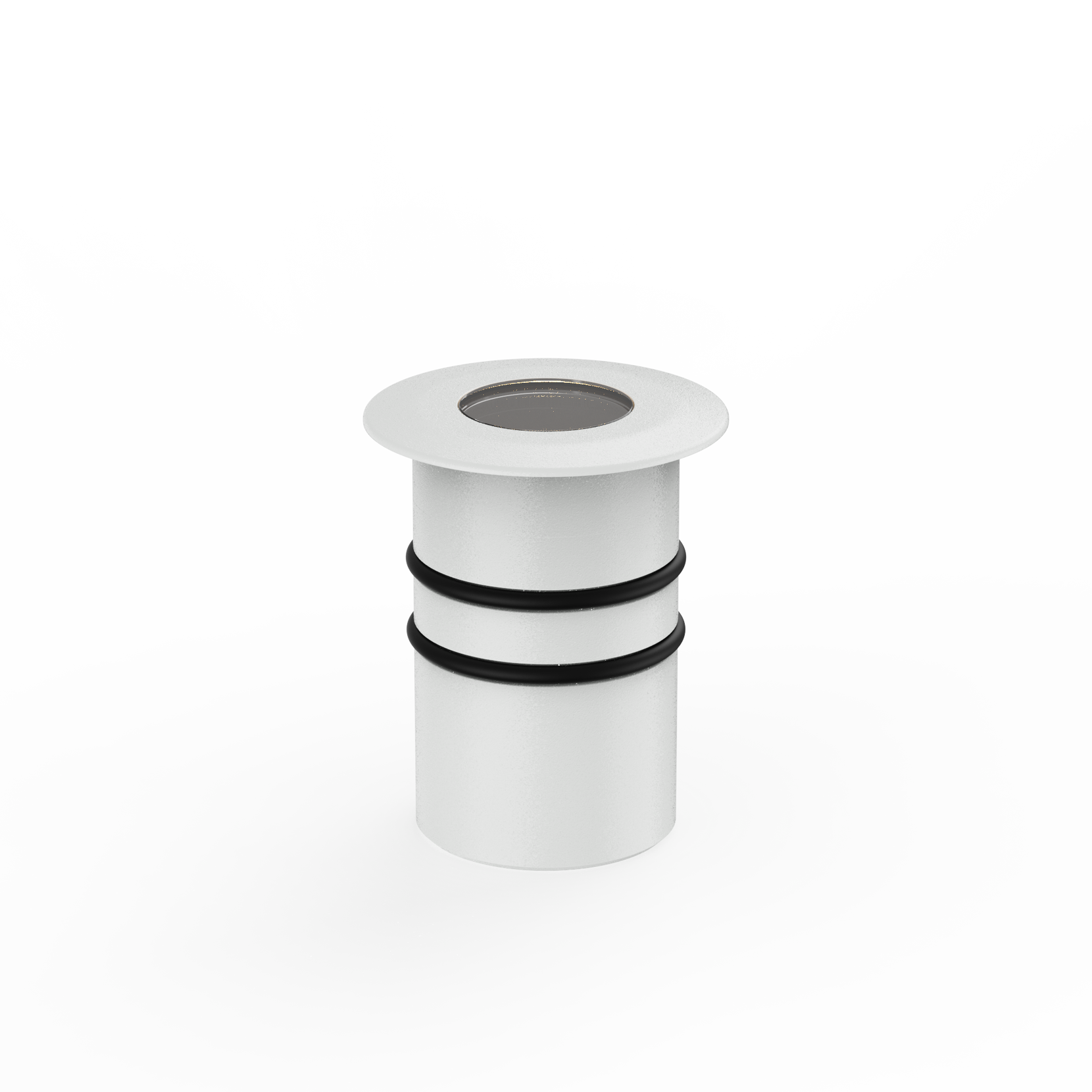

    • A8 - White

      Aluminium 6000 Series

    Control Gear

    • 24V DC 3-Wire

      Dimming: 3-wire PWM 10V Dimming

    Light Sources

    • 4W / 300lm

      2700K

    • 7W / 550lm

      2700K

    • 4W / 300lm

      3000K

    • 7W / 550lm

      3000K

    • 4W / 320lm

      4000K

    • 7W / 600lm

      4000K

    Optical

    • Medium (30°)

      30

    • Narrow (15°)

      15

    Cable

    • Q

      AqualuxPLUS QuickConnect

    Configure order code

    AQL-154

    To configure your product/s, select from the options below.
    Multiple selections are possible to produce your downloadable datasheet/s.

    Clear Filter
    A1 - Silver Aluminium 6000 Series A2 - Black Aluminium 6000 Series A3 - Bronze Aluminium 6000 Series A4 - Basalt Aluminium 6000 Series B1 - Brushed Chrome Brass B2 - Black Brass B3 - Aged Brass Brass B5 - Brushed Copper Brass B6 - Natural Waxed Brass A8 - White Aluminium 6000 Series
    24V DC 3-Wire
    4W / 300lm / 2700K 7W / 550lm / 2700K 4W / 300lm / 3000K 7W / 550lm / 3000K 4W / 320lm / 4000K 7W / 600lm / 4000K
    Medium (30°) Narrow (15°)
    AqualuxPLUS QuickConnect

    AQL-154 - has 120 variations

    Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
    AQL-154-A1-B0043030Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 4W 300lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A1-B0043015Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 4W 300lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A1-B0073030Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 7W 550lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A1-B0073015Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 7W 550lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A1-B0042730Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 4W 300lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A1-B0042715Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 4W 300lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A1-B0072730Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 7W 550lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A1-B0072715Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 7W 550lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A1-B0044030Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 4W 320lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A1-B0044015Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 4W 320lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A1-B0074030Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 7W 600lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A1-B0074015Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 7W 600lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A2-B0043030Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 300lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A2-B0043015Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 300lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A2-B0073030Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 550lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A2-B0073015Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 550lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A2-B0042730Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 300lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A2-B0042715Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 300lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A2-B0072730Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 550lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A2-B0072715Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 550lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A2-B0044030Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 320lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A2-B0044015Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 320lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A2-B0074030Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 600lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A2-B0074015Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 600lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A3-B0043030Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 300lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A3-B0043015Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 300lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A3-B0073030Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 550lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A3-B0073015Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 550lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A3-B0042730Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 300lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A3-B0042715Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 300lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A3-B0072730Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 550lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A3-B0072715Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 550lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A3-B0044030Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 320lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A3-B0044015Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 320lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A3-B0074030Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 600lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A3-B0074015Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 600lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A4-B0043030Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 300lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A4-B0043015Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 300lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A4-B0073030Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 550lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A4-B0073015Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 550lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A4-B0042730Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 300lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A4-B0042715Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 300lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A4-B0072730Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 550lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A4-B0072715Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 550lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A4-B0044030Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 320lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A4-B0044015Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 320lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A4-B0074030Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 600lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A4-B0074015Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 600lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B1-B0043030Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B1-B0043015Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B1-B0073030Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 550lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B1-B0073015Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 550lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B1-B0042730Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B1-B0042715Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B1-B0072730Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 550lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B1-B0072715Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 550lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B1-B0044030Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 320lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B1-B0044015Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 320lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B1-B0074030Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 600lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B1-B0074015Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 600lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B2-B0043030Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B2-B0043015Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B2-B0073030Q
    PDF
    		B2 - Black
    Brass    		 7W 550lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B2-B0073015Q
    PDF
    		B2 - Black
    Brass    		 7W 550lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B2-B0042730Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B2-B0042715Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B2-B0072730Q
    PDF
    		B2 - Black
    Brass    		 7W 550lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B2-B0072715Q
    PDF
    		B2 - Black
    Brass    		 7W 550lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B2-B0044030Q
    PDF
    		B2 - Black
    Brass    		 4W 320lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B2-B0044015Q
    PDF
    		B2 - Black
    Brass    		 4W 320lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B2-B0074030Q
    PDF
    		B2 - Black
    Brass    		 7W 600lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B2-B0074015Q
    PDF
    		B2 - Black
    Brass    		 7W 600lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B3-B0043030Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B3-B0043015Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B3-B0073030Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 550lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B3-B0073015Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 550lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B3-B0042730Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B3-B0042715Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B3-B0072730Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 550lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B3-B0072715Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 550lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B3-B0044030Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 320lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B3-B0044015Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 320lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B3-B0074030Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 600lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B3-B0074015Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 600lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B5-B0043030Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B5-B0043015Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B5-B0073030Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 550lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B5-B0073015Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 550lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B5-B0042730Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B5-B0042715Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B5-B0072730Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 550lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B5-B0072715Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 550lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B5-B0044030Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 320lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B5-B0044015Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 320lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B5-B0074030Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 600lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B5-B0074015Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 600lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B6-B0043030Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B6-B0043015Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B6-B0073030Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 550lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B6-B0073015Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 550lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B6-B0042730Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B6-B0042715Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B6-B0072730Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 550lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B6-B0072715Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 550lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B6-B0044030Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 320lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B6-B0044015Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 320lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B6-B0074030Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 600lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-B6-B0074015Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 600lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A8-B0043030Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 300lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A8-B0043015Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 300lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A8-B0073030Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 550lm / 3000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A8-B0073015Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 550lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A8-B0042730Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 300lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A8-B0042715Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 300lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A8-B0072730Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 550lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A8-B0072715Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 550lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A8-B0044030Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 320lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A8-B0044015Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 320lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A8-B0074030Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 600lm / 4000K 30 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-154-A8-B0074015Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 600lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF

    Products that work well with your selection

    AQL-115

    AQL-115

    AQL-116

    AQL-116

    AQL-120

    AQL-120

    AQL-121

    AQL-121

    AQL-122

    AQL-122

    AQL-123

    AQL-123

    AQL-124

    AQL-124
