Introduction

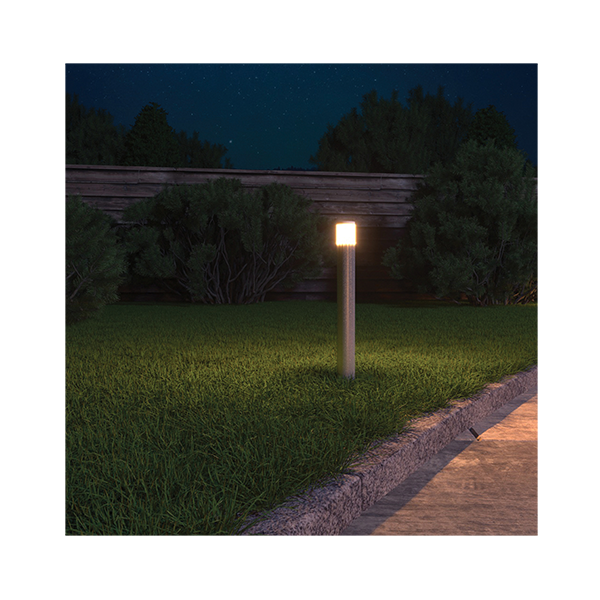

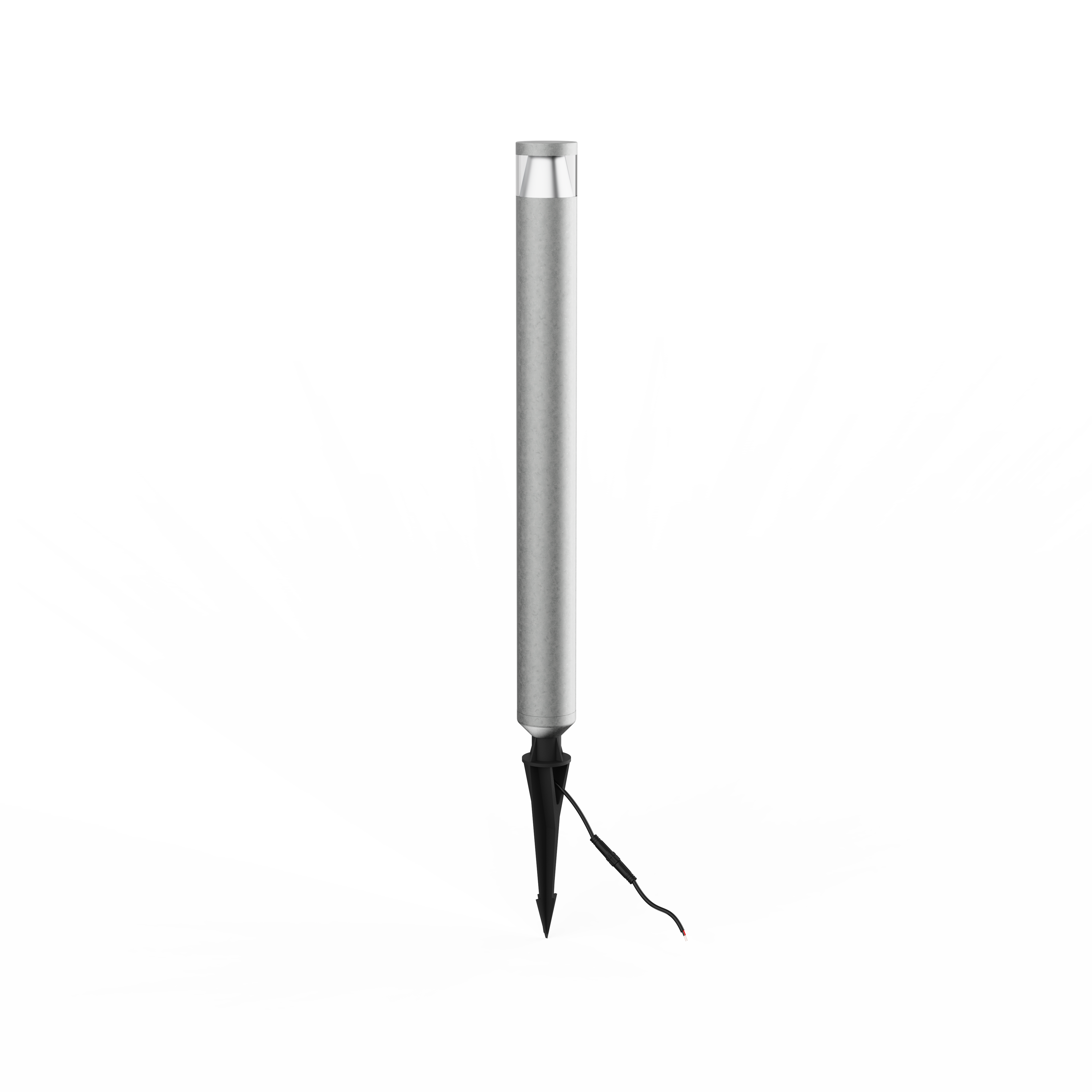

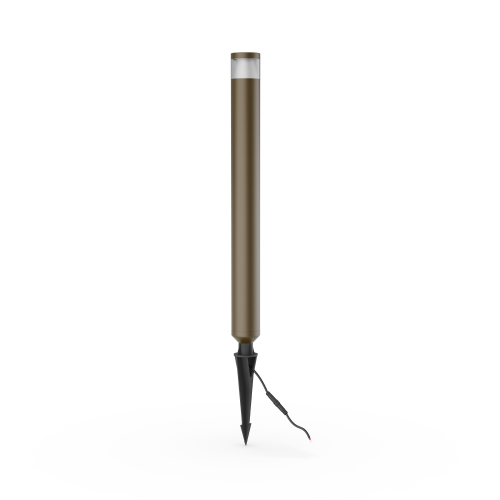

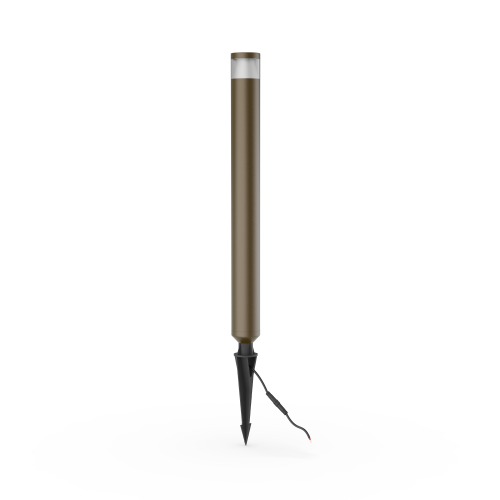

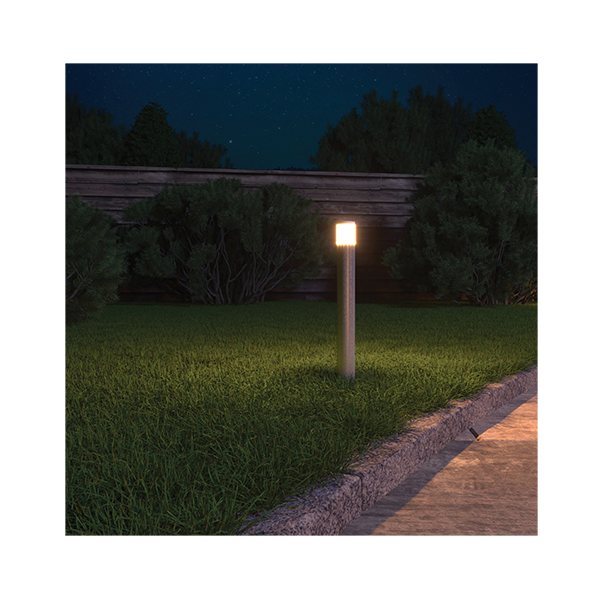

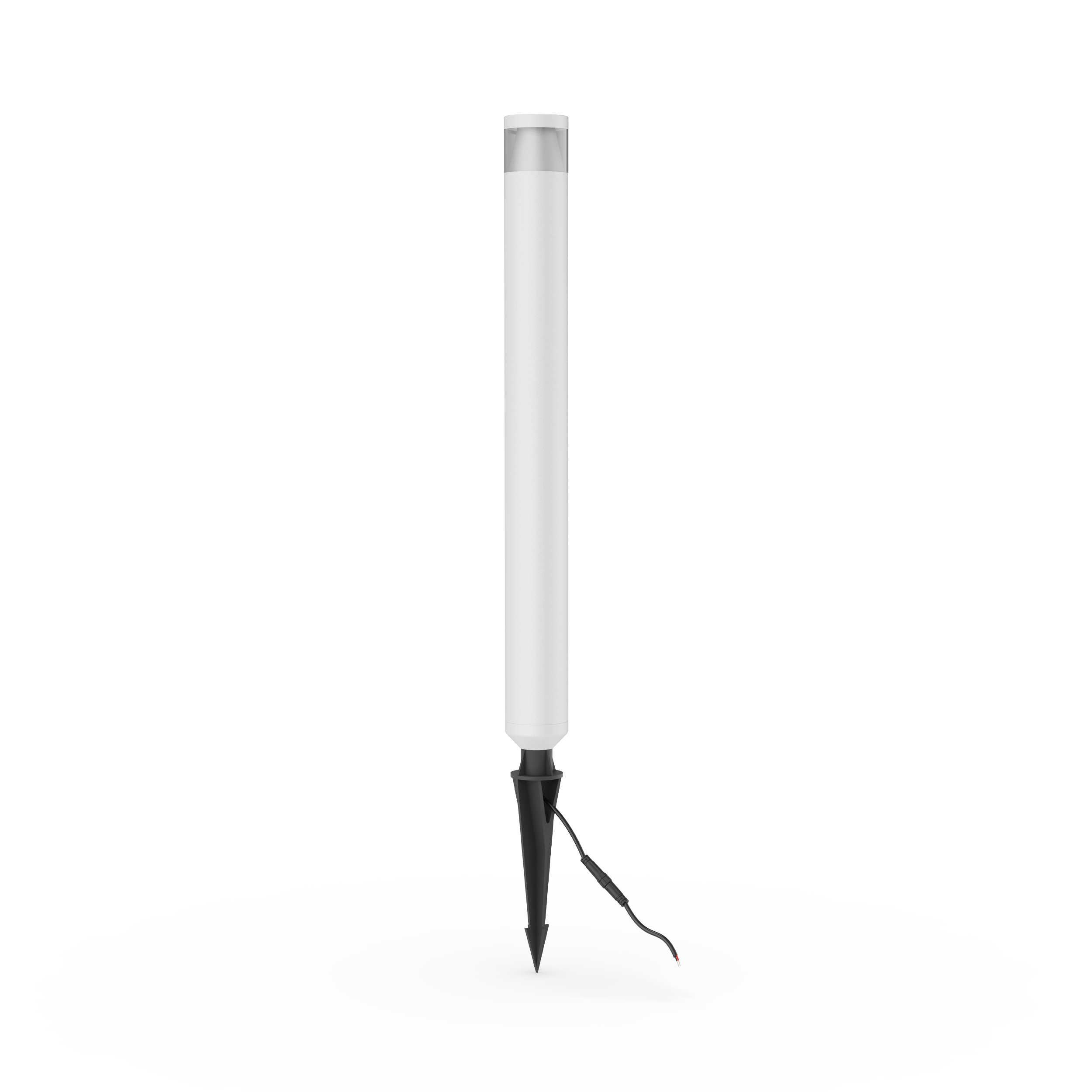

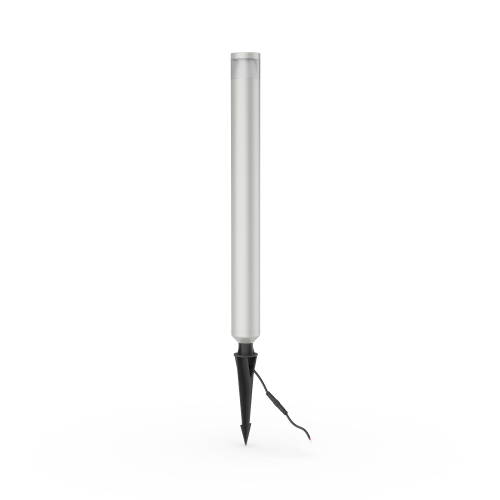

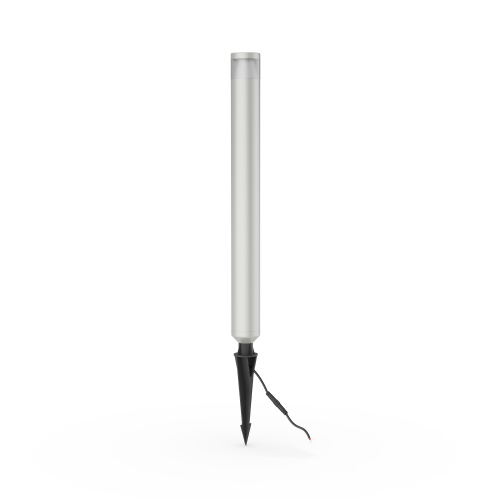

The AQL-135 is a 600mm Mini-Bollard perfect for pathway & entrance way illumination. Durable ABS spike ensures good stability in many soil types.



Specification

AQL-135

Lumena

CNC Machined & Anodised Aluminium 6061

900mm Aqualux 2-Core Silicone / PTFE Cable

5 Year Aqualux Warranty

IP65

Options

Finish

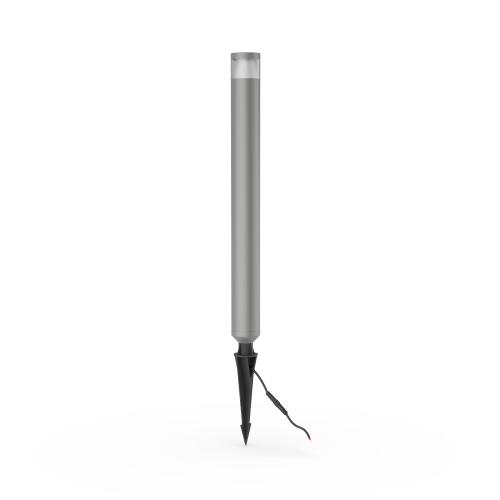

  • Satin Chrome

    CNC Aluminium 6061

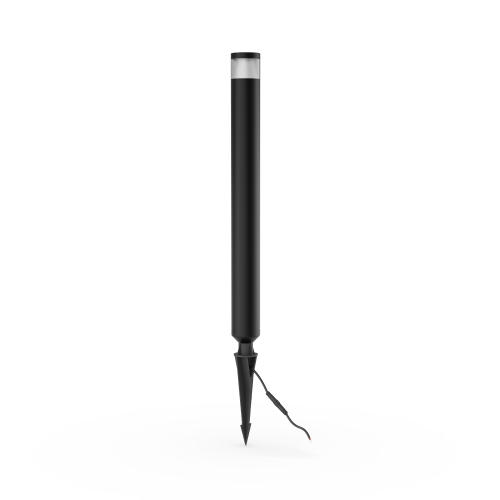

  • Matt Black

    CNC Aluminium 6061

Control Gear

  • 12~24V AC / 24V DC

    Dimming: No

  • 24VAC Triac Dimmable

    Dimming: Yes, TRIAC Primary Side

Light Sources

  • 4W

    3000K / 300mA

Optical

  • Diffuse (Clear)

    DC

Cable

  • S

    Aqualux Cable (1M Std)

  • Q

    AqualuxPLUS QuickConnect (1M)

Configure order code

AQL-135

To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.

AQL-135 - You have 8 variations with this product

Product Code Downloads Body Colour Rated Power Light Source Optical Control Gear Dimming Cable Downloads
AQL-135-SC-X00430DCS
Satin Chrome 4W 3000K / 300mA DC 12~24V AC / 24V DC No Aqualux Cable (1M Std)
AQL-135-SC-X00430DCQ
Satin Chrome 4W 3000K / 300mA DC 12~24V AC / 24V DC No AqualuxPLUS QuickConnect (1M)
AQL-135-SC-D00430DCS
Satin Chrome 4W 3000K / 300mA DC 24VAC Triac Dimmable Yes, TRIAC Primary Side Aqualux Cable (1M Std)
AQL-135-SC-D00430DCQ
Satin Chrome 4W 3000K / 300mA DC 24VAC Triac Dimmable Yes, TRIAC Primary Side AqualuxPLUS QuickConnect (1M)
AQL-135-BK-X00430DCS
Matt Black 4W 3000K / 300mA DC 12~24V AC / 24V DC No Aqualux Cable (1M Std)
AQL-135-BK-X00430DCQ
Matt Black 4W 3000K / 300mA DC 12~24V AC / 24V DC No AqualuxPLUS QuickConnect (1M)
AQL-135-BK-D00430DCS
Matt Black 4W 3000K / 300mA DC 24VAC Triac Dimmable Yes, TRIAC Primary Side Aqualux Cable (1M Std)
AQL-135-BK-D00430DCQ
Matt Black 4W 3000K / 300mA DC 24VAC Triac Dimmable Yes, TRIAC Primary Side AqualuxPLUS QuickConnect (1M)

Aqualux is introducing an updated product code structure throughout 2020. Quotes, invoices and other documents may reference the previous product code structure until we have completed this update.
