LumenaPro

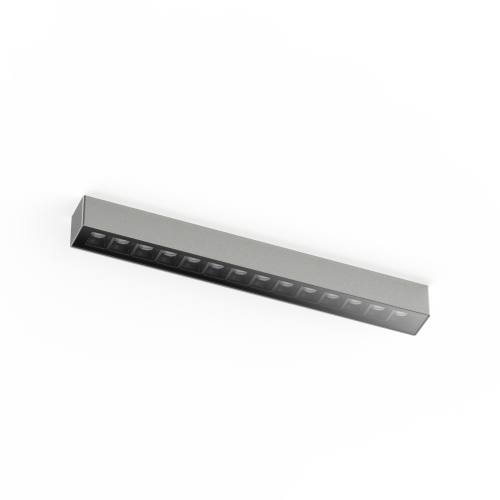

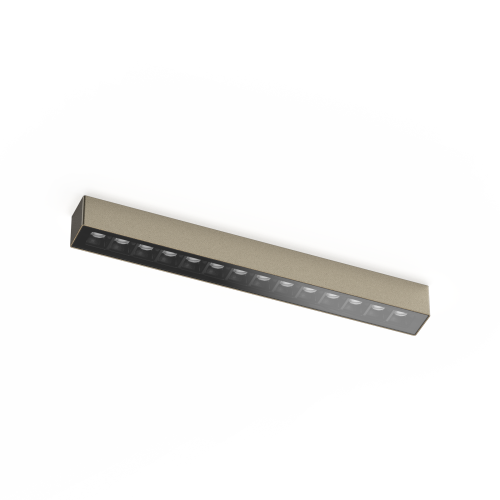

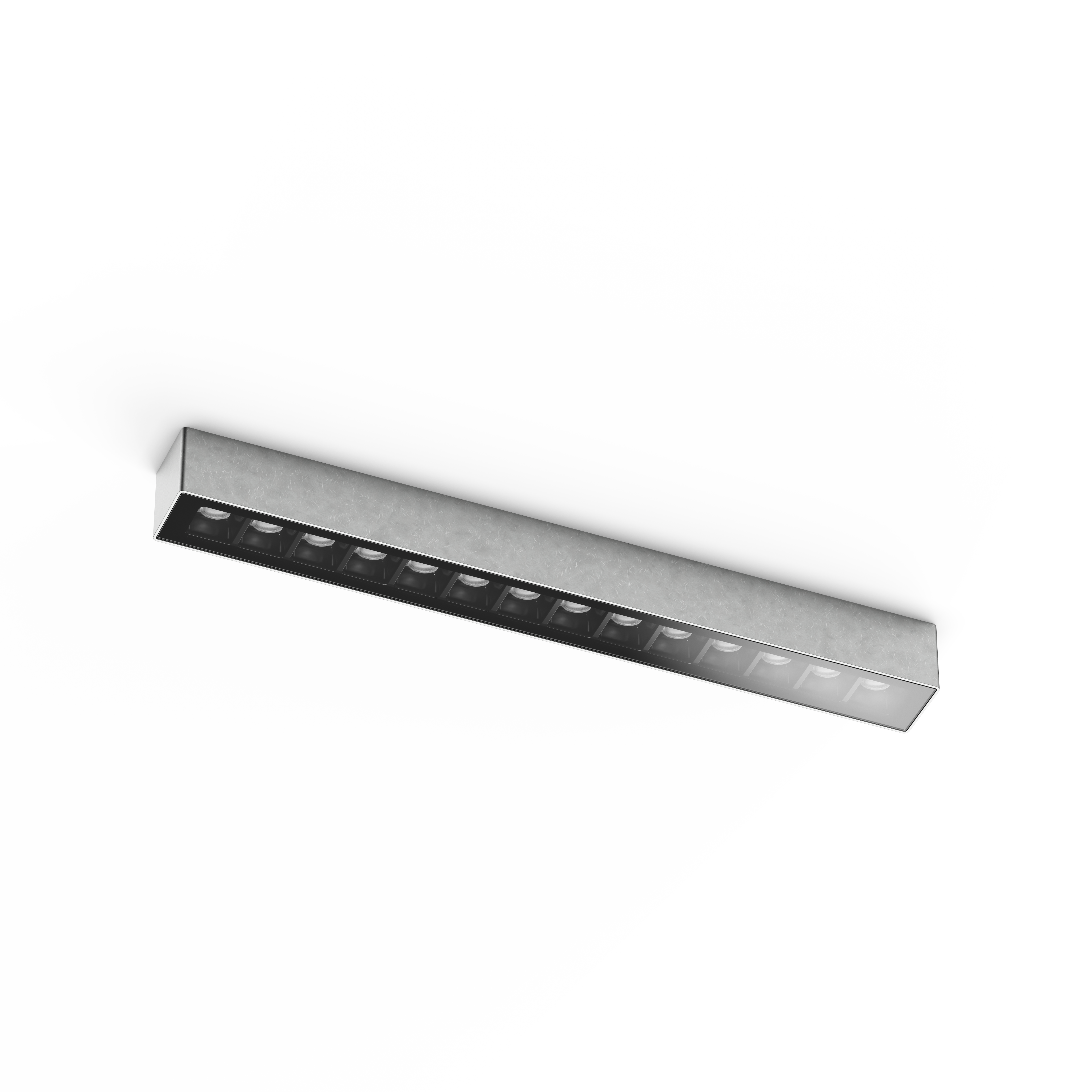

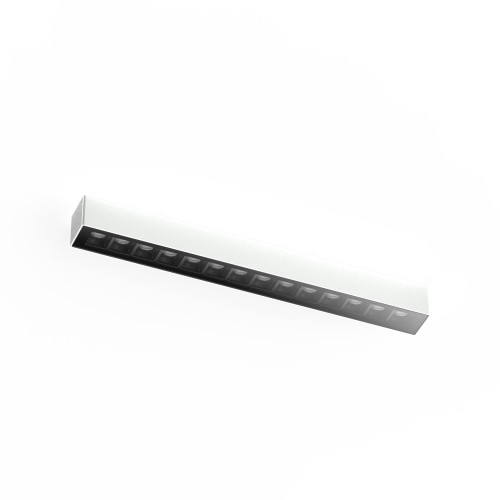

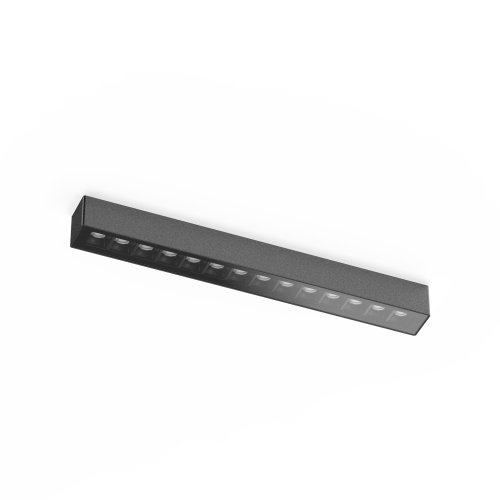

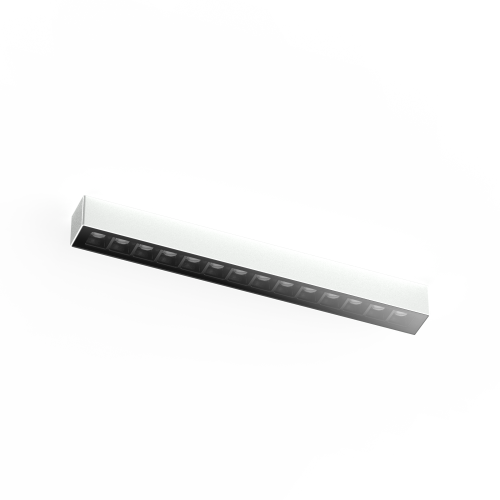

AQL-970
Slimline linear surface light
Introduction
The AQL-970 is a minimalist, slimline linear downlight with an innovative magnetic mounting system for discrete, tool-less installation. Featuring low-glare optics and an IP65 weather rating, the AQL-970 is suitable for a wide range of applications.
Specification
AQL-970
LumenaPro
CNC Machined Aluminium
900mm Aqualux 2-Core Silicone / PTFE Cable
7 Year Aqualux Warranty
IP65
Available September 2023
Configure order code
AQL-970
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQL-970 - has 8 variations
Product Code
Downloads
Body
Rated Power
Light Source
Optical
Control Gear
Dimming
Cable
Downloads
AQL-970-A2-E01027U4S
A2 - Black
Aluminium 6000 Series
10W
1000lm /
2700K
U4
24V DC 2-Wire
2-Wire PWM Power
1m Aqualux Cable
AQL-970-A2-E01027U6S
A2 - Black
Aluminium 6000 Series
10W
1000lm /
2700K
U6
24V DC 2-Wire
2-Wire PWM Power
1m Aqualux Cable
AQL-970-A3-E01027U4S
A3 - Bronze
Aluminium 6000 Series
10W
1000lm /
2700K
U4
24V DC 2-Wire
2-Wire PWM Power
1m Aqualux Cable
AQL-970-A3-E01027U6S
A3 - Bronze
Aluminium 6000 Series
10W
1000lm /
2700K
U6
24V DC 2-Wire
2-Wire PWM Power
1m Aqualux Cable
AQL-970-A4-E01027U4S
A4 - Basalt
Aluminium 6000 Series
10W
1000lm /
2700K
U4
24V DC 2-Wire
2-Wire PWM Power
1m Aqualux Cable
AQL-970-A4-E01027U6S
A4 - Basalt
Aluminium 6000 Series
10W
1000lm /
2700K
U6
24V DC 2-Wire
2-Wire PWM Power
1m Aqualux Cable
AQL-970-A8-E01027U4S
A8 - White
Aluminium 6000 Series
10W
1000lm /
2700K
U4
24V DC 2-Wire
2-Wire PWM Power
1m Aqualux Cable
AQL-970-A8-E01027U6S
A8 - White
Aluminium 6000 Series
10W
1000lm /
2700K
U6
24V DC 2-Wire
2-Wire PWM Power
1m Aqualux Cable
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQL-970 - has 8 variations
| Product Code | Downloads | Body | Rated Power | Light Source | Optical | Control Gear | Dimming | Cable | Downloads | |
|---|---|---|---|---|---|---|---|---|---|---|
| AQL-970-A2-E01027U4S | A2 - Black Aluminium 6000 Series |
10W | 1000lm / 2700K | U4 | 24V DC 2-Wire | 2-Wire PWM Power | 1m Aqualux Cable | |||
| AQL-970-A2-E01027U6S | A2 - Black Aluminium 6000 Series |
10W | 1000lm / 2700K | U6 | 24V DC 2-Wire | 2-Wire PWM Power | 1m Aqualux Cable | |||
| AQL-970-A3-E01027U4S | A3 - Bronze Aluminium 6000 Series |
10W | 1000lm / 2700K | U4 | 24V DC 2-Wire | 2-Wire PWM Power | 1m Aqualux Cable | |||
| AQL-970-A3-E01027U6S | A3 - Bronze Aluminium 6000 Series |
10W | 1000lm / 2700K | U6 | 24V DC 2-Wire | 2-Wire PWM Power | 1m Aqualux Cable | |||
| AQL-970-A4-E01027U4S | A4 - Basalt Aluminium 6000 Series |
10W | 1000lm / 2700K | U4 | 24V DC 2-Wire | 2-Wire PWM Power | 1m Aqualux Cable | |||
| AQL-970-A4-E01027U6S | A4 - Basalt Aluminium 6000 Series |
10W | 1000lm / 2700K | U6 | 24V DC 2-Wire | 2-Wire PWM Power | 1m Aqualux Cable | |||
| AQL-970-A8-E01027U4S | A8 - White Aluminium 6000 Series |
10W | 1000lm / 2700K | U4 | 24V DC 2-Wire | 2-Wire PWM Power | 1m Aqualux Cable | |||
| AQL-970-A8-E01027U6S | A8 - White Aluminium 6000 Series |
10W | 1000lm / 2700K | U6 | 24V DC 2-Wire | 2-Wire PWM Power | 1m Aqualux Cable |
