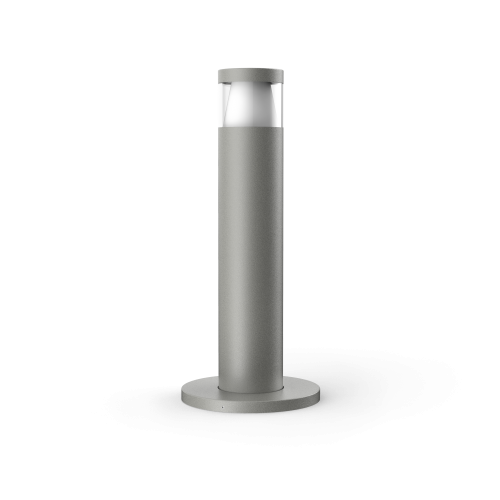

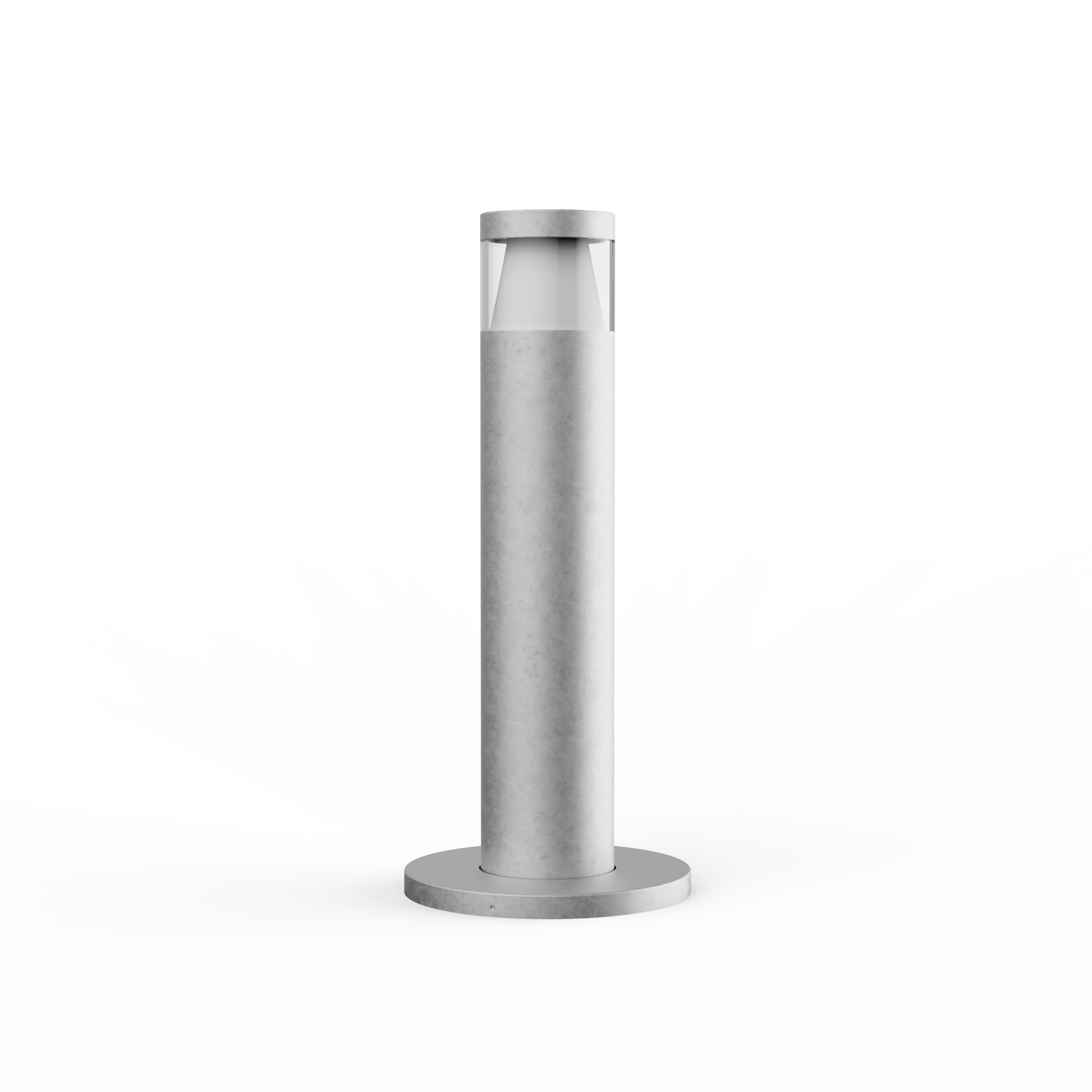

Lumena
AQL-131
Surface Mount Bollard
Introduction
The AQL-131 is a 300mm Mini-Bollard perfect for pathway & entrance way illumination.
Specification
AQL-131
Lumena
CNC Machined Aluminium
1M Aqualux PLUS QuickConnect
7 Year Aqualux Warranty
IP65
Configure order code
AQL-131
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQL-131 - has 4 variations
Product Code
Downloads
Body
Rated Power
Light Source
Optical
Control Gear
Dimming
Cable
Downloads
AQL-131-A1-X00430DCQ
Silver Reign
Aluminium 6000 Series
4W
300lm /
3000K / 300mA
DC
12~24V AC / 24V DC
3-Wire 10V PWM (DALI)
AqualuxPLUS QuickConnect
AQL-131-A2-X00430DCQ

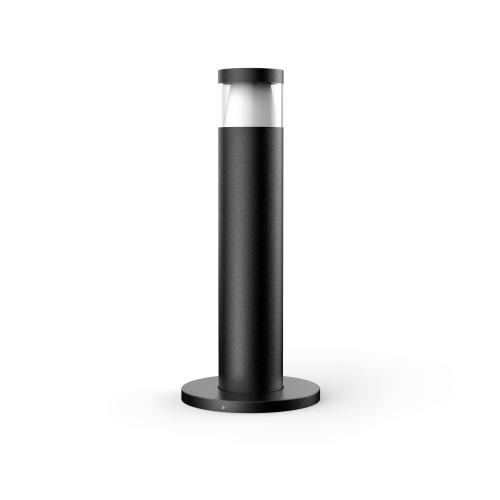

Black Ace
Aluminium 6000 Series
4W
300lm /
3000K / 300mA
DC
12~24V AC / 24V DC
3-Wire 10V PWM (DALI)
AqualuxPLUS QuickConnect
AQL-131-A3-X00430DCQ

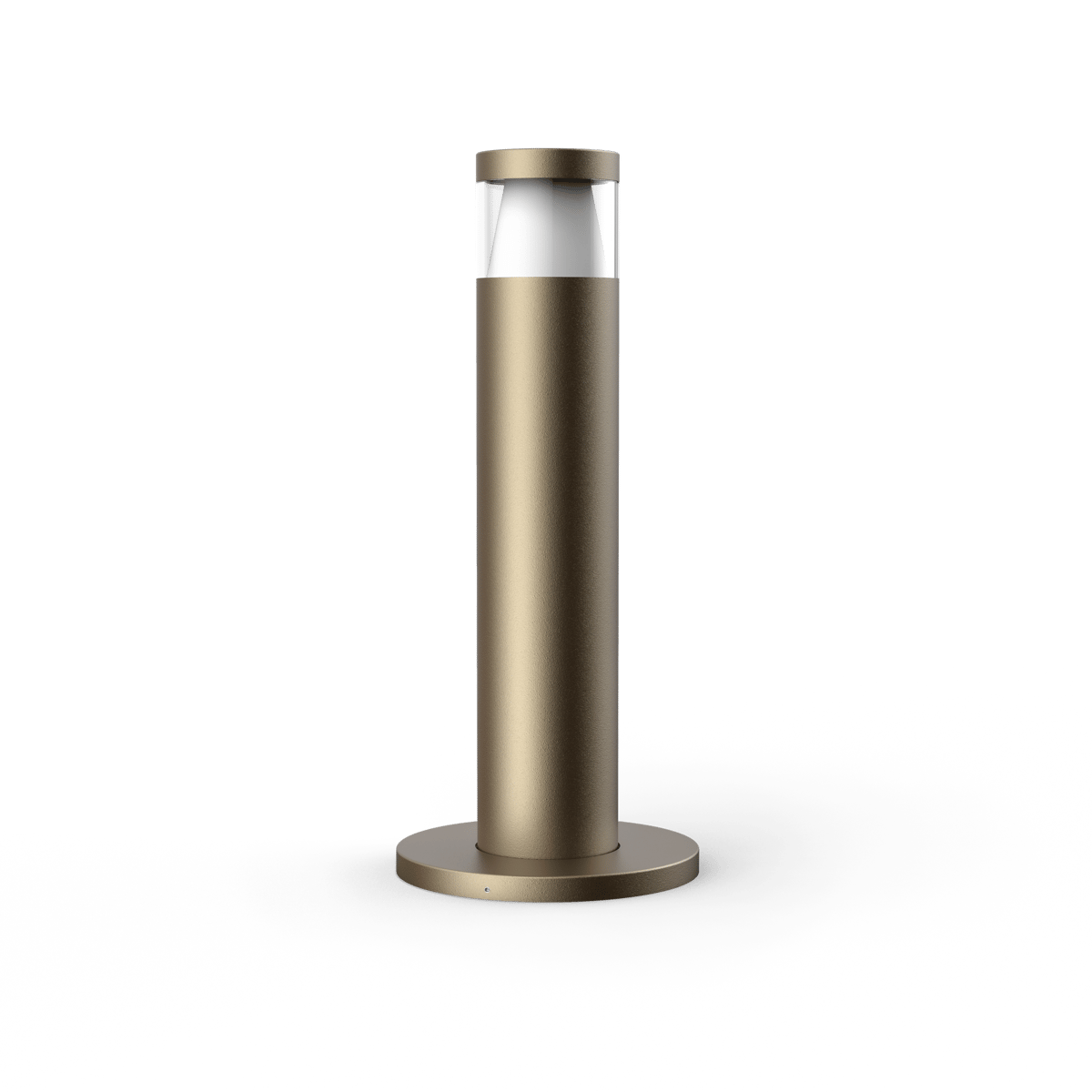

Medium Bronze
Aluminium 6000 Series
4W
300lm /
3000K / 300mA
DC
12~24V AC / 24V DC
3-Wire 10V PWM (DALI)
AqualuxPLUS QuickConnect
AQL-131-A4-X00430DCQ
Venerable Silver
Aluminium 6000 Series
4W
300lm /
3000K / 300mA
DC
12~24V AC / 24V DC
3-Wire 10V PWM (DALI)
AqualuxPLUS QuickConnect
Aqualux is introducing an updated product code structure throughout 2021.
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQL-131 - has 4 variations
| Product Code | Downloads | Body | Rated Power | Light Source | Optical | Control Gear | Dimming | Cable | Downloads | |
|---|---|---|---|---|---|---|---|---|---|---|
| AQL-131-A1-X00430DCQ | Silver Reign Aluminium 6000 Series |
4W | 300lm / 3000K / 300mA | DC | 12~24V AC / 24V DC | 3-Wire 10V PWM (DALI) | AqualuxPLUS QuickConnect | |||
| AQL-131-A2-X00430DCQ | Black Ace Aluminium 6000 Series |
4W | 300lm / 3000K / 300mA | DC | 12~24V AC / 24V DC | 3-Wire 10V PWM (DALI) | AqualuxPLUS QuickConnect | |||
| AQL-131-A3-X00430DCQ | Medium Bronze Aluminium 6000 Series |
4W | 300lm / 3000K / 300mA | DC | 12~24V AC / 24V DC | 3-Wire 10V PWM (DALI) | AqualuxPLUS QuickConnect | |||
| AQL-131-A4-X00430DCQ | Venerable Silver Aluminium 6000 Series |
4W | 300lm / 3000K / 300mA | DC | 12~24V AC / 24V DC | 3-Wire 10V PWM (DALI) | AqualuxPLUS QuickConnect |
Aqualux is introducing an updated product code structure throughout 2021.
