Lumena

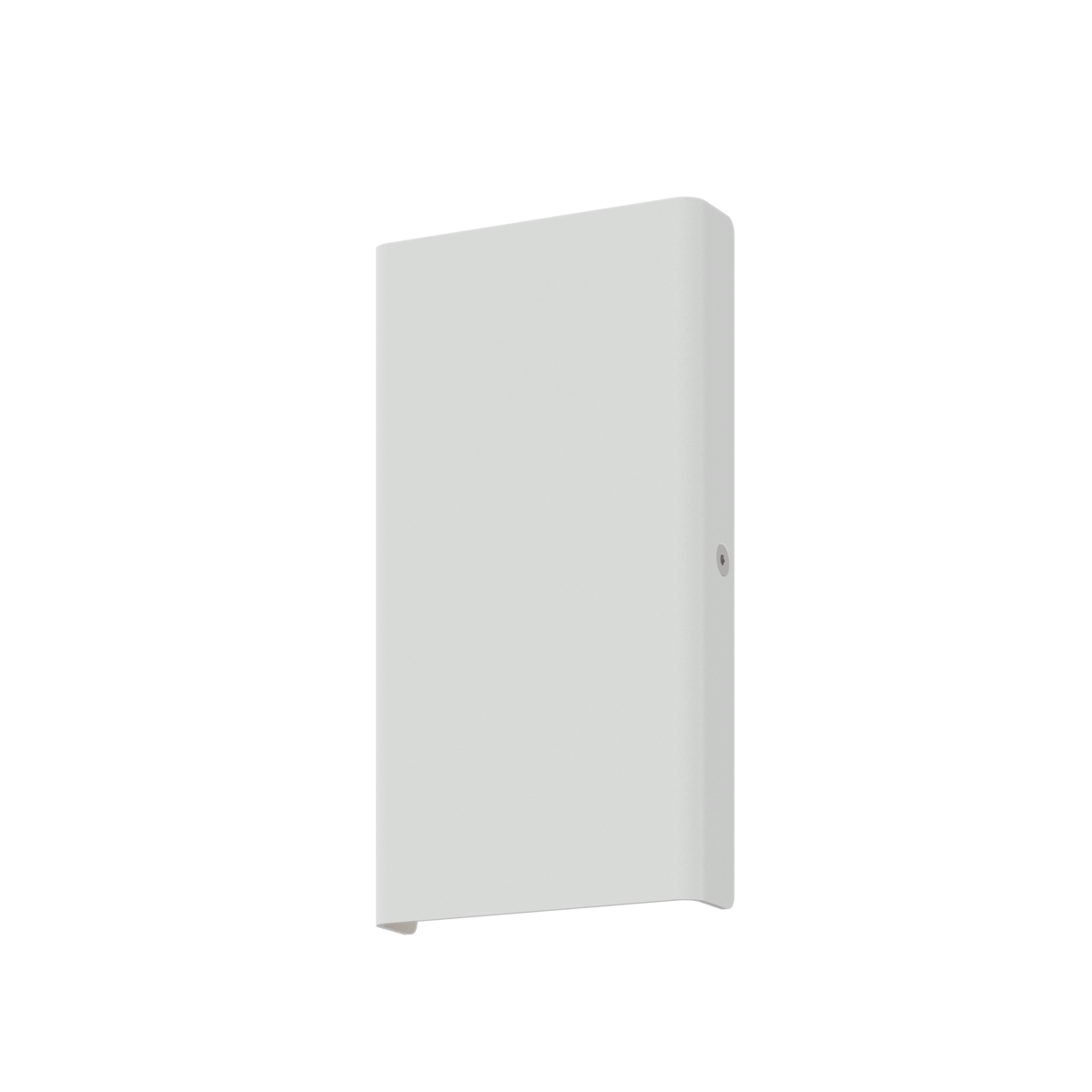

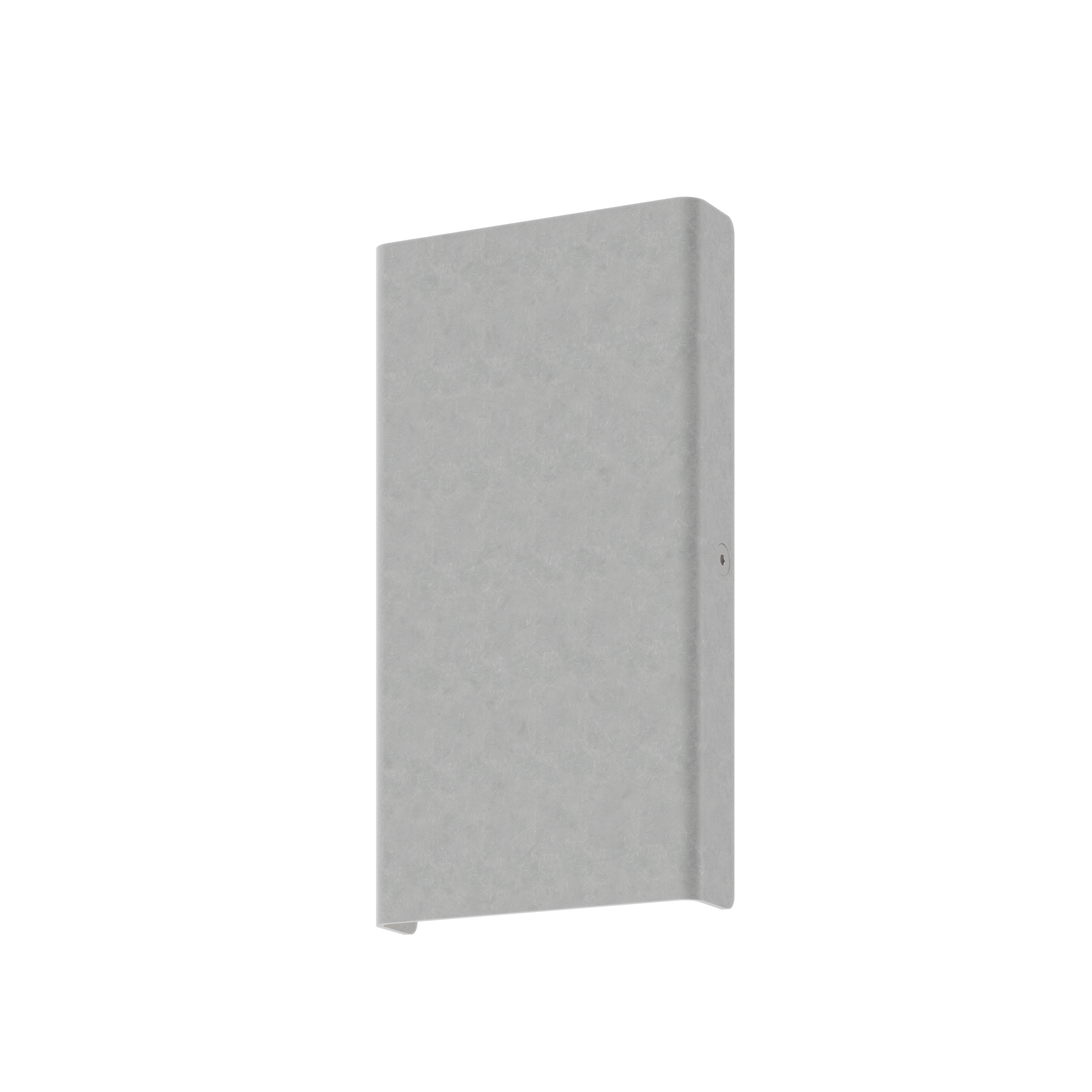

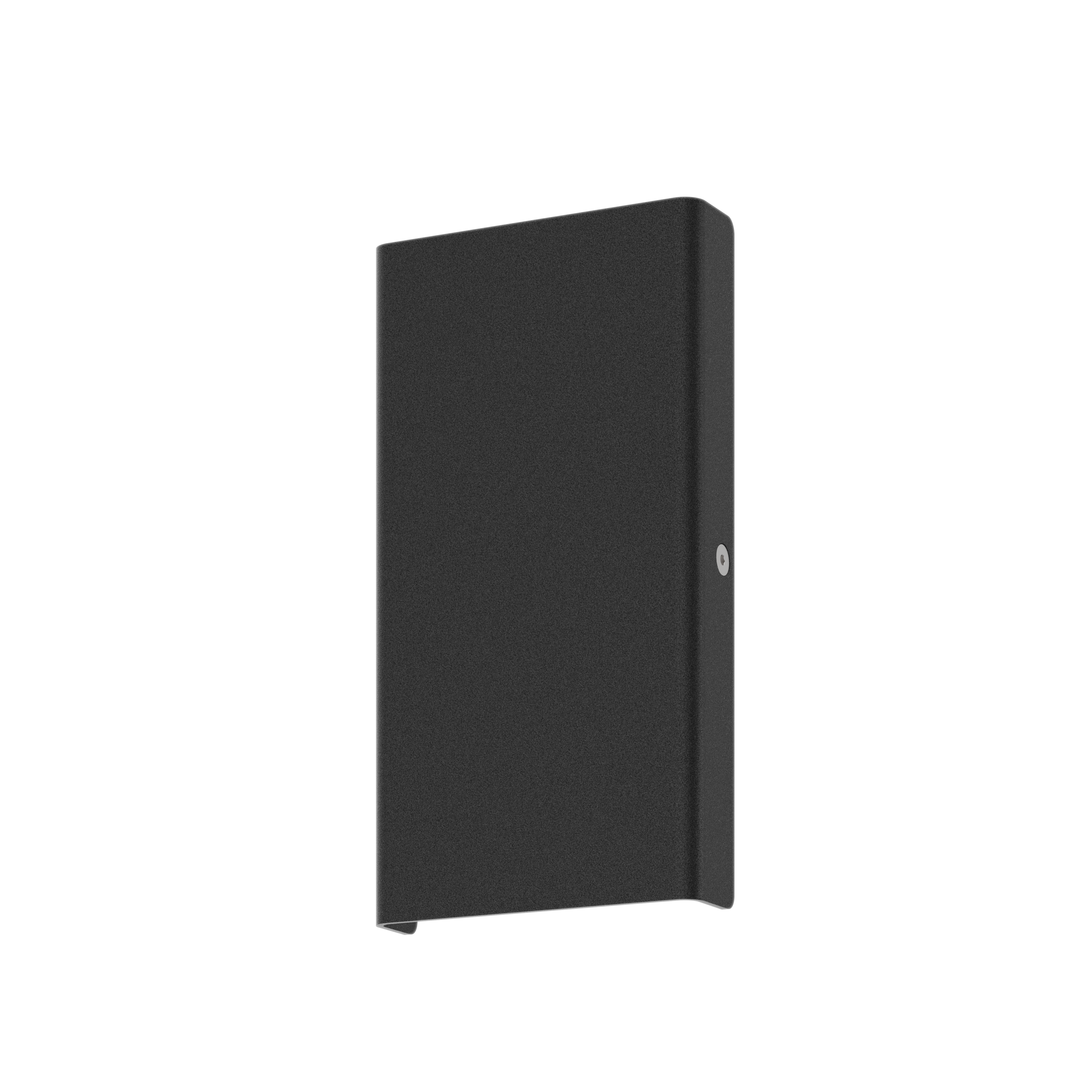

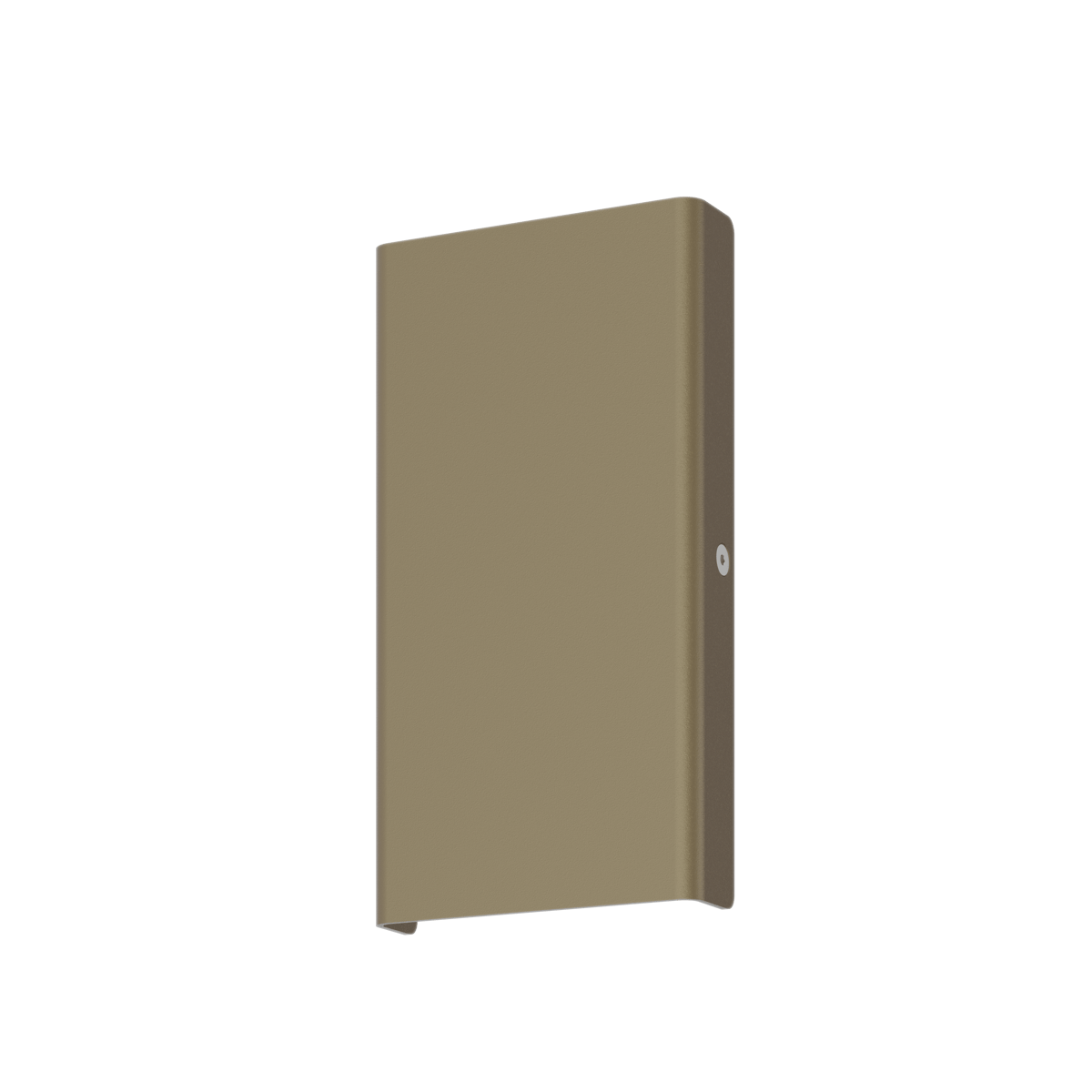

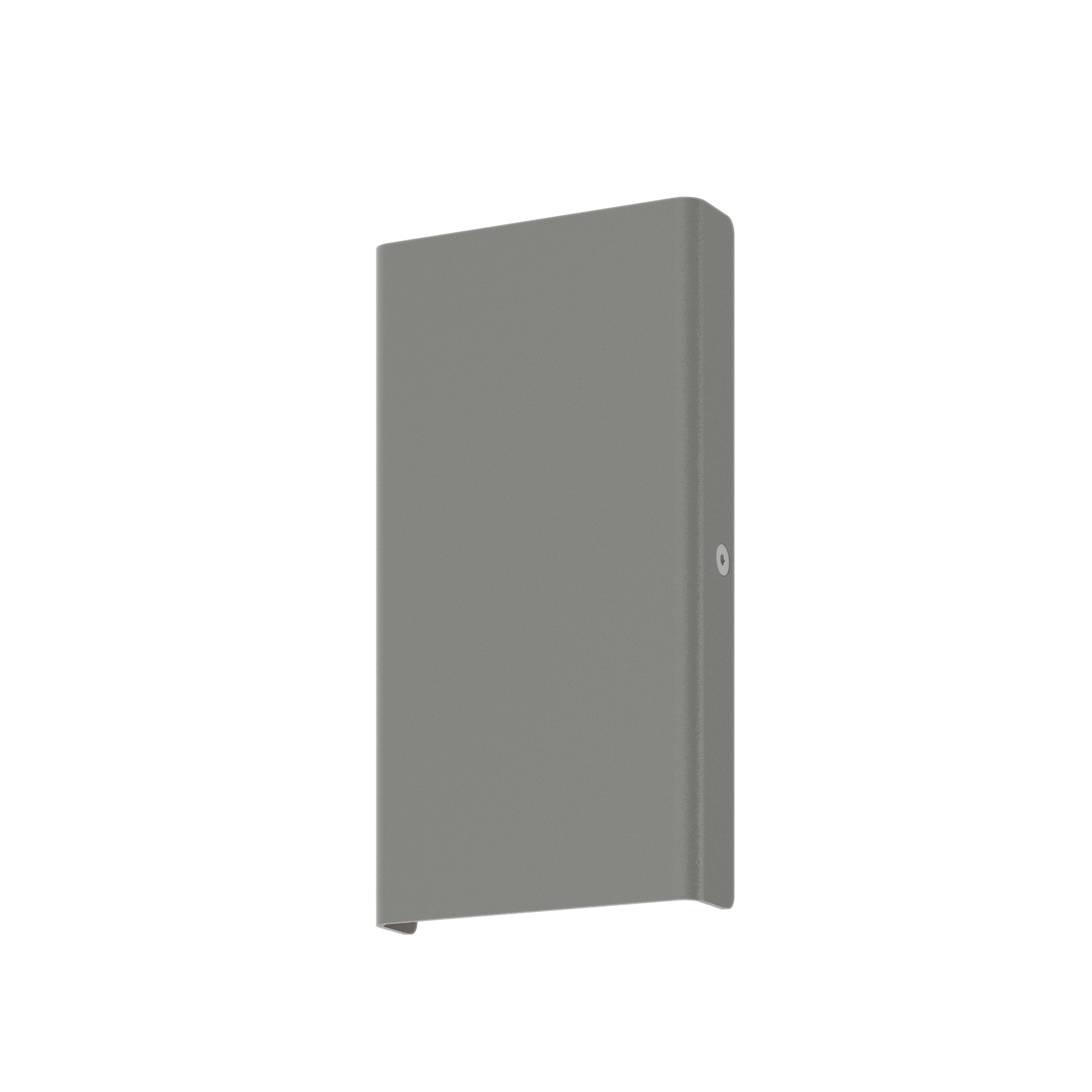

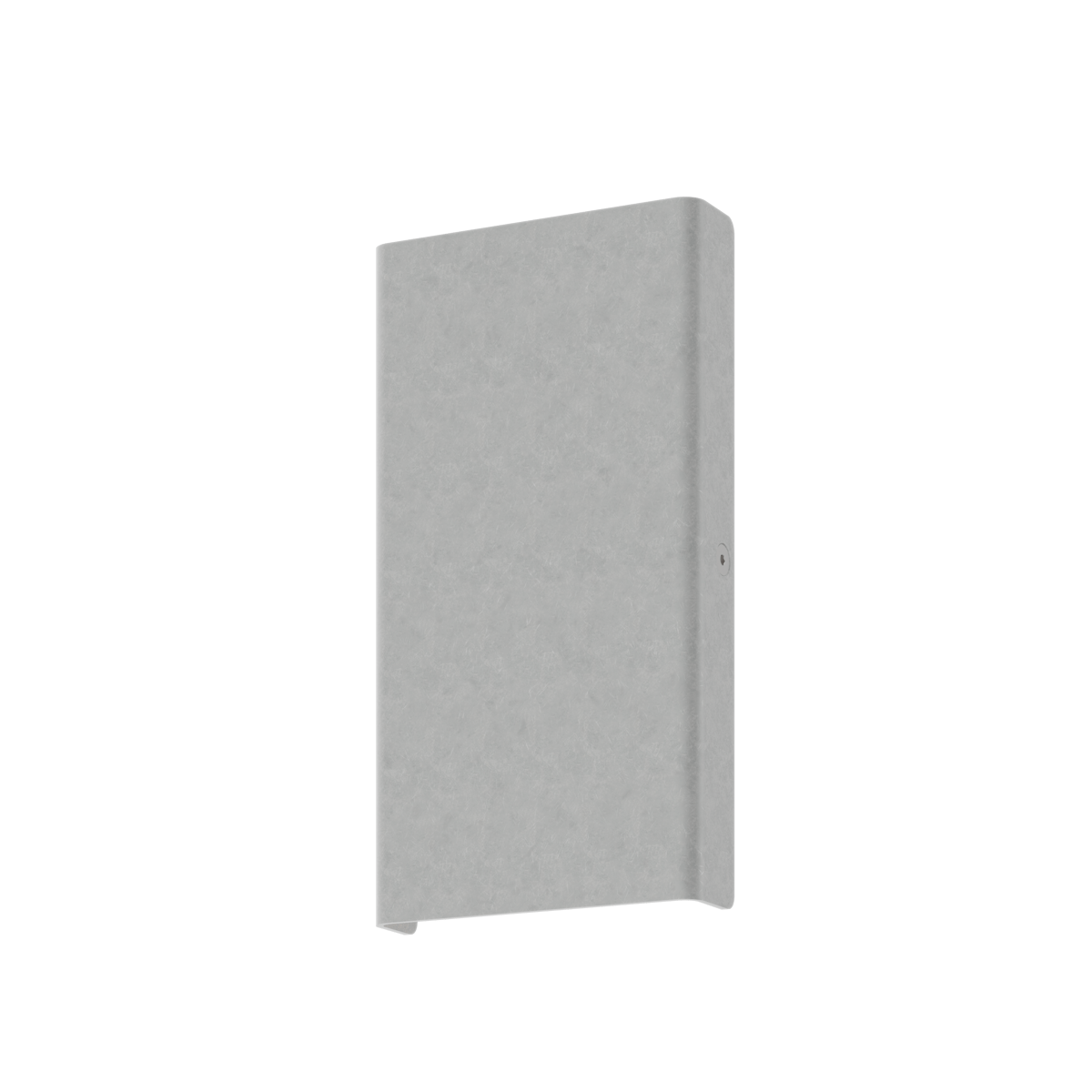

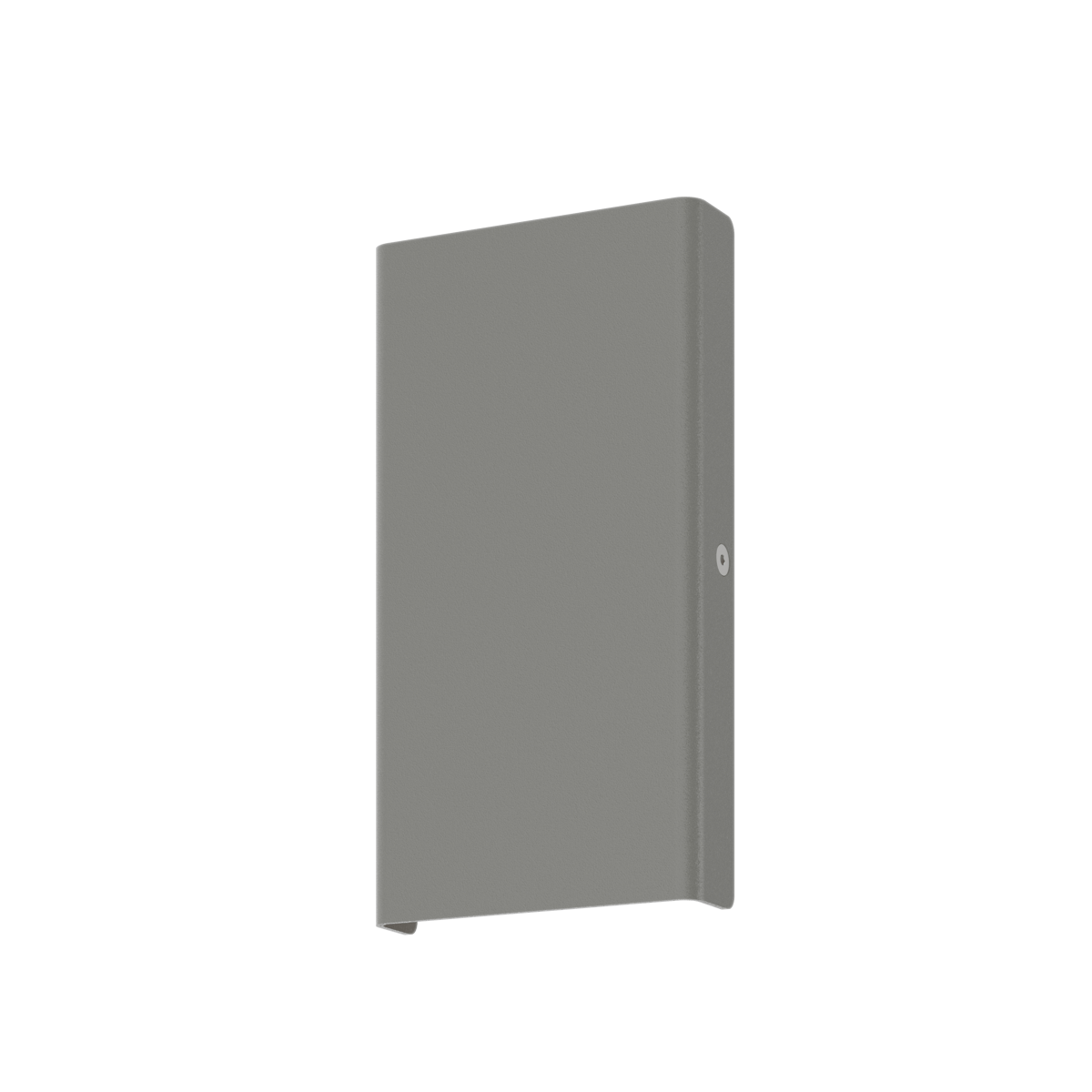

    AQL-519

    Up-down Grazing Step Light

    AQL-519
    AQL-519
    AQL-519
    AQL-519
    AQL-519

    Introduction

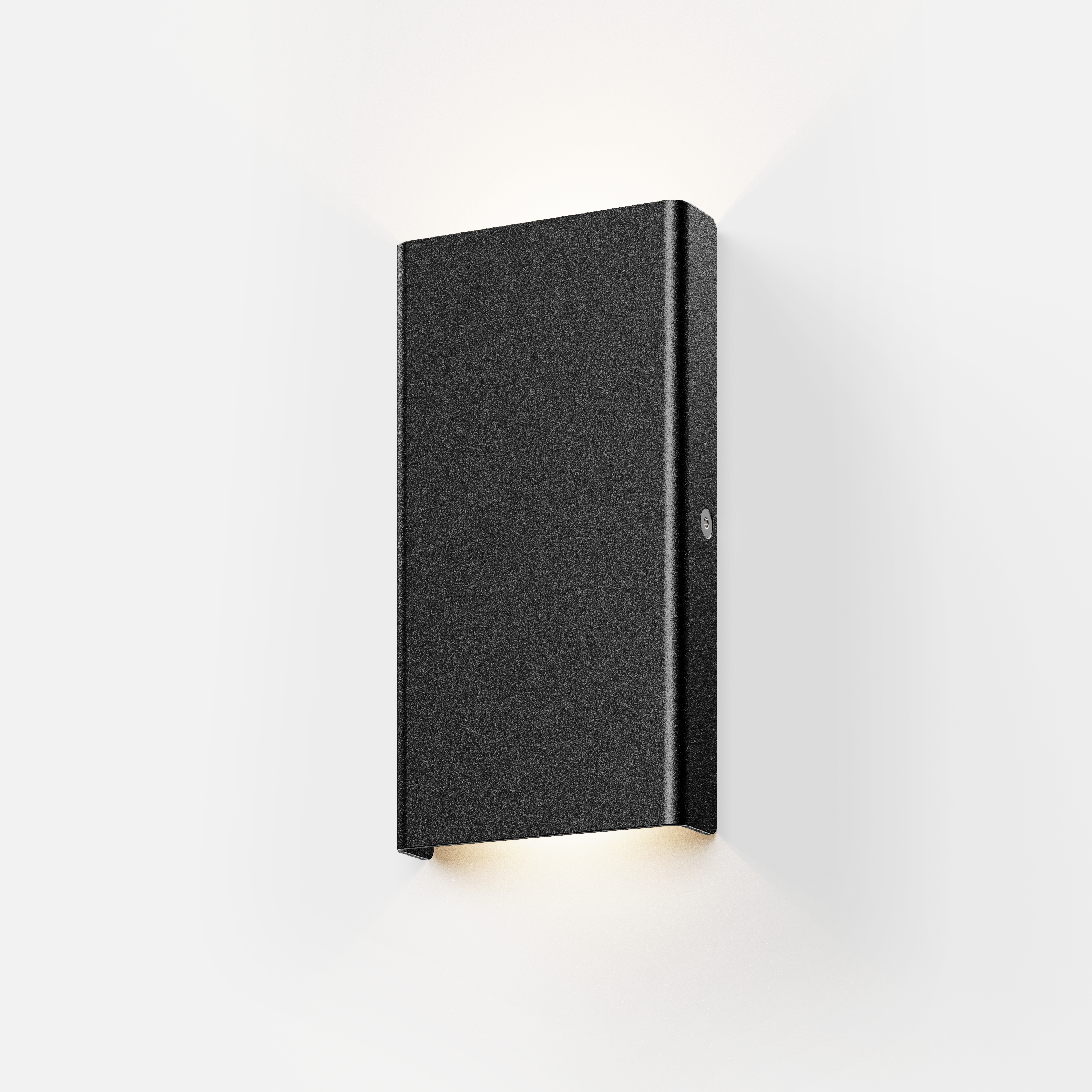

    The AQL-519 is an up/down wall grazing light with a minimal design.

    Specification

    AQL-519

    Lumena

    CNC Machined Aluminium

    900mm Aqualux 2-Core Silicone / PTFE Cable, 500mm Aqualux 2-Core Silicone / PTFE Cable

    7 Year Aqualux Warranty

    IP65

    2-wire 24VDC PWM dimming (same as LED strip)

    Options

    Body

    • A1 - Clear

      Aluminium 6000 Series

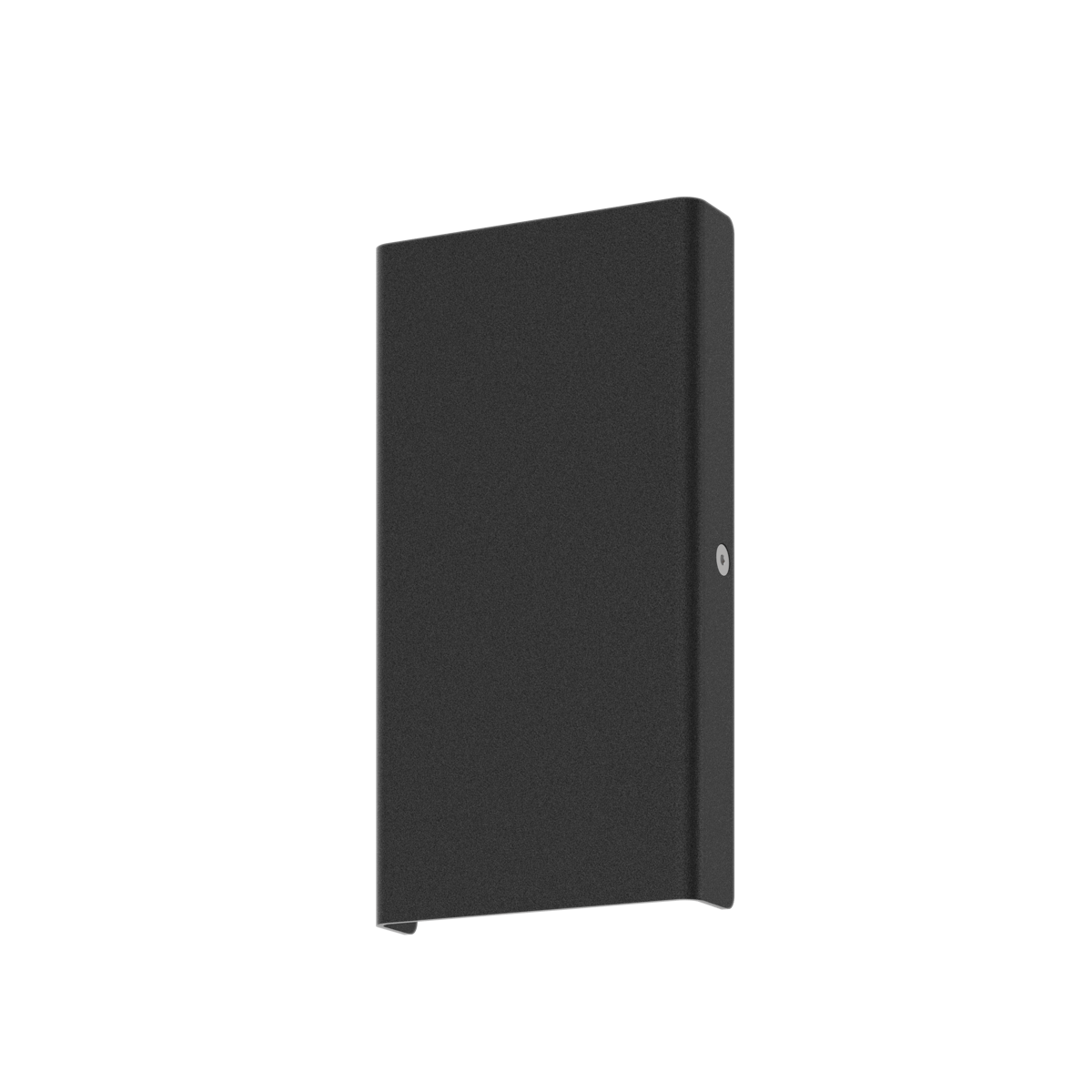

    • A2 - Black

      Aluminium 6000 Series

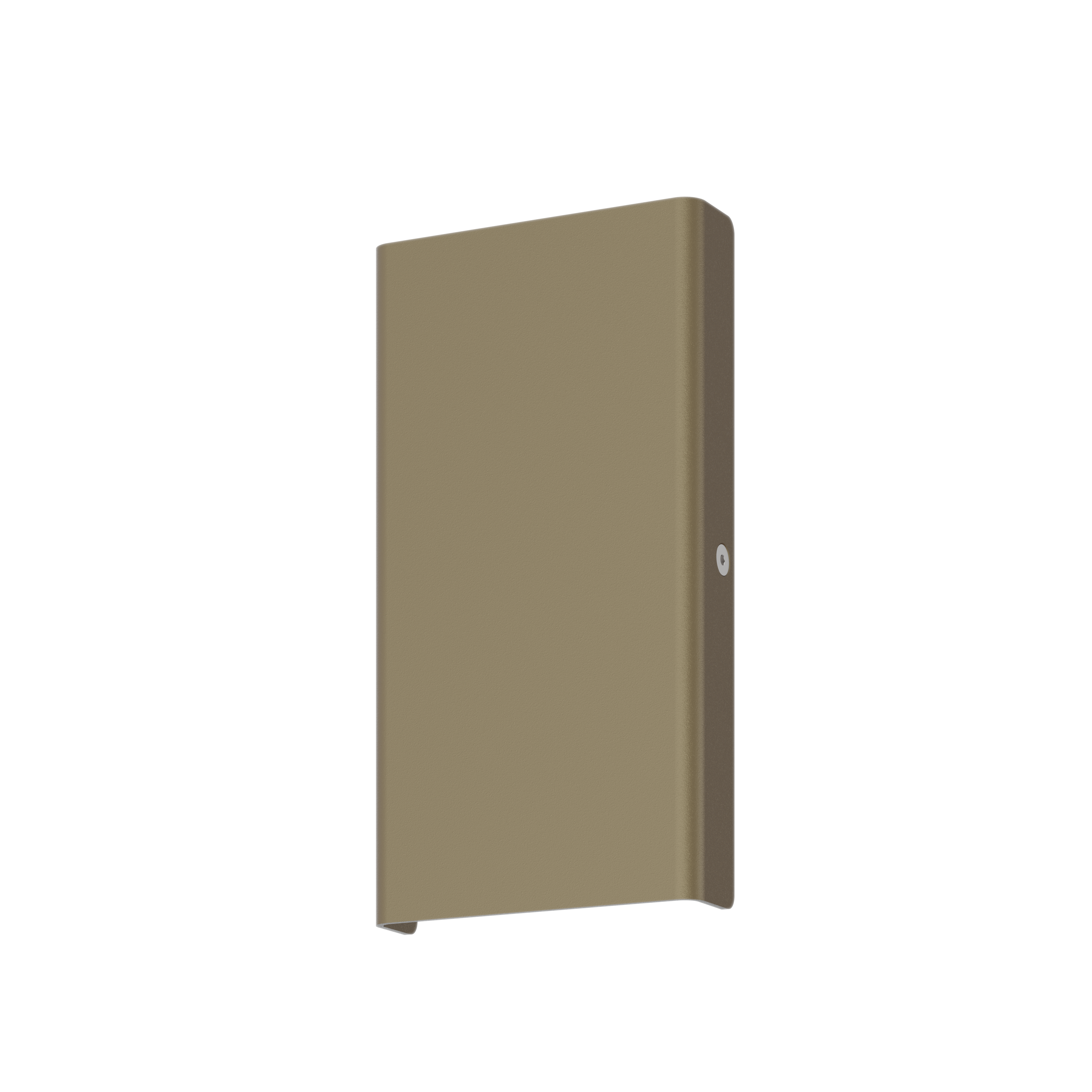

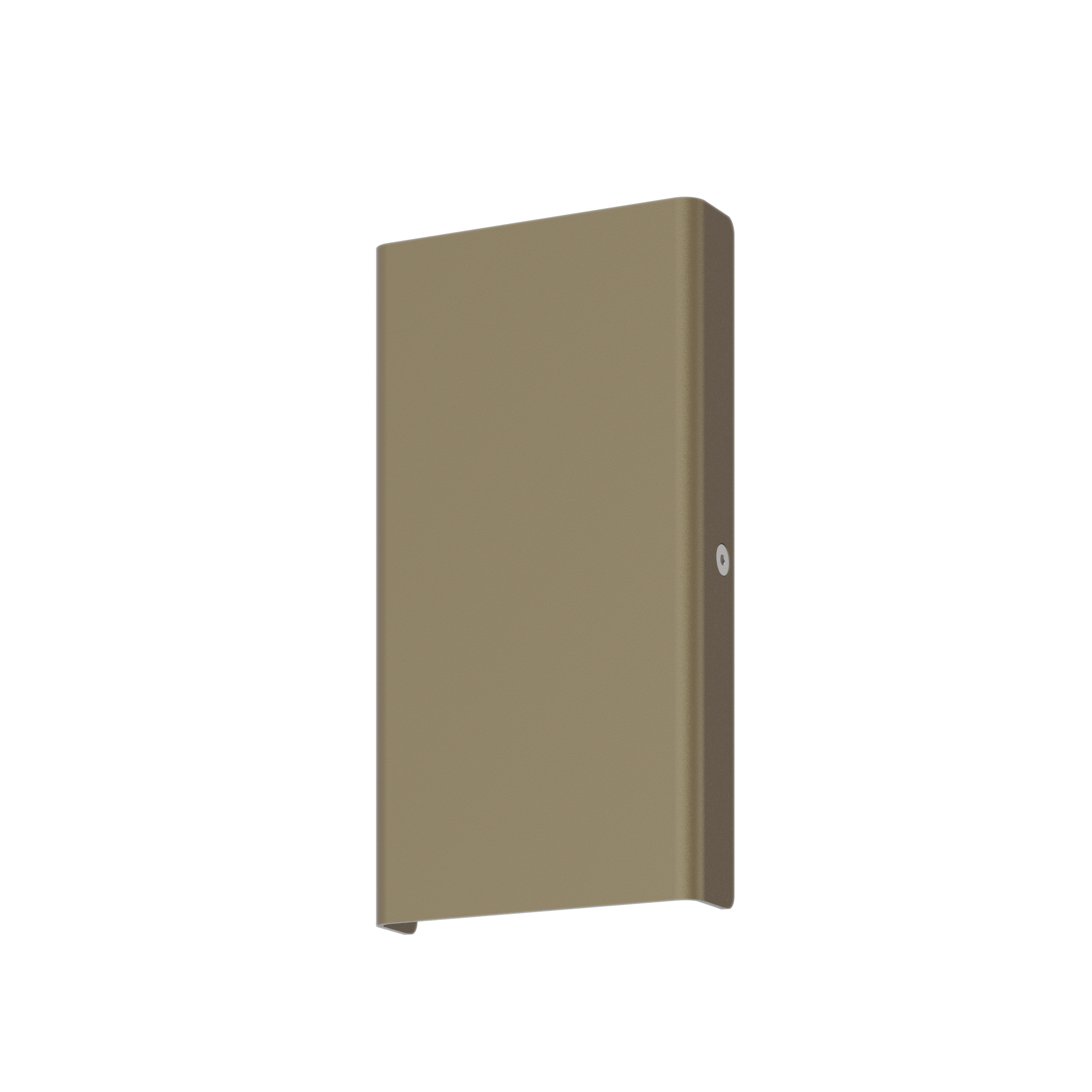

    • A3 - Bronze

      Aluminium 6000 Series

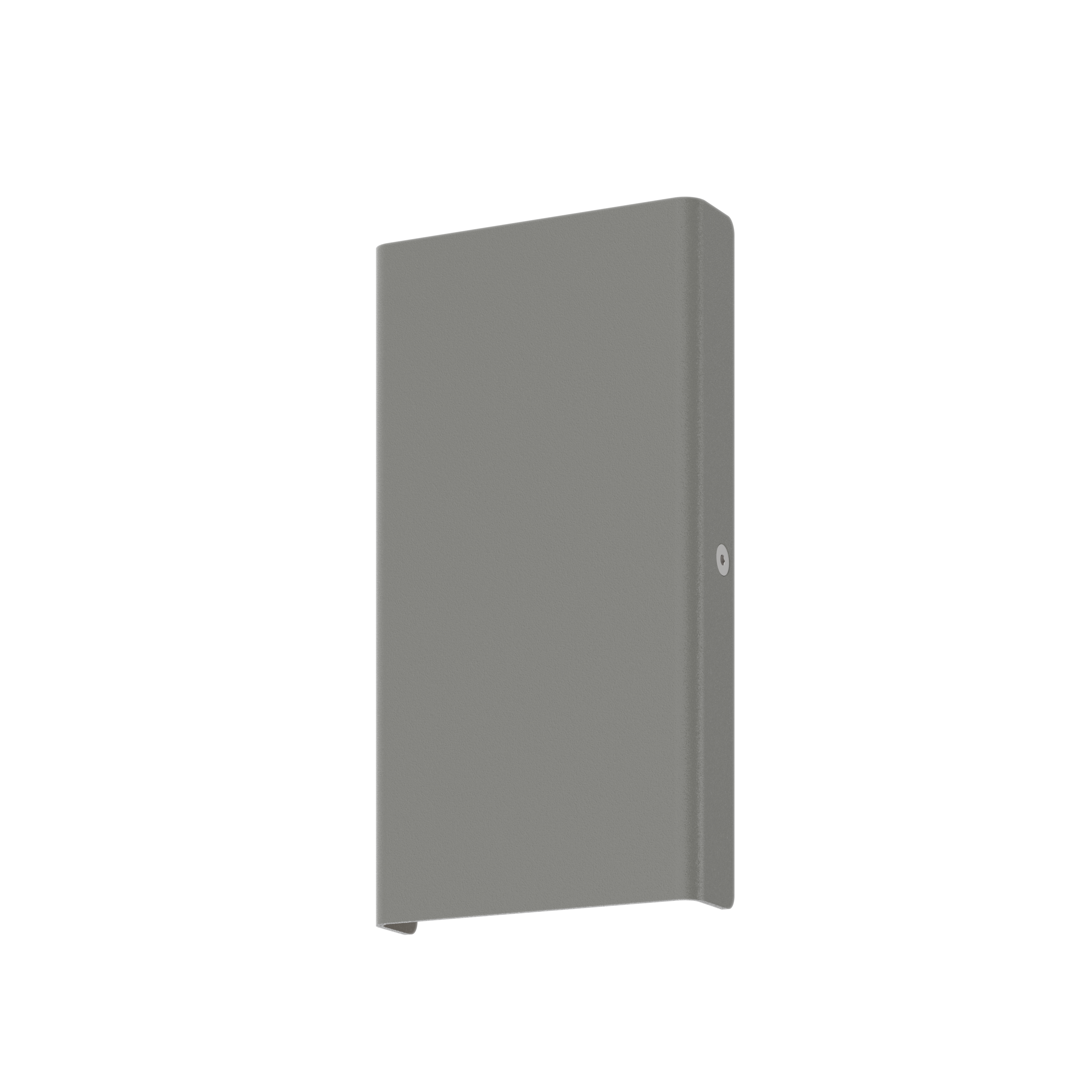

    • A4 - Basalt

      Aluminium 6000 Series

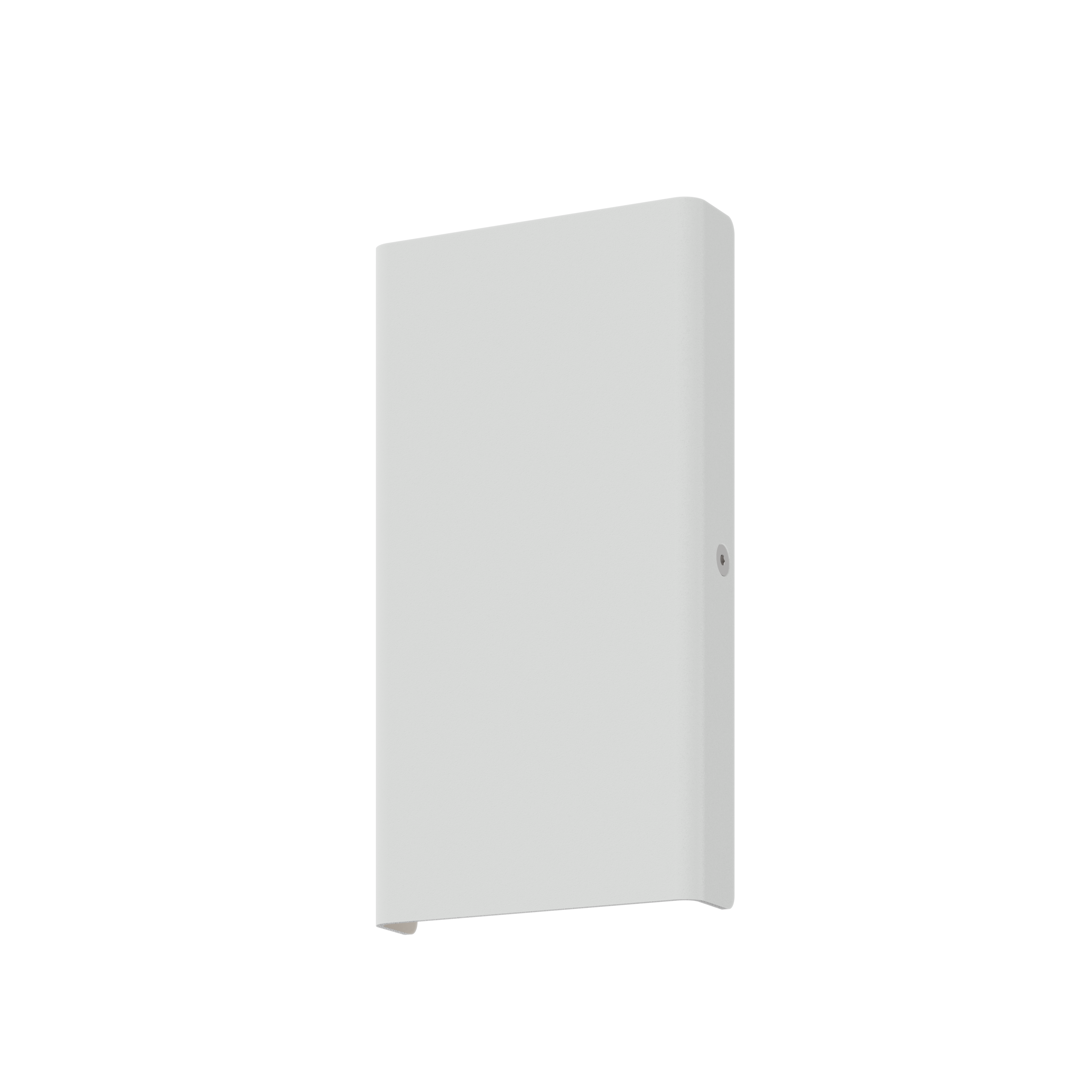

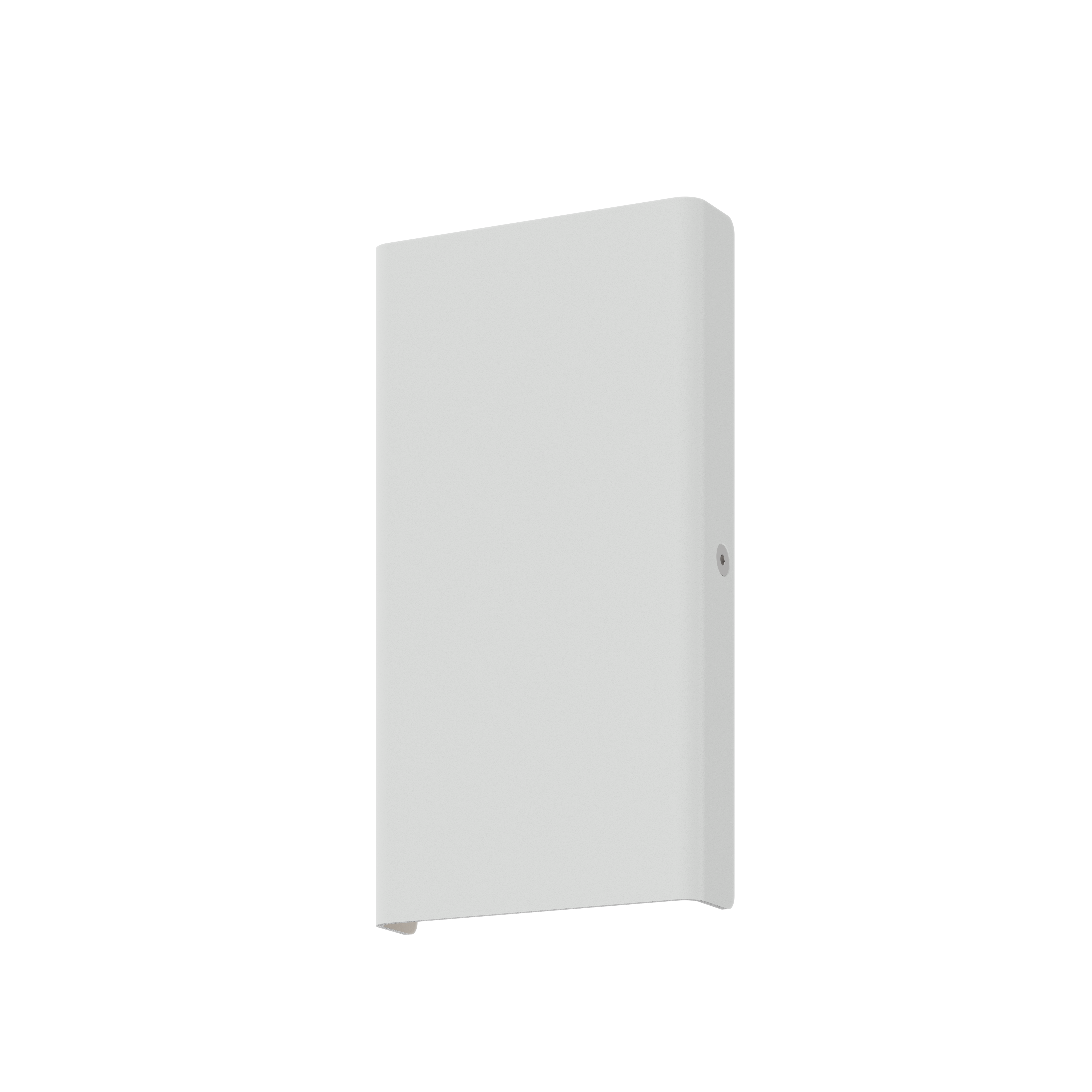

    • A8 - White

      Aluminium 6000 Series

    Control Gear

    • 24V DC 2-Wire

      Dimming: 2-Wire PWM Power

    Light Sources

    • 4W / 600lm

      2200K

    • 8W / 1180lm

      2200K

    • 4W / 660lm

      2700K

    • 8W / 1320lm

      2700K

    • 4W / 680lm

      3000K

    • 8W / 1360lm

      3000K

    • 4W / 720lm

      4000K

    • 8W / 1420lm

      4000K

    Optical

    • Diffuse (Frosted)

      DF

    Cable

    • S

      500mm 2-Core Standard Cable

    Configure order code

    AQL-519

    To configure your product/s, select from the options below.
    Multiple selections are possible to produce your downloadable datasheet/s.

    Clear Filter
    A1 - Clear Aluminium 6000 Series A2 - Black Aluminium 6000 Series A3 - Bronze Aluminium 6000 Series A4 - Basalt Aluminium 6000 Series A8 - White Aluminium 6000 Series
    24V DC 2-Wire
    4W / 600lm / 2200K 8W / 1180lm / 2200K 4W / 660lm / 2700K 8W / 1320lm / 2700K 4W / 680lm / 3000K 8W / 1360lm / 3000K 4W / 720lm / 4000K 8W / 1420lm / 4000K
    Diffuse (Frosted)
    500mm 2-Core Standard Cable

    AQL-519 - has 40 variations

    Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
    AQL-519-A4-E00440DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 720lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A3-E00830DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 1360lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A3-E00440DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 720lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A3-E00840DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 1420lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A4-E00422DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 600lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A4-E00427DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A4-E00430DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A4-E00822DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 1180lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A4-E00827DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 1320lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A4-E00830DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 1360lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A3-E00827DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 1320lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A4-E00840DFS
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 8W 1420lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A8-E00422DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 600lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A8-E00427DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A8-E00430DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A8-E00822DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 1180lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A8-E00827DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 1320lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A8-E00830DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 1360lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A8-E00440DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 720lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A8-E00840DFS
    PDF
    		A8 - White
    Aluminium 6000 Series    		 8W 1420lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A2-E00430DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A1-E00427DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A1-E00430DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A1-E00822DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 1180lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A1-E00827DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 1320lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A1-E00830DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 1360lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A1-E00440DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 4W 720lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A1-E00840DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 8W 1420lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A2-E00422DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 600lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A2-E00427DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A1-E00422DFS
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 4W 600lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A2-E00822DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 1180lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A2-E00827DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 1320lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A2-E00830DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 1360lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A2-E00440DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 720lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A2-E00840DFS
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 8W 1420lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A3-E00422DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 600lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A3-E00427DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 660lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A3-E00430DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 680lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
    AQL-519-A3-E00822DFS
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 8W 1180lm / 2200K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2-Core Standard Cable
    PDF
