Lumena

AQL-163

Grazing Light

Introduction

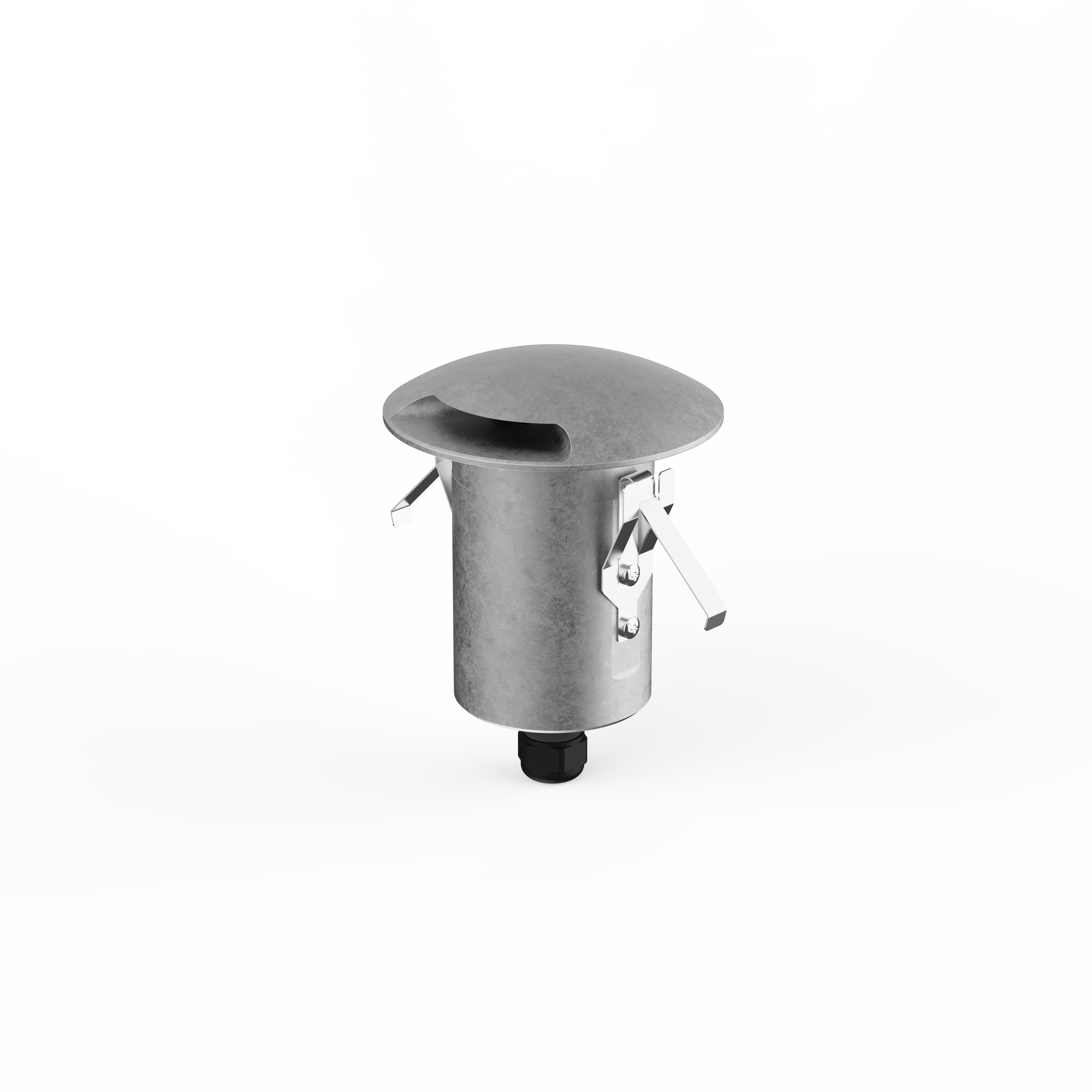

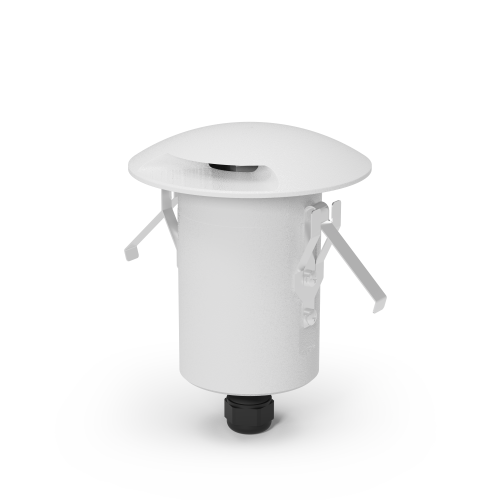

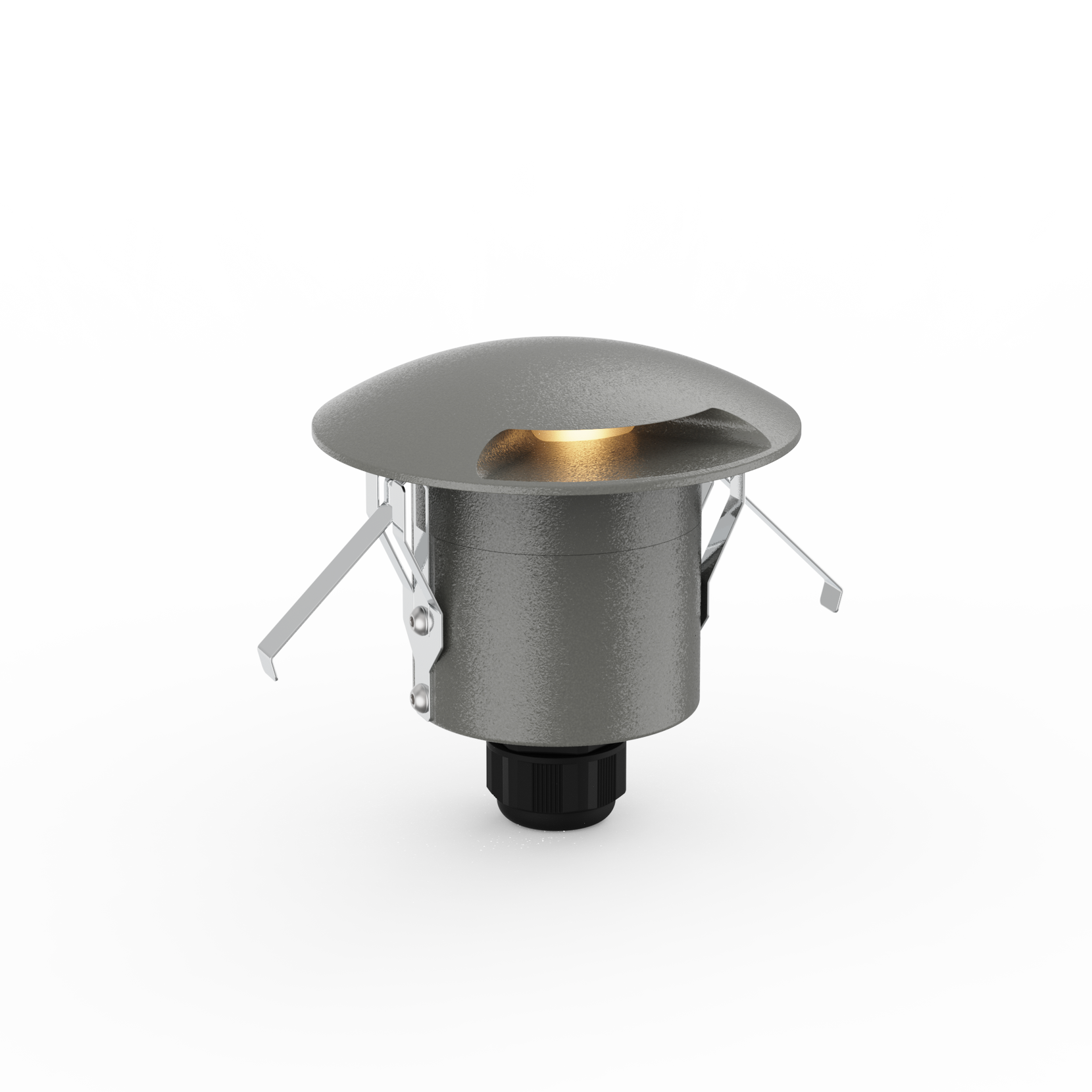

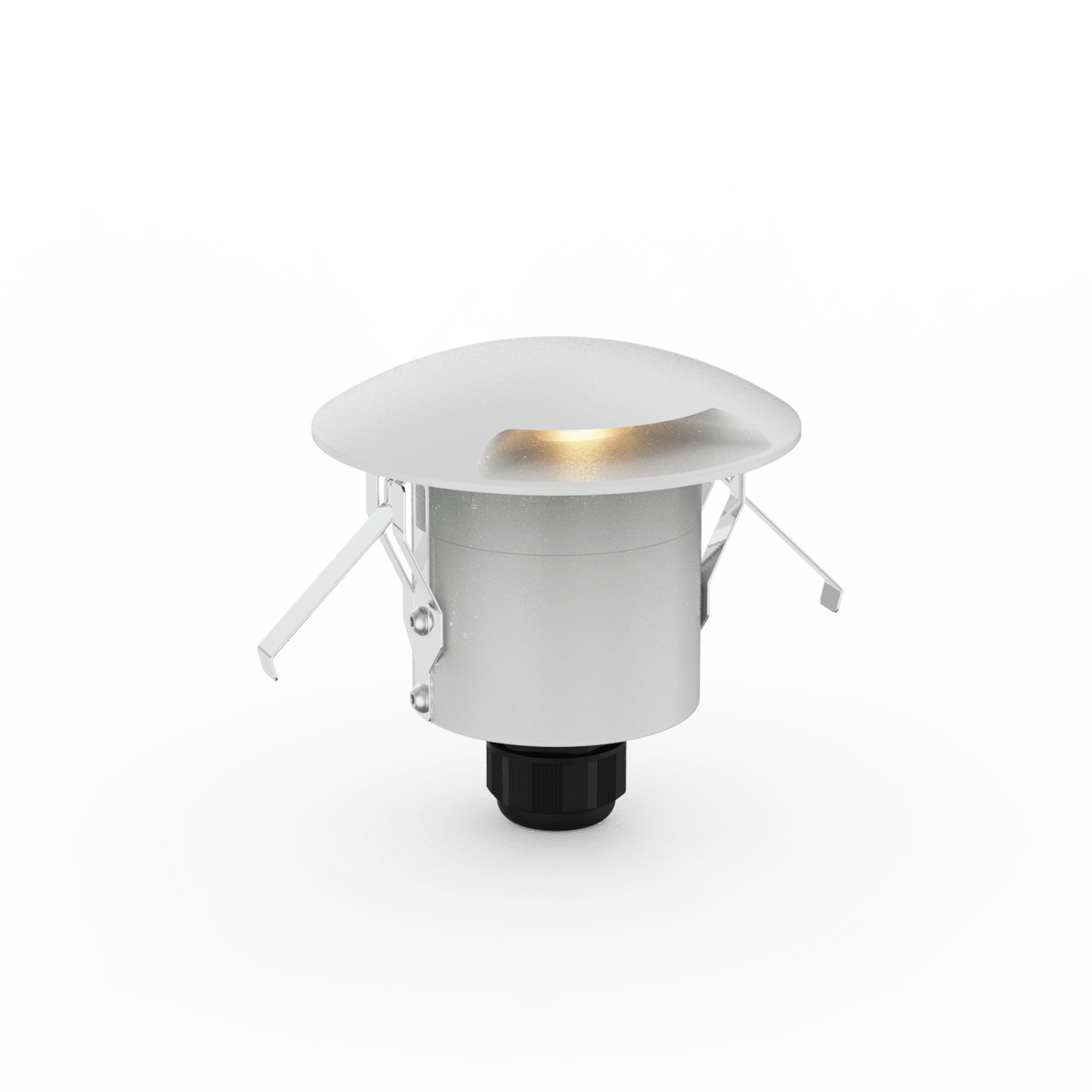

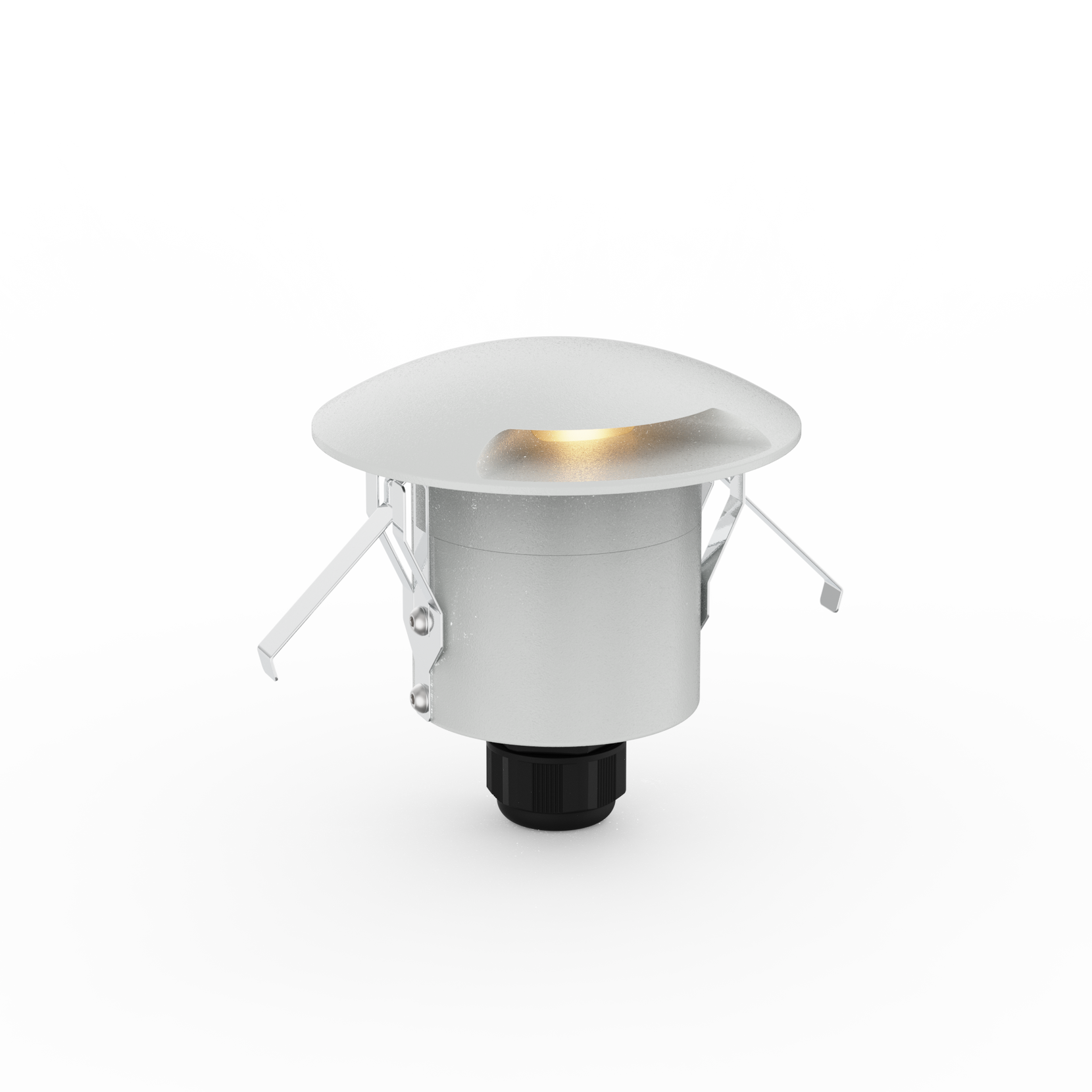

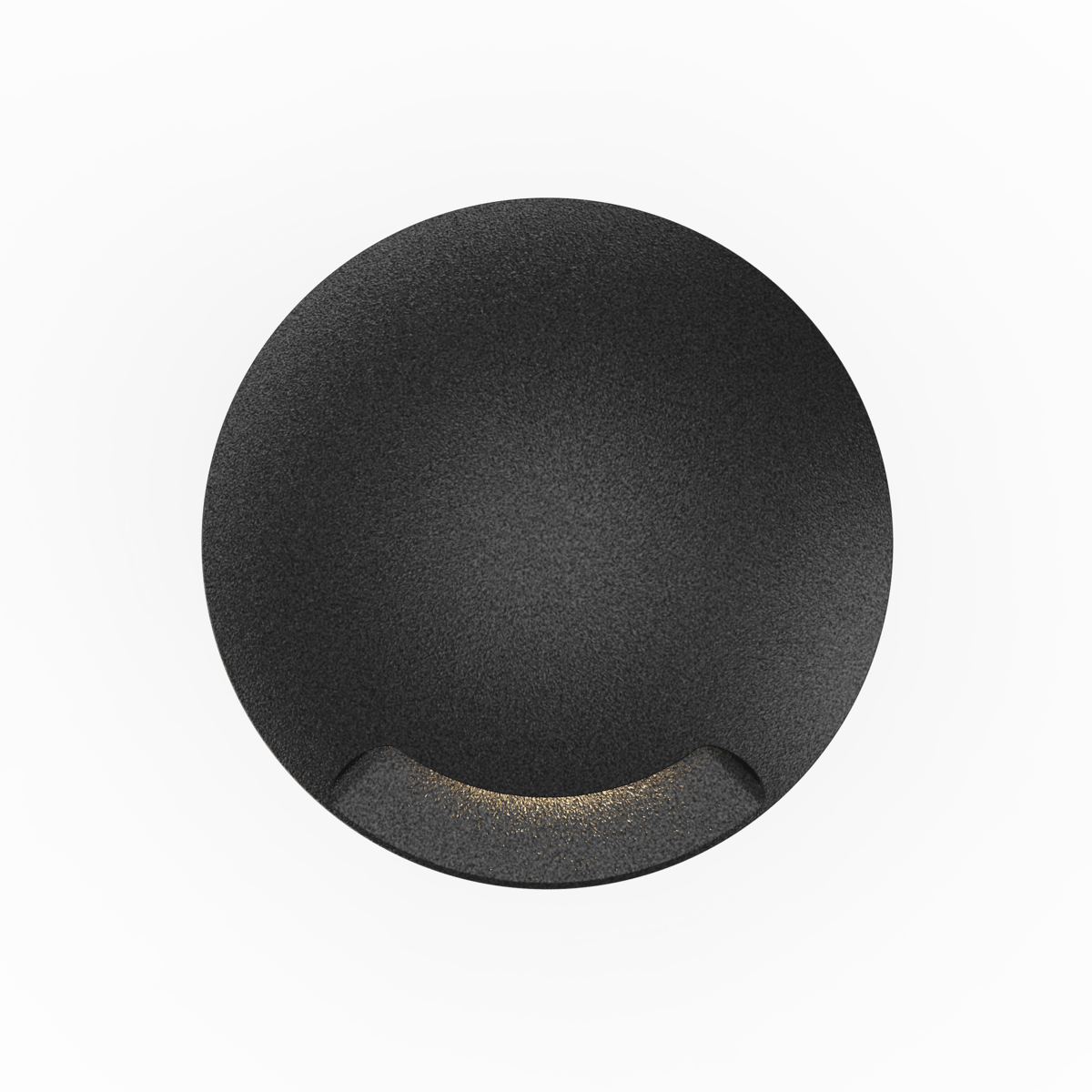

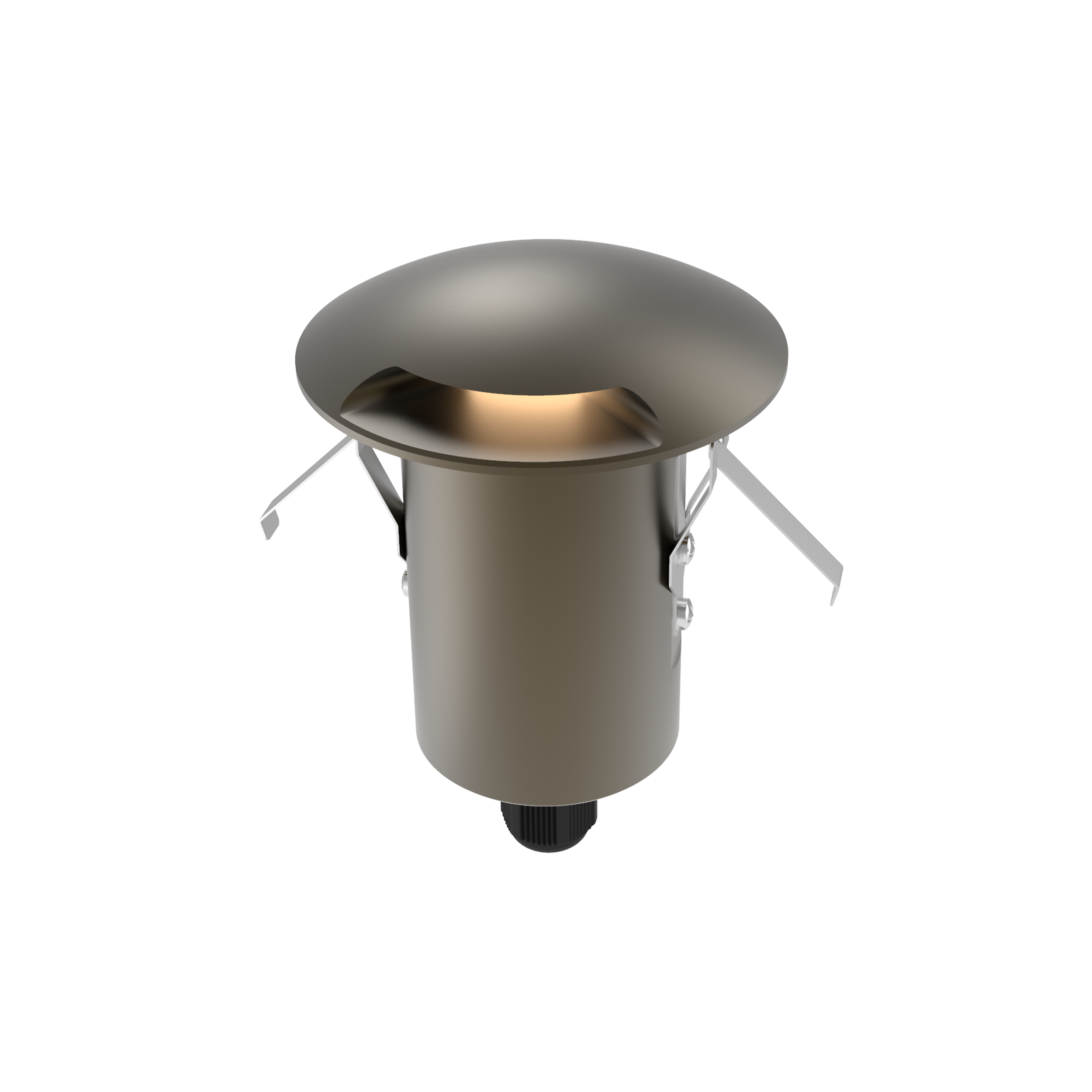

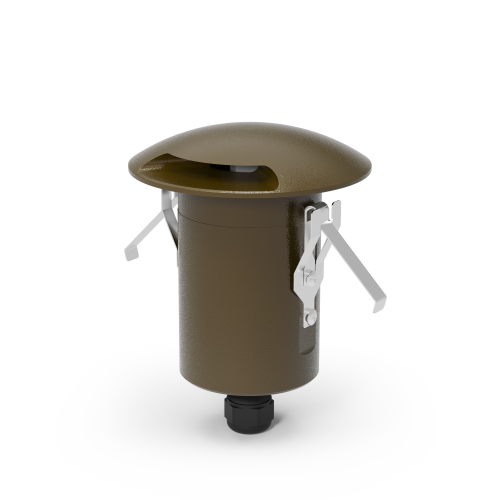

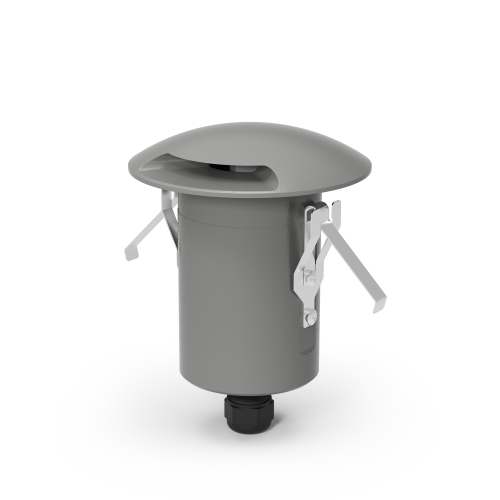

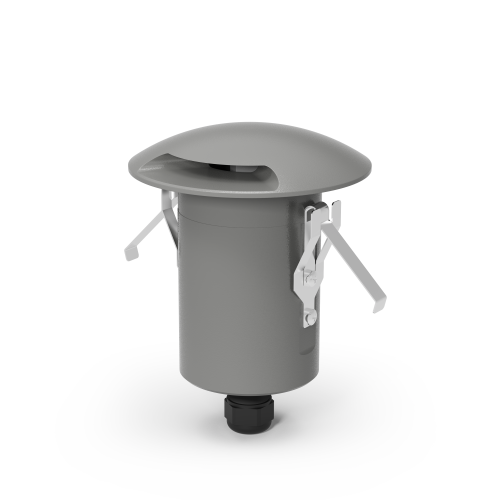

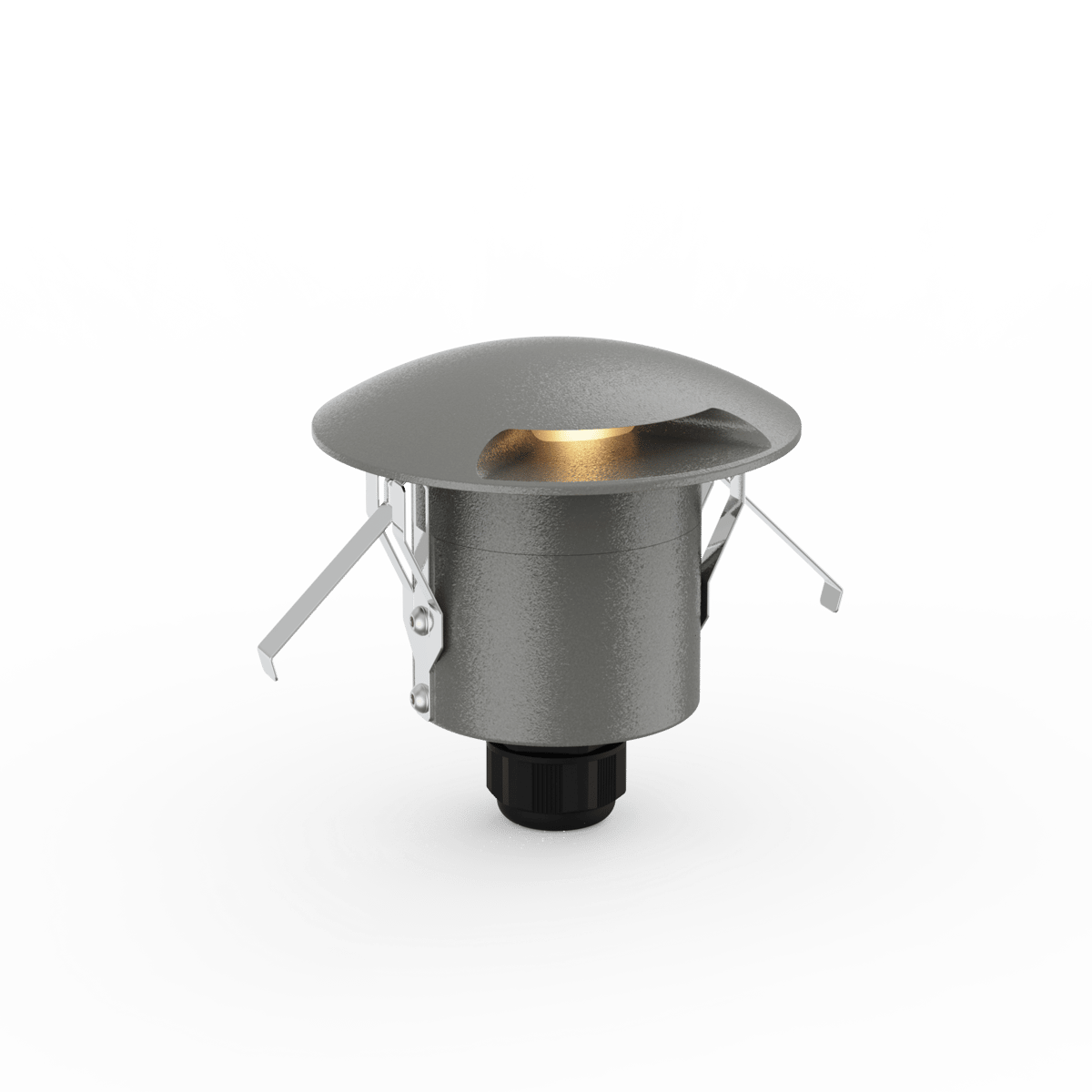

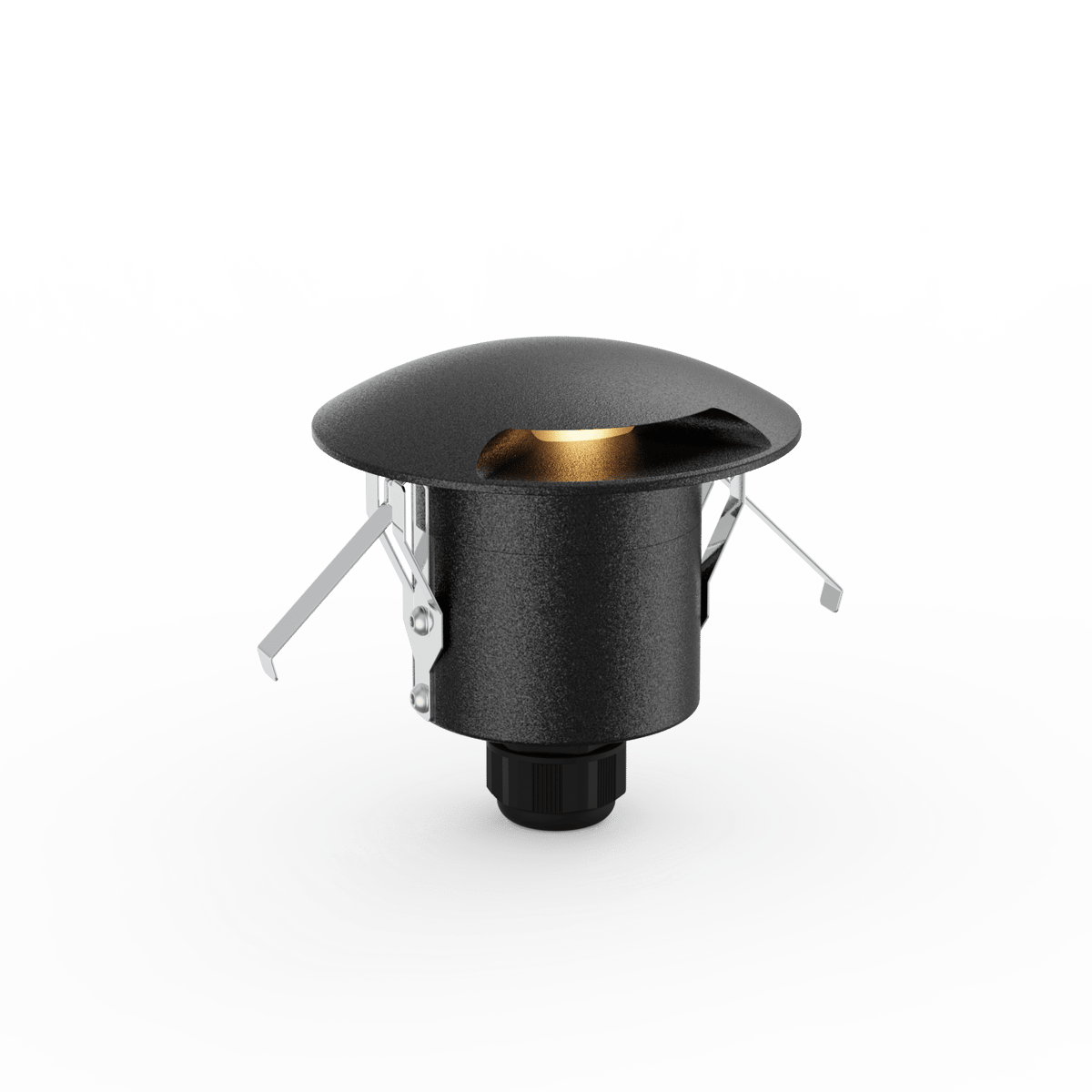

The AQL-163 is a compact, stylish recessed grazing light with 90° spread.

Specification

AQL-163

Lumena

CNC Machined & Anodised Aluminium 6061

900mm Aqualux 2-Core Silicone / PTFE Cable

5 Year Aqualux Warranty

IP67

RGBW option to be driven at 50% max total.
Not rated for high-pressure cleaning.

Options

Body

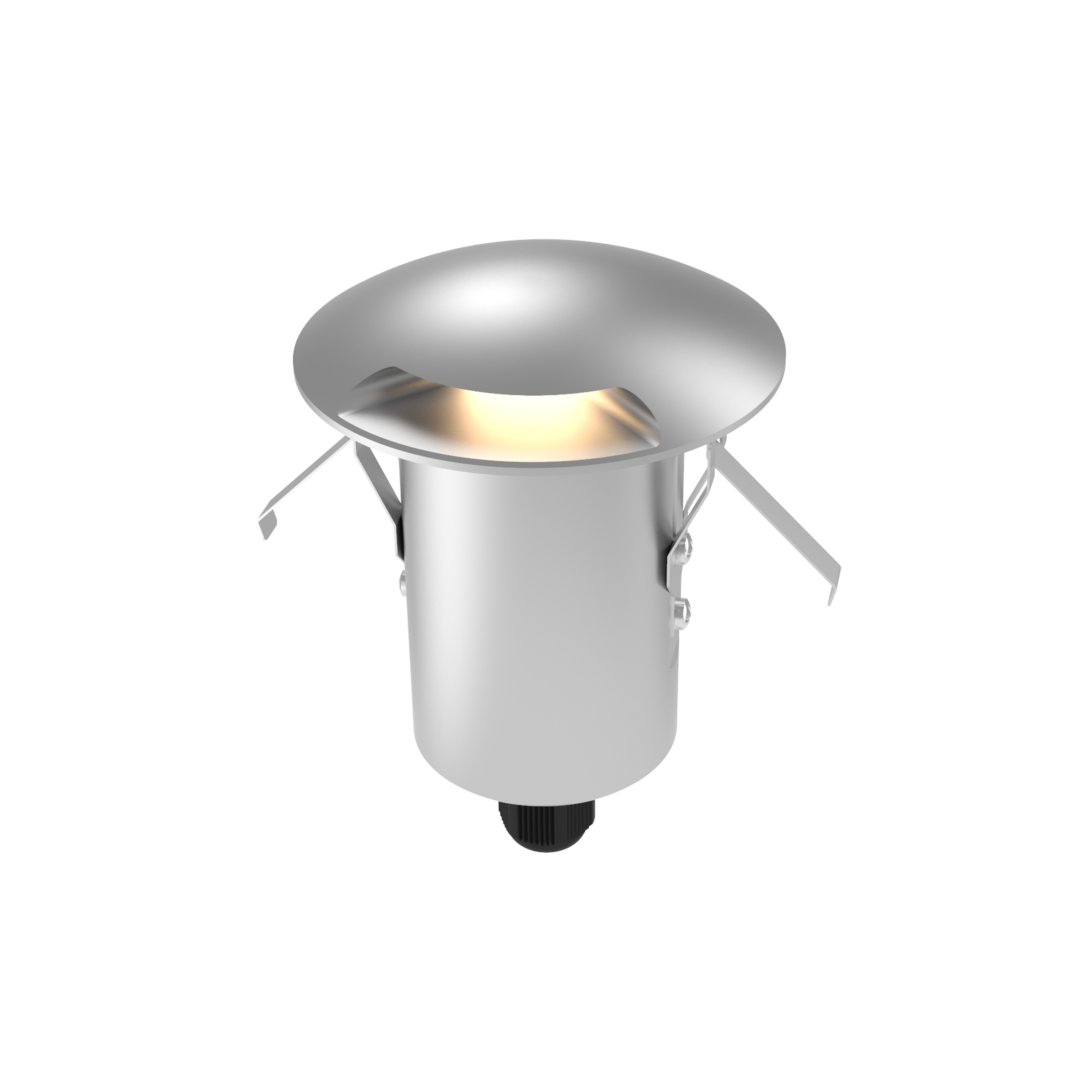

  • Silver Reign

    Aluminium 6000 Series

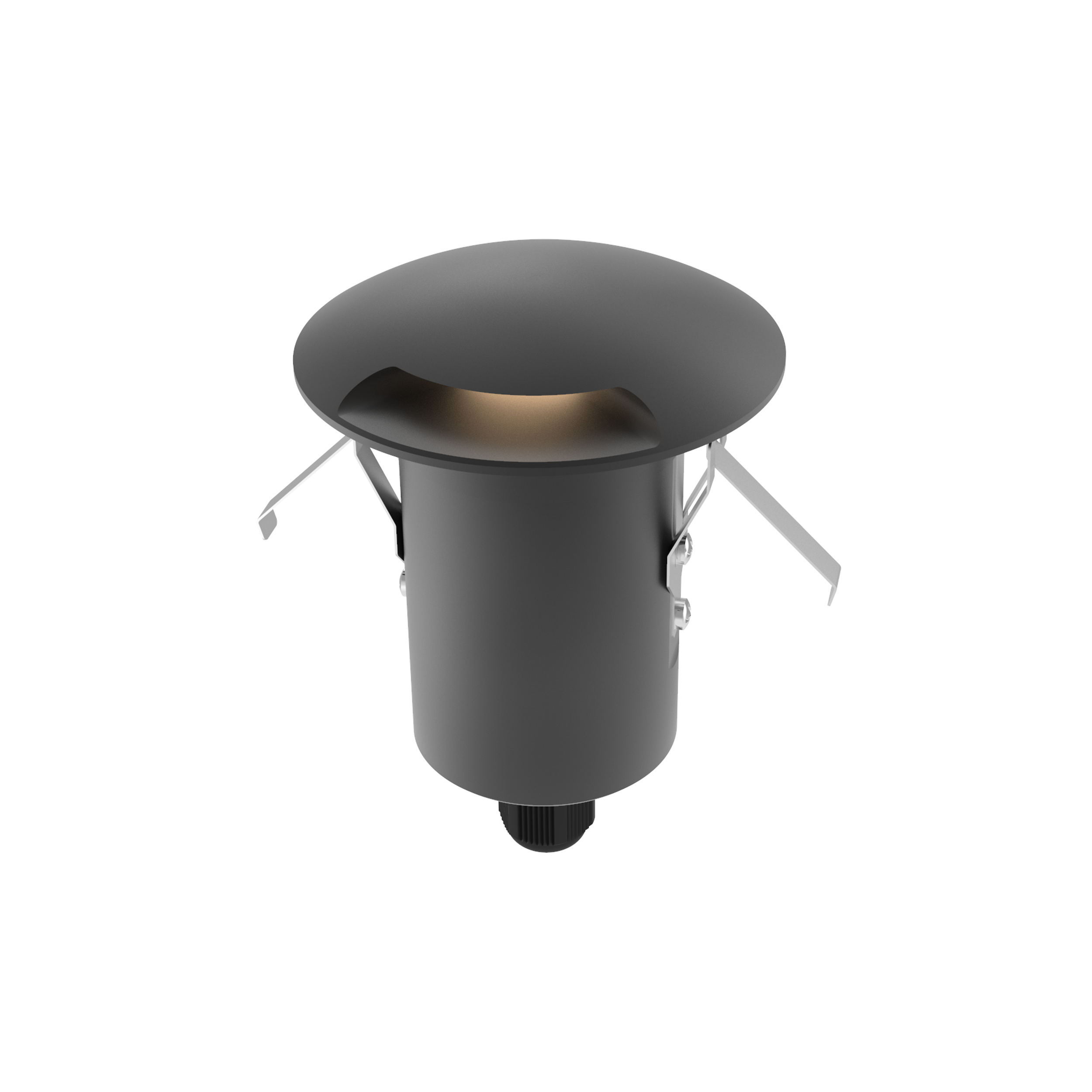

  • Black Ace

    Aluminium 6000 Series

  • Medium Bronze

    Aluminium 6000 Series

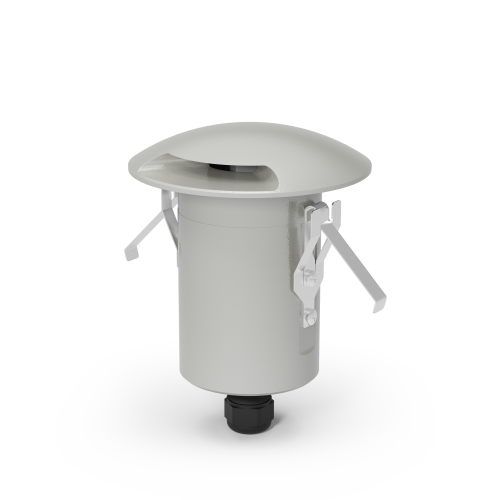

  • Venerable Silver

    Aluminium 6000 Series

Control Gear

  • 12~24V AC / 24V DC

    Dimming: Optional 10V PWM (DC)

  • 24V DC RGBW

    Dimming: 4CH Low-Side PWM

Light Sources

  • 1W / 100lm

    3000K / 300mA

  • 1W / 100lm

    5700K / 300mA

  • 1W / 070lm

    Red / 300mA

  • 1W / 040lm

    Blue / 300mA

  • 1W / 100lm

    Green / 300mA

  • 1W / 070lm

    Amber / 300mA

  • 5W / 235lm

    RGB+3000K

Optical

  • Diffuse (Frosted)

    DF

  • Diffuse (Clear)

    DC

Cable

  • Q

    AqualuxPLUS QuickConnect

Configure order code

AQL-163

To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.

Silver Reign Aluminium 6000 Series Black Ace Aluminium 6000 Series Medium Bronze Aluminium 6000 Series Venerable Silver Aluminium 6000 Series
12~24V AC / 24V DC 24V DC RGBW
1W / 100lm / 3000K / 300mA 1W / 100lm / 5700K / 300mA 1W / 070lm / Red / 300mA 1W / 040lm / Blue / 300mA 1W / 100lm / Green / 300mA 1W / 070lm / Amber / 300mA 5W / 235lm / RGB+3000K
Diffuse (Frosted) Diffuse (Clear)
AqualuxPLUS QuickConnect

AQL-163 - has 28 variations

Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
AQL-163-A2-X001GNDCQ
PDF
Black Ace
Aluminium 6000 Series		 1W 100lm / Green / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A4-X001AMDCQ
PDF
Venerable Silver
Aluminium 6000 Series		 1W 070lm / Amber / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A4-X001GNDCQ
PDF
Venerable Silver
Aluminium 6000 Series		 1W 100lm / Green / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A4-X001BUDCQ
PDF
Venerable Silver
Aluminium 6000 Series		 1W 040lm / Blue / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A4-X001RDDCQ
PDF
Venerable Silver
Aluminium 6000 Series		 1W 070lm / Red / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A4-X00157DCQ
PDF
Venerable Silver
Aluminium 6000 Series		 1W 100lm / 5700K / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A4-X00130DCQ
PDF
Venerable Silver
Aluminium 6000 Series		 1W 100lm / 3000K / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A3-X001AMDCQ
PDF
Medium Bronze
Aluminium 6000 Series		 1W 070lm / Amber / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A3-X001GNDCQ
PDF
Medium Bronze
Aluminium 6000 Series		 1W 100lm / Green / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A3-X001BUDCQ
PDF
Medium Bronze
Aluminium 6000 Series		 1W 040lm / Blue / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A3-X001RDDCQ
PDF
Medium Bronze
Aluminium 6000 Series		 1W 070lm / Red / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A3-X00157DCQ
PDF
Medium Bronze
Aluminium 6000 Series		 1W 100lm / 5700K / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A3-X00130DCQ
PDF
Medium Bronze
Aluminium 6000 Series		 1W 100lm / 3000K / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A2-X001AMDCQ
PDF
Black Ace
Aluminium 6000 Series		 1W 070lm / Amber / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A2-Z005Z1DFQ
PDF
Black Ace
Aluminium 6000 Series		 5W 235lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-163-A2-X001BUDCQ
PDF
Black Ace
Aluminium 6000 Series		 1W 040lm / Blue / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A2-X001RDDCQ
PDF
Black Ace
Aluminium 6000 Series		 1W 070lm / Red / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A2-X00157DCQ
PDF
Black Ace
Aluminium 6000 Series		 1W 100lm / 5700K / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A2-X00130DCQ
PDF
Black Ace
Aluminium 6000 Series		 1W 100lm / 3000K / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A1-X001AMDCQ
PDF
Silver Reign
Aluminium 6000 Series		 1W 070lm / Amber / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A1-X001GNDCQ
PDF
Silver Reign
Aluminium 6000 Series		 1W 100lm / Green / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A1-X001BUDCQ
PDF
Silver Reign
Aluminium 6000 Series		 1W 040lm / Blue / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A1-X001RDDCQ
PDF
Silver Reign
Aluminium 6000 Series		 1W 070lm / Red / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A1-X00157DCQ
PDF
Silver Reign
Aluminium 6000 Series		 1W 100lm / 5700K / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A1-X00130DCQ
PDF
Silver Reign
Aluminium 6000 Series		 1W 100lm / 3000K / 300mA DC 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
PDF
AQL-163-A4-Z005Z1DFQ
PDF
Venerable Silver
Aluminium 6000 Series		 5W 235lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-163-A3-Z005Z1DFQ
PDF
Medium Bronze
Aluminium 6000 Series		 5W 235lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-163-A1-Z005Z1DFQ
PDF
Silver Reign
Aluminium 6000 Series		 5W 235lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF

Aqualux is introducing an updated product code structure throughout 2021.
