Introduction

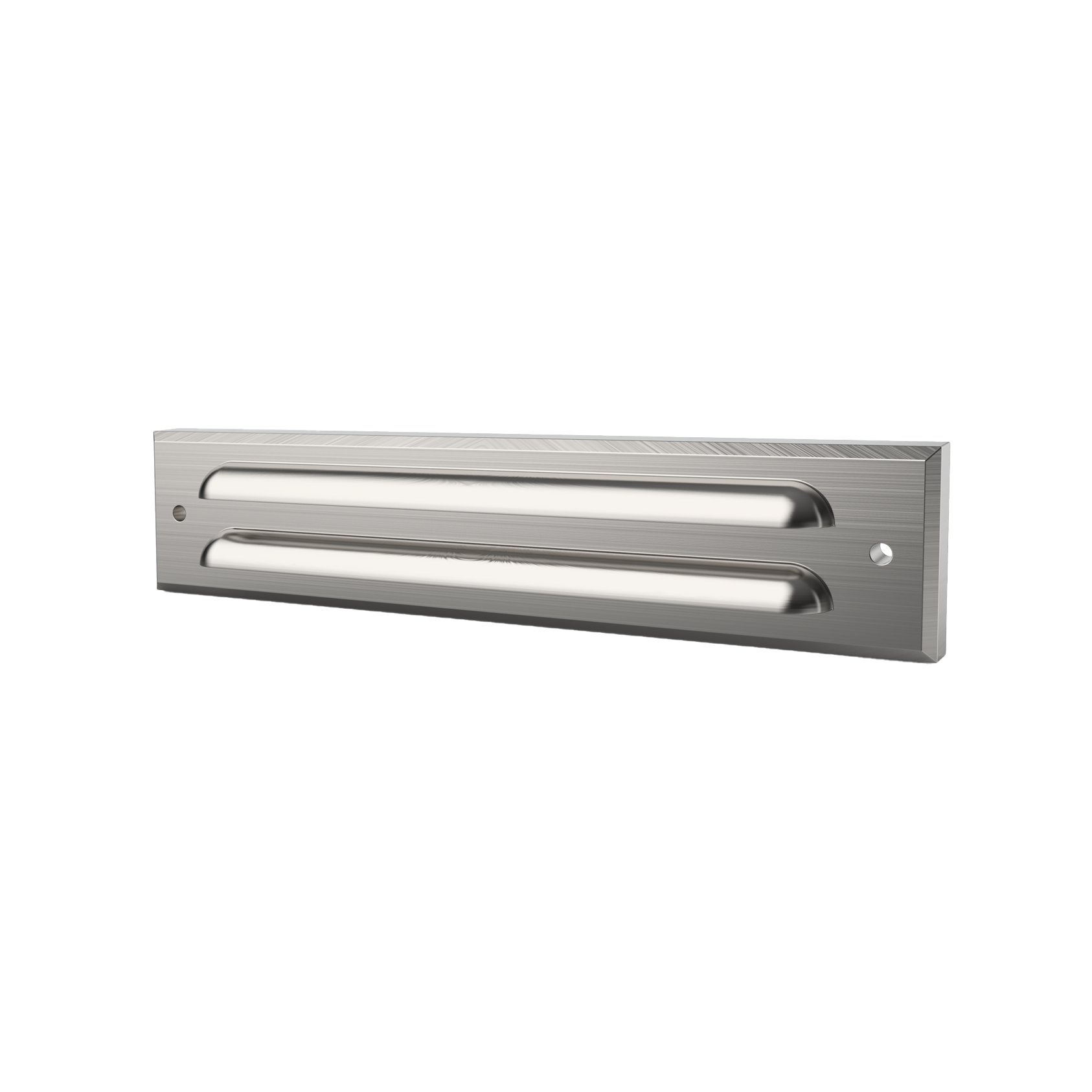

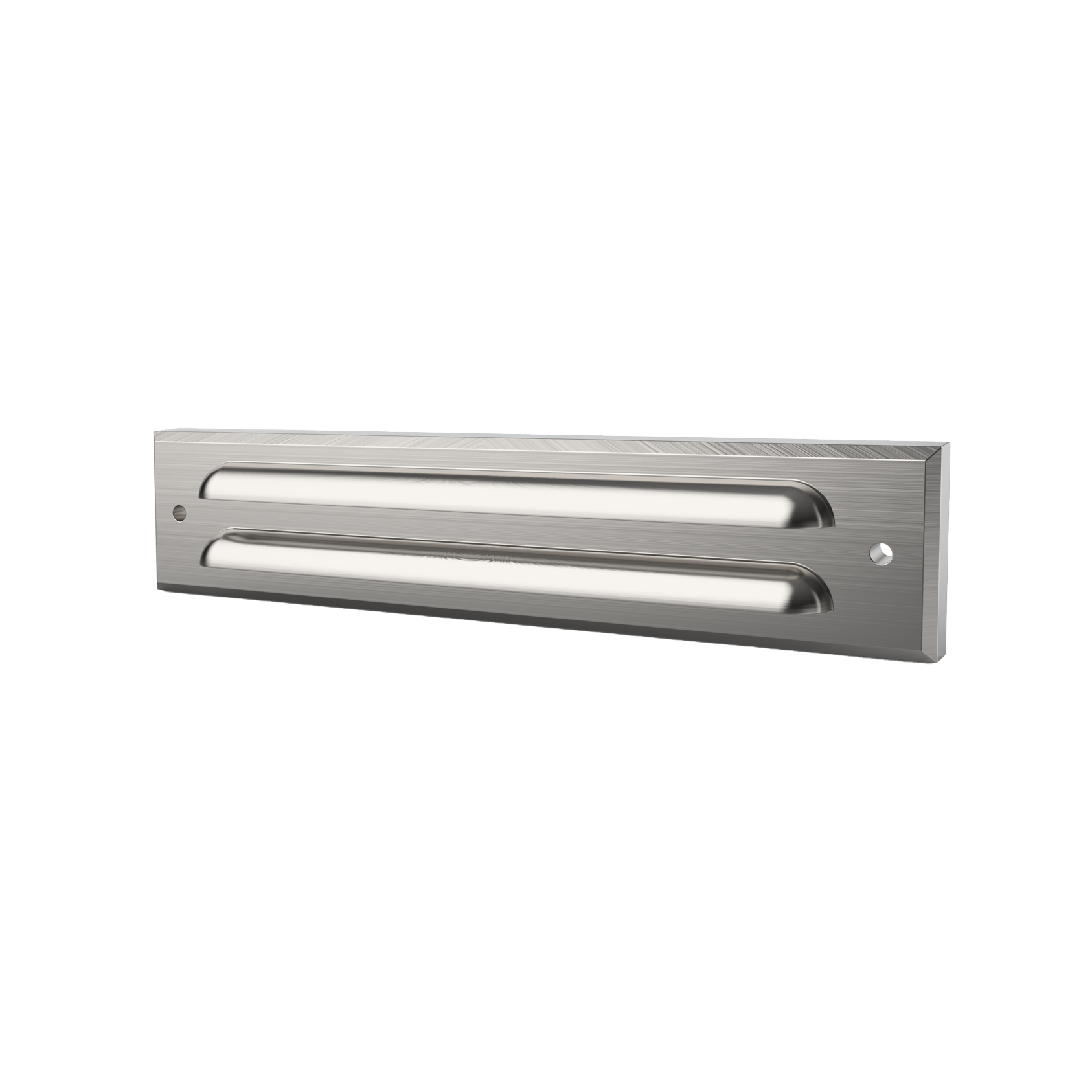

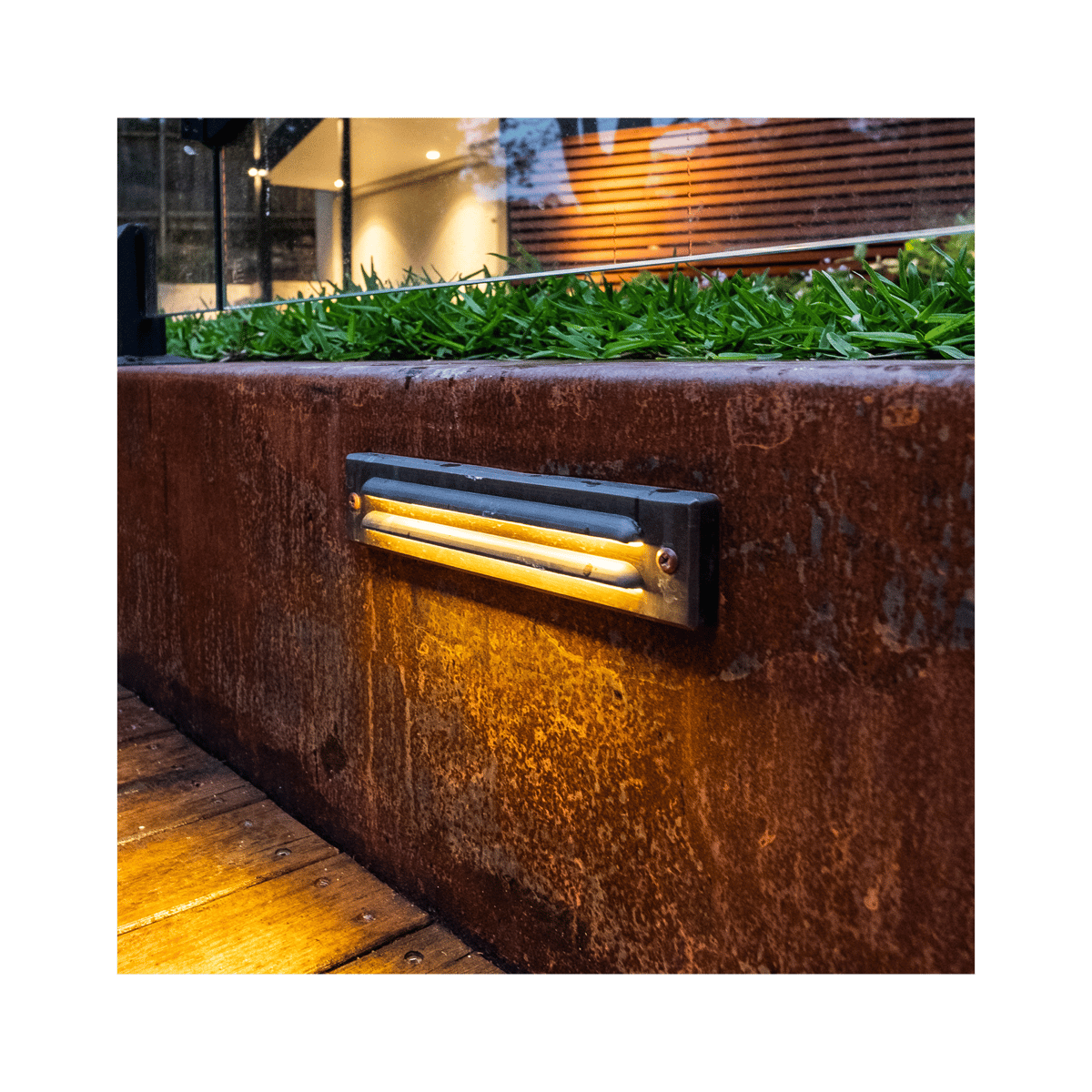

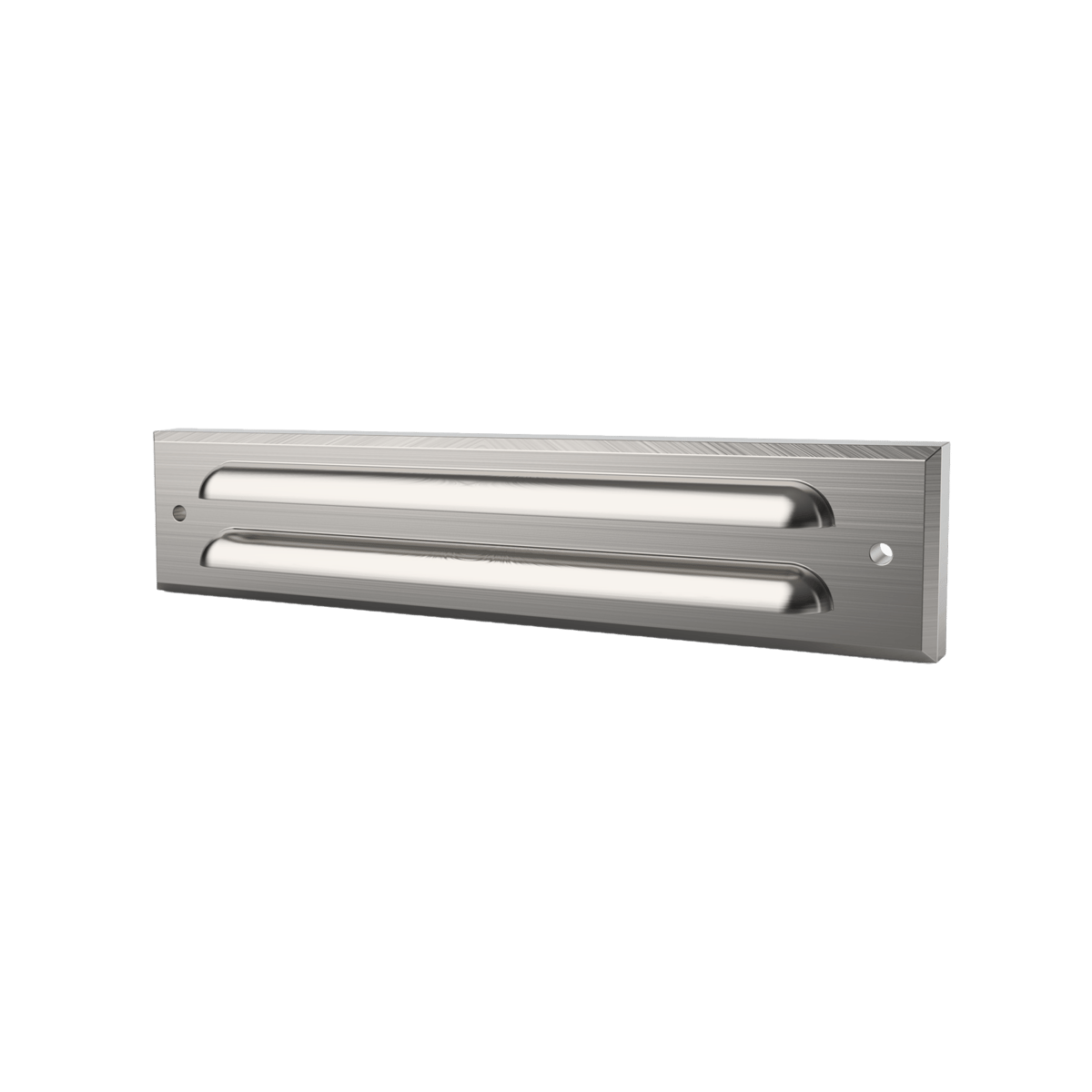

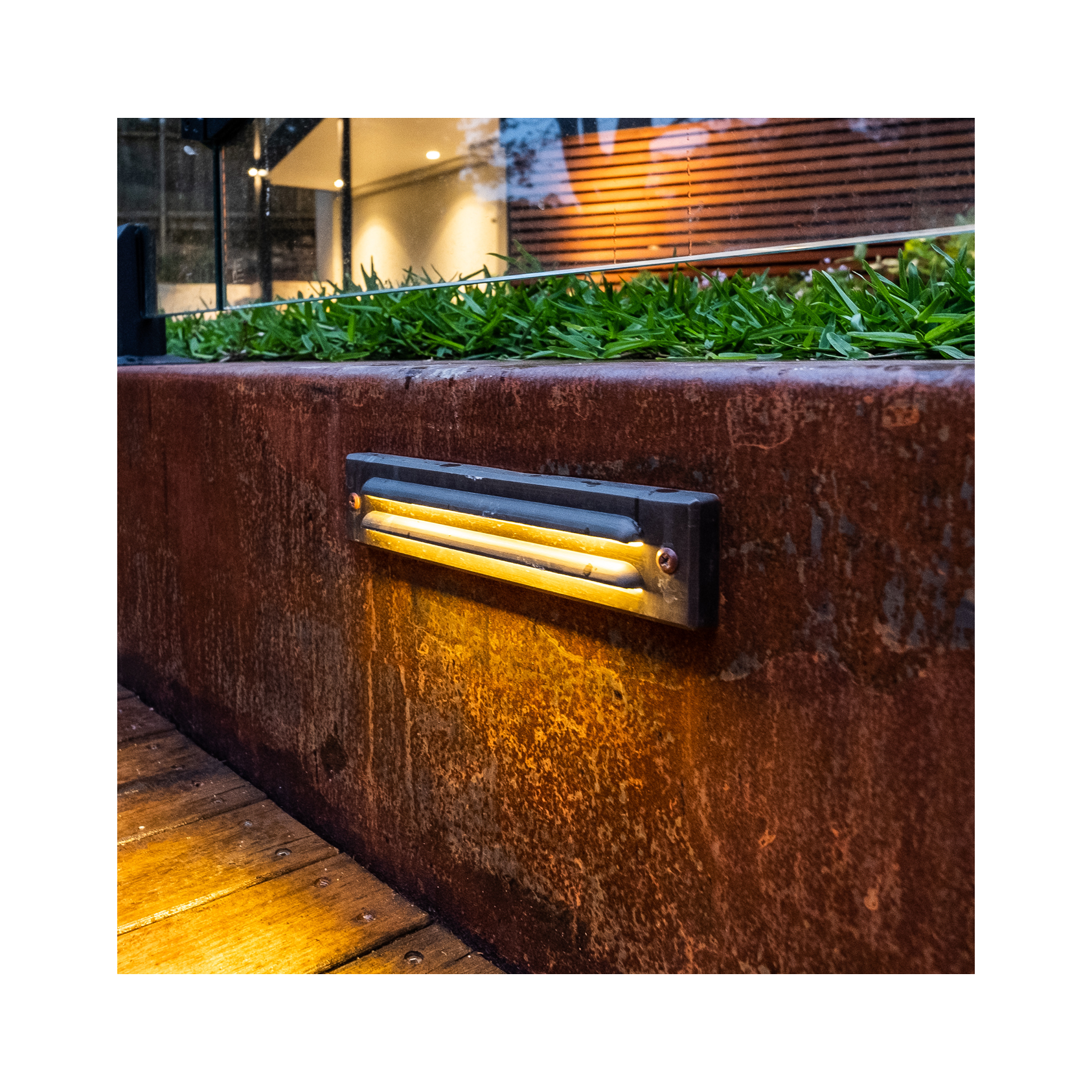

Surface mount, low profile, slotted steplight for step risers, pathways and corridors.

Specification

Product Code

AQL-420

Family

Hydra

Construction Material

Solid Cast Brass

Cable

500mm Fig 8 cable

Warranty

3 Year Aqualux Warranty

IP Rating

IP65

Options

Body

Brushed Chrome

Brass
Black

Brass
Aged Brass

Brass

Control Gear

12~24V AC / 24V DC

Dimming: Optional 10V PWM (DC)

Light Sources

7W

3000K / 10mA

Optical

Diffuse (Frosted)

DF

Cable

S

1m Aqualux Cable

Configure order code

Base Code:

AQL-420

To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.

AQL-420 - You have 3 variations with this product

Product Code	Body	Rated Power	Light Source	Optical	Control Gear	Dimming	Cable
AQL-420-B1-X00730DFS	Brushed Chrome Brass	7W	3000K / 10mA	DF	12~24V AC / 24V DC	Optional 10V PWM (DC)	1m Aqualux Cable

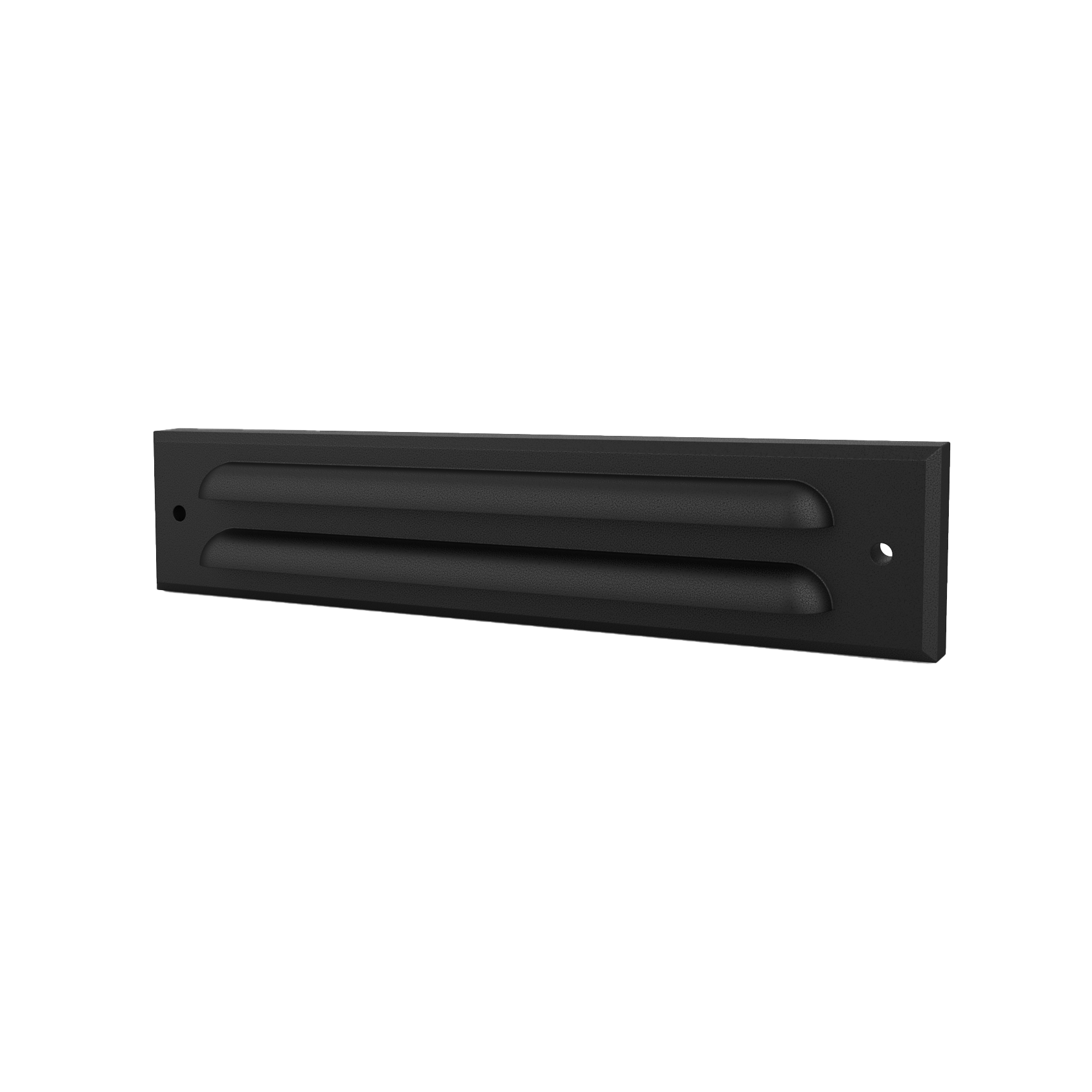

AQL-420-B2-X00730DFS	Black Brass	7W	3000K / 10mA	DF	12~24V AC / 24V DC	Optional 10V PWM (DC)	1m Aqualux Cable
AQL-420-B3-X00730DFS	Aged Brass Brass	7W	3000K / 10mA	DF	12~24V AC / 24V DC	Optional 10V PWM (DC)	1m Aqualux Cable

Aqualux is introducing an updated product code structure throughout 2020. Quotes, invoices and other documents may reference the previous product code structure until we have completed this update.
