Hydra

AQL-455

3W, 6W or 10W ECO Spike

Introduction

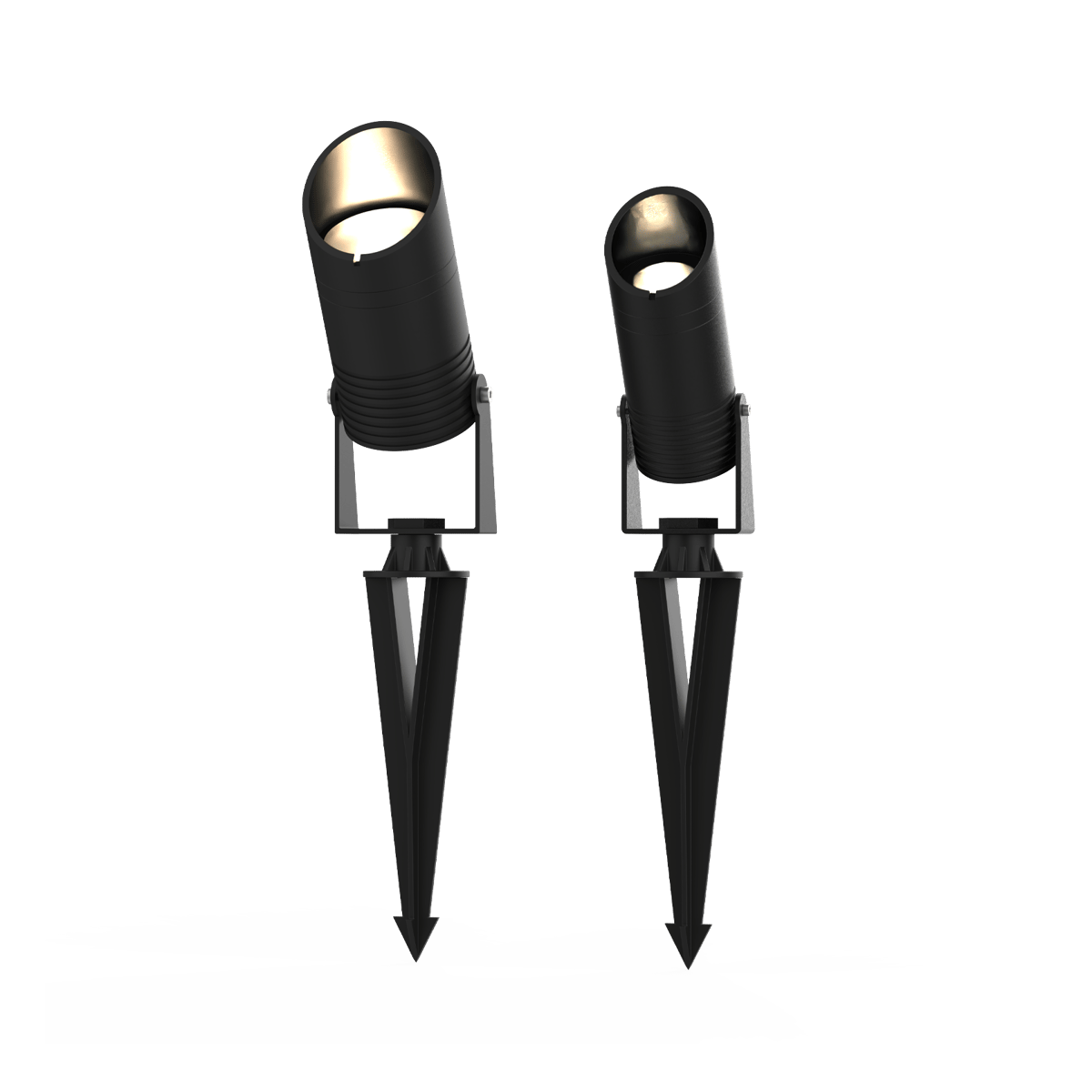

The NEW AQL-455 “ECO” Spike is an adjustable spotlight perfect for lighting projects of every budget. Manufactured from Aluminium and finished in a durable, textured black powder coat, the AQL-455 comes with an optional 3W, 6W or 10W integrated CREE LED chip for rapid installation. 10W version being the larger sized fitting.

Specification

Product Code

AQL-455

Family

Hydra

Construction Material

CNC Machined Aluminium

Cable

1m Figure 8 Twin Core

Warranty

2 Year Aqualux Warranty

IP Rating

IP65

Options

This is a non dimmable fitting.

Options

Body

Black Ace

Aluminium 6000 Series

Control Gear

12~24V AC / 24V DC

Dimming: Optional 10V PWM (DC)
24V DC

Dimming: non-dimming

Light Sources

6W / 400lm

3000K / 600mA
3W / 200lm

3000K / 300mA
10W / 600lm

3000K / 900mA

Optical

Wide (38°)

38

Cable

S

1m Aqualux Cable

Configure order code

Base Code:

AQL-455

To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.

AQL-455 - has 3 variations

Product Code	Body	Rated Power	Light Source	Optical	Control Gear	Dimming	Cable
AQL-455-A2-X0063038S	Black Ace Aluminium 6000 Series	6W	400lm / 3000K / 600mA	38	12~24V AC / 24V DC	Optional 10V PWM (DC)	1m Aqualux Cable
AQL-455-A2-X0033038S	Black Ace Aluminium 6000 Series	3W	200lm / 3000K / 300mA	38	12~24V AC / 24V DC	Optional 10V PWM (DC)	1m Aqualux Cable
AQL-455-A2-K0103038S	Black Ace Aluminium 6000 Series	10W	600lm / 3000K / 900mA	38	24V DC	non-dimming	1m Aqualux Cable
