LumenaPro

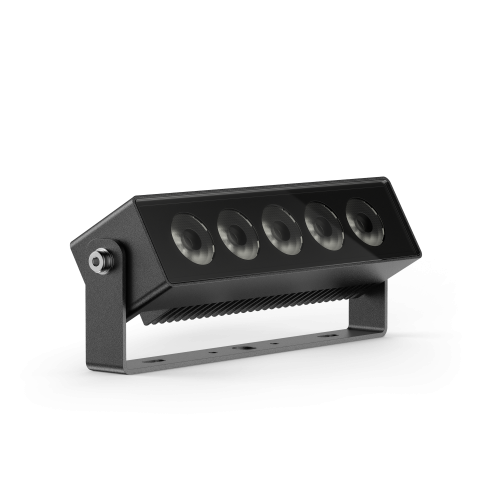

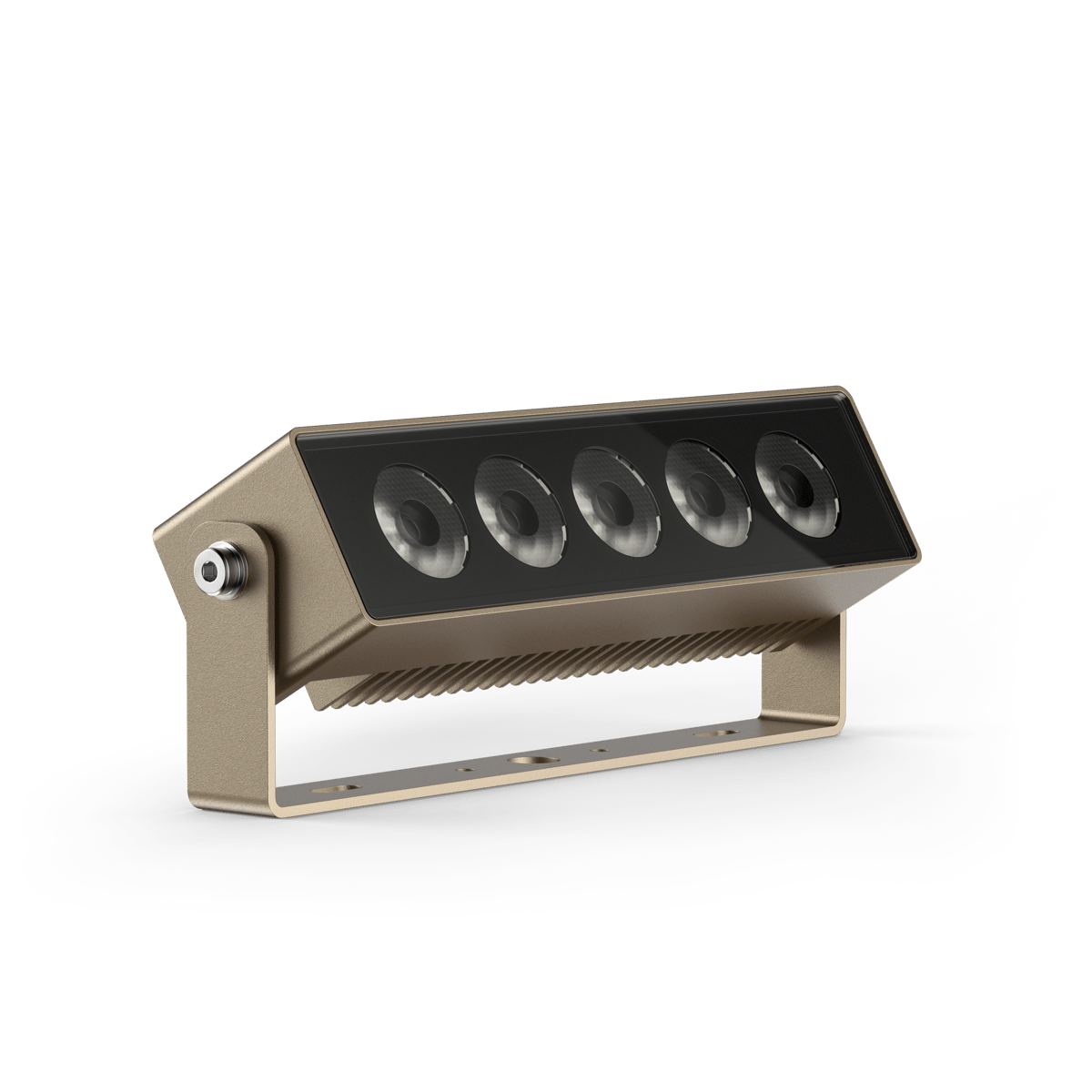

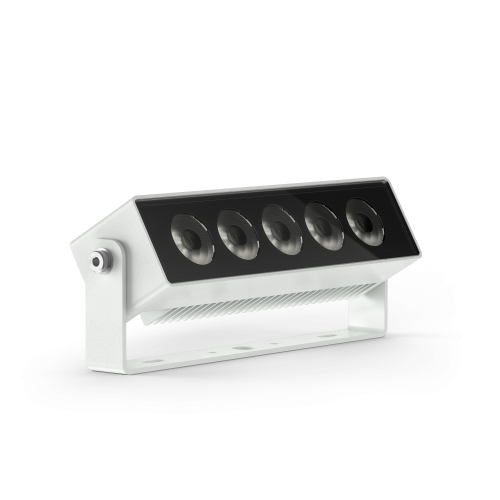

    AQL-980

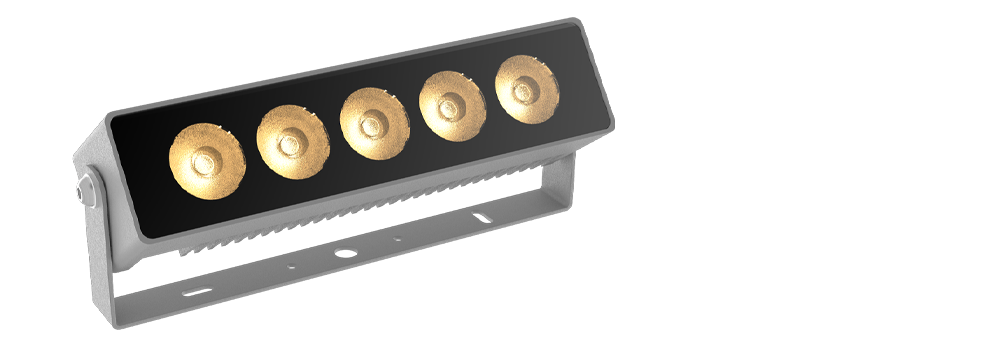

    Slimline architectural floodlight

    AQL-980
    AQL-980
    AQL-980
    AQL-980

    Introduction

    The AQL-980 is a low-profile, high-powered floodlight for residential and commercial lighting applications. Machined from solid aerospace grade aluminium, the performance / size ratio puts the AQL-980 at the top of the class. Featuring multiple configurable options and available in a wide range of body colours, the AQL-980 is the perfect choice for advanced lighting design.

    Specification

    AQL-980

    LumenaPro

    CNC Machined Aluminium

    7 Year Aqualux Warranty

    IP67

    AQL-980

    Options

    Body

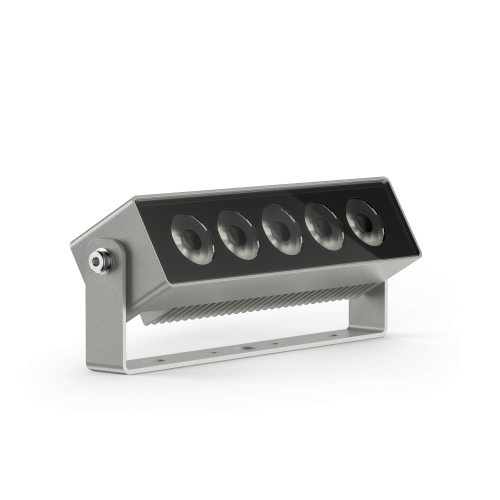

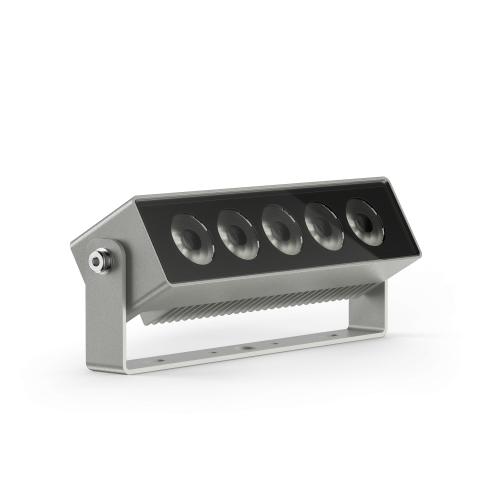

    • A1 - Silver

      Aluminium 6000 Series

    • A2 - Black

      Aluminium 6000 Series

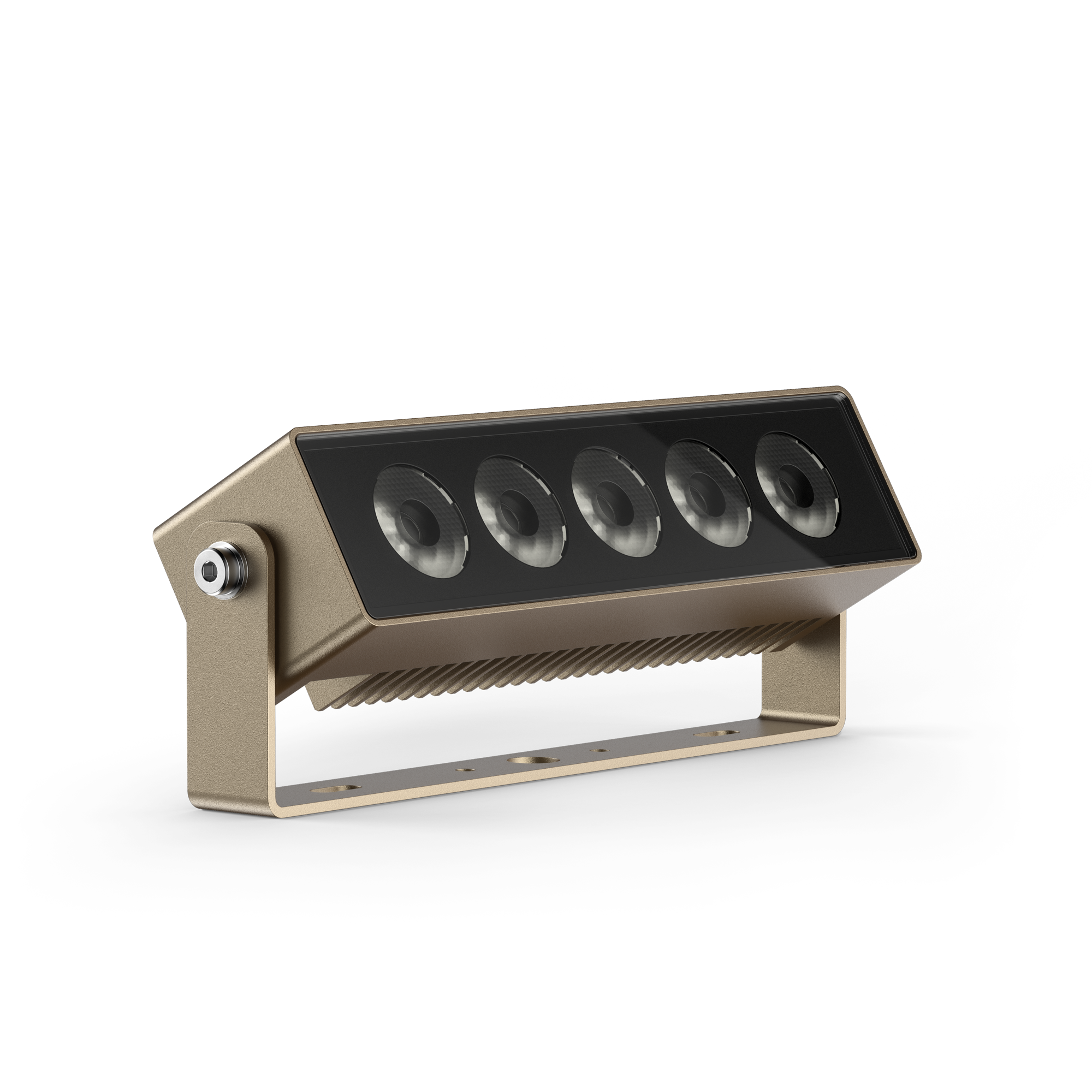

    • A3 - Bronze

      Aluminium 6000 Series

    • A4 - Basalt

      Aluminium 6000 Series

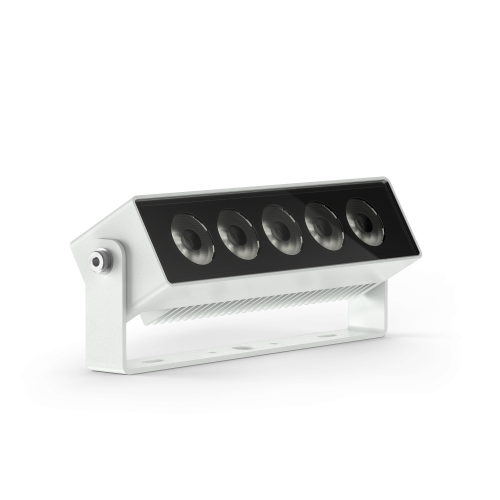

    • A8 - White

      Aluminium 6000 Series

    Control Gear

    • 24V DC RGBW

      Dimming: 4CH Low-Side PWM

    • 24V DC 3-Wire

      Dimming: 3-wire PWM 10V Dimming

    Light Sources

    • 50W / 4000lm

      3000K

    • 50W / 5350lm

      5700K

    • 50W / 2775lm

      RGB+3000K

    Optical

    • Narrow (10°)

      10

    • Medium (25°)

      25

    • Medium (35°)

      35

    Cable

    • Q

      AqualuxPLUS QuickConnect

    Configure order code

    AQL-980

    To configure your product/s, select from the options below.
    Multiple selections are possible to produce your downloadable datasheet/s.

    Clear Filter
    A1 - Silver Aluminium 6000 Series A2 - Black Aluminium 6000 Series A3 - Bronze Aluminium 6000 Series A4 - Basalt Aluminium 6000 Series A8 - White Aluminium 6000 Series
    24V DC RGBW 24V DC 3-Wire
    50W / 4000lm / 3000K 50W / 5350lm / 5700K 50W / 2775lm / RGB+3000K
    Narrow (10°) Medium (25°) Medium (35°)
    AqualuxPLUS QuickConnect

    AQL-980 - has 45 variations

    Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
    AQL-980-A2-Z050Z225Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 50W 2775lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-980-A4-B0505735Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 50W 5350lm / 5700K 35 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A8-B0503010Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 50W 4000lm / 3000K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A8-B0503025Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 50W 4000lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A8-B0503035Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 50W 4000lm / 3000K 35 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A8-B0505710Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 50W 5350lm / 5700K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A8-B0505725Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 50W 5350lm / 5700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A8-B0505735Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 50W 5350lm / 5700K 35 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A1-Z050Z210Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 50W 2775lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-980-A1-Z050Z225Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 50W 2775lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-980-A1-Z050Z235Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 50W 2775lm / RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-980-A2-Z050Z210Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 50W 2775lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-980-A4-B0505725Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 50W 5350lm / 5700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A2-Z050Z235Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 50W 2775lm / RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-980-A3-Z050Z210Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 50W 2775lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-980-A3-Z050Z225Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 50W 2775lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-980-A3-Z050Z235Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 50W 2775lm / RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-980-A4-Z050Z210Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 50W 2775lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-980-A4-Z050Z225Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 50W 2775lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-980-A4-Z050Z235Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 50W 2775lm / RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-980-A8-Z050Z210Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 50W 2775lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-980-A8-Z050Z225Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 50W 2775lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-980-A8-Z050Z235Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 50W 2775lm / RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-980-A2-B0505735Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 50W 5350lm / 5700K 35 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A1-B0503025Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 50W 4000lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A1-B0503035Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 50W 4000lm / 3000K 35 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A1-B0505710Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 50W 5350lm / 5700K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A1-B0505725Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 50W 5350lm / 5700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A1-B0505735Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 50W 5350lm / 5700K 35 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A2-B0503010Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 50W 4000lm / 3000K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A2-B0503025Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 50W 4000lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A2-B0503035Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 50W 4000lm / 3000K 35 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A2-B0505710Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 50W 5350lm / 5700K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A2-B0505725Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 50W 5350lm / 5700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A1-B0503010Q
    PDF
    		A1 - Silver
    Aluminium 6000 Series    		 50W 4000lm / 3000K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A3-B0503010Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 50W 4000lm / 3000K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A3-B0503025Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 50W 4000lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A3-B0503035Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 50W 4000lm / 3000K 35 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A3-B0505710Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 50W 5350lm / 5700K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A3-B0505725Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 50W 5350lm / 5700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A3-B0505735Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 50W 5350lm / 5700K 35 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A4-B0503010Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 50W 4000lm / 3000K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A4-B0503025Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 50W 4000lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A4-B0503035Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 50W 4000lm / 3000K 35 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-980-A4-B0505710Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 50W 5350lm / 5700K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF

    Products that work well with your selection

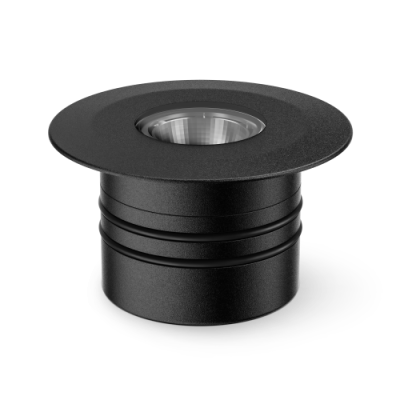

    AQL-156

    AQL-156

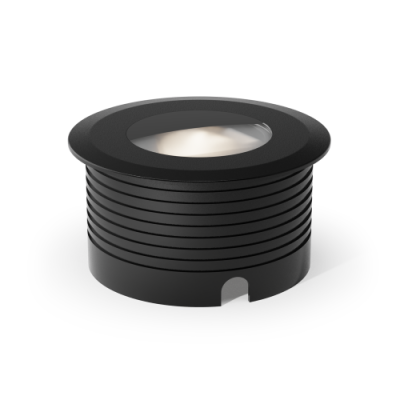

    AQL-157

    AQL-157

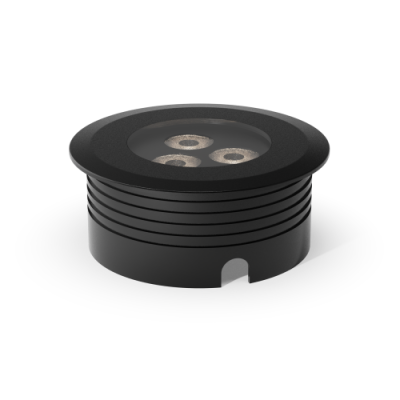

    AQL-158

    AQL-158

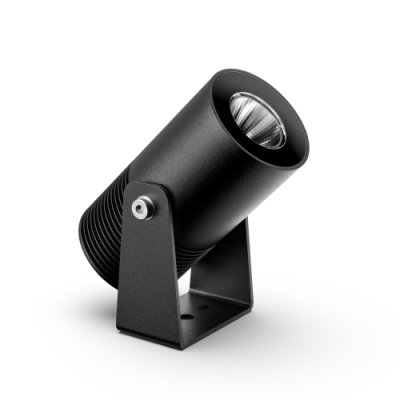

    AQL-180

    AQL-180

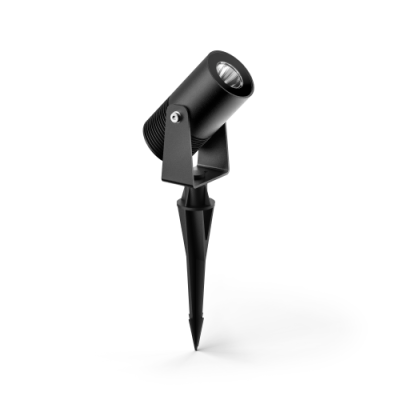

    AQL-181

    AQL-181

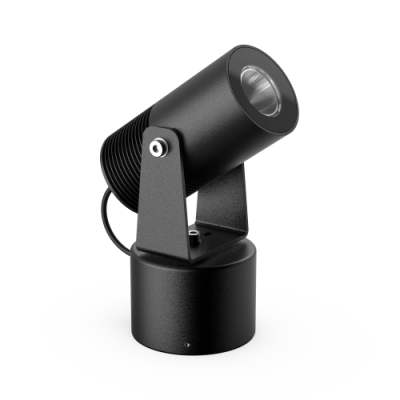

    AQL-182

    AQL-182

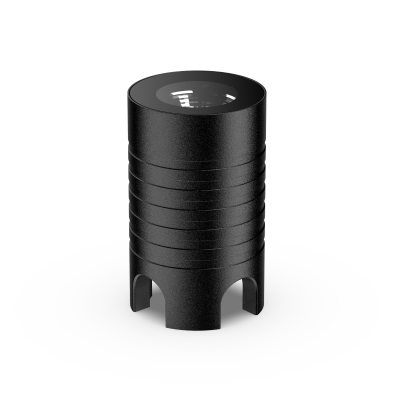

    AQL-190
