Lumena
AQL-122
Spike Pathlight
Introduction

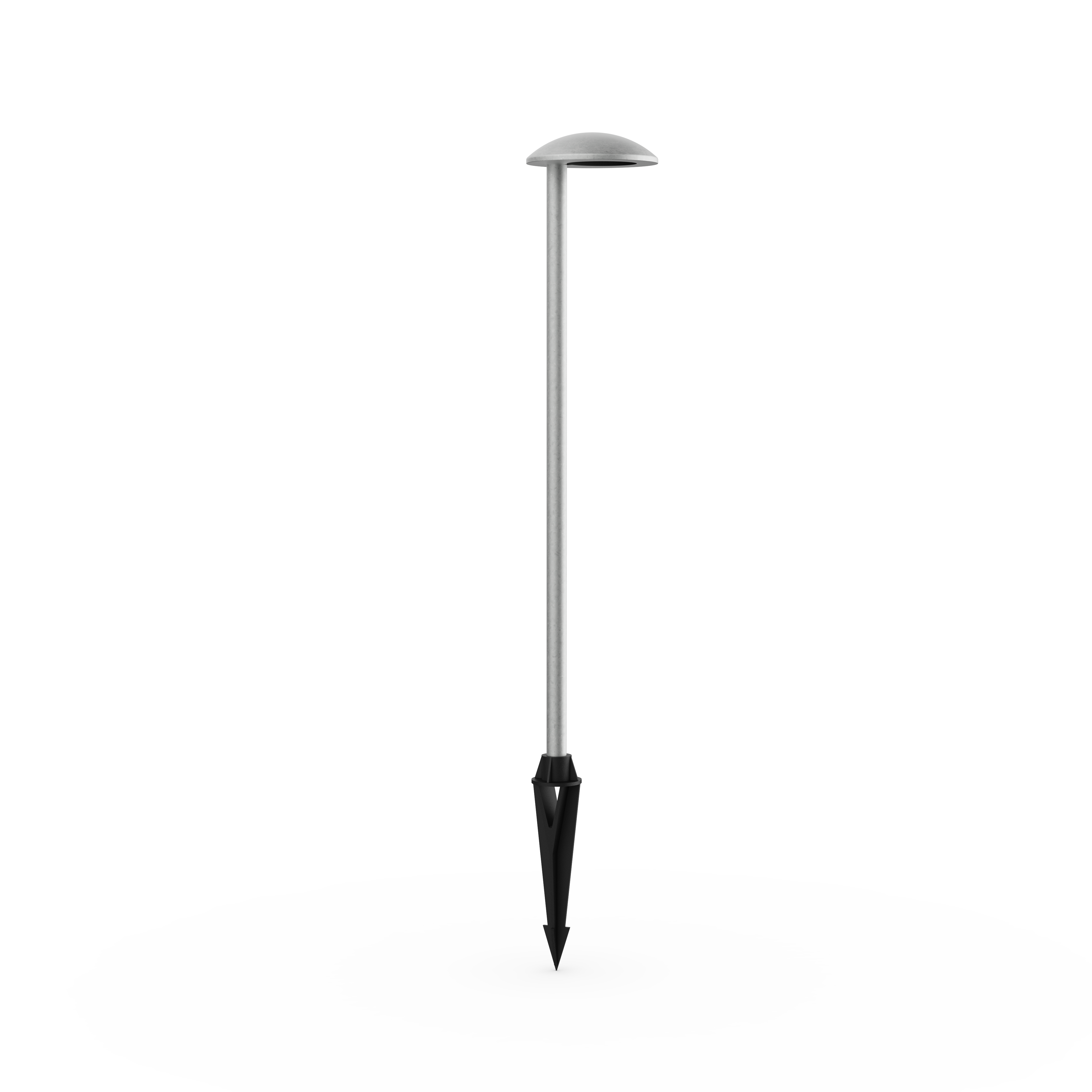

Designed, manufactured and assembled in Sydney. The AQL-122 is an elegant offset pathlight that can blend perfectly into both modern and traditional settings.
Specification
AQL-122
Lumena
CNC Machined Aluminium
3-Core Anti-Siphon Cable
7 Year Aqualux Warranty
IP65

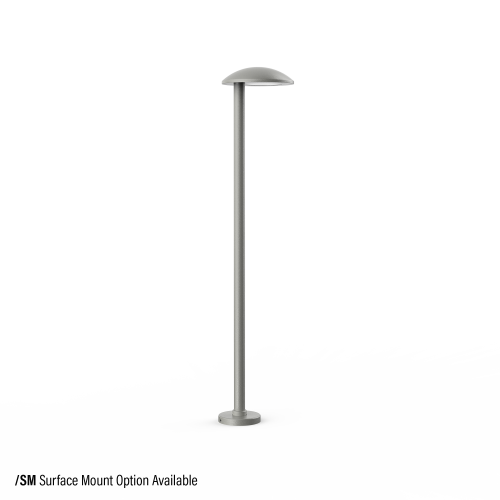

For surface mount version add /SM to the end of your code
Configure order code
AQL-122
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQL-122 - has 10 variations
Product Code
Downloads
Body
Rated Power
Light Source
Optical
Control Gear
Dimming
Cable
Downloads
AQL-122-A1-X00430DFA
A1 - Clear
Aluminium 6000 Series
4W
250lm /
3000K
DF
12~24V AC / 24V DC
3-Wire 10V PWM
1m 3-Core Anti-Siphon Cable
AQL-122-A1-X00427DFA
A1 - Clear
Aluminium 6000 Series
4W
250lm /
2700K
DF
12~24V AC / 24V DC
3-Wire 10V PWM
1m 3-Core Anti-Siphon Cable
AQL-122-A2-X00430DFA

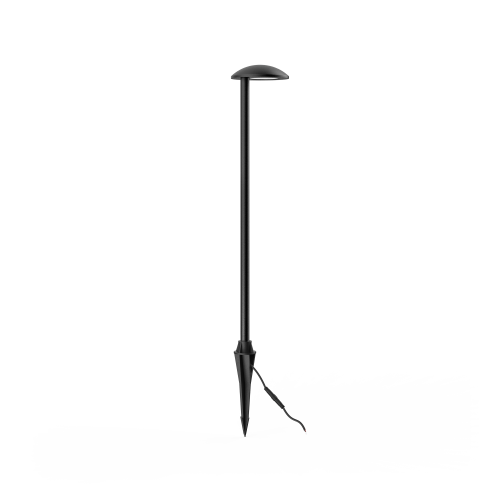

A2 - Black
Aluminium 6000 Series
4W
250lm /
3000K
DF
12~24V AC / 24V DC
3-Wire 10V PWM
1m 3-Core Anti-Siphon Cable
AQL-122-A2-X00427DFA
A2 - Black
Aluminium 6000 Series
4W
250lm /
2700K
DF
12~24V AC / 24V DC
3-Wire 10V PWM
1m 3-Core Anti-Siphon Cable
AQL-122-A3-X00430DFA

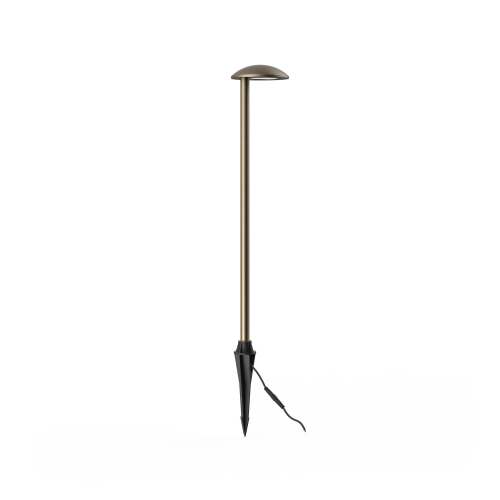

A3 - Bronze
Aluminium 6000 Series
4W
250lm /
3000K
DF
12~24V AC / 24V DC
3-Wire 10V PWM
1m 3-Core Anti-Siphon Cable
AQL-122-A3-X00427DFA
A3 - Bronze
Aluminium 6000 Series
4W
250lm /
2700K
DF
12~24V AC / 24V DC
3-Wire 10V PWM
1m 3-Core Anti-Siphon Cable
AQL-122-A4-X00430DFA

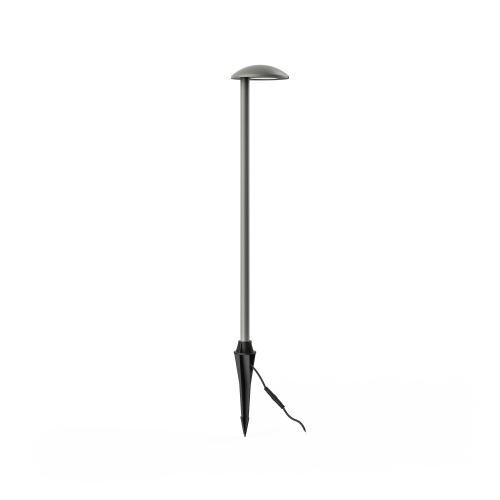

A4 - Basalt
Aluminium 6000 Series
4W
250lm /
3000K
DF
12~24V AC / 24V DC
3-Wire 10V PWM
1m 3-Core Anti-Siphon Cable
AQL-122-A4-X00427DFA
A4 - Basalt
Aluminium 6000 Series
4W
250lm /
2700K
DF
12~24V AC / 24V DC
3-Wire 10V PWM
1m 3-Core Anti-Siphon Cable
AQL-122-A8-X00430DFA

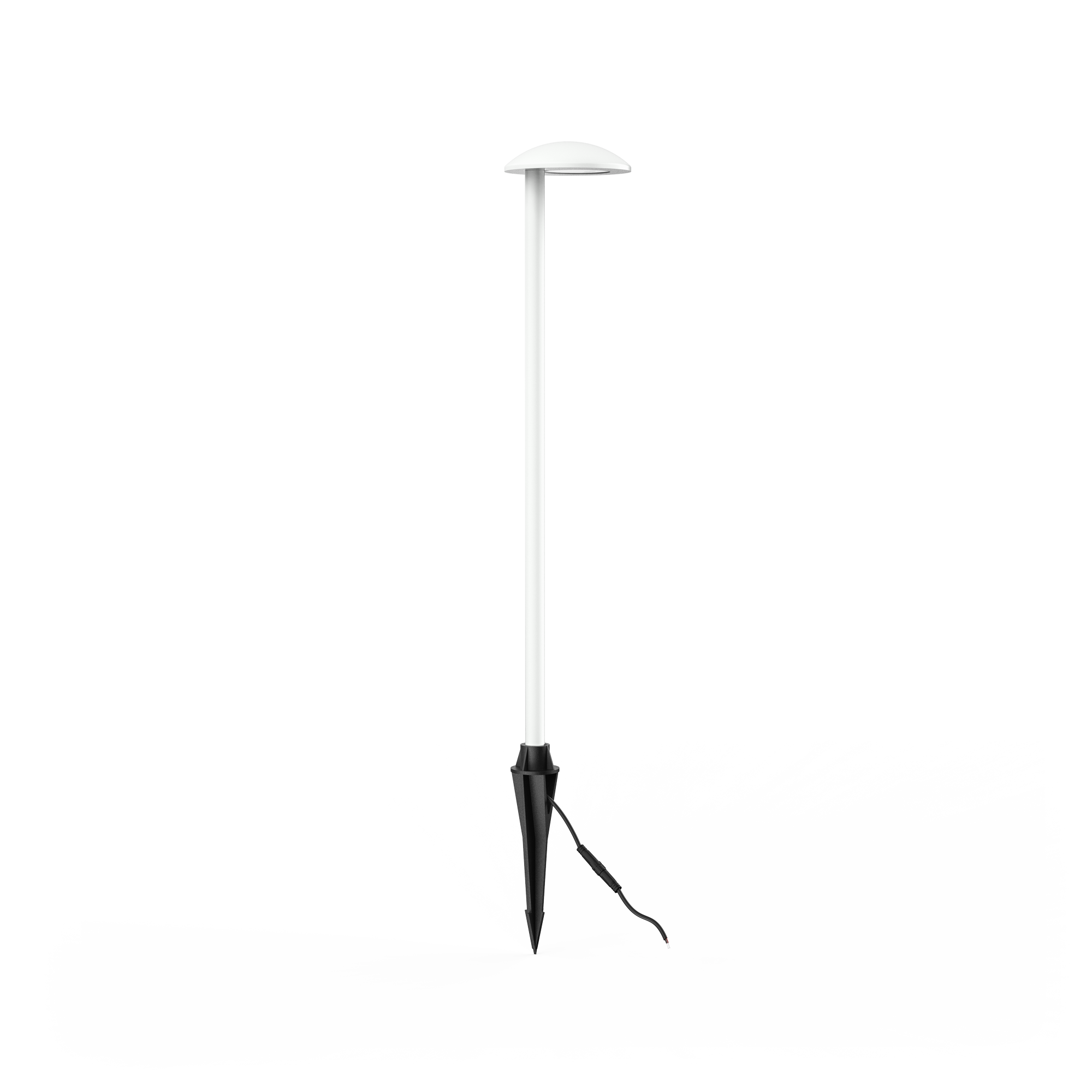

A8 - White
Aluminium 6000 Series
4W
250lm /
3000K
DF
12~24V AC / 24V DC
3-Wire 10V PWM
1m 3-Core Anti-Siphon Cable
AQL-122-A8-X00427DFA
A8 - White
Aluminium 6000 Series
4W
250lm /
2700K
DF
12~24V AC / 24V DC
3-Wire 10V PWM
1m 3-Core Anti-Siphon Cable
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQL-122 - has 10 variations
| Product Code | Downloads | Body | Rated Power | Light Source | Optical | Control Gear | Dimming | Cable | Downloads | |
|---|---|---|---|---|---|---|---|---|---|---|
| AQL-122-A1-X00430DFA | A1 - Clear Aluminium 6000 Series |
4W | 250lm / 3000K | DF | 12~24V AC / 24V DC | 3-Wire 10V PWM | 1m 3-Core Anti-Siphon Cable | |||
| AQL-122-A1-X00427DFA | A1 - Clear Aluminium 6000 Series |
4W | 250lm / 2700K | DF | 12~24V AC / 24V DC | 3-Wire 10V PWM | 1m 3-Core Anti-Siphon Cable | |||
| AQL-122-A2-X00430DFA | A2 - Black Aluminium 6000 Series |
4W | 250lm / 3000K | DF | 12~24V AC / 24V DC | 3-Wire 10V PWM | 1m 3-Core Anti-Siphon Cable | |||
| AQL-122-A2-X00427DFA | A2 - Black Aluminium 6000 Series |
4W | 250lm / 2700K | DF | 12~24V AC / 24V DC | 3-Wire 10V PWM | 1m 3-Core Anti-Siphon Cable | |||
| AQL-122-A3-X00430DFA | A3 - Bronze Aluminium 6000 Series |
4W | 250lm / 3000K | DF | 12~24V AC / 24V DC | 3-Wire 10V PWM | 1m 3-Core Anti-Siphon Cable | |||
| AQL-122-A3-X00427DFA | A3 - Bronze Aluminium 6000 Series |
4W | 250lm / 2700K | DF | 12~24V AC / 24V DC | 3-Wire 10V PWM | 1m 3-Core Anti-Siphon Cable | |||
| AQL-122-A4-X00430DFA | A4 - Basalt Aluminium 6000 Series |
4W | 250lm / 3000K | DF | 12~24V AC / 24V DC | 3-Wire 10V PWM | 1m 3-Core Anti-Siphon Cable | |||
| AQL-122-A4-X00427DFA | A4 - Basalt Aluminium 6000 Series |
4W | 250lm / 2700K | DF | 12~24V AC / 24V DC | 3-Wire 10V PWM | 1m 3-Core Anti-Siphon Cable | |||
| AQL-122-A8-X00430DFA | A8 - White Aluminium 6000 Series |
4W | 250lm / 3000K | DF | 12~24V AC / 24V DC | 3-Wire 10V PWM | 1m 3-Core Anti-Siphon Cable | |||
| AQL-122-A8-X00427DFA | A8 - White Aluminium 6000 Series |
4W | 250lm / 2700K | DF | 12~24V AC / 24V DC | 3-Wire 10V PWM | 1m 3-Core Anti-Siphon Cable |
