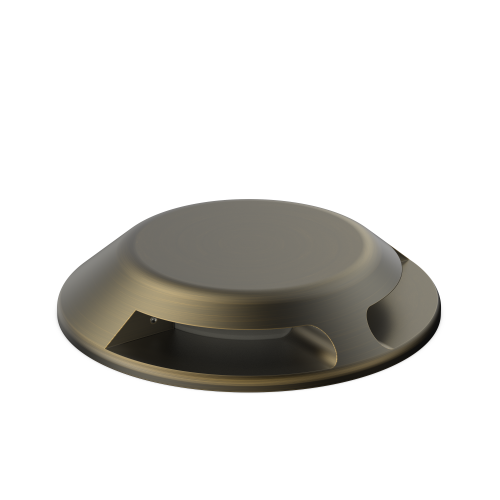

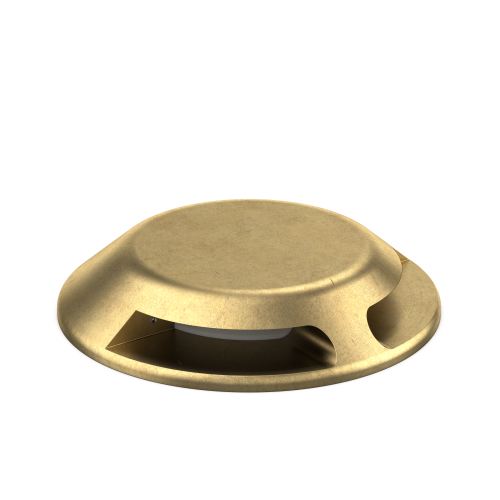

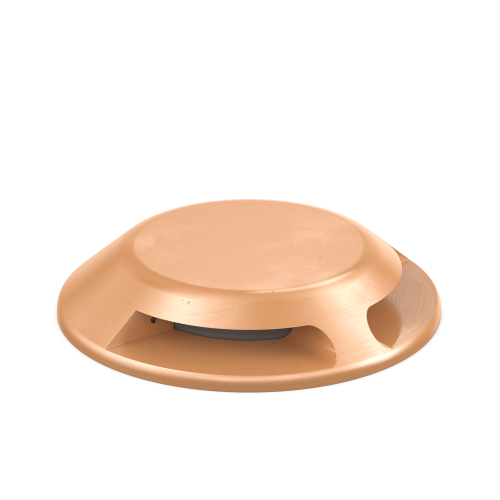

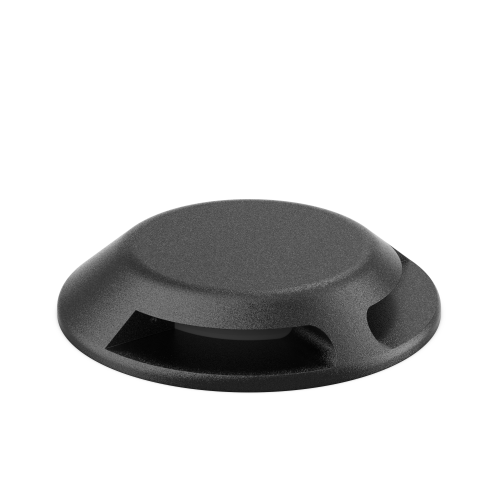

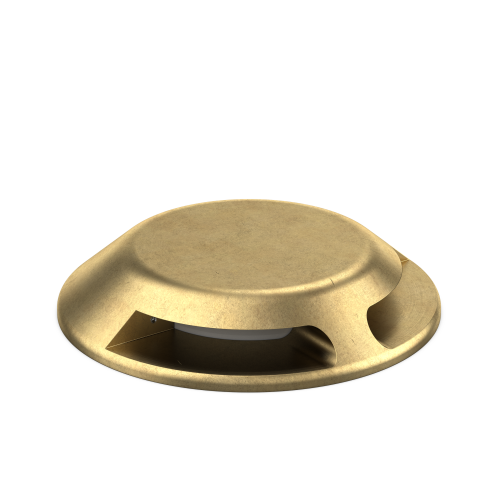

Phoenix
AQL-565
Runway light
Introduction

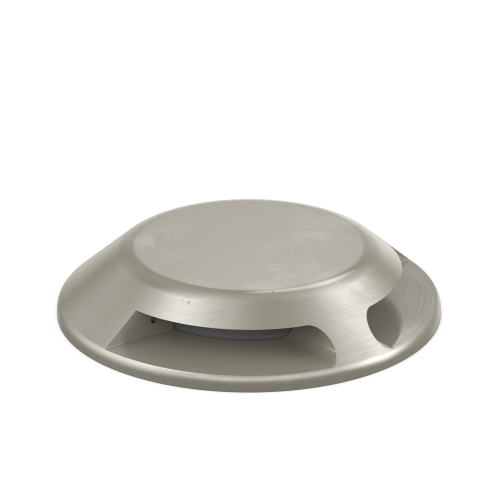

The AQL-565 is a stylish surface mount runway light with 180° spread. IK10 rating. 24V DC only.
Specification
AQL-565
Phoenix
Solid Cast Brass
900mm Aqualux 2-Core Silicone / PTFE Cable
7 Year Aqualux Warranty
IP65
Configure order code
AQL-565
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQL-565 - has 15 variations
Product Code
Downloads
Body
Rated Power
Light Source
Optical
Control Gear
Dimming
Cable
Downloads
AQL-565-B1-B00830DFS
B1 - Brushed Chrome
Brass
8W
600lm /
3000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-565-B1-B00827DFS
B1 - Brushed Chrome
Brass
8W
600lm /
2700K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-565-B1-B00840DFS
B1 - Brushed Chrome
Brass
8W
640lm /
4000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-565-B2-B00830DFS

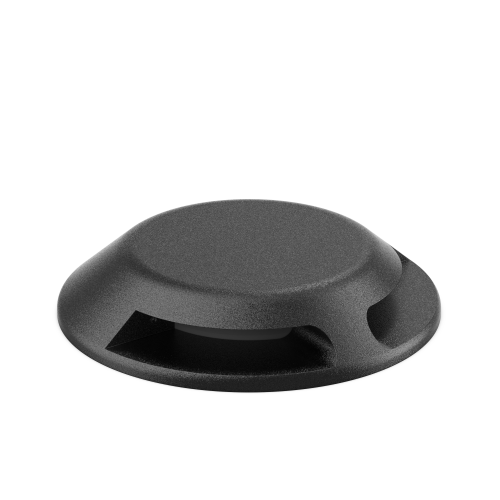

B2 - Black
Brass
8W
600lm /
3000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-565-B2-B00827DFS
B2 - Black
Brass
8W
600lm /
2700K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-565-B2-B00840DFS
B2 - Black
Brass
8W
640lm /
4000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-565-B3-B00830DFS
B3 - Aged Brass
Brass
8W
600lm /
3000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-565-B3-B00827DFS
B3 - Aged Brass
Brass
8W
600lm /
2700K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-565-B3-B00840DFS
B3 - Aged Brass
Brass
8W
640lm /
4000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-565-B5-B00830DFS

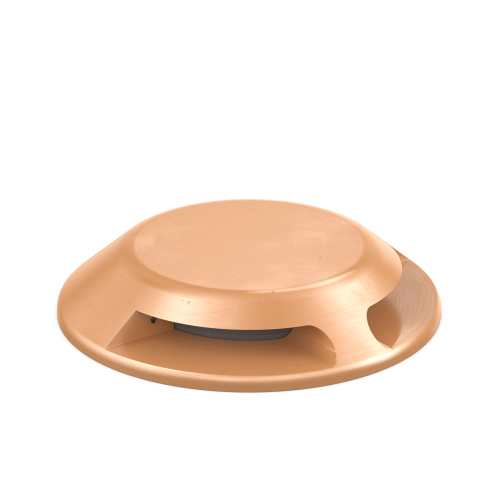

B5 - Brushed Copper
Brass
8W
600lm /
3000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-565-B5-B00827DFS
B5 - Brushed Copper
Brass
8W
600lm /
2700K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-565-B5-B00840DFS
B5 - Brushed Copper
Brass
8W
640lm /
4000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-565-B6-B00830DFS
B6 - Natural Waxed
Brass
8W
600lm /
3000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-565-B6-B00827DFS
B6 - Natural Waxed
Brass
8W
600lm /
2700K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
AQL-565-B6-B00840DFS
B6 - Natural Waxed
Brass
8W
640lm /
4000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
500mm 3-Core Standard Cable
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQL-565 - has 15 variations
| Product Code | Downloads | Body | Rated Power | Light Source | Optical | Control Gear | Dimming | Cable | Downloads | |
|---|---|---|---|---|---|---|---|---|---|---|
| AQL-565-B1-B00830DFS | B1 - Brushed Chrome Brass |
8W | 600lm / 3000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-565-B1-B00827DFS | B1 - Brushed Chrome Brass |
8W | 600lm / 2700K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-565-B1-B00840DFS | B1 - Brushed Chrome Brass |
8W | 640lm / 4000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-565-B2-B00830DFS | B2 - Black Brass |
8W | 600lm / 3000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-565-B2-B00827DFS | B2 - Black Brass |
8W | 600lm / 2700K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-565-B2-B00840DFS | B2 - Black Brass |
8W | 640lm / 4000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-565-B3-B00830DFS | B3 - Aged Brass Brass |
8W | 600lm / 3000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-565-B3-B00827DFS | B3 - Aged Brass Brass |
8W | 600lm / 2700K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-565-B3-B00840DFS | B3 - Aged Brass Brass |
8W | 640lm / 4000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-565-B5-B00830DFS | B5 - Brushed Copper Brass |
8W | 600lm / 3000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-565-B5-B00827DFS | B5 - Brushed Copper Brass |
8W | 600lm / 2700K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-565-B5-B00840DFS | B5 - Brushed Copper Brass |
8W | 640lm / 4000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-565-B6-B00830DFS | B6 - Natural Waxed Brass |
8W | 600lm / 3000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-565-B6-B00827DFS | B6 - Natural Waxed Brass |
8W | 600lm / 2700K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable | |||
| AQL-565-B6-B00840DFS | B6 - Natural Waxed Brass |
8W | 640lm / 4000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 500mm 3-Core Standard Cable |
