Introduction

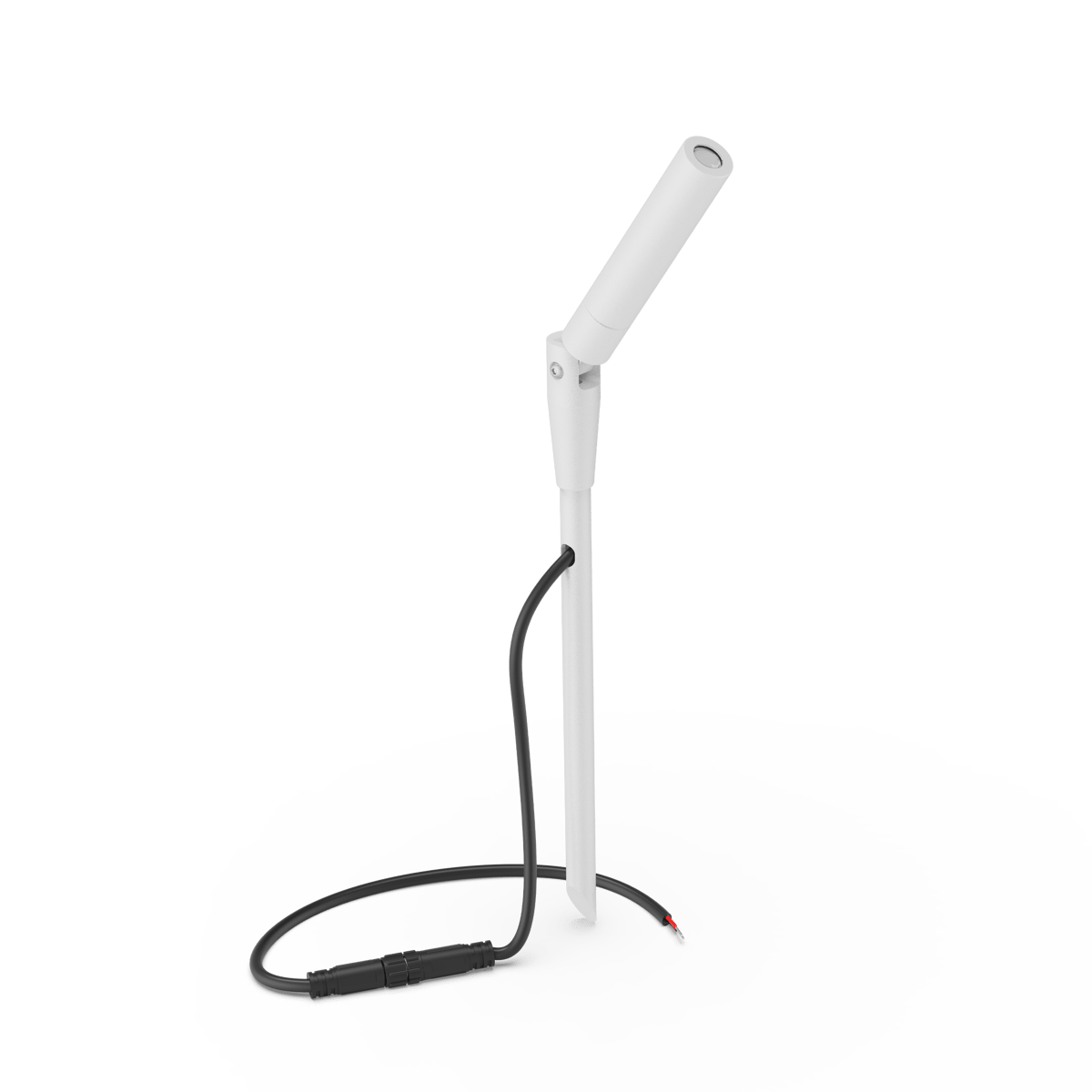

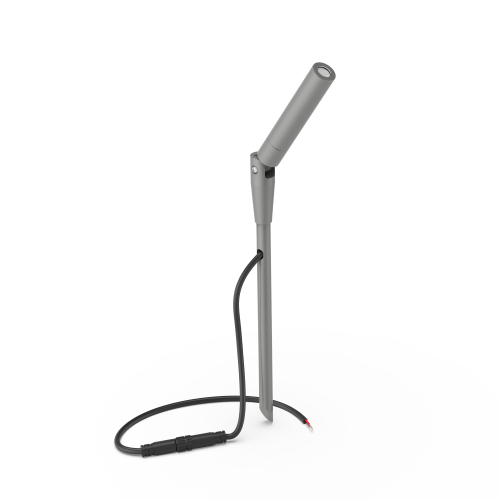

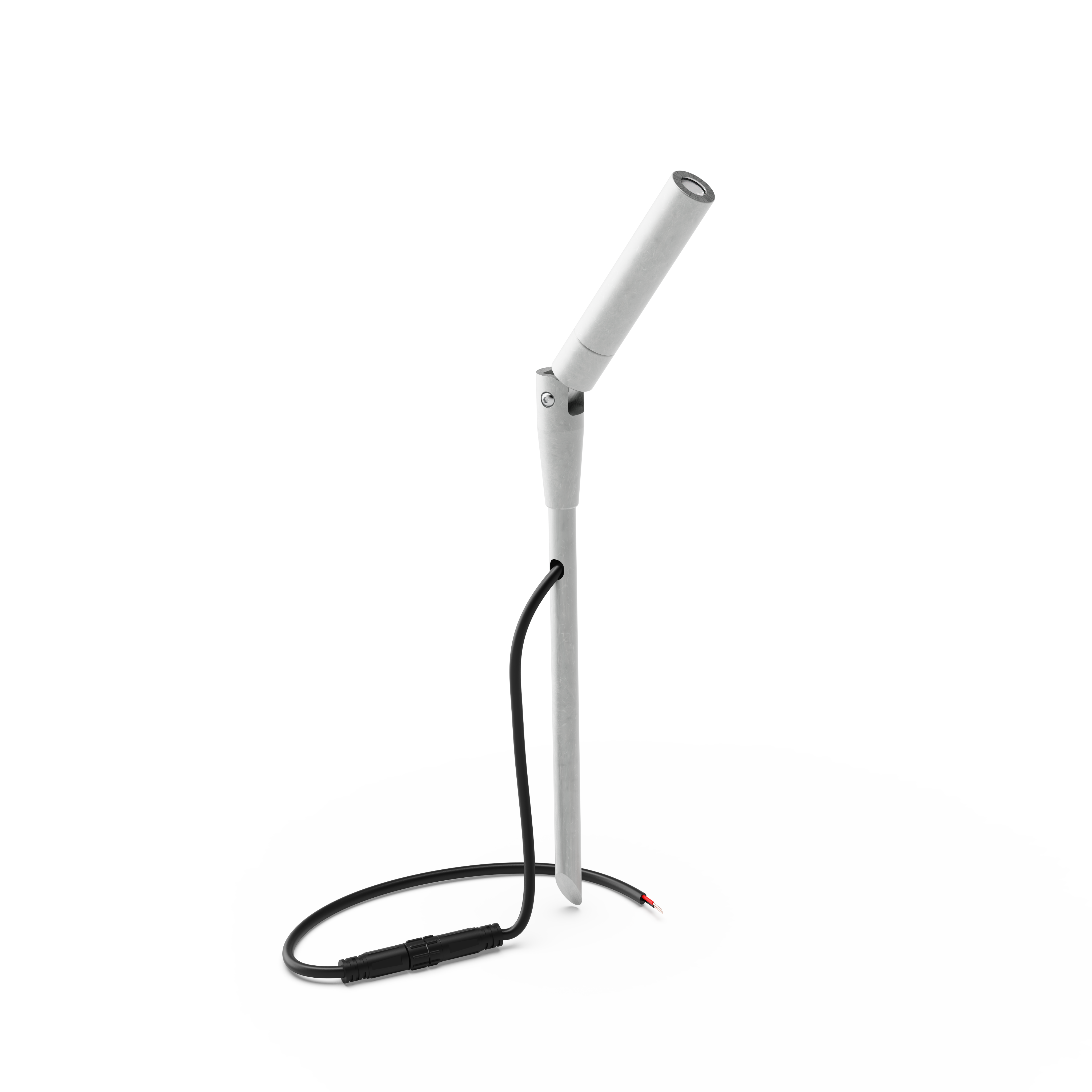

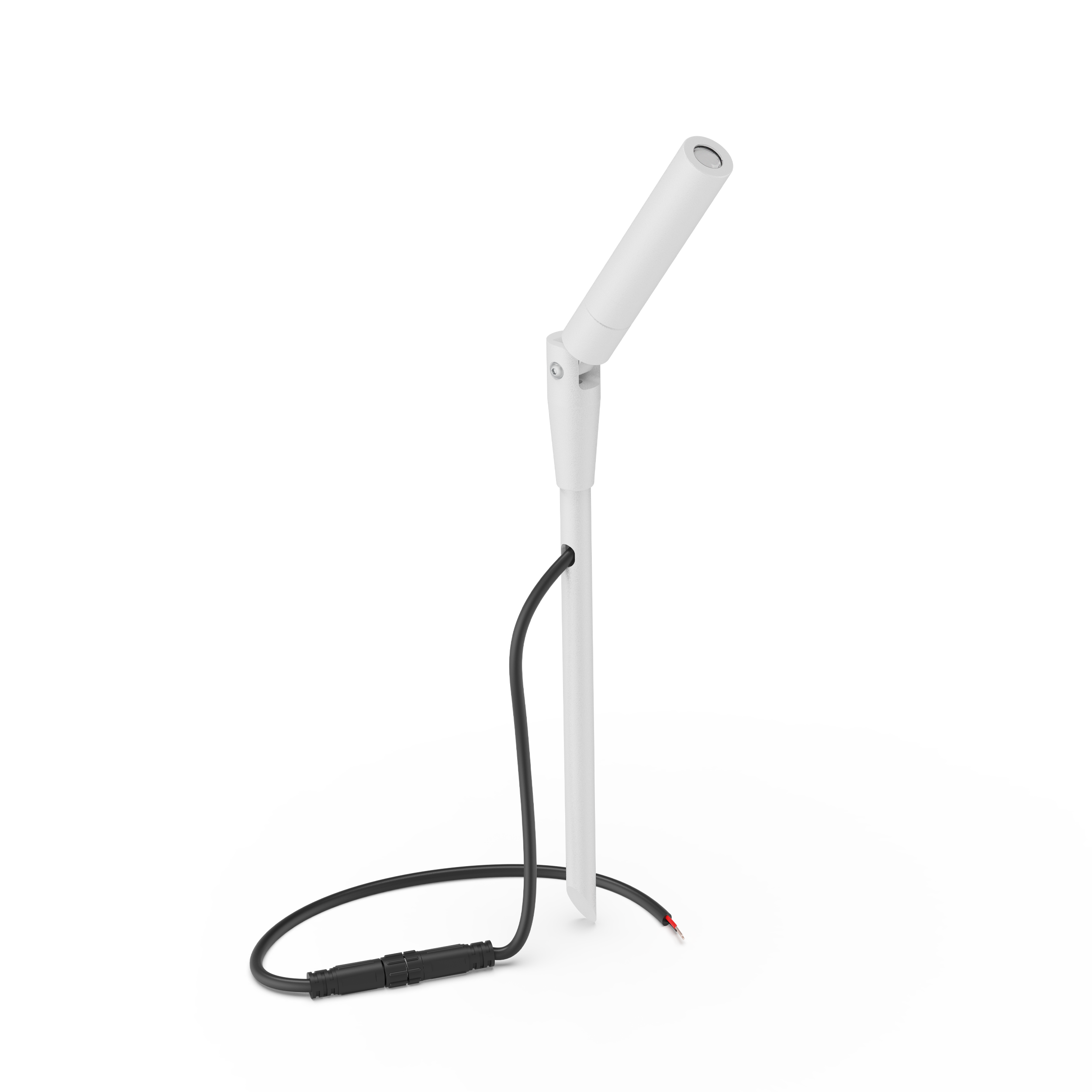

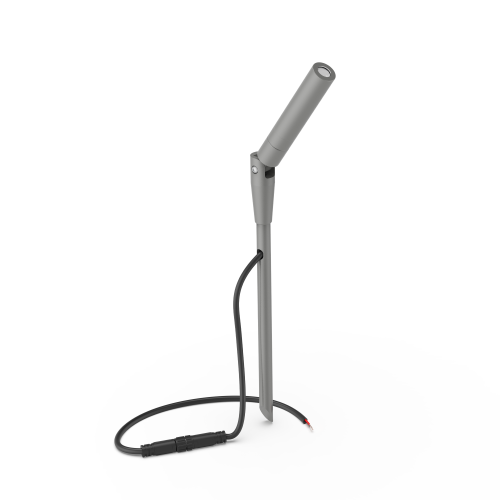

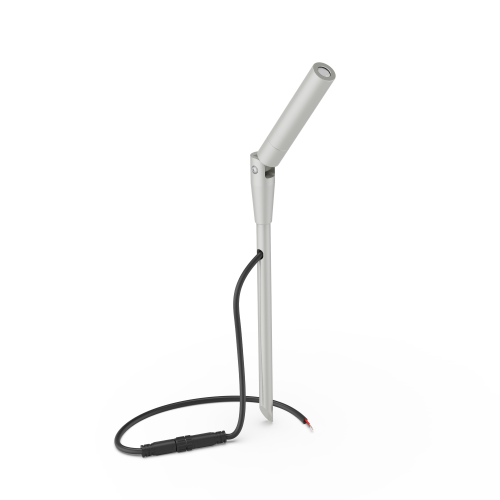

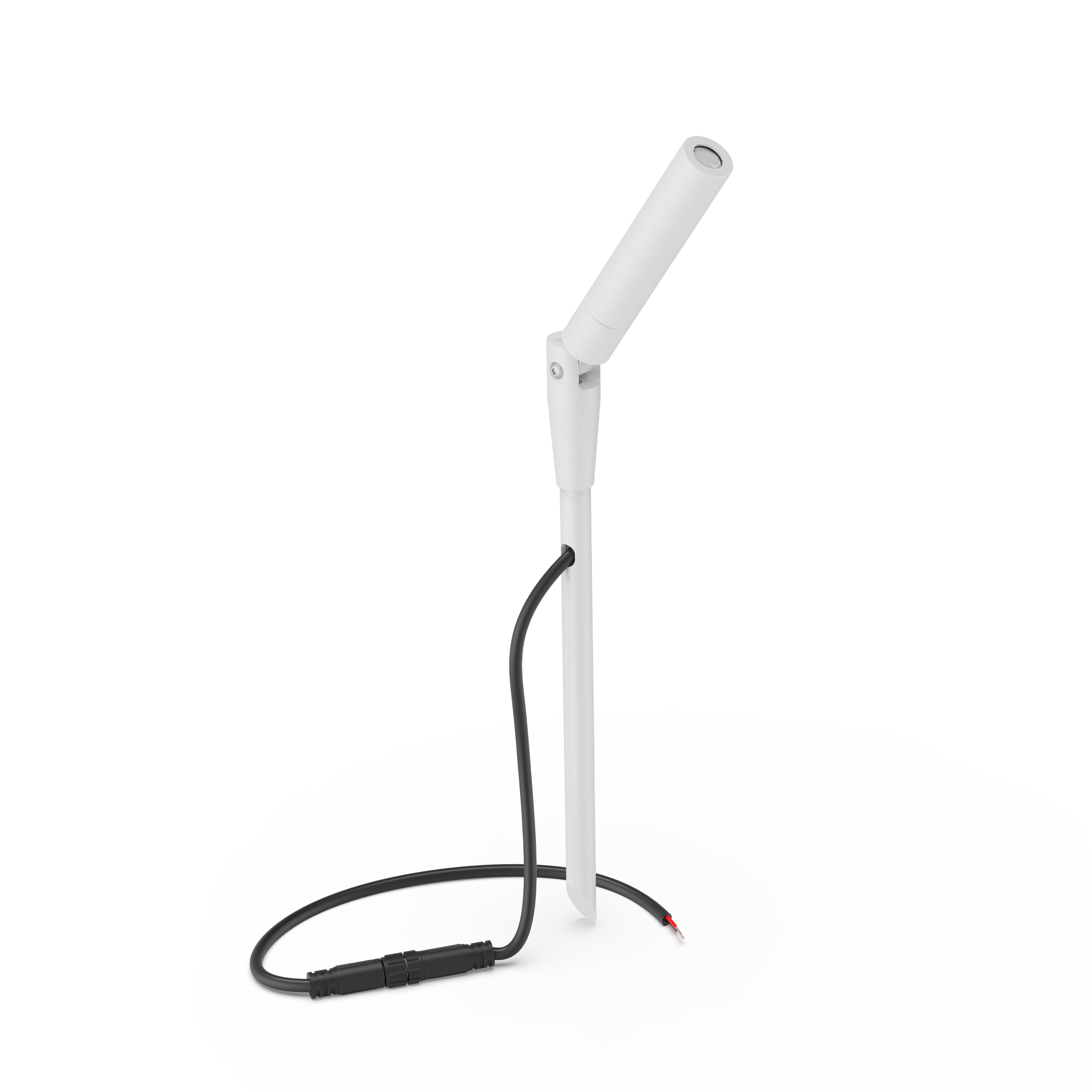

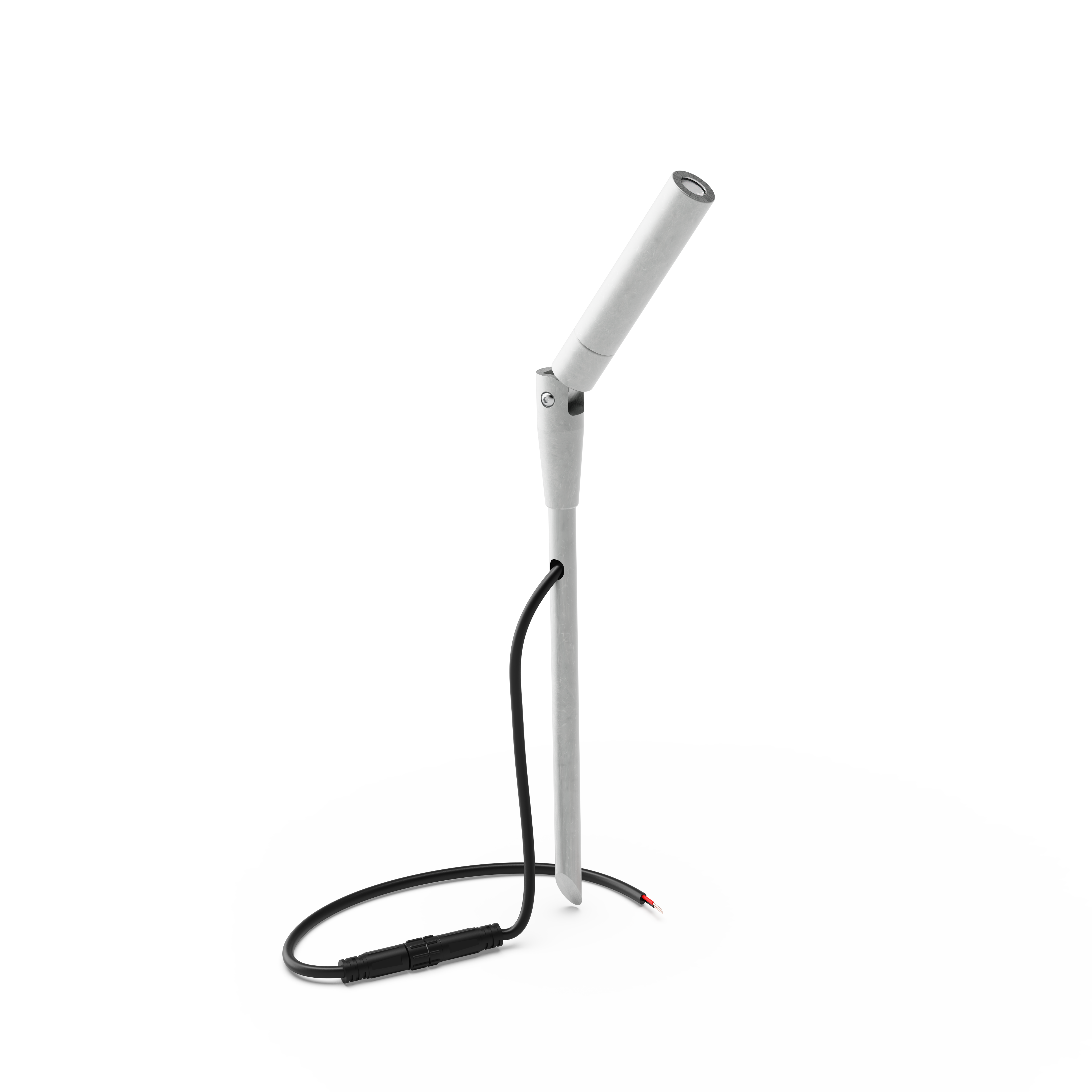

The pencil-thin micro-sized adjustable Aluminium spike light is perfect for planter boxes and anywhere discrete that requires a spotlight with beam angle options.



Specification

AQL-116

Lumena

CNC Machined Aluminium

5 Year Aqualux Warranty

IP65

Options

Body

  • Satin Chrome Anodize

    Aluminium 6000 Series

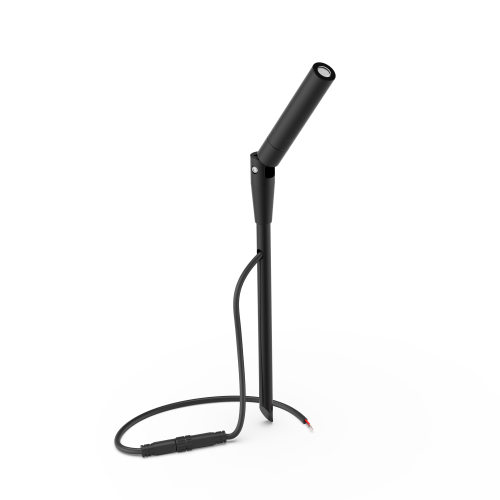

  • Black Ace

    Aluminium 6000 Series

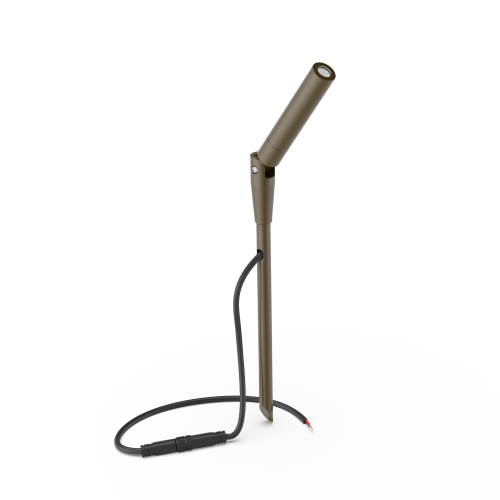

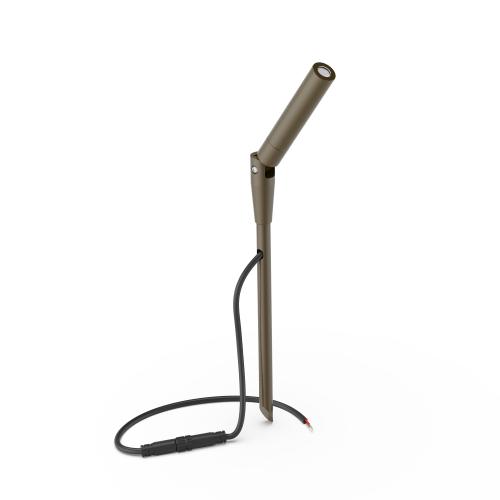

  • Medium Bronze

    Aluminium 6000 Series

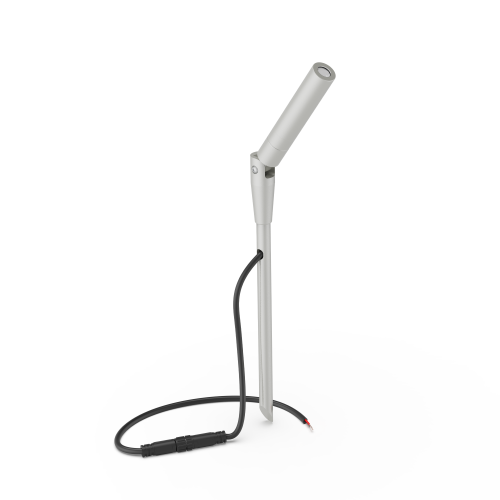

  • Venerable Silver

    Aluminium 6000 Series

Control Gear

  • 12~24V AC / 24V DC

    Dimming: Optional 10V PWM (DC)

Light Sources

  • 2W / 150lm

    3000k / 500mA

  • 2W / 150lm

    2700k / 500mA

  • 2W / 150lm

    5700k / 500mA

  • 2W / 080lm

    Red / 500mA

  • 2W / 080lm

    Green / 500mA

  • 2W / 080lm

    Blue / 500mA

Optical

  • Wide (50°)

    50

  • Flood (70°)

    70

  • Medium (30°)

    30

  • Narrow (15°)

    15

Cable

  • Q

    AqualuxPLUS QuickConnect

Configure order code

AQL-116

To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.

AQL-116 - You have 96 variations with this product

Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
AQL-116-A3-X002RD50Q
Medium Bronze
Aluminium 6000 Series
2W 080lm / Red / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X002BU15Q
Medium Bronze
Aluminium 6000 Series
2W 080lm / Blue / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X002BU30Q
Medium Bronze
Aluminium 6000 Series
2W 080lm / Blue / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X002BU70Q
Medium Bronze
Aluminium 6000 Series
2W 080lm / Blue / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X002BU50Q
Medium Bronze
Aluminium 6000 Series
2W 080lm / Blue / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X002GN15Q
Medium Bronze
Aluminium 6000 Series
2W 080lm / Green / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X002GN30Q
Medium Bronze
Aluminium 6000 Series
2W 080lm / Green / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X002GN70Q
Medium Bronze
Aluminium 6000 Series
2W 080lm / Green / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X002GN50Q
Medium Bronze
Aluminium 6000 Series
2W 080lm / Green / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X002RD15Q
Medium Bronze
Aluminium 6000 Series
2W 080lm / Red / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X002RD30Q
Medium Bronze
Aluminium 6000 Series
2W 080lm / Red / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X002RD70Q
Medium Bronze
Aluminium 6000 Series
2W 080lm / Red / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X0023050Q
Venerable Silver
Aluminium 6000 Series
2W 150lm / 3000k / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X0025715Q
Medium Bronze
Aluminium 6000 Series
2W 150lm / 5700k / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X0025730Q
Medium Bronze
Aluminium 6000 Series
2W 150lm / 5700k / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X0025770Q
Medium Bronze
Aluminium 6000 Series
2W 150lm / 5700k / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X0025750Q
Medium Bronze
Aluminium 6000 Series
2W 150lm / 5700k / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X0022715Q
Medium Bronze
Aluminium 6000 Series
2W 150lm / 2700k / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X0022730Q
Medium Bronze
Aluminium 6000 Series
2W 150lm / 2700k / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X0022770Q
Medium Bronze
Aluminium 6000 Series
2W 150lm / 2700k / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X0022750Q
Medium Bronze
Aluminium 6000 Series
2W 150lm / 2700k / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X0023015Q
Medium Bronze
Aluminium 6000 Series
2W 150lm / 3000k / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X0023030Q
Medium Bronze
Aluminium 6000 Series
2W 150lm / 3000k / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X0023070Q
Medium Bronze
Aluminium 6000 Series
2W 150lm / 3000k / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X002RD50Q
Venerable Silver
Aluminium 6000 Series
2W 080lm / Red / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X002BU15Q
Venerable Silver
Aluminium 6000 Series
2W 080lm / Blue / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X002BU30Q
Venerable Silver
Aluminium 6000 Series
2W 080lm / Blue / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X002BU70Q
Venerable Silver
Aluminium 6000 Series
2W 080lm / Blue / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X002BU50Q
Venerable Silver
Aluminium 6000 Series
2W 080lm / Blue / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X002GN15Q
Venerable Silver
Aluminium 6000 Series
2W 080lm / Green / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X002GN30Q
Venerable Silver
Aluminium 6000 Series
2W 080lm / Green / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X002GN70Q
Venerable Silver
Aluminium 6000 Series
2W 080lm / Green / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X002GN50Q
Venerable Silver
Aluminium 6000 Series
2W 080lm / Green / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X002RD15Q
Venerable Silver
Aluminium 6000 Series
2W 080lm / Red / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X002RD30Q
Venerable Silver
Aluminium 6000 Series
2W 080lm / Red / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X002RD70Q
Venerable Silver
Aluminium 6000 Series
2W 080lm / Red / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A3-X0023050Q
Medium Bronze
Aluminium 6000 Series
2W 150lm / 3000k / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X0025715Q
Venerable Silver
Aluminium 6000 Series
2W 150lm / 5700k / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X0025730Q
Venerable Silver
Aluminium 6000 Series
2W 150lm / 5700k / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X0025770Q
Venerable Silver
Aluminium 6000 Series
2W 150lm / 5700k / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X0025750Q
Venerable Silver
Aluminium 6000 Series
2W 150lm / 5700k / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X0022715Q
Venerable Silver
Aluminium 6000 Series
2W 150lm / 2700k / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X0022730Q
Venerable Silver
Aluminium 6000 Series
2W 150lm / 2700k / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X0022770Q
Venerable Silver
Aluminium 6000 Series
2W 150lm / 2700k / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X0022750Q
Venerable Silver
Aluminium 6000 Series
2W 150lm / 2700k / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X0023015Q
Venerable Silver
Aluminium 6000 Series
2W 150lm / 3000k / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X0023030Q
Venerable Silver
Aluminium 6000 Series
2W 150lm / 3000k / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A4-X0023070Q
Venerable Silver
Aluminium 6000 Series
2W 150lm / 3000k / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X002RD50Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 080lm / Red / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X002BU15Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 080lm / Blue / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X002BU30Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 080lm / Blue / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X002BU70Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 080lm / Blue / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X002BU50Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 080lm / Blue / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X002GN15Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 080lm / Green / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X002GN30Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 080lm / Green / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X002GN70Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 080lm / Green / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X002GN50Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 080lm / Green / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X002RD15Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 080lm / Red / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X002RD30Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 080lm / Red / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X002RD70Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 080lm / Red / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X0023050Q
Black Ace
Aluminium 6000 Series
2W 150lm / 3000k / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X0025715Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 150lm / 5700k / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X0025730Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 150lm / 5700k / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X0025770Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 150lm / 5700k / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X0025750Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 150lm / 5700k / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X0022715Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 150lm / 2700k / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X0022730Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 150lm / 2700k / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X0022770Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 150lm / 2700k / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X0022750Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 150lm / 2700k / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X0023015Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 150lm / 3000k / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X0023030Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 150lm / 3000k / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X0023070Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 150lm / 3000k / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X002RD50Q
Black Ace
Aluminium 6000 Series
2W 080lm / Red / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X002BU15Q
Black Ace
Aluminium 6000 Series
2W 080lm / Blue / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X002BU30Q
Black Ace
Aluminium 6000 Series
2W 080lm / Blue / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X002BU70Q
Black Ace
Aluminium 6000 Series
2W 080lm / Blue / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X002BU50Q
Black Ace
Aluminium 6000 Series
2W 080lm / Blue / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X002GN15Q
Black Ace
Aluminium 6000 Series
2W 080lm / Green / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X002GN30Q
Black Ace
Aluminium 6000 Series
2W 080lm / Green / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X002GN70Q
Black Ace
Aluminium 6000 Series
2W 080lm / Green / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X002GN50Q
Black Ace
Aluminium 6000 Series
2W 080lm / Green / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X002RD15Q
Black Ace
Aluminium 6000 Series
2W 080lm / Red / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X002RD30Q
Black Ace
Aluminium 6000 Series
2W 080lm / Red / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X002RD70Q
Black Ace
Aluminium 6000 Series
2W 080lm / Red / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A1-X0023050Q
Satin Chrome Anodize
Aluminium 6000 Series
2W 150lm / 3000k / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X0025715Q
Black Ace
Aluminium 6000 Series
2W 150lm / 5700k / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X0025730Q
Black Ace
Aluminium 6000 Series
2W 150lm / 5700k / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X0025770Q
Black Ace
Aluminium 6000 Series
2W 150lm / 5700k / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X0025750Q
Black Ace
Aluminium 6000 Series
2W 150lm / 5700k / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X0022715Q
Black Ace
Aluminium 6000 Series
2W 150lm / 2700k / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X0022730Q
Black Ace
Aluminium 6000 Series
2W 150lm / 2700k / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X0022770Q
Black Ace
Aluminium 6000 Series
2W 150lm / 2700k / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X0022750Q
Black Ace
Aluminium 6000 Series
2W 150lm / 2700k / 500mA 50 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X0023015Q
Black Ace
Aluminium 6000 Series
2W 150lm / 3000k / 500mA 15 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X0023030Q
Black Ace
Aluminium 6000 Series
2W 150lm / 3000k / 500mA 30 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect
AQL-116-A2-X0023070Q
Black Ace
Aluminium 6000 Series
2W 150lm / 3000k / 500mA 70 12~24V AC / 24V DC Optional 10V PWM (DC) AqualuxPLUS QuickConnect

Aqualux is introducing an updated product code structure throughout 2020. Quotes, invoices and other documents may reference the previous product code structure until we have completed this update.

Products that work well with your selection
