Phoenix
AQL-532
Hooded uplight
Introduction

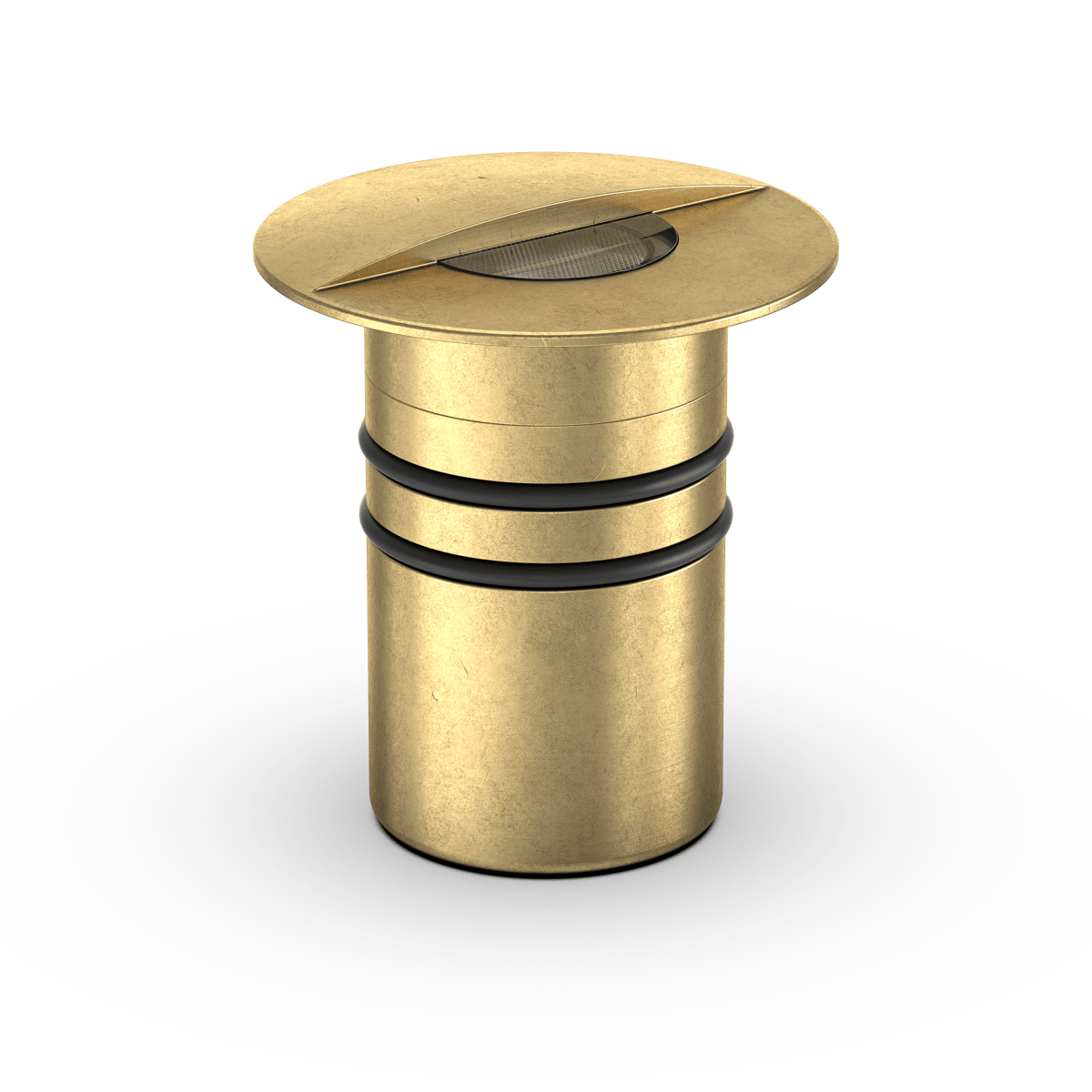

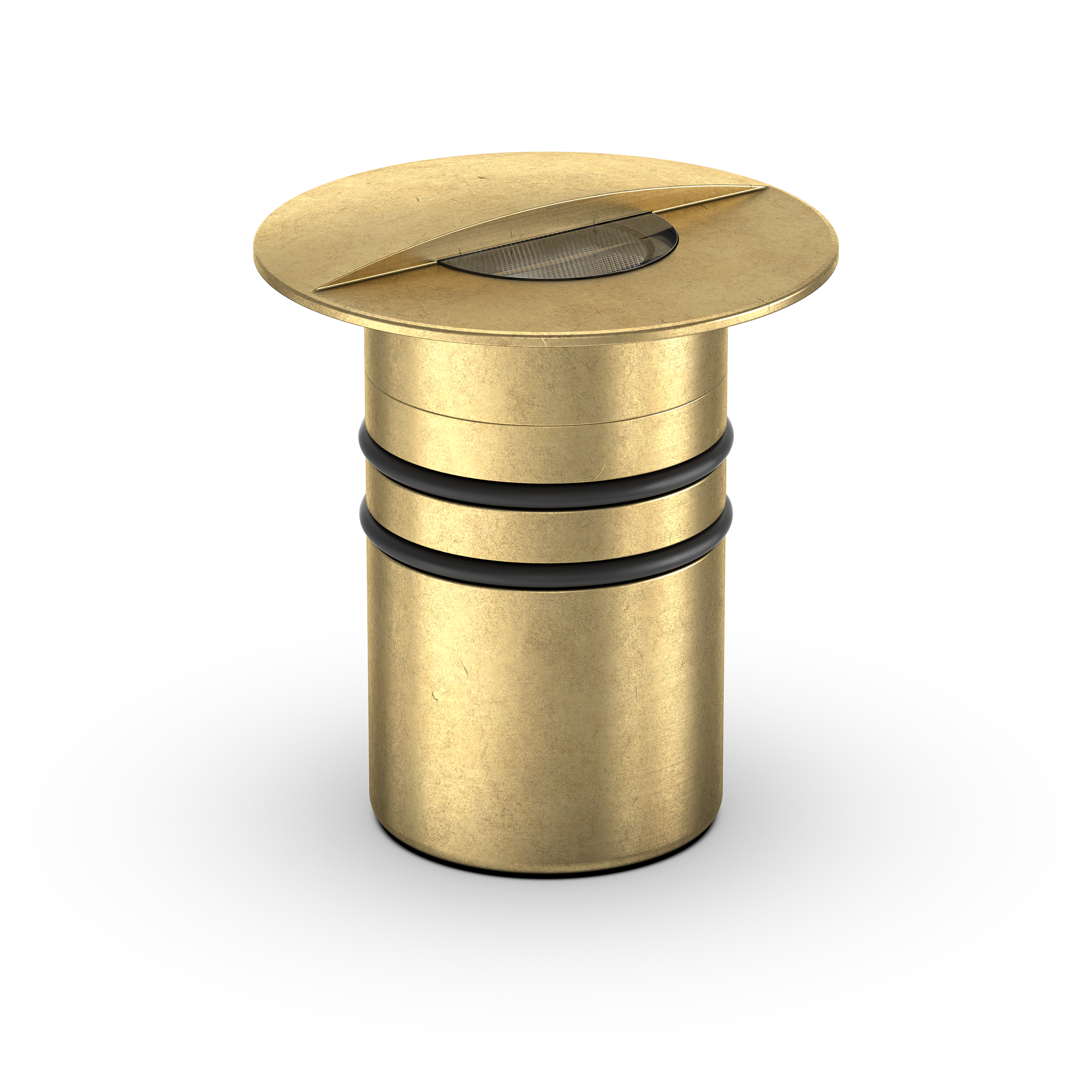

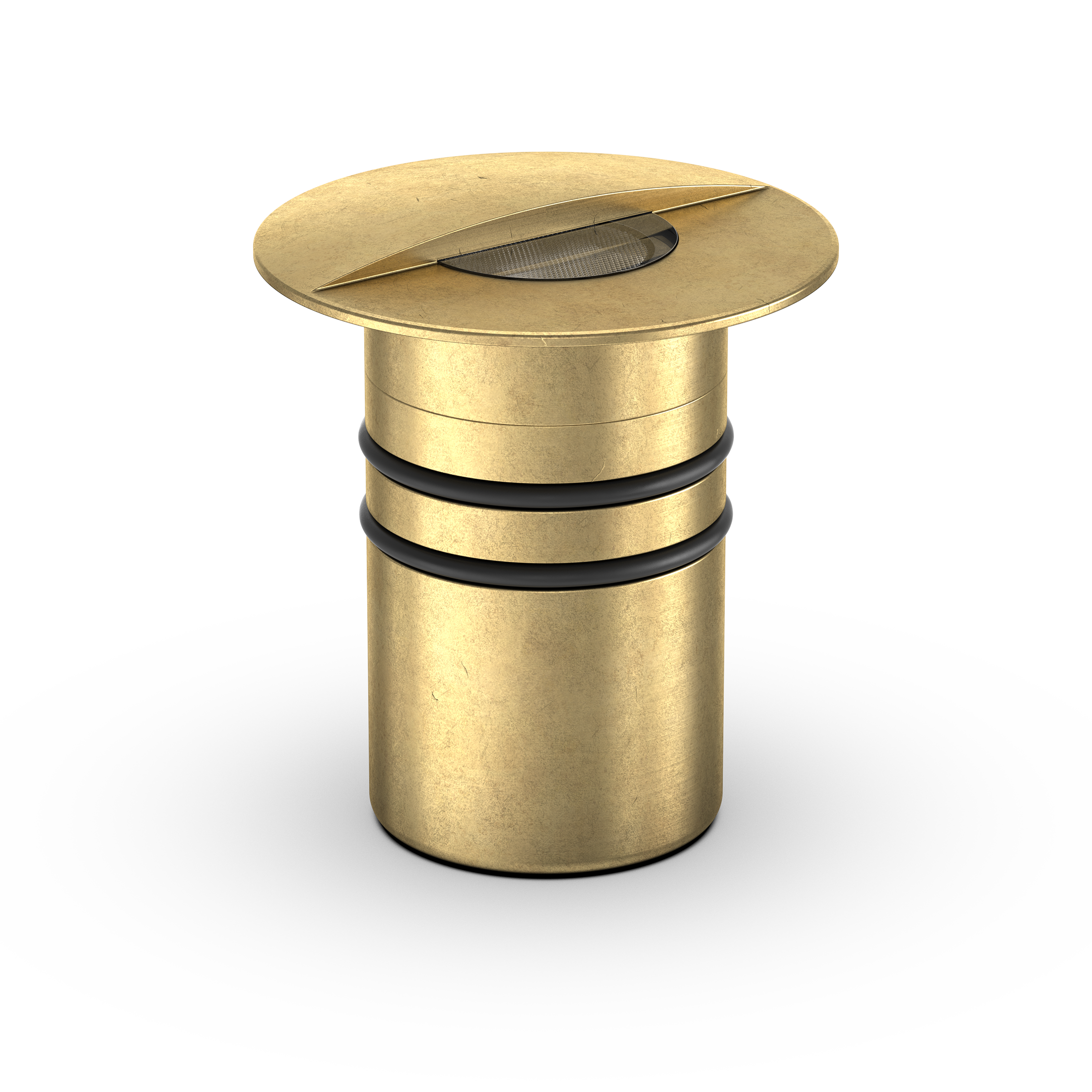

The AQL-532 is a hooded recessed uplight or wash light, suitable for a variety of application where reduced glare and minimal back-spill are desirable. Constructed from solid brass, the AQL-532 has an integrated asymmetric optic the angles the light towards the illuminated surface, increasing efficacy and further reducing glare.
Specification
AQL-532
Phoenix
CNC Machined Brass
1M Aqualux PLUS QuickConnect
7 Year Aqualux Warranty
IP65
4w only
Configure order code
AQL-532
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQL-532 - has 15 variations
Product Code
Downloads
Body
Rated Power
Light Source
Optical
Control Gear
Dimming
Cable
Downloads
AQL-532-B1-X00430A1A

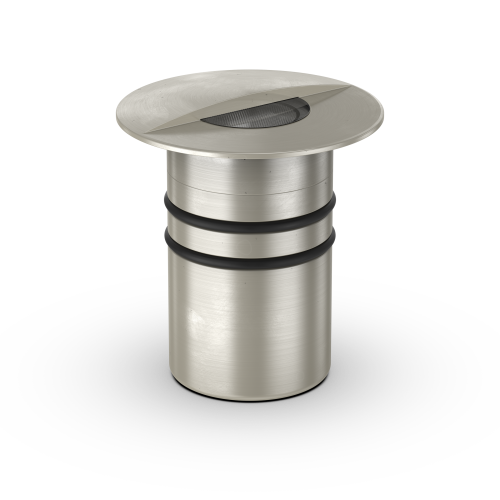

B1 - Brushed Chrome
Brass
4W
300lm /
3000K
A1
12~24V AC / 24V DC
3-Wire 10V PWM
500mm 3-Core Anti-Siphon Cable
AQL-532-B1-X00427A1A
B1 - Brushed Chrome
Brass
4W
300lm /
2700K
A1
12~24V AC / 24V DC
3-Wire 10V PWM
500mm 3-Core Anti-Siphon Cable
AQL-532-B1-X00440A1A
B1 - Brushed Chrome
Brass
4W
320lm /
4000K
A1
12~24V AC / 24V DC
3-Wire 10V PWM
500mm 3-Core Anti-Siphon Cable
AQL-532-B2-X00430A1A

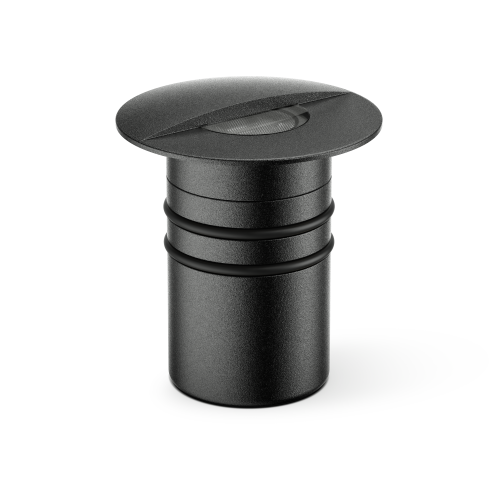

B2 - Black
Brass
4W
300lm /
3000K
A1
12~24V AC / 24V DC
3-Wire 10V PWM
500mm 3-Core Anti-Siphon Cable
AQL-532-B2-X00427A1A
B2 - Black
Brass
4W
300lm /
2700K
A1
12~24V AC / 24V DC
3-Wire 10V PWM
500mm 3-Core Anti-Siphon Cable
AQL-532-B2-X00440A1A
B2 - Black
Brass
4W
320lm /
4000K
A1
12~24V AC / 24V DC
3-Wire 10V PWM
500mm 3-Core Anti-Siphon Cable
AQL-532-B3-X00430A1A
B3 - Aged Brass
Brass
4W
300lm /
3000K
A1
12~24V AC / 24V DC
3-Wire 10V PWM
500mm 3-Core Anti-Siphon Cable
AQL-532-B3-X00427A1A
B3 - Aged Brass
Brass
4W
300lm /
2700K
A1
12~24V AC / 24V DC
3-Wire 10V PWM
500mm 3-Core Anti-Siphon Cable
AQL-532-B3-X00440A1A
B3 - Aged Brass
Brass
4W
320lm /
4000K
A1
12~24V AC / 24V DC
3-Wire 10V PWM
500mm 3-Core Anti-Siphon Cable
AQL-532-B5-X00430A1A

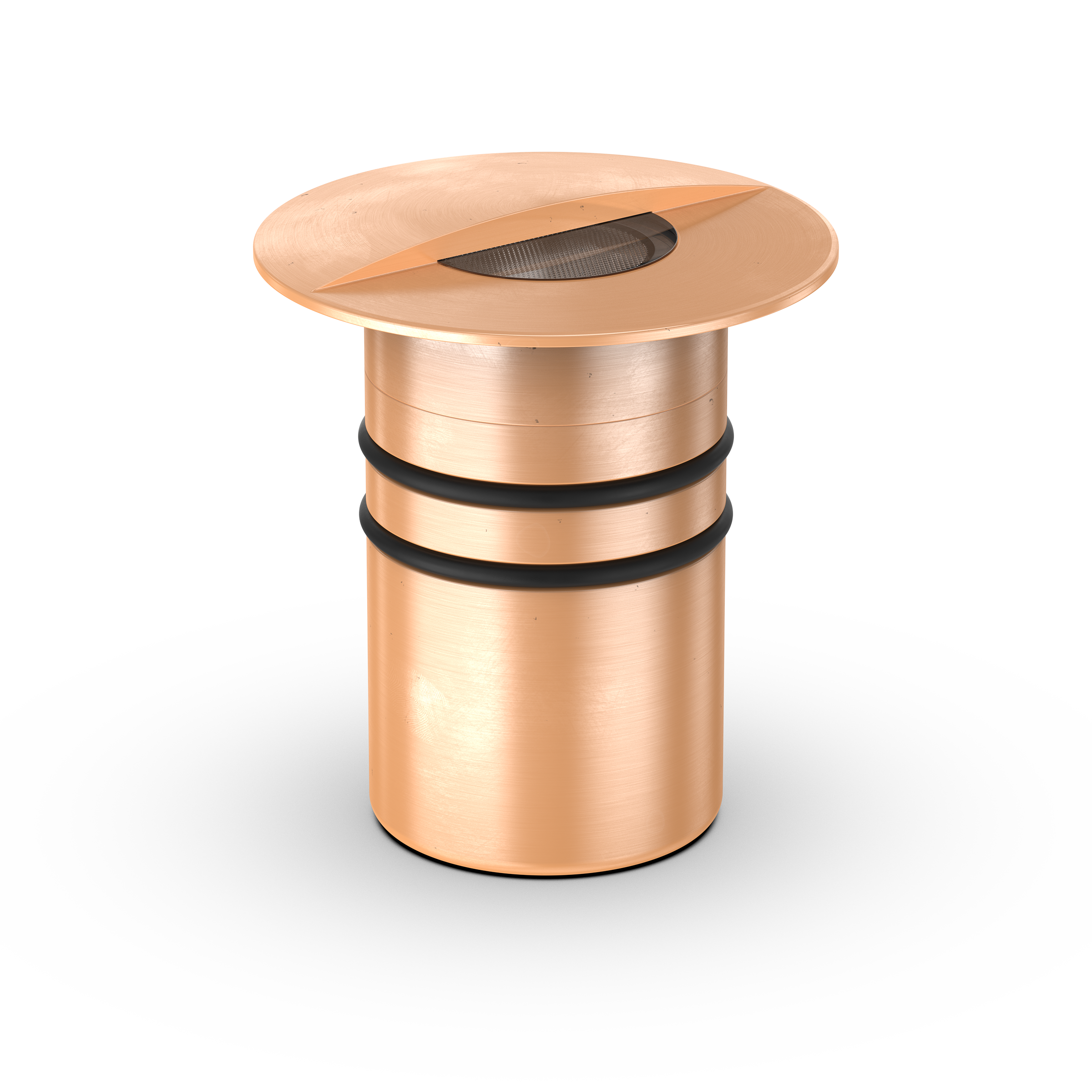

B5 - Brushed Copper
Brass
4W
300lm /
3000K
A1
12~24V AC / 24V DC
3-Wire 10V PWM
500mm 3-Core Anti-Siphon Cable
AQL-532-B5-X00427A1A
B5 - Brushed Copper
Brass
4W
300lm /
2700K
A1
12~24V AC / 24V DC
3-Wire 10V PWM
500mm 3-Core Anti-Siphon Cable
AQL-532-B5-X00440A1A
B5 - Brushed Copper
Brass
4W
320lm /
4000K
A1
12~24V AC / 24V DC
3-Wire 10V PWM
500mm 3-Core Anti-Siphon Cable
AQL-532-B6-X00430A1A
B6 - Natural Waxed
Brass
4W
300lm /
3000K
A1
12~24V AC / 24V DC
3-Wire 10V PWM
500mm 3-Core Anti-Siphon Cable
AQL-532-B6-X00427A1A
B6 - Natural Waxed
Brass
4W
300lm /
2700K
A1
12~24V AC / 24V DC
3-Wire 10V PWM
500mm 3-Core Anti-Siphon Cable
AQL-532-B6-X00440A1A
B6 - Natural Waxed
Brass
4W
320lm /
4000K
A1
12~24V AC / 24V DC
3-Wire 10V PWM
500mm 3-Core Anti-Siphon Cable
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQL-532 - has 15 variations
| Product Code | Downloads | Body | Rated Power | Light Source | Optical | Control Gear | Dimming | Cable | Downloads | |
|---|---|---|---|---|---|---|---|---|---|---|
| AQL-532-B1-X00430A1A | B1 - Brushed Chrome Brass |
4W | 300lm / 3000K | A1 | 12~24V AC / 24V DC | 3-Wire 10V PWM | 500mm 3-Core Anti-Siphon Cable | |||
| AQL-532-B1-X00427A1A | B1 - Brushed Chrome Brass |
4W | 300lm / 2700K | A1 | 12~24V AC / 24V DC | 3-Wire 10V PWM | 500mm 3-Core Anti-Siphon Cable | |||
| AQL-532-B1-X00440A1A | B1 - Brushed Chrome Brass |
4W | 320lm / 4000K | A1 | 12~24V AC / 24V DC | 3-Wire 10V PWM | 500mm 3-Core Anti-Siphon Cable | |||
| AQL-532-B2-X00430A1A | B2 - Black Brass |
4W | 300lm / 3000K | A1 | 12~24V AC / 24V DC | 3-Wire 10V PWM | 500mm 3-Core Anti-Siphon Cable | |||
| AQL-532-B2-X00427A1A | B2 - Black Brass |
4W | 300lm / 2700K | A1 | 12~24V AC / 24V DC | 3-Wire 10V PWM | 500mm 3-Core Anti-Siphon Cable | |||
| AQL-532-B2-X00440A1A | B2 - Black Brass |
4W | 320lm / 4000K | A1 | 12~24V AC / 24V DC | 3-Wire 10V PWM | 500mm 3-Core Anti-Siphon Cable | |||
| AQL-532-B3-X00430A1A | B3 - Aged Brass Brass |
4W | 300lm / 3000K | A1 | 12~24V AC / 24V DC | 3-Wire 10V PWM | 500mm 3-Core Anti-Siphon Cable | |||
| AQL-532-B3-X00427A1A | B3 - Aged Brass Brass |
4W | 300lm / 2700K | A1 | 12~24V AC / 24V DC | 3-Wire 10V PWM | 500mm 3-Core Anti-Siphon Cable | |||
| AQL-532-B3-X00440A1A | B3 - Aged Brass Brass |
4W | 320lm / 4000K | A1 | 12~24V AC / 24V DC | 3-Wire 10V PWM | 500mm 3-Core Anti-Siphon Cable | |||
| AQL-532-B5-X00430A1A | B5 - Brushed Copper Brass |
4W | 300lm / 3000K | A1 | 12~24V AC / 24V DC | 3-Wire 10V PWM | 500mm 3-Core Anti-Siphon Cable | |||
| AQL-532-B5-X00427A1A | B5 - Brushed Copper Brass |
4W | 300lm / 2700K | A1 | 12~24V AC / 24V DC | 3-Wire 10V PWM | 500mm 3-Core Anti-Siphon Cable | |||
| AQL-532-B5-X00440A1A | B5 - Brushed Copper Brass |
4W | 320lm / 4000K | A1 | 12~24V AC / 24V DC | 3-Wire 10V PWM | 500mm 3-Core Anti-Siphon Cable | |||
| AQL-532-B6-X00430A1A | B6 - Natural Waxed Brass |
4W | 300lm / 3000K | A1 | 12~24V AC / 24V DC | 3-Wire 10V PWM | 500mm 3-Core Anti-Siphon Cable | |||
| AQL-532-B6-X00427A1A | B6 - Natural Waxed Brass |
4W | 300lm / 2700K | A1 | 12~24V AC / 24V DC | 3-Wire 10V PWM | 500mm 3-Core Anti-Siphon Cable | |||
| AQL-532-B6-X00440A1A | B6 - Natural Waxed Brass |
4W | 320lm / 4000K | A1 | 12~24V AC / 24V DC | 3-Wire 10V PWM | 500mm 3-Core Anti-Siphon Cable |
