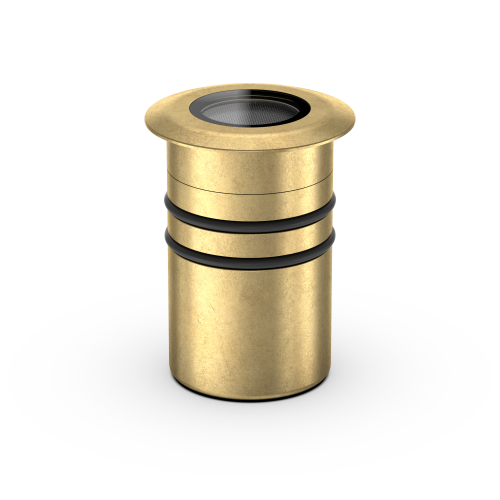

Phoenix

AQL-531

Inground Uplight

Specification

AQL-531

Phoenix

Solid Cast Brass

1M Aqualux PLUS QuickConnect

7 Year Aqualux Warranty

IP68

Options

Body

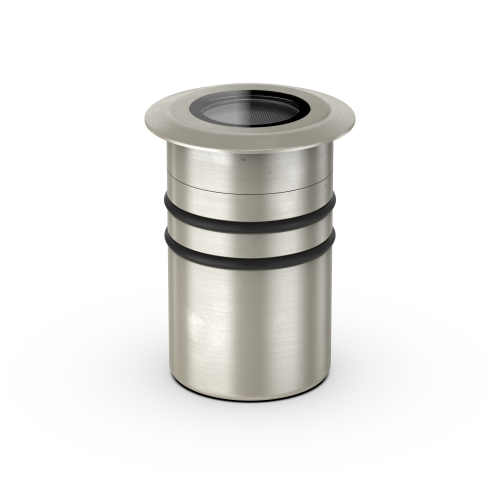

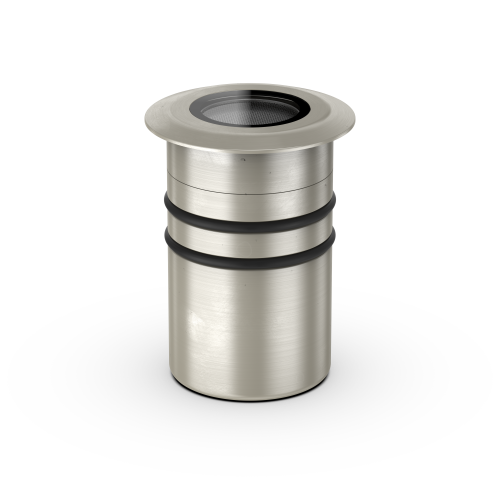

  • Brushed Chrome

    Brass

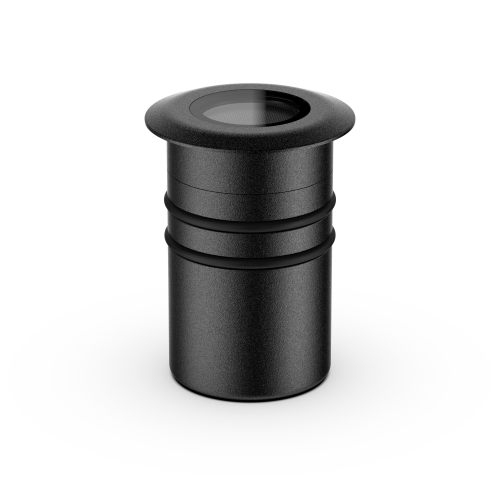

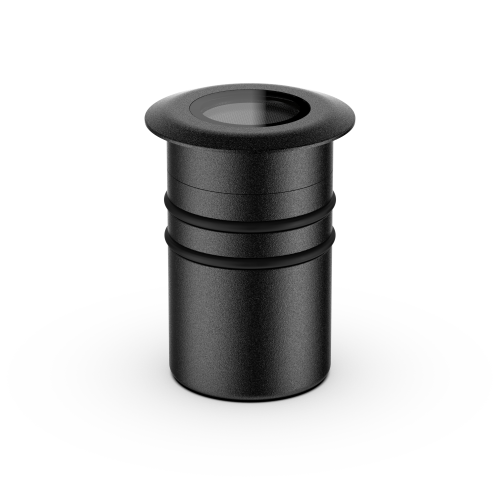

  • Black PC

    Brass

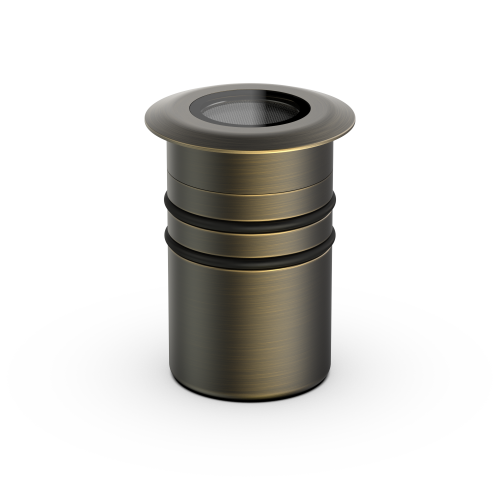

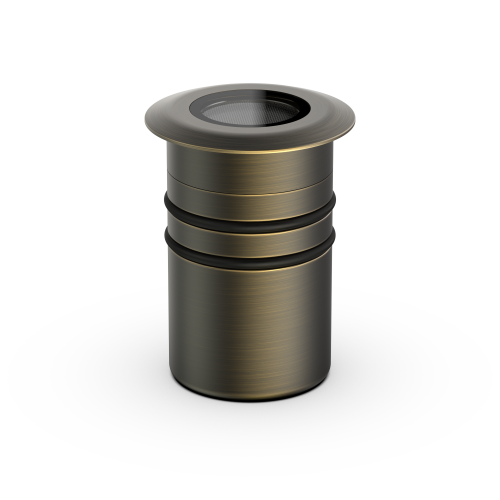

  • Aged Brass

    Brass

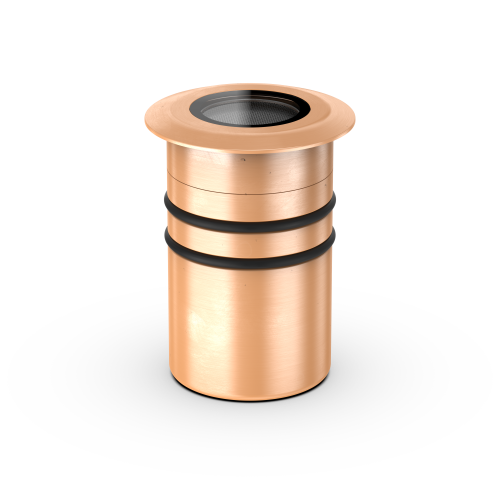

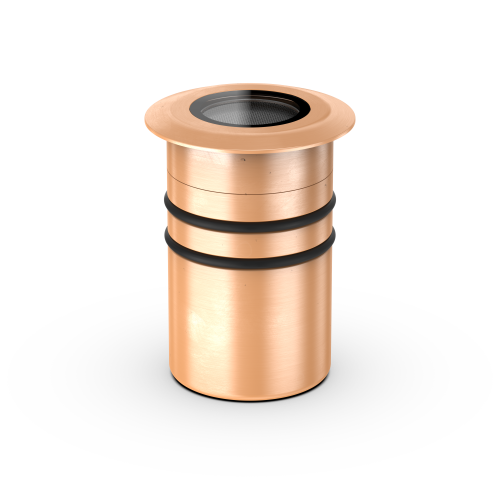

  • Copper

    Brass

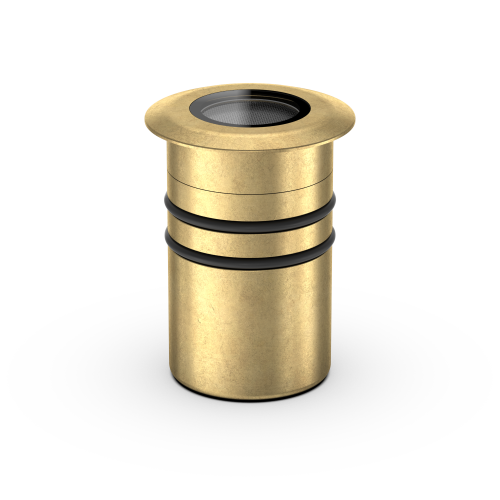

  • Natural Brass

    Brass

Control Gear

  • 12~24V AC / 24V DC

    Dimming: 3-Wire 10V PWM (DALI)

  • 24V DC RGBW

    Dimming: 4CH Low-Side PWM

Light Sources

  • 4W / 300lm

    3000K / 300mA

  • 7W / 550lm

    3000K / 550mA

  • 4W / 320lm

    5700K / 300mA

  • 7W / 600lm

    5700K / 550mA

  • 10W / 555lm

    RGB+3000K

  • 4W / 300lm

    2700K / 300mA

  • 7W / 550lm

    2700K / 550mA

Optical

  • Narrow (10°)

    10

  • Medium (25°)

    25

  • Wide (40°)

    40

  • Diffuse (Frosted)

    DF

  • Asymmetric / Billie Lens

    A2

Cable

  • Q

    AqualuxPLUS QuickConnect


Configure order code

AQL-531

To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.


AQL-531 - has 175 variations

Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
AQL-531-B1-X0043010Q
PDF
Brushed Chrome
Brass
4W 300lm / 3000K / 300mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X0043025Q
PDF
Brushed Chrome
Brass
4W 300lm / 3000K / 300mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X0043040Q
PDF
Brushed Chrome
Brass
4W 300lm / 3000K / 300mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X00430DFQ
PDF
Brushed Chrome
Brass
4W 300lm / 3000K / 300mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X00430A2Q
PDF
Brushed Chrome
Brass
4W 300lm / 3000K / 300mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X0073010Q
PDF
Brushed Chrome
Brass
7W 550lm / 3000K / 550mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X0073025Q
PDF
Brushed Chrome
Brass
7W 550lm / 3000K / 550mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X0073040Q
PDF
Brushed Chrome
Brass
7W 550lm / 3000K / 550mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X00730DFQ
PDF
Brushed Chrome
Brass
7W 550lm / 3000K / 550mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X00730A2Q
PDF
Brushed Chrome
Brass
7W 550lm / 3000K / 550mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X0045710Q
PDF
Brushed Chrome
Brass
4W 320lm / 5700K / 300mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X0045725Q
PDF
Brushed Chrome
Brass
4W 320lm / 5700K / 300mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X0045740Q
PDF
Brushed Chrome
Brass
4W 320lm / 5700K / 300mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X00457DFQ
PDF
Brushed Chrome
Brass
4W 320lm / 5700K / 300mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X00457A2Q
PDF
Brushed Chrome
Brass
4W 320lm / 5700K / 300mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X0075710Q
PDF
Brushed Chrome
Brass
7W 600lm / 5700K / 550mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X0075725Q
PDF
Brushed Chrome
Brass
7W 600lm / 5700K / 550mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X0075740Q
PDF
Brushed Chrome
Brass
7W 600lm / 5700K / 550mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X00757DFQ
PDF
Brushed Chrome
Brass
7W 600lm / 5700K / 550mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X00757A2Q
PDF
Brushed Chrome
Brass
7W 600lm / 5700K / 550mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X0042710Q
PDF
Brushed Chrome
Brass
4W 300lm / 2700K / 300mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X0042725Q
PDF
Brushed Chrome
Brass
4W 300lm / 2700K / 300mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X0042740Q
PDF
Brushed Chrome
Brass
4W 300lm / 2700K / 300mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X00427DFQ
PDF
Brushed Chrome
Brass
4W 300lm / 2700K / 300mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X00427A2Q
PDF
Brushed Chrome
Brass
4W 300lm / 2700K / 300mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X0072710Q
PDF
Brushed Chrome
Brass
7W 550lm / 2700K / 550mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X0072725Q
PDF
Brushed Chrome
Brass
7W 550lm / 2700K / 550mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X0072740Q
PDF
Brushed Chrome
Brass
7W 550lm / 2700K / 550mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X00727DFQ
PDF
Brushed Chrome
Brass
7W 550lm / 2700K / 550mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B1-X00727A2Q
PDF
Brushed Chrome
Brass
7W 550lm / 2700K / 550mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X0043010Q
PDF
Black PC
Brass
4W 300lm / 3000K / 300mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X0043025Q
PDF
Black PC
Brass
4W 300lm / 3000K / 300mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X0043040Q
PDF
Black PC
Brass
4W 300lm / 3000K / 300mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X00430DFQ
PDF
Black PC
Brass
4W 300lm / 3000K / 300mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X00430A2Q
PDF
Black PC
Brass
4W 300lm / 3000K / 300mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X0073010Q
PDF
Black PC
Brass
7W 550lm / 3000K / 550mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X0073025Q
PDF
Black PC
Brass
7W 550lm / 3000K / 550mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X0073040Q
PDF
Black PC
Brass
7W 550lm / 3000K / 550mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X00730DFQ
PDF
Black PC
Brass
7W 550lm / 3000K / 550mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X00730A2Q
PDF
Black PC
Brass
7W 550lm / 3000K / 550mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X0045710Q
PDF
Black PC
Brass
4W 320lm / 5700K / 300mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X0045725Q
PDF
Black PC
Brass
4W 320lm / 5700K / 300mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X0045740Q
PDF
Black PC
Brass
4W 320lm / 5700K / 300mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X00457DFQ
PDF
Black PC
Brass
4W 320lm / 5700K / 300mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X00457A2Q
PDF
Black PC
Brass
4W 320lm / 5700K / 300mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X0075710Q
PDF
Black PC
Brass
7W 600lm / 5700K / 550mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X0075725Q
PDF
Black PC
Brass
7W 600lm / 5700K / 550mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X0075740Q
PDF
Black PC
Brass
7W 600lm / 5700K / 550mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X00757DFQ
PDF
Black PC
Brass
7W 600lm / 5700K / 550mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X00757A2Q
PDF
Black PC
Brass
7W 600lm / 5700K / 550mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X0042710Q
PDF
Black PC
Brass
4W 300lm / 2700K / 300mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X0042725Q
PDF
Black PC
Brass
4W 300lm / 2700K / 300mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X0042740Q
PDF
Black PC
Brass
4W 300lm / 2700K / 300mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X00427DFQ
PDF
Black PC
Brass
4W 300lm / 2700K / 300mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X00427A2Q
PDF
Black PC
Brass
4W 300lm / 2700K / 300mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X0072710Q
PDF
Black PC
Brass
7W 550lm / 2700K / 550mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X0072725Q
PDF
Black PC
Brass
7W 550lm / 2700K / 550mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X0072740Q
PDF
Black PC
Brass
7W 550lm / 2700K / 550mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X00727DFQ
PDF
Black PC
Brass
7W 550lm / 2700K / 550mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-X00727A2Q
PDF
Black PC
Brass
7W 550lm / 2700K / 550mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B2-Z010Z210Q
PDF
Black PC
Brass
10W 555lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B2-Z010Z225Q
PDF
Black PC
Brass
10W 555lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B2-Z010Z240Q
PDF
Black PC
Brass
10W 555lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B2-Z010Z2DFQ
PDF
Black PC
Brass
10W 555lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B2-Z010Z2A2Q
PDF
Black PC
Brass
10W 555lm / RGB+3000K A2 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X0043010Q
PDF
Aged Brass
Brass
4W 300lm / 3000K / 300mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X0043025Q
PDF
Aged Brass
Brass
4W 300lm / 3000K / 300mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X0043040Q
PDF
Aged Brass
Brass
4W 300lm / 3000K / 300mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X00430DFQ
PDF
Aged Brass
Brass
4W 300lm / 3000K / 300mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X00430A2Q
PDF
Aged Brass
Brass
4W 300lm / 3000K / 300mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X0073010Q
PDF
Aged Brass
Brass
7W 550lm / 3000K / 550mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X0073025Q
PDF
Aged Brass
Brass
7W 550lm / 3000K / 550mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X0073040Q
PDF
Aged Brass
Brass
7W 550lm / 3000K / 550mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X00730DFQ
PDF
Aged Brass
Brass
7W 550lm / 3000K / 550mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X00730A2Q
PDF
Aged Brass
Brass
7W 550lm / 3000K / 550mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X0045710Q
PDF
Aged Brass
Brass
4W 320lm / 5700K / 300mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X0045725Q
PDF
Aged Brass
Brass
4W 320lm / 5700K / 300mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X0045740Q
PDF
Aged Brass
Brass
4W 320lm / 5700K / 300mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X00457DFQ
PDF
Aged Brass
Brass
4W 320lm / 5700K / 300mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X00457A2Q
PDF
Aged Brass
Brass
4W 320lm / 5700K / 300mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X0075710Q
PDF
Aged Brass
Brass
7W 600lm / 5700K / 550mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X0075725Q
PDF
Aged Brass
Brass
7W 600lm / 5700K / 550mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X0075740Q
PDF
Aged Brass
Brass
7W 600lm / 5700K / 550mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X00757DFQ
PDF
Aged Brass
Brass
7W 600lm / 5700K / 550mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X00757A2Q
PDF
Aged Brass
Brass
7W 600lm / 5700K / 550mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X0042710Q
PDF
Aged Brass
Brass
4W 300lm / 2700K / 300mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X0042725Q
PDF
Aged Brass
Brass
4W 300lm / 2700K / 300mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X0042740Q
PDF
Aged Brass
Brass
4W 300lm / 2700K / 300mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X00427DFQ
PDF
Aged Brass
Brass
4W 300lm / 2700K / 300mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X00427A2Q
PDF
Aged Brass
Brass
4W 300lm / 2700K / 300mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X0072710Q
PDF
Aged Brass
Brass
7W 550lm / 2700K / 550mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X0072725Q
PDF
Aged Brass
Brass
7W 550lm / 2700K / 550mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X0072740Q
PDF
Aged Brass
Brass
7W 550lm / 2700K / 550mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X00727DFQ
PDF
Aged Brass
Brass
7W 550lm / 2700K / 550mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-X00727A2Q
PDF
Aged Brass
Brass
7W 550lm / 2700K / 550mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B3-Z010Z210Q
PDF
Aged Brass
Brass
10W 555lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B3-Z010Z225Q
PDF
Aged Brass
Brass
10W 555lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B3-Z010Z240Q
PDF
Aged Brass
Brass
10W 555lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B3-Z010Z2DFQ
PDF
Aged Brass
Brass
10W 555lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B3-Z010Z2A2Q
PDF
Aged Brass
Brass
10W 555lm / RGB+3000K A2 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X0043010Q
PDF
Copper
Brass
4W 300lm / 3000K / 300mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X0043025Q
PDF
Copper
Brass
4W 300lm / 3000K / 300mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X0043040Q
PDF
Copper
Brass
4W 300lm / 3000K / 300mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X00430DFQ
PDF
Copper
Brass
4W 300lm / 3000K / 300mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X00430A2Q
PDF
Copper
Brass
4W 300lm / 3000K / 300mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X0073010Q
PDF
Copper
Brass
7W 550lm / 3000K / 550mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X0073025Q
PDF
Copper
Brass
7W 550lm / 3000K / 550mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X0073040Q
PDF
Copper
Brass
7W 550lm / 3000K / 550mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X00730DFQ
PDF
Copper
Brass
7W 550lm / 3000K / 550mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X00730A2Q
PDF
Copper
Brass
7W 550lm / 3000K / 550mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X0045710Q
PDF
Copper
Brass
4W 320lm / 5700K / 300mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X0045725Q
PDF
Copper
Brass
4W 320lm / 5700K / 300mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X0045740Q
PDF
Copper
Brass
4W 320lm / 5700K / 300mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X00457DFQ
PDF
Copper
Brass
4W 320lm / 5700K / 300mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X00457A2Q
PDF
Copper
Brass
4W 320lm / 5700K / 300mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X0075710Q
PDF
Copper
Brass
7W 600lm / 5700K / 550mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X0075725Q
PDF
Copper
Brass
7W 600lm / 5700K / 550mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X0075740Q
PDF
Copper
Brass
7W 600lm / 5700K / 550mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X00757DFQ
PDF
Copper
Brass
7W 600lm / 5700K / 550mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X00757A2Q
PDF
Copper
Brass
7W 600lm / 5700K / 550mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X0042710Q
PDF
Copper
Brass
4W 300lm / 2700K / 300mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X0042725Q
PDF
Copper
Brass
4W 300lm / 2700K / 300mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X0042740Q
PDF
Copper
Brass
4W 300lm / 2700K / 300mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X00427DFQ
PDF
Copper
Brass
4W 300lm / 2700K / 300mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X00427A2Q
PDF
Copper
Brass
4W 300lm / 2700K / 300mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X0072710Q
PDF
Copper
Brass
7W 550lm / 2700K / 550mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X0072725Q
PDF
Copper
Brass
7W 550lm / 2700K / 550mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X0072740Q
PDF
Copper
Brass
7W 550lm / 2700K / 550mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X00727DFQ
PDF
Copper
Brass
7W 550lm / 2700K / 550mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-X00727A2Q
PDF
Copper
Brass
7W 550lm / 2700K / 550mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B5-Z010Z210Q
PDF
Copper
Brass
10W 555lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B5-Z010Z225Q
PDF
Copper
Brass
10W 555lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B5-Z010Z240Q
PDF
Copper
Brass
10W 555lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B5-Z010Z2DFQ
PDF
Copper
Brass
10W 555lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B5-Z010Z2A2Q
PDF
Copper
Brass
10W 555lm / RGB+3000K A2 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X0043010Q
PDF
Natural Brass
Brass
4W 300lm / 3000K / 300mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X0043025Q
PDF
Natural Brass
Brass
4W 300lm / 3000K / 300mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X0043040Q
PDF
Natural Brass
Brass
4W 300lm / 3000K / 300mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X00430DFQ
PDF
Natural Brass
Brass
4W 300lm / 3000K / 300mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X00430A2Q
PDF
Natural Brass
Brass
4W 300lm / 3000K / 300mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X0073010Q
PDF
Natural Brass
Brass
7W 550lm / 3000K / 550mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X0073025Q
PDF
Natural Brass
Brass
7W 550lm / 3000K / 550mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X0073040Q
PDF
Natural Brass
Brass
7W 550lm / 3000K / 550mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X00730DFQ
PDF
Natural Brass
Brass
7W 550lm / 3000K / 550mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X00730A2Q
PDF
Natural Brass
Brass
7W 550lm / 3000K / 550mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X0045710Q
PDF
Natural Brass
Brass
4W 320lm / 5700K / 300mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X0045725Q
PDF
Natural Brass
Brass
4W 320lm / 5700K / 300mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X0045740Q
PDF
Natural Brass
Brass
4W 320lm / 5700K / 300mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X00457DFQ
PDF
Natural Brass
Brass
4W 320lm / 5700K / 300mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X00457A2Q
PDF
Natural Brass
Brass
4W 320lm / 5700K / 300mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X0075710Q
PDF
Natural Brass
Brass
7W 600lm / 5700K / 550mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X0075725Q
PDF
Natural Brass
Brass
7W 600lm / 5700K / 550mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X0075740Q
PDF
Natural Brass
Brass
7W 600lm / 5700K / 550mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X00757DFQ
PDF
Natural Brass
Brass
7W 600lm / 5700K / 550mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X00757A2Q
PDF
Natural Brass
Brass
7W 600lm / 5700K / 550mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X0042710Q
PDF
Natural Brass
Brass
4W 300lm / 2700K / 300mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X0042725Q
PDF
Natural Brass
Brass
4W 300lm / 2700K / 300mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X0042740Q
PDF
Natural Brass
Brass
4W 300lm / 2700K / 300mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X00427DFQ
PDF
Natural Brass
Brass
4W 300lm / 2700K / 300mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X00427A2Q
PDF
Natural Brass
Brass
4W 300lm / 2700K / 300mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X0072710Q
PDF
Natural Brass
Brass
7W 550lm / 2700K / 550mA 10 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X0072725Q
PDF
Natural Brass
Brass
7W 550lm / 2700K / 550mA 25 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X0072740Q
PDF
Natural Brass
Brass
7W 550lm / 2700K / 550mA 40 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X00727DFQ
PDF
Natural Brass
Brass
7W 550lm / 2700K / 550mA DF 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-X00727A2Q
PDF
Natural Brass
Brass
7W 550lm / 2700K / 550mA A2 12~24V AC / 24V DC 3-Wire 10V PWM (DALI) AqualuxPLUS QuickConnect
PDF
AQL-531-B6-Z010Z210Q
PDF
Natural Brass
Brass
10W 555lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B6-Z010Z225Q
PDF
Natural Brass
Brass
10W 555lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B6-Z010Z240Q
PDF
Natural Brass
Brass
10W 555lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B6-Z010Z2DFQ
PDF
Natural Brass
Brass
10W 555lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B6-Z010Z2A2Q
PDF
Natural Brass
Brass
10W 555lm / RGB+3000K A2 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B1-Z010Z210Q
PDF
Brushed Chrome
Brass
10W 555lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B1-Z010Z225Q
PDF
Brushed Chrome
Brass
10W 555lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B1-Z010Z240Q
PDF
Brushed Chrome
Brass
10W 555lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B1-Z010Z2DFQ
PDF
Brushed Chrome
Brass
10W 555lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-531-B1-Z010Z2A2Q
PDF
Brushed Chrome
Brass
10W 555lm / RGB+3000K A2 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF

Aqualux is introducing an updated product code structure throughout 2021.
