Lumena

AQL-164

2-Way Grazing Light

Introduction

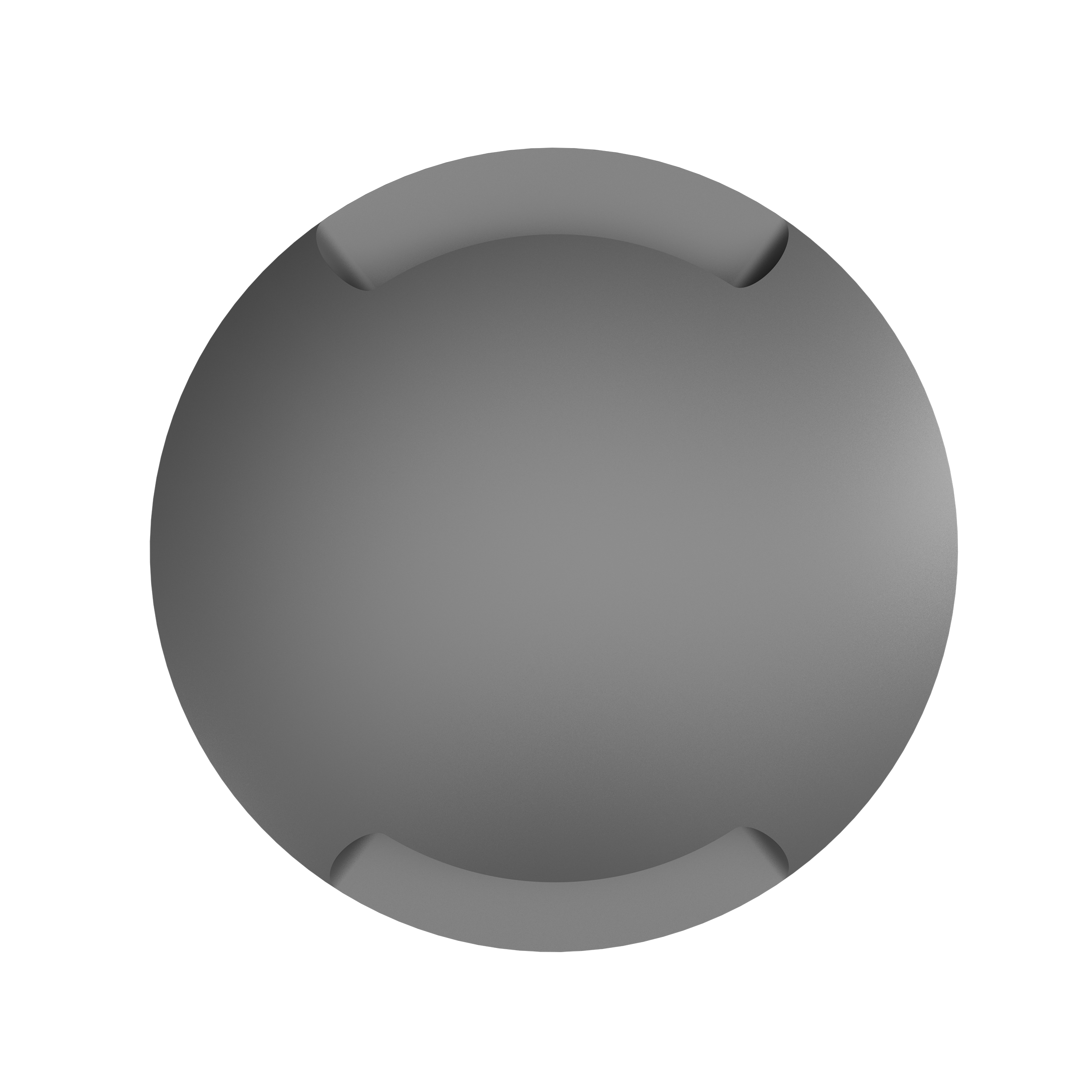

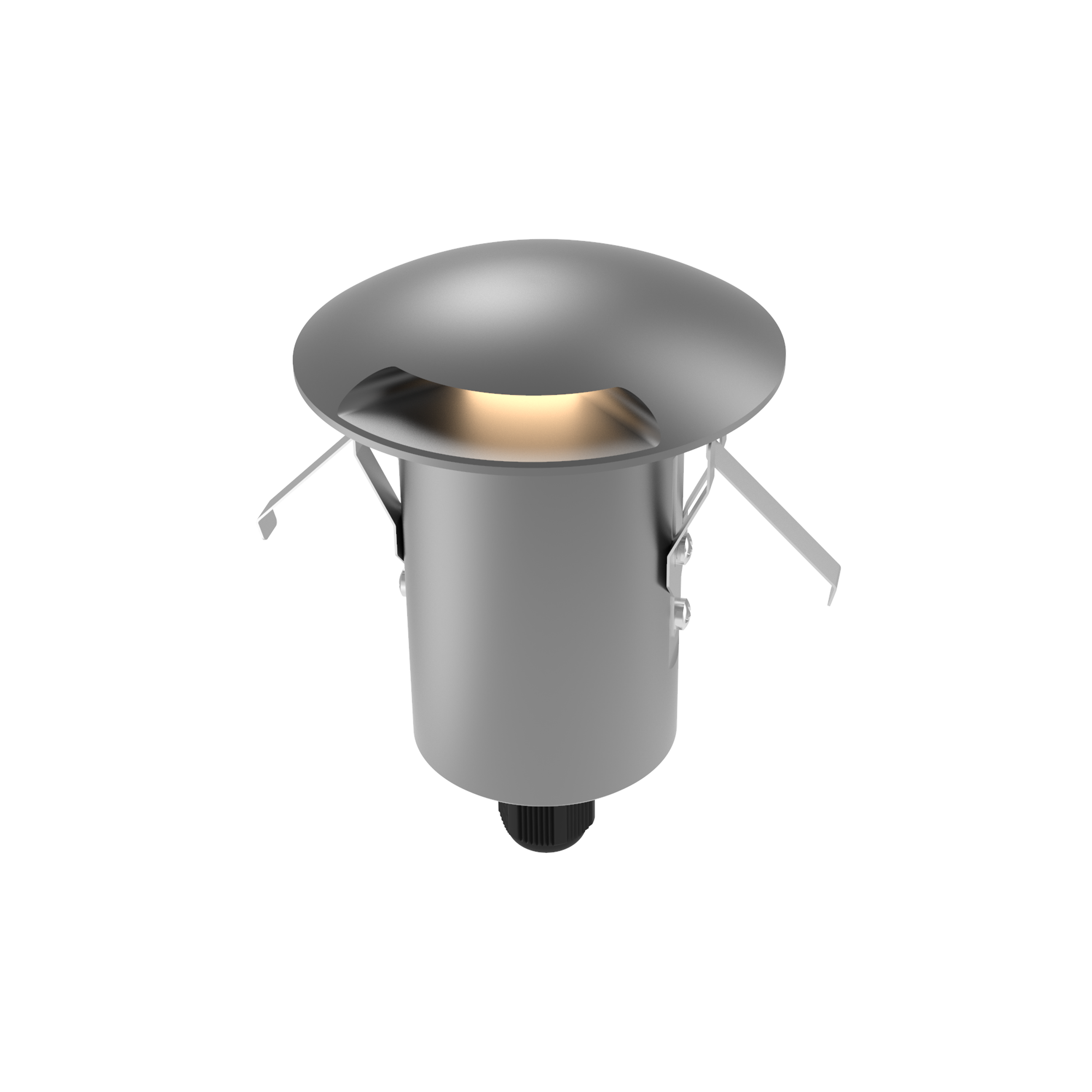

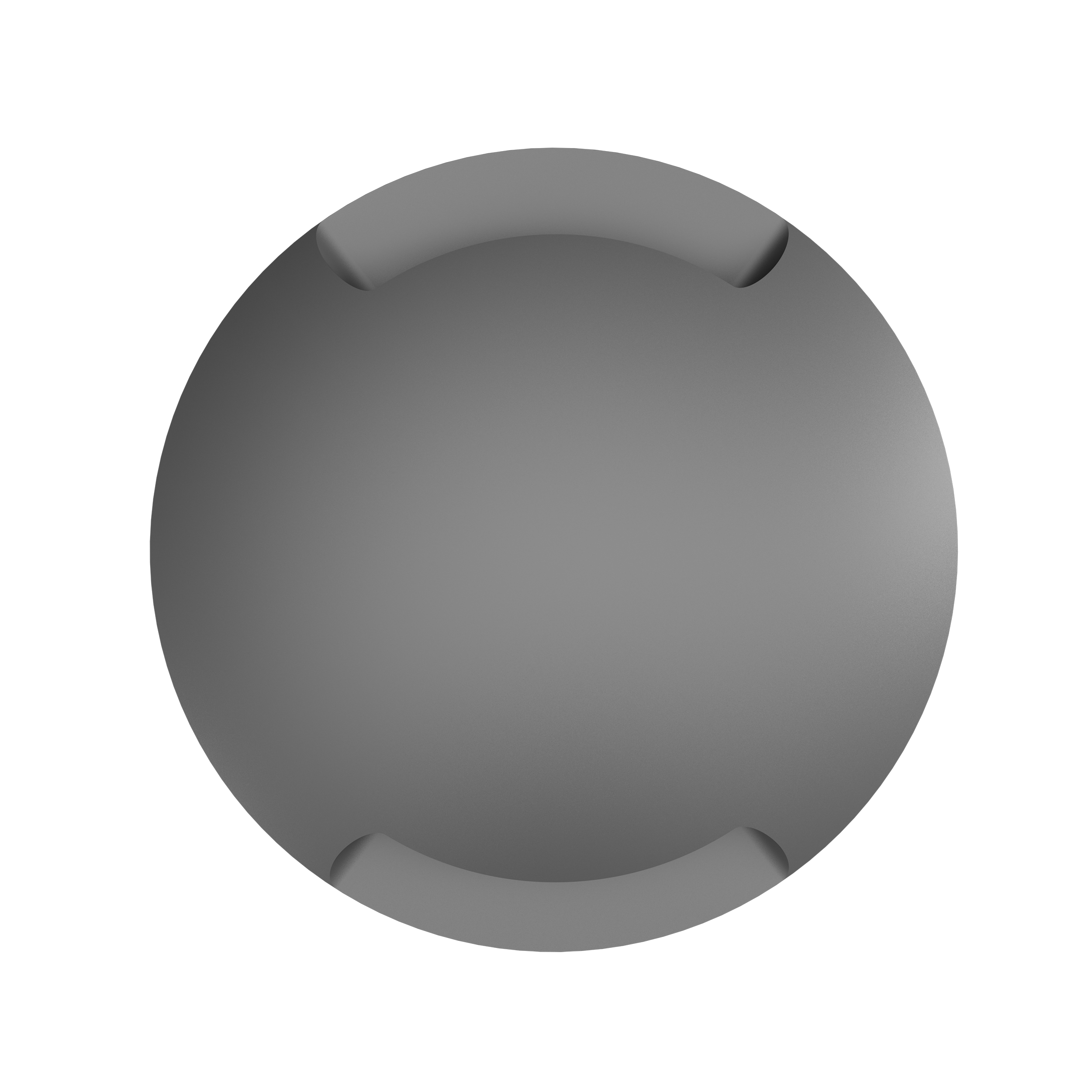

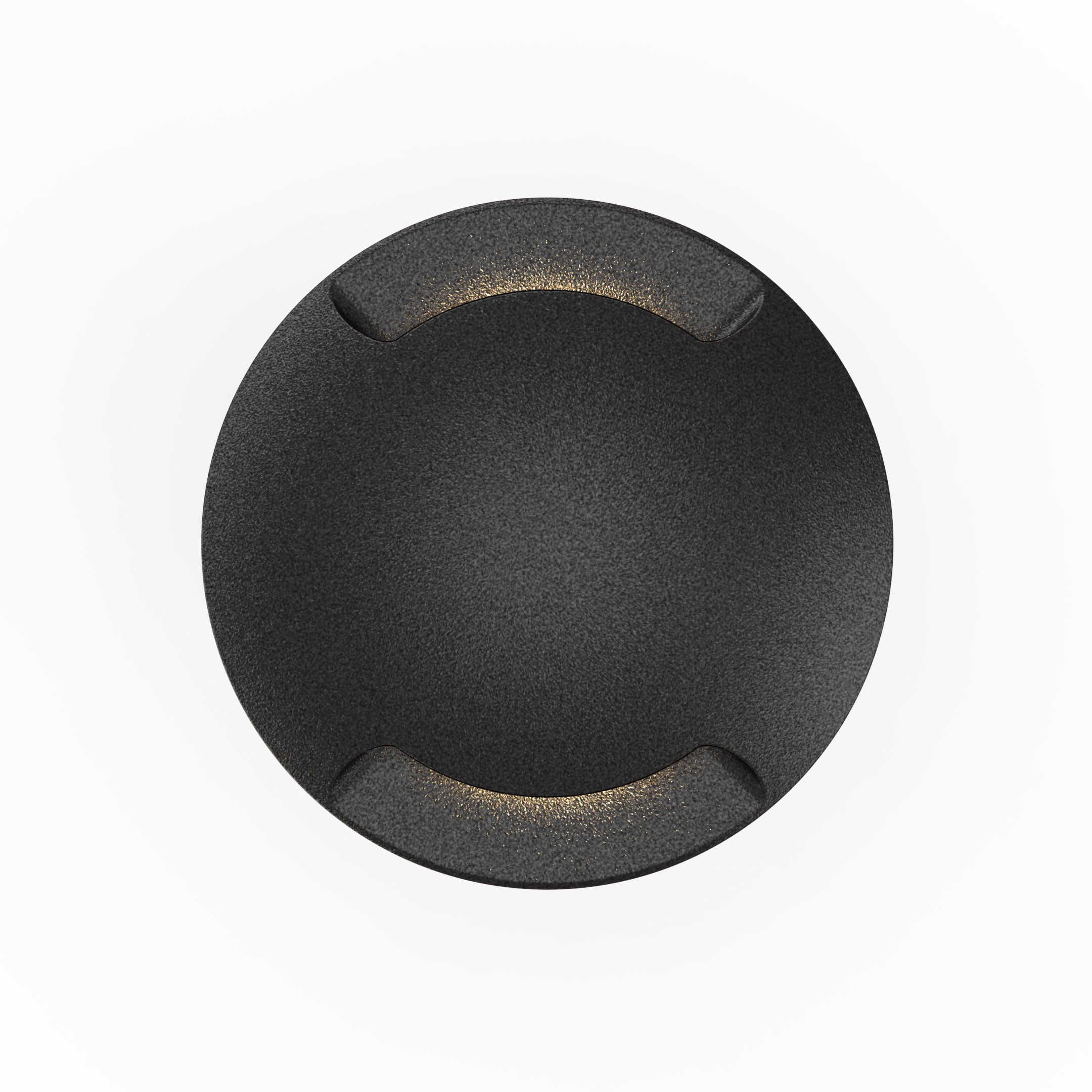

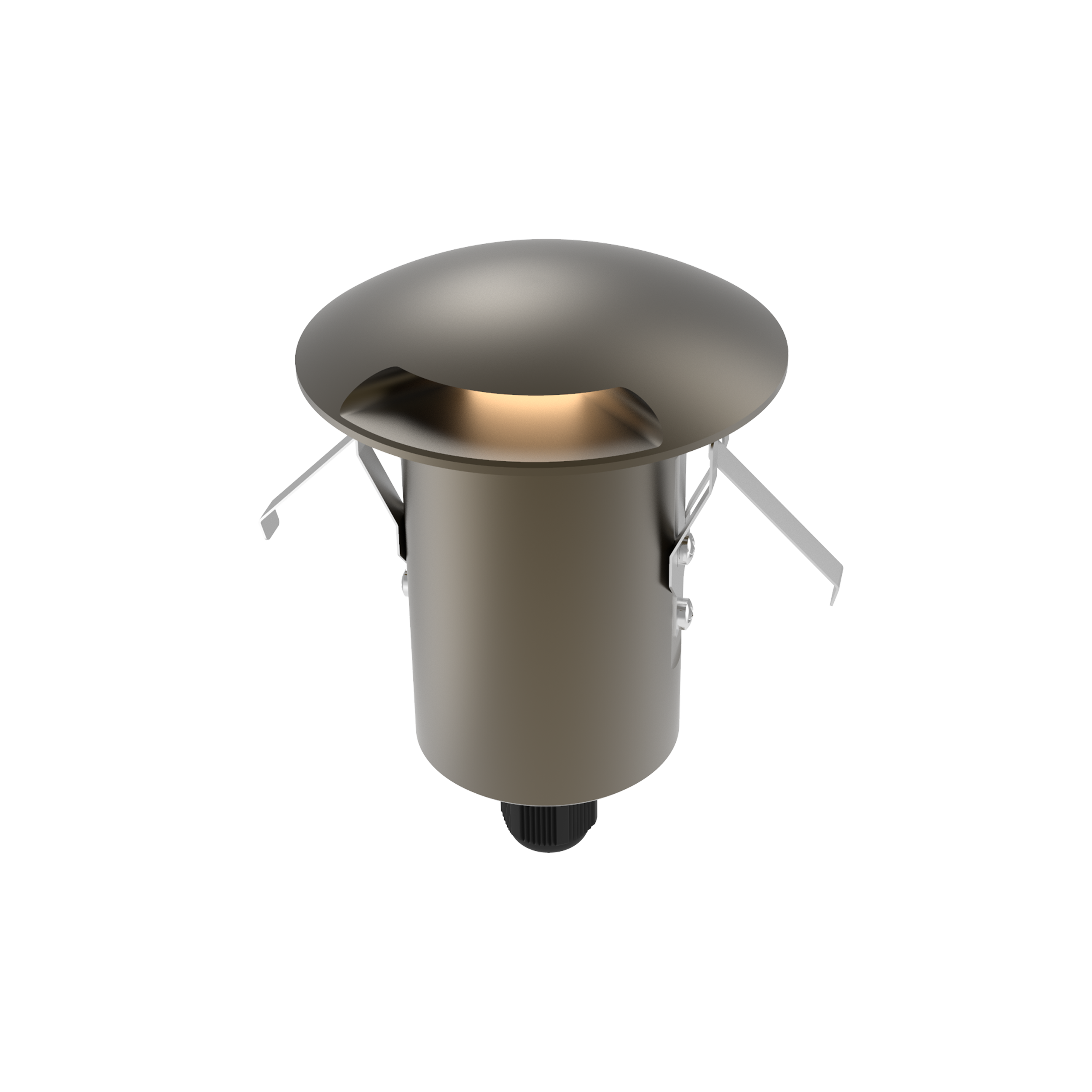

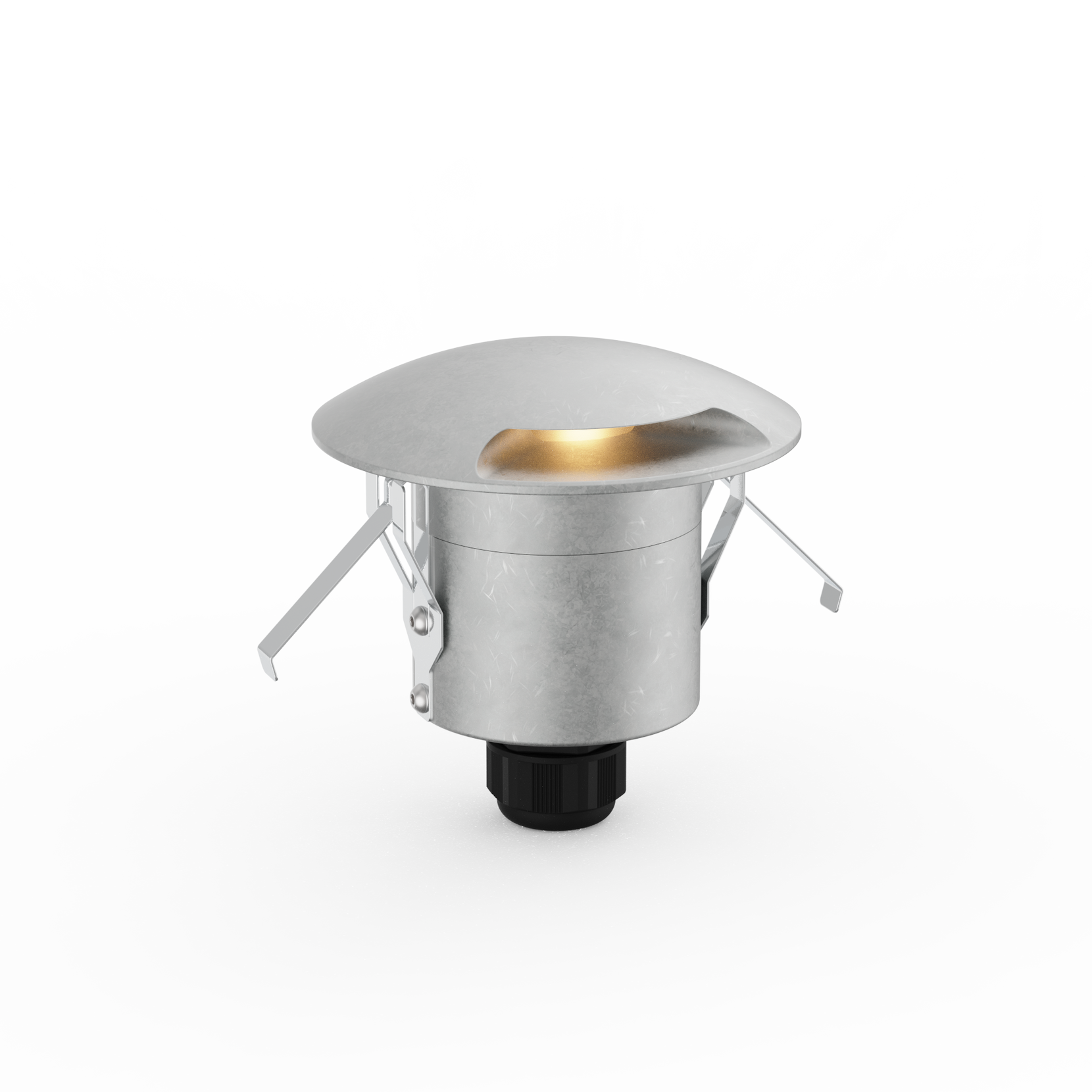

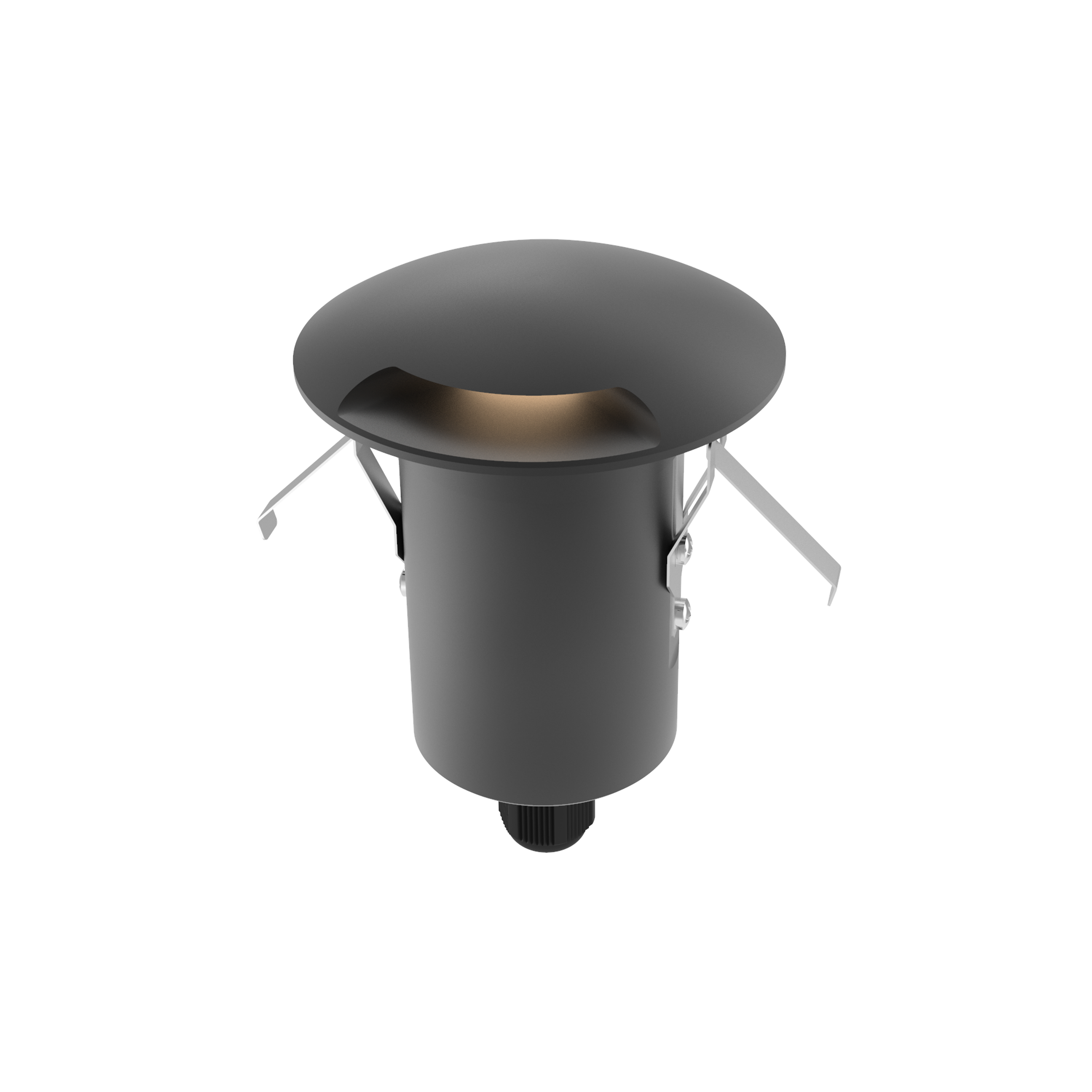

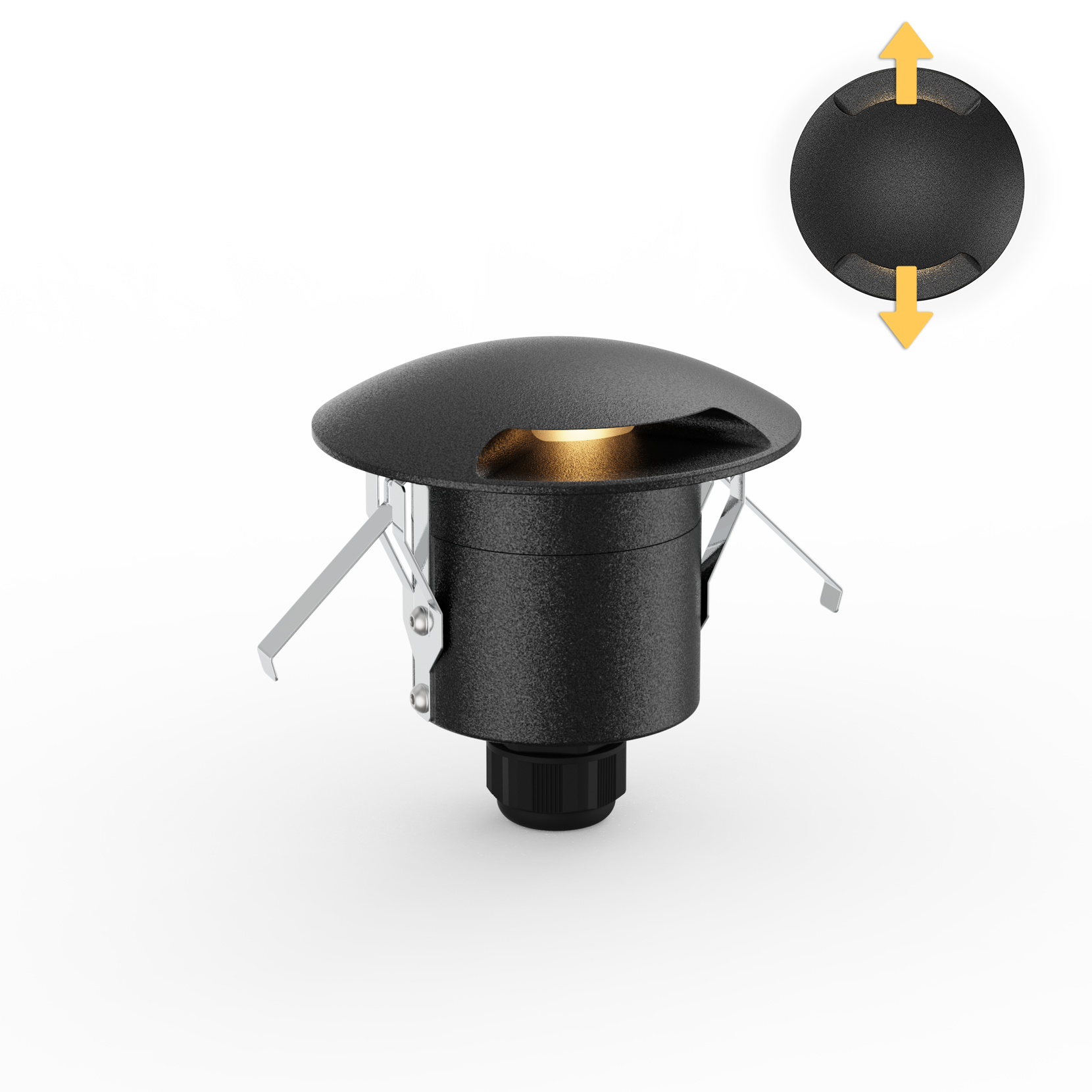

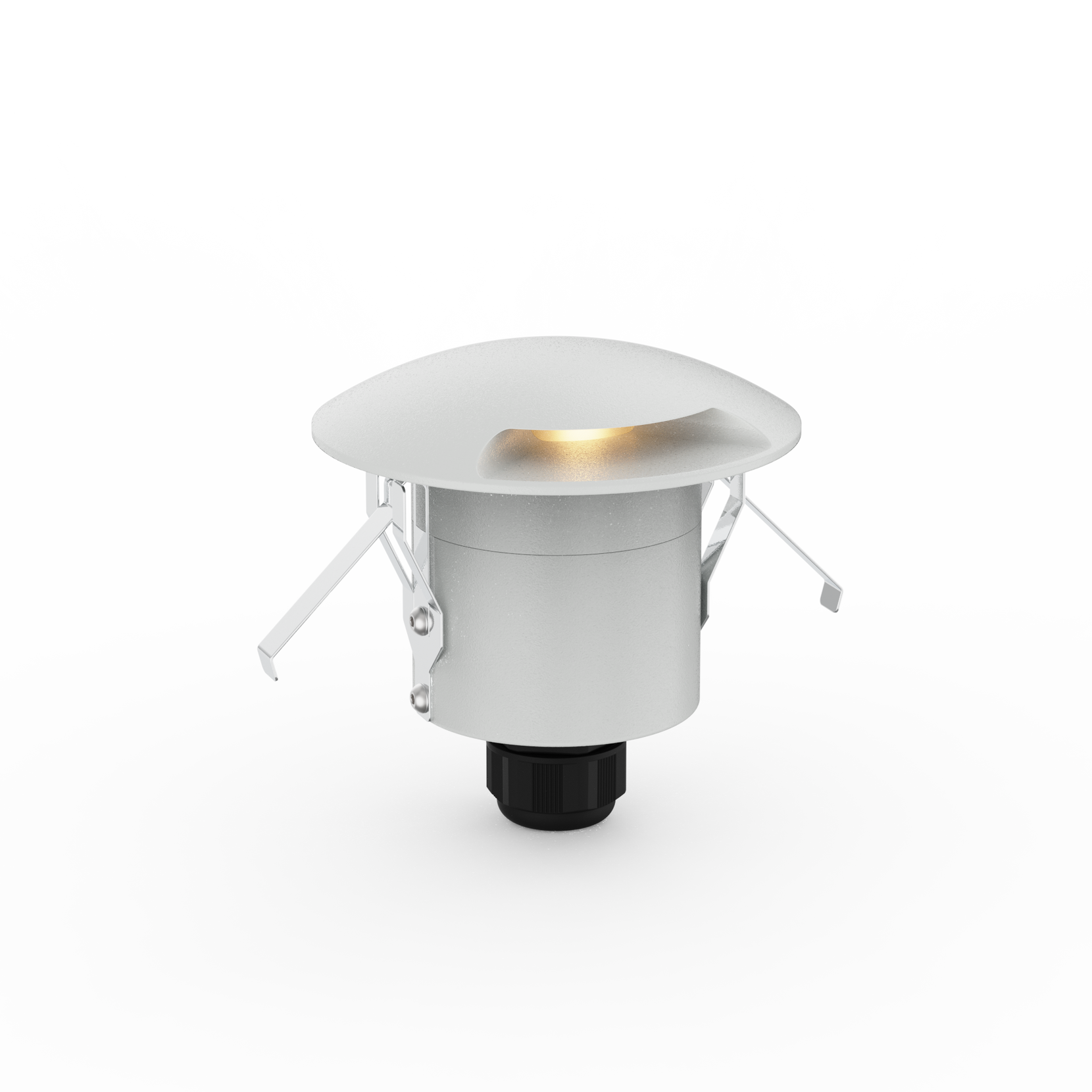

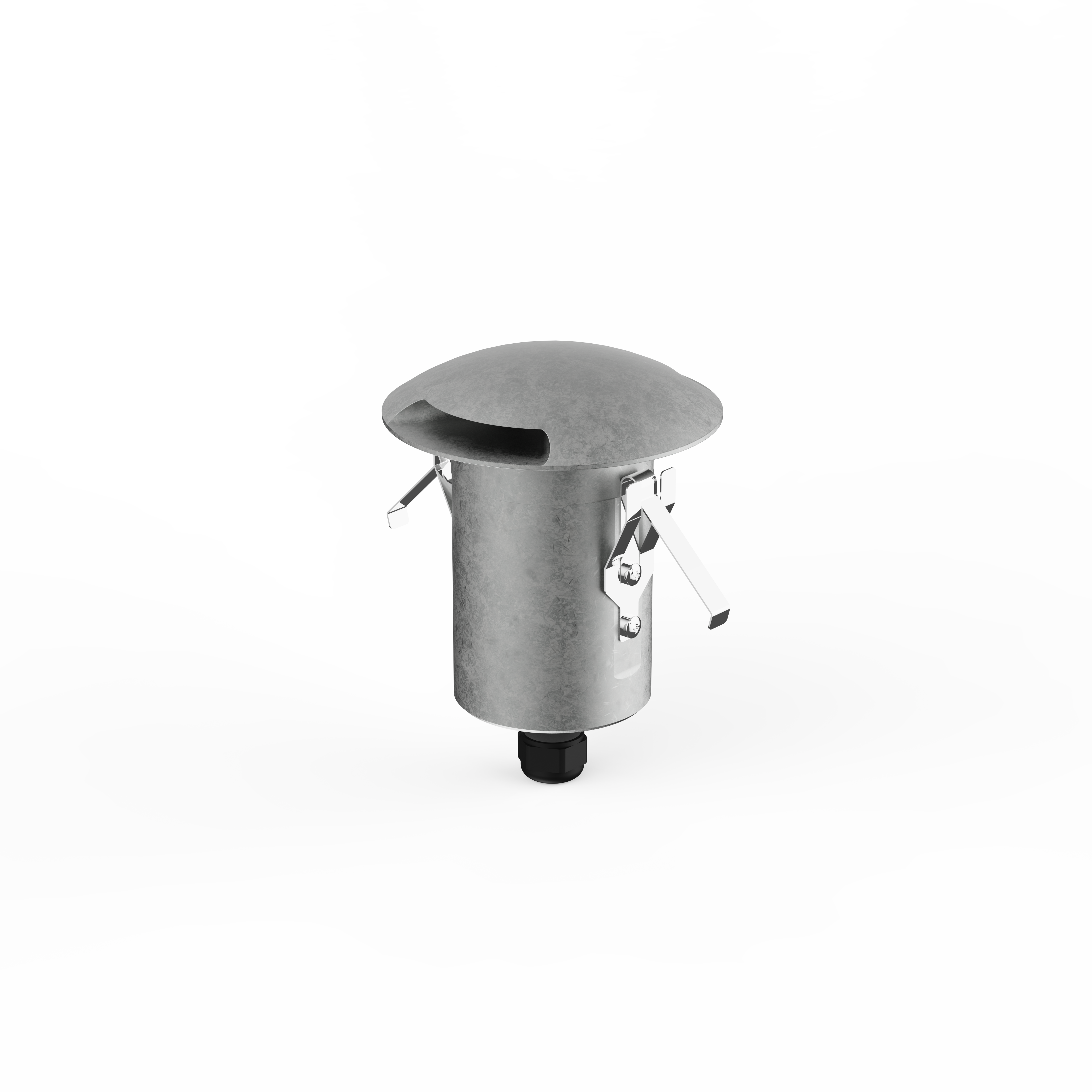

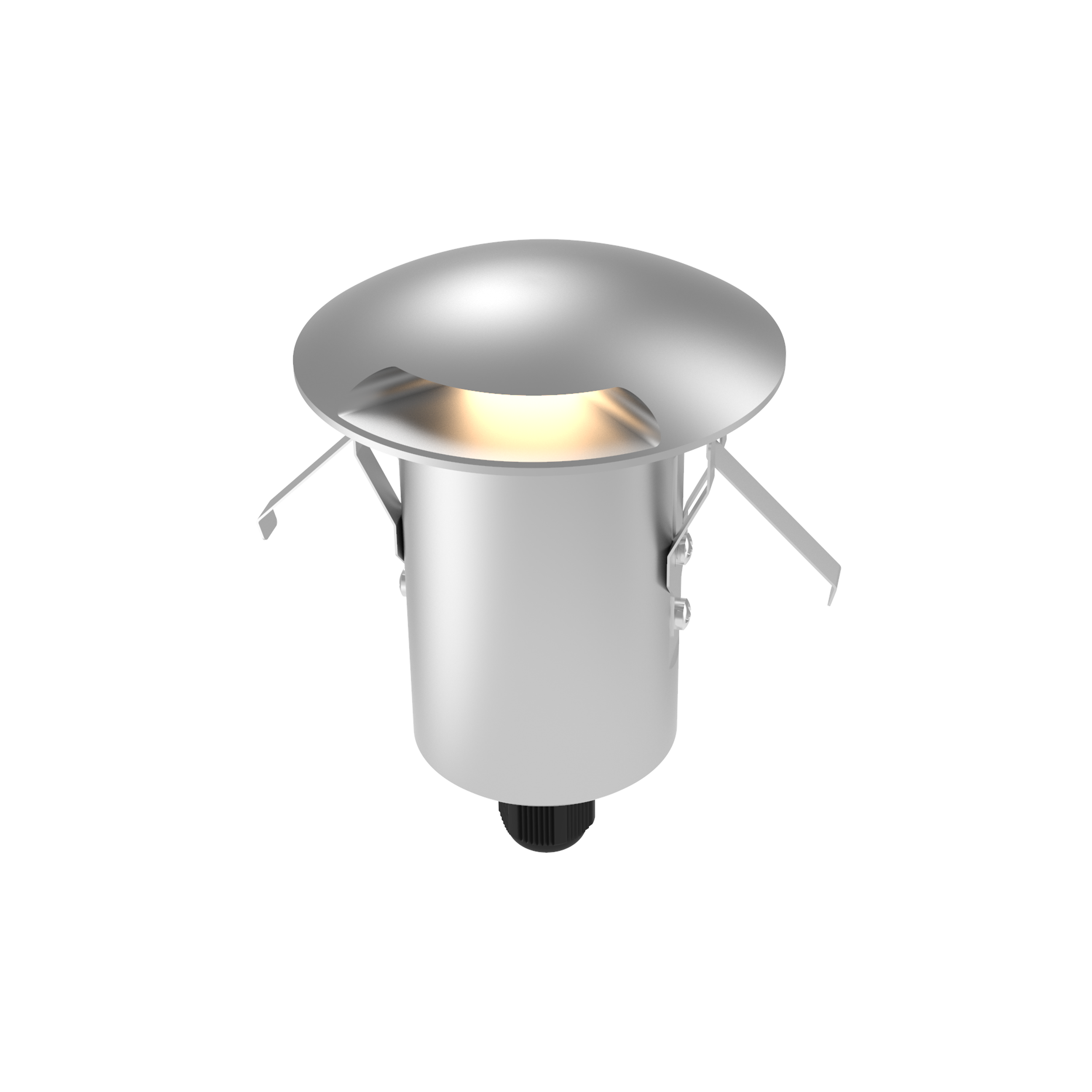

The AQL-164 is a compact, stylish recessed grazing light with two opposing 90° spread beams.

Specification

Product Code

AQL-164

Family

Lumena

Construction Material

CNC Machined Aluminium

Cable

900mm Aqualux 2-Core Silicone / PTFE Cable

Warranty

7 Year Aqualux Warranty

IP Rating

IP67

Options

Body

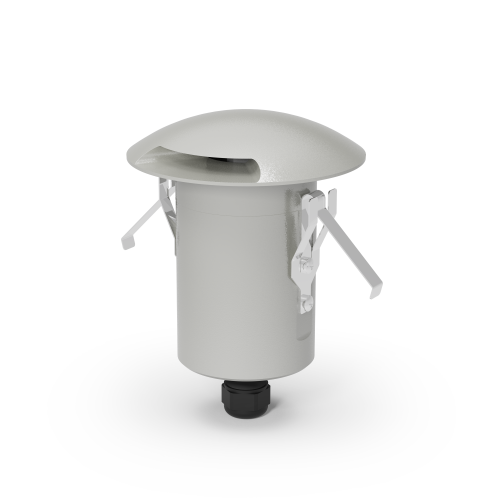

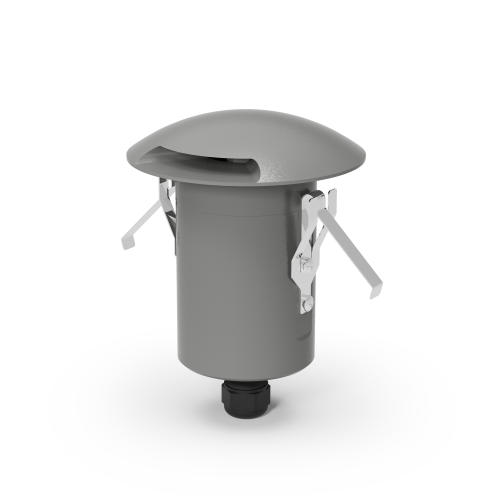

Silver Reign

Aluminium 6000 Series

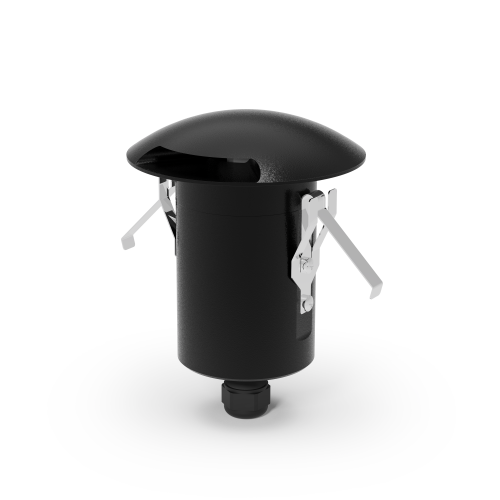

Black Ace

Aluminium 6000 Series

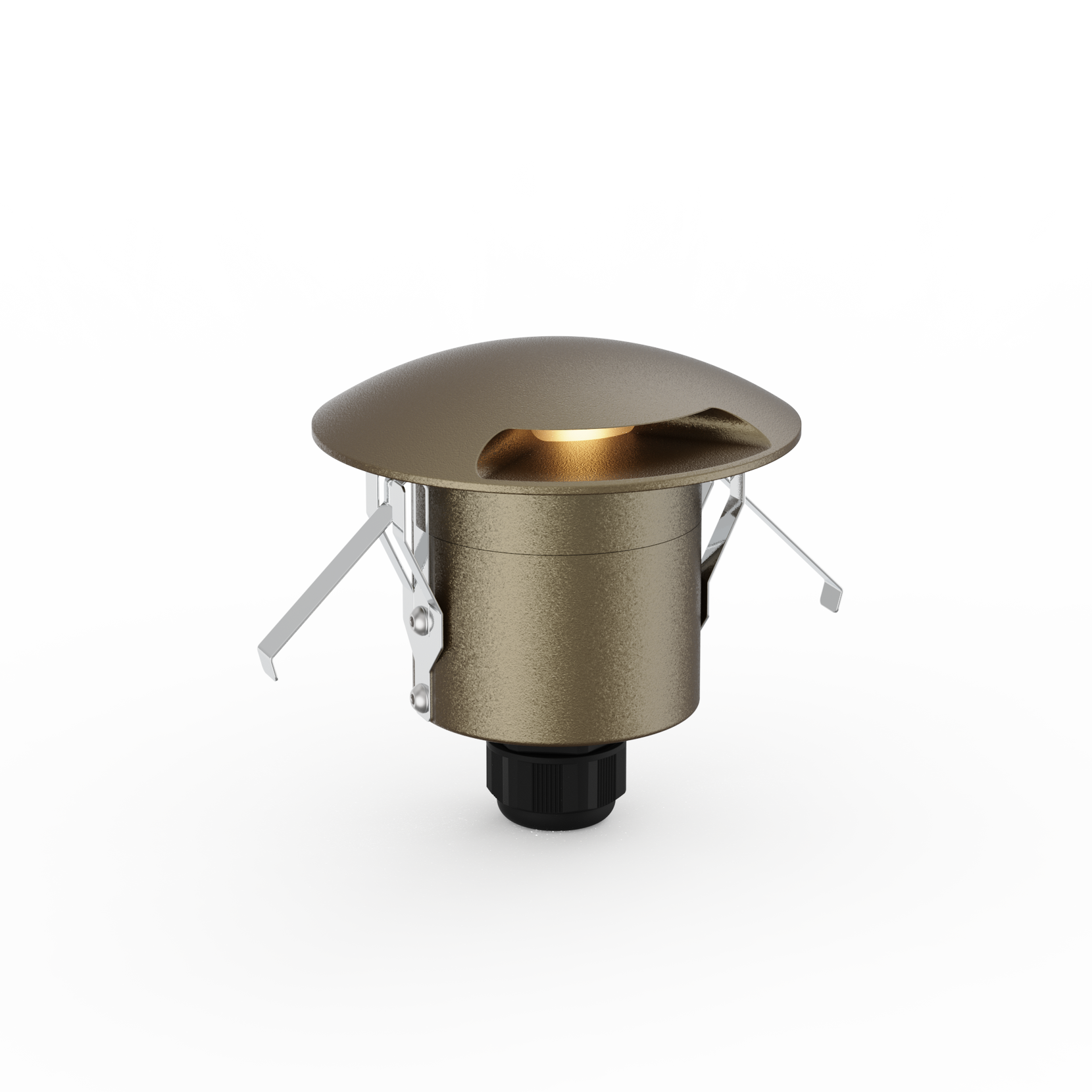

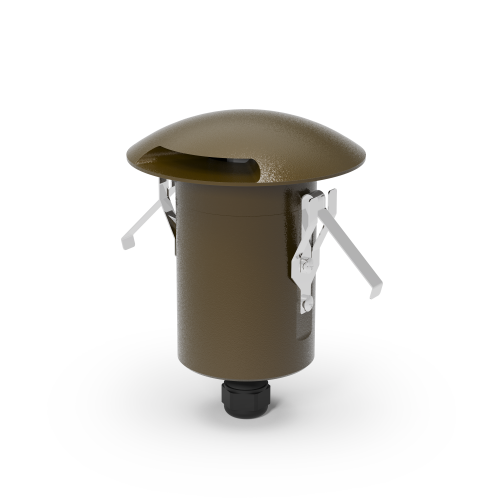

Medium Bronze

Aluminium 6000 Series

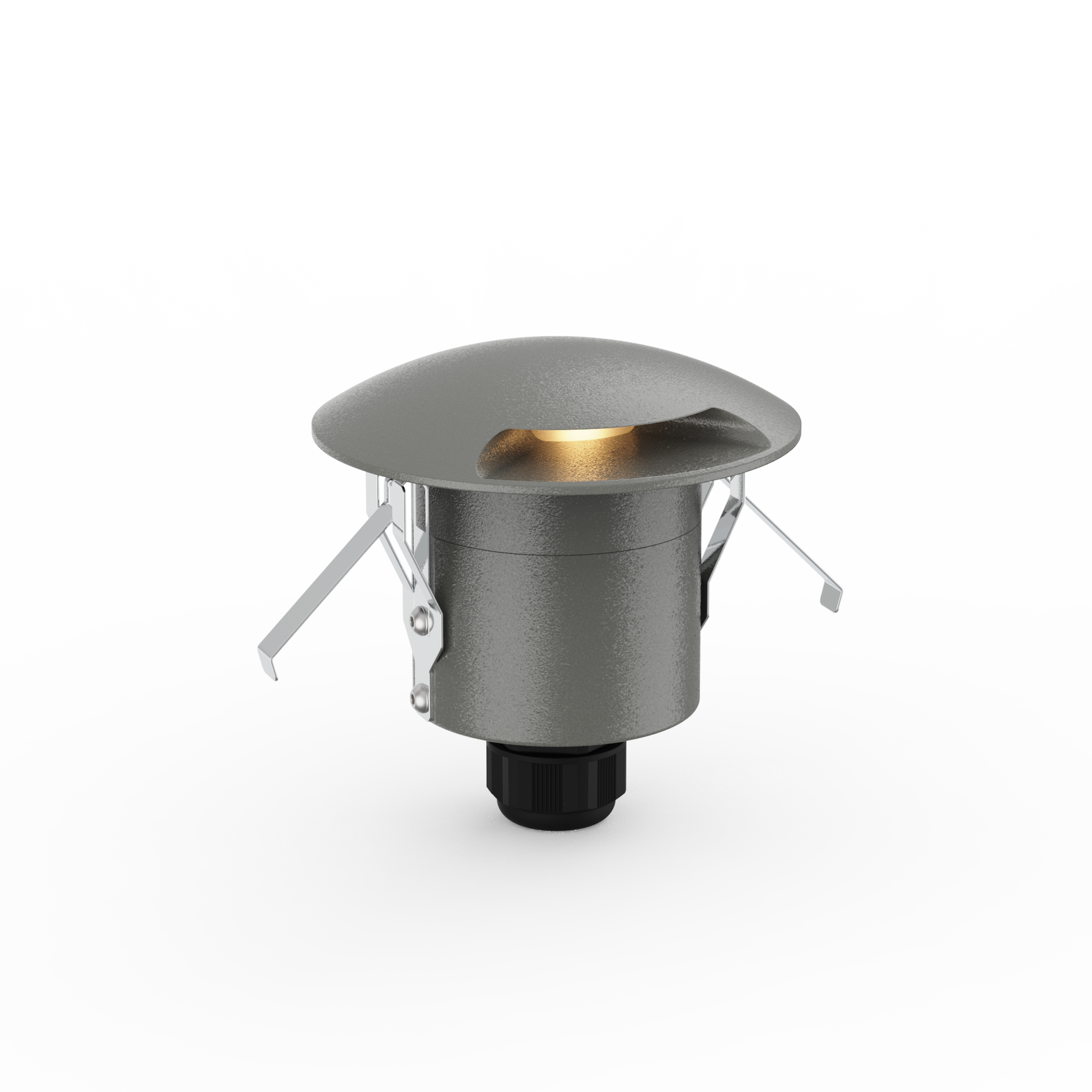

Venerable Silver

Aluminium 6000 Series

Control Gear

12~24V AC / 24V DC

Dimming: Optional 3-Wire 10V PWM (DC)
24V DC RGBW

Dimming: 4CH Low-Side PWM

Light Sources

2W / 200lm

3000K / 300mA
2W / 200lm

5700K / 300mA
2W / 140lm

Red / 300mA
2W / 080lm

Blue / 300mA
2W / 200lm

Green / 300mA
2W / 140lm

Amber / 300mA
10W / 470lm

RGB+3000K

Optical

Diffuse (Frosted)

DF
Diffuse (Clear)

DC

Cable

Q

AqualuxPLUS QuickConnect

Configure order code

Base Code:

AQL-164

To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.

Clear Filter

AQL-164 - has 28 variations

Product Code	Body	Rated Power	Light Source	Optical	Control Gear	Dimming	Cable
AQL-164-A3-X002RDDCQ	Medium Bronze Aluminium 6000 Series	2W	140lm / Red / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A4-Z010Z1DFQ	Venerable Silver Aluminium 6000 Series	10W	470lm / RGB+3000K	DF	24V DC RGBW	4CH Low-Side PWM	AqualuxPLUS QuickConnect
AQL-164-A3-Z010Z1DFQ	Medium Bronze Aluminium 6000 Series	10W	470lm / RGB+3000K	DF	24V DC RGBW	4CH Low-Side PWM	AqualuxPLUS QuickConnect
AQL-164-A2-Z010Z1DFQ	Black Ace Aluminium 6000 Series	10W	470lm / RGB+3000K	DF	24V DC RGBW	4CH Low-Side PWM	AqualuxPLUS QuickConnect
AQL-164-A1-Z010Z1DFQ	Silver Reign Aluminium 6000 Series	10W	470lm / RGB+3000K	DF	24V DC RGBW	4CH Low-Side PWM	AqualuxPLUS QuickConnect
AQL-164-A4-X002AMDCQ	Venerable Silver Aluminium 6000 Series	2W	140lm / Amber / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A4-X002GNDCQ	Venerable Silver Aluminium 6000 Series	2W	200lm / Green / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A4-X002BUDCQ	Venerable Silver Aluminium 6000 Series	2W	080lm / Blue / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A4-X002RDDCQ	Venerable Silver Aluminium 6000 Series	2W	140lm / Red / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A4-X00257DCQ	Venerable Silver Aluminium 6000 Series	2W	200lm / 5700K / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A4-X00230DCQ	Venerable Silver Aluminium 6000 Series	2W	200lm / 3000K / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A3-X002AMDCQ	Medium Bronze Aluminium 6000 Series	2W	140lm / Amber / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A3-X002GNDCQ	Medium Bronze Aluminium 6000 Series	2W	200lm / Green / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A3-X002BUDCQ	Medium Bronze Aluminium 6000 Series	2W	080lm / Blue / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A1-X00230DCQ	Silver Reign Aluminium 6000 Series	2W	200lm / 3000K / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A3-X00257DCQ	Medium Bronze Aluminium 6000 Series	2W	200lm / 5700K / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A3-X00230DCQ	Medium Bronze Aluminium 6000 Series	2W	200lm / 3000K / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A2-X002AMDCQ	Black Ace Aluminium 6000 Series	2W	140lm / Amber / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A2-X002GNDCQ	Black Ace Aluminium 6000 Series	2W	200lm / Green / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A2-X002BUDCQ	Black Ace Aluminium 6000 Series	2W	080lm / Blue / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A2-X002RDDCQ	Black Ace Aluminium 6000 Series	2W	140lm / Red / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A2-X00257DCQ	Black Ace Aluminium 6000 Series	2W	200lm / 5700K / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A2-X00230DCQ	Black Ace Aluminium 6000 Series	2W	200lm / 3000K / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A1-X002AMDCQ	Silver Reign Aluminium 6000 Series	2W	140lm / Amber / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A1-X002GNDCQ	Silver Reign Aluminium 6000 Series	2W	200lm / Green / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A1-X002BUDCQ	Silver Reign Aluminium 6000 Series	2W	080lm / Blue / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A1-X002RDDCQ	Silver Reign Aluminium 6000 Series	2W	140lm / Red / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
AQL-164-A1-X00257DCQ	Silver Reign Aluminium 6000 Series	2W	200lm / 5700K / 300mA	DC	12~24V AC / 24V DC	Optional 3-Wire 10V PWM (DC)	AqualuxPLUS QuickConnect
