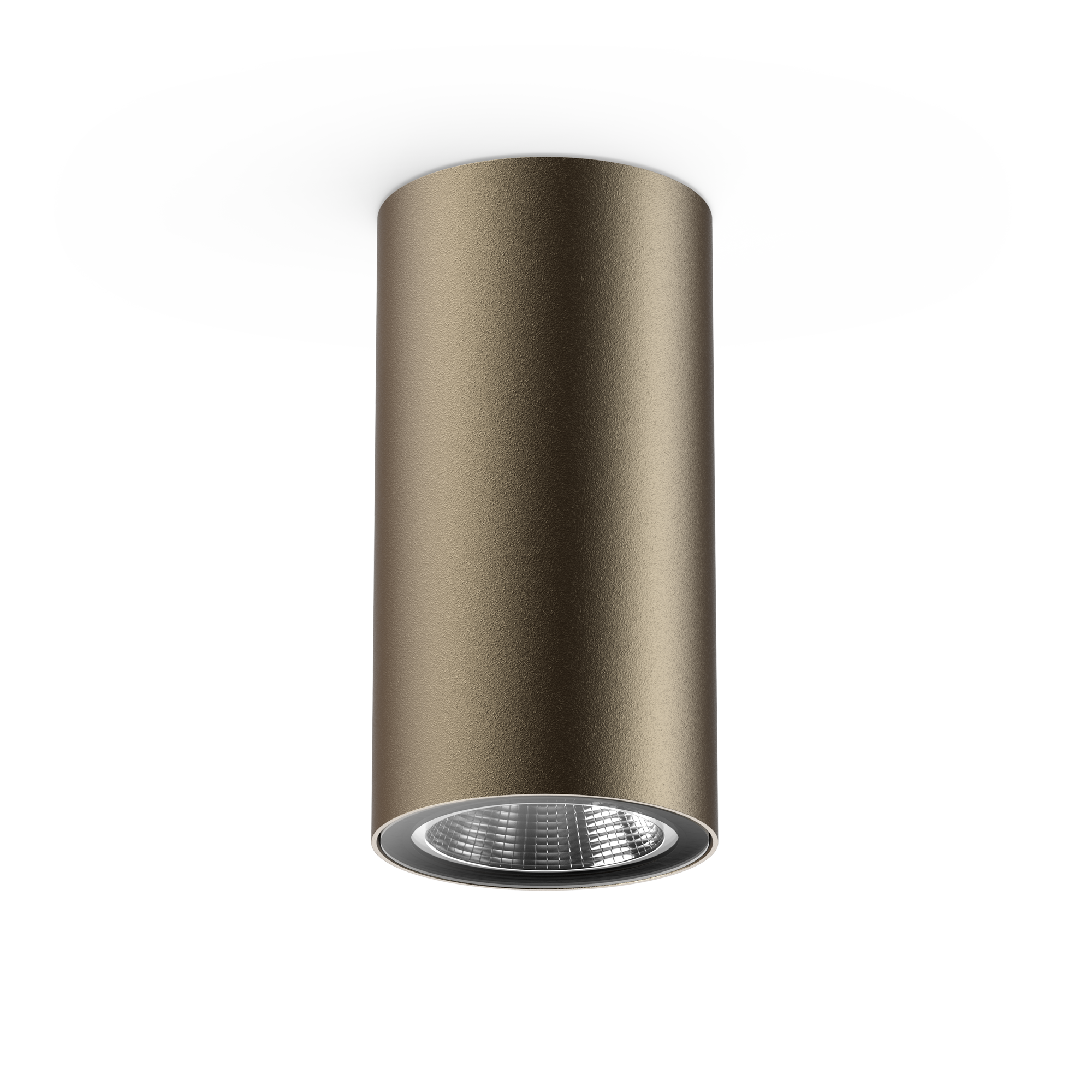

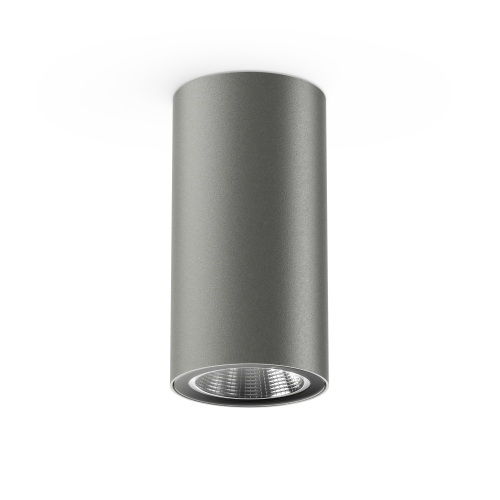

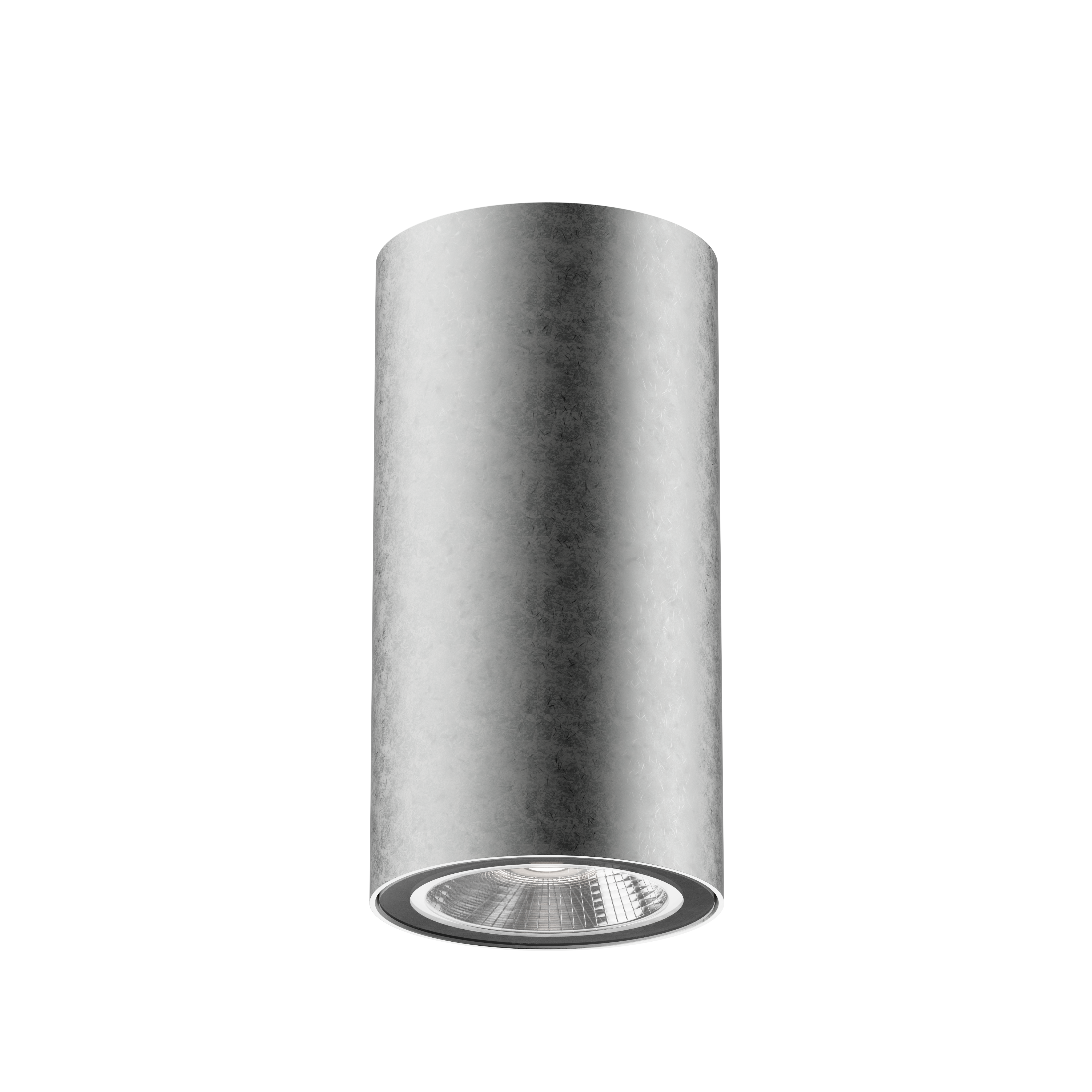

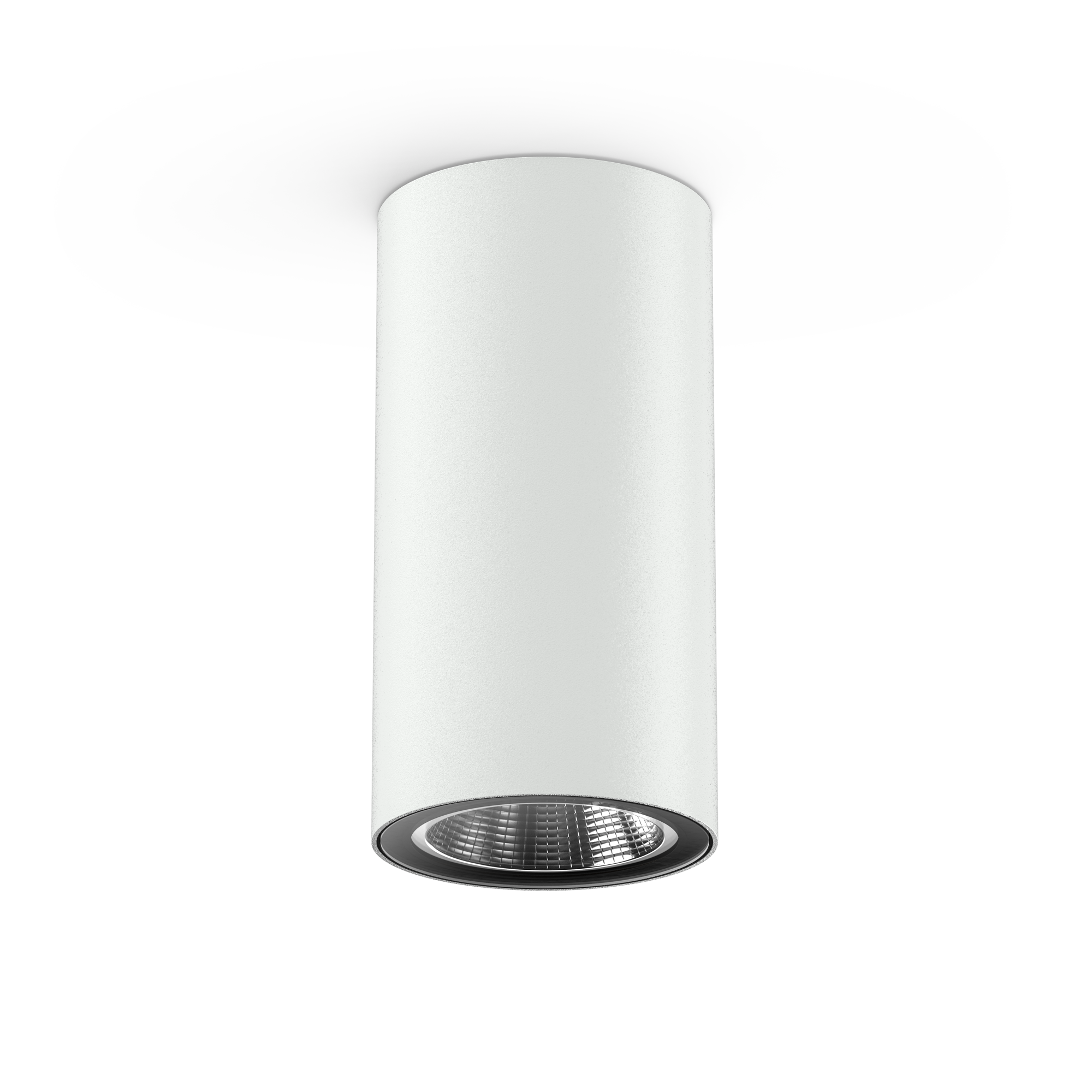

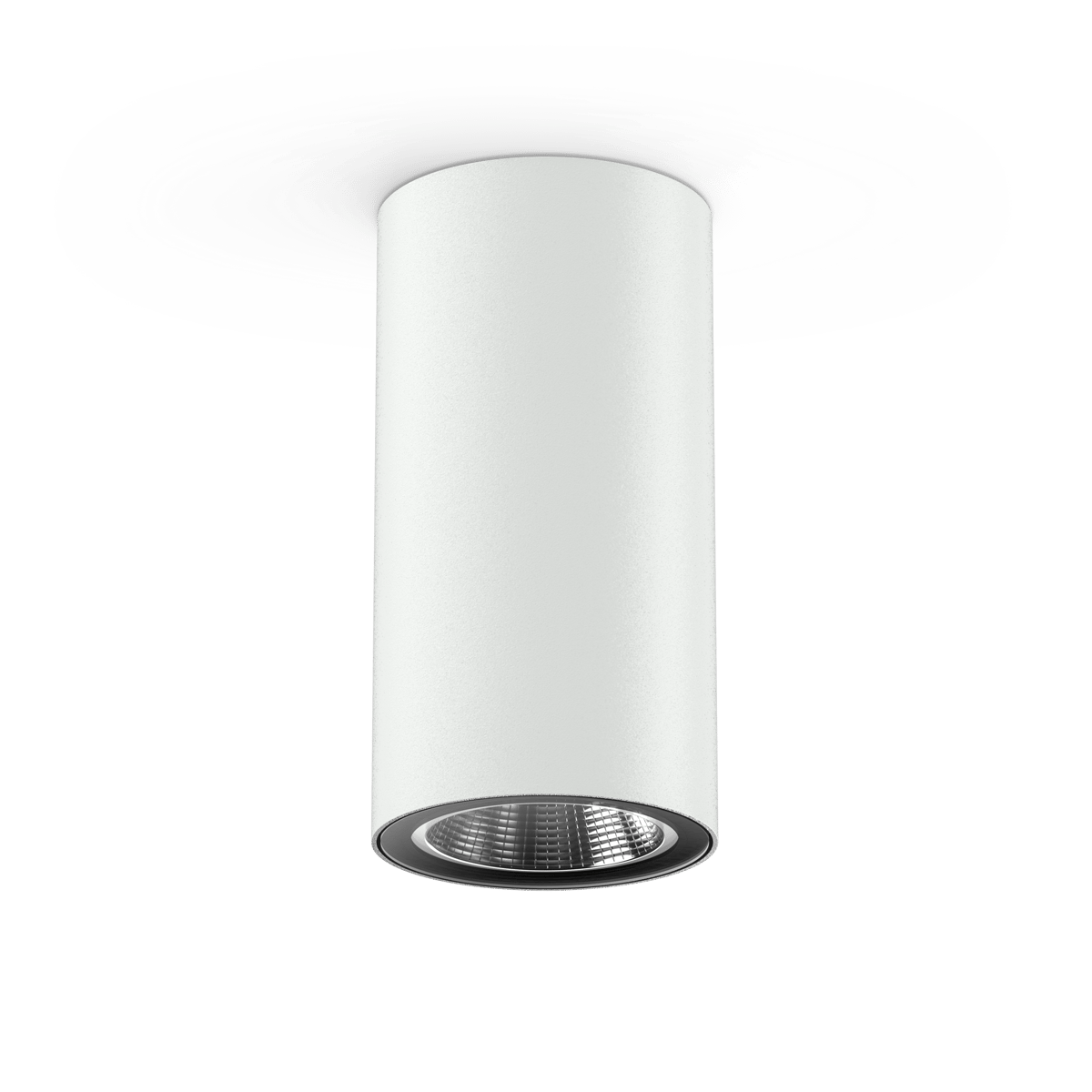

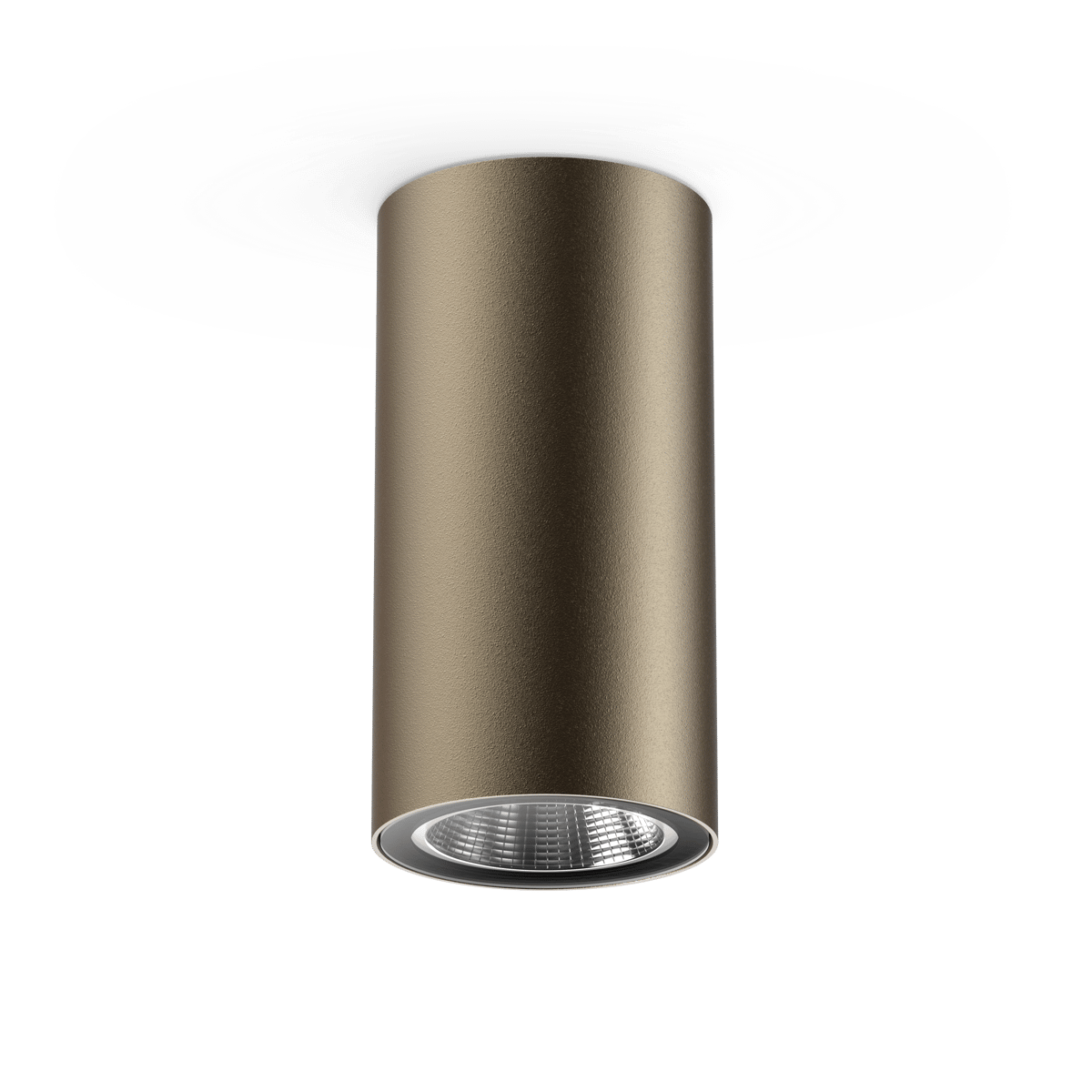

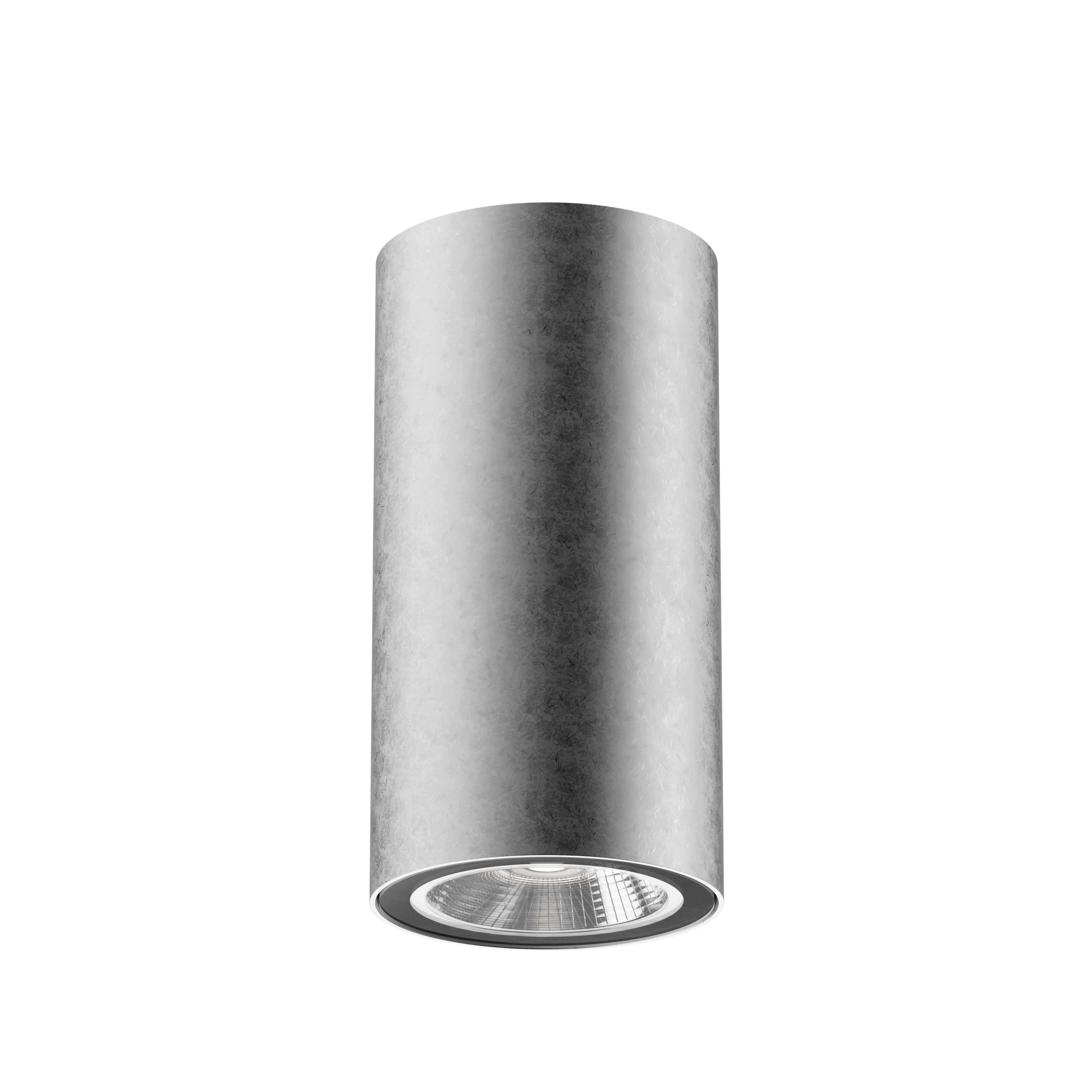

LumenaPro

AQL-880

Surface Mount Downlight

Introduction

The AQL-880 is an advanced, highly configurable surface mount down light for use in architectural and commercial applications.

Featuring integrated DALI, 24V SELV or Remote control gear options along with choices of Ultra Low Glare or High Efficiency reflector optics, the AQL-880 is also available in any Dulux powder coat finish for the ultimate in project specification flexibility. RGBW and speciality sources such as 98CRI and 2200K are also available.

The AQL-880 is 100% designed and manufactured in Sydney, Australia.

Specification

AQL-880

LumenaPro

CNC Machined Aluminium

Terminal Block

7 Year Aqualux Warranty

IP65

Options

Body

  • A1 - Clear

    Aluminium 6000 Series

  • A2 - Black

    Aluminium 6000 Series

  • A3 - Bronze

    Aluminium 6000 Series

  • A4 - Basalt

    Aluminium 6000 Series

  • A8 - White

    Aluminium 6000 Series

Control Gear

  • 24V DC RGBW

    Dimming: 4CH Low-Side PWM

  • 24V DC 3-Wire

    Dimming: 3-wire PWM 10V Dimming

  • 240V DALI Dimming

    Dimming: DALI Integral

Light Sources

  • 20W / 1000lm

    20W RGB+3000K

  • 20W / 2322lm

    2200K

  • 20W / 2284lm

    2700K

  • 20W / 2380lm

    3000K

  • 20W / 2404lm

    3500K

  • 20W / 2410lm

    4000K

Optical

  • Narrow (10°)

    10

  • Medium (25°)

    25

  • Medium (35°)

    35

  • Narrow (15°) Reflector

    15

  • Medium (25°) Reflector

    25

  • Wide (40°) Reflector

    40

  • Extra Wide (60°) Reflector

    60

Cable

  • T

    Terminal Block

  • S

    500mm 6-Core Standard Cable


Configure order code

AQL-880

To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.


AQL-880 - has 215 variations

Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
AQL-880-A1-B0203015T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2380lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0203025T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2380lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0203040T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2380lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0203060T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2380lm / 3000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0204015T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2410lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0204025T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2410lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0204040T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2410lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0204060T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2410lm / 4000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0202715T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2284lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0202725T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2284lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0202740T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2284lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0202760T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2284lm / 2700K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0202215T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2322lm / 2200K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0202225T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2322lm / 2200K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0202240T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2322lm / 2200K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0202260T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2322lm / 2200K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0203515T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2404lm / 3500K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0203525T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2404lm / 3500K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0203540T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2404lm / 3500K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-B0203560T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2404lm / 3500K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A1-A0203015T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2380lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0203025T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2380lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0203040T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2380lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0203060T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2380lm / 3000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0204015T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2410lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0204025T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2410lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0204040T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2410lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0204060T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2410lm / 4000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0202715T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2284lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0202725T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2284lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0202740T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2284lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0202760T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2284lm / 2700K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0202215T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2322lm / 2200K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0202225T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2322lm / 2200K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0202240T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2322lm / 2200K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0202260T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2322lm / 2200K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0203515T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2404lm / 3500K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0203525T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2404lm / 3500K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0203540T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2404lm / 3500K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-A0203560T
PDF
A1 - Clear
Aluminium 6000 Series
20W 2404lm / 3500K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-B0203015T
PDF
A2 - Black
Aluminium 6000 Series
20W 2380lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0203025T
PDF
A2 - Black
Aluminium 6000 Series
20W 2380lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0203040T
PDF
A2 - Black
Aluminium 6000 Series
20W 2380lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0203060T
PDF
A2 - Black
Aluminium 6000 Series
20W 2380lm / 3000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0204015T
PDF
A2 - Black
Aluminium 6000 Series
20W 2410lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0204025T
PDF
A2 - Black
Aluminium 6000 Series
20W 2410lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0204040T
PDF
A2 - Black
Aluminium 6000 Series
20W 2410lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0204060T
PDF
A2 - Black
Aluminium 6000 Series
20W 2410lm / 4000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0202715T
PDF
A2 - Black
Aluminium 6000 Series
20W 2284lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0202725T
PDF
A2 - Black
Aluminium 6000 Series
20W 2284lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0202740T
PDF
A2 - Black
Aluminium 6000 Series
20W 2284lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0202760T
PDF
A2 - Black
Aluminium 6000 Series
20W 2284lm / 2700K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0202215T
PDF
A2 - Black
Aluminium 6000 Series
20W 2322lm / 2200K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0202225T
PDF
A2 - Black
Aluminium 6000 Series
20W 2322lm / 2200K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0202240T
PDF
A2 - Black
Aluminium 6000 Series
20W 2322lm / 2200K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0202260T
PDF
A2 - Black
Aluminium 6000 Series
20W 2322lm / 2200K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0203515T
PDF
A2 - Black
Aluminium 6000 Series
20W 2404lm / 3500K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0203525T
PDF
A2 - Black
Aluminium 6000 Series
20W 2404lm / 3500K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0203540T
PDF
A2 - Black
Aluminium 6000 Series
20W 2404lm / 3500K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-B0203560T
PDF
A2 - Black
Aluminium 6000 Series
20W 2404lm / 3500K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A2-A0203015T
PDF
A2 - Black
Aluminium 6000 Series
20W 2380lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0203025T
PDF
A2 - Black
Aluminium 6000 Series
20W 2380lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0203040T
PDF
A2 - Black
Aluminium 6000 Series
20W 2380lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0203060T
PDF
A2 - Black
Aluminium 6000 Series
20W 2380lm / 3000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0204015T
PDF
A2 - Black
Aluminium 6000 Series
20W 2410lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0204025T
PDF
A2 - Black
Aluminium 6000 Series
20W 2410lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0204040T
PDF
A2 - Black
Aluminium 6000 Series
20W 2410lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0204060T
PDF
A2 - Black
Aluminium 6000 Series
20W 2410lm / 4000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0202715T
PDF
A2 - Black
Aluminium 6000 Series
20W 2284lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0202725T
PDF
A2 - Black
Aluminium 6000 Series
20W 2284lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0202740T
PDF
A2 - Black
Aluminium 6000 Series
20W 2284lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0202760T
PDF
A2 - Black
Aluminium 6000 Series
20W 2284lm / 2700K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0202215T
PDF
A2 - Black
Aluminium 6000 Series
20W 2322lm / 2200K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0202225T
PDF
A2 - Black
Aluminium 6000 Series
20W 2322lm / 2200K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0202240T
PDF
A2 - Black
Aluminium 6000 Series
20W 2322lm / 2200K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0202260T
PDF
A2 - Black
Aluminium 6000 Series
20W 2322lm / 2200K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0203515T
PDF
A2 - Black
Aluminium 6000 Series
20W 2404lm / 3500K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0203525T
PDF
A2 - Black
Aluminium 6000 Series
20W 2404lm / 3500K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0203540T
PDF
A2 - Black
Aluminium 6000 Series
20W 2404lm / 3500K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A2-A0203560T
PDF
A2 - Black
Aluminium 6000 Series
20W 2404lm / 3500K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-B0203015T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2380lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0203025T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2380lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0203040T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2380lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0203060T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2380lm / 3000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0204015T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2410lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0204025T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2410lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0204040T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2410lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0204060T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2410lm / 4000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0202715T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2284lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0202725T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2284lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0202740T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2284lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0202760T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2284lm / 2700K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0202215T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2322lm / 2200K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0202225T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2322lm / 2200K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0202240T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2322lm / 2200K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0202260T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2322lm / 2200K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0203515T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2404lm / 3500K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0203525T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2404lm / 3500K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0203540T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2404lm / 3500K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-B0203560T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2404lm / 3500K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A3-A0203015T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2380lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0203025T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2380lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0203040T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2380lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0203060T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2380lm / 3000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0204015T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2410lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0204025T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2410lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0204040T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2410lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0204060T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2410lm / 4000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0202715T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2284lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0202725T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2284lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0202740T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2284lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0202760T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2284lm / 2700K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0202215T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2322lm / 2200K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0202225T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2322lm / 2200K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0202240T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2322lm / 2200K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0202260T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2322lm / 2200K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0203515T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2404lm / 3500K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0203525T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2404lm / 3500K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0203540T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2404lm / 3500K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A3-A0203560T
PDF
A3 - Bronze
Aluminium 6000 Series
20W 2404lm / 3500K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-B0203015T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2380lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0203025T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2380lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0203040T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2380lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0203060T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2380lm / 3000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0204015T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2410lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0204025T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2410lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0204040T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2410lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0204060T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2410lm / 4000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0202715T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2284lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0202725T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2284lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0202740T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2284lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0202760T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2284lm / 2700K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0202215T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2322lm / 2200K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0202225T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2322lm / 2200K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0202240T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2322lm / 2200K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0202260T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2322lm / 2200K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0203515T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2404lm / 3500K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0203525T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2404lm / 3500K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0203540T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2404lm / 3500K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-B0203560T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2404lm / 3500K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A4-A0203015T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2380lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0203025T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2380lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0203040T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2380lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0203060T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2380lm / 3000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0204015T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2410lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0204025T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2410lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0204040T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2410lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0204060T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2410lm / 4000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0202715T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2284lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0202725T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2284lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0202740T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2284lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0202760T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2284lm / 2700K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0202215T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2322lm / 2200K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0202225T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2322lm / 2200K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0202240T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2322lm / 2200K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0202260T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2322lm / 2200K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0203515T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2404lm / 3500K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0203525T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2404lm / 3500K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0203540T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2404lm / 3500K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A4-A0203560T
PDF
A4 - Basalt
Aluminium 6000 Series
20W 2404lm / 3500K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-B0203015T
PDF
A8 - White
Aluminium 6000 Series
20W 2380lm / 3000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0203025T
PDF
A8 - White
Aluminium 6000 Series
20W 2380lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0203040T
PDF
A8 - White
Aluminium 6000 Series
20W 2380lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0203060T
PDF
A8 - White
Aluminium 6000 Series
20W 2380lm / 3000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0204015T
PDF
A8 - White
Aluminium 6000 Series
20W 2410lm / 4000K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0204025T
PDF
A8 - White
Aluminium 6000 Series
20W 2410lm / 4000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0204040T
PDF
A8 - White
Aluminium 6000 Series
20W 2410lm / 4000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0204060T
PDF
A8 - White
Aluminium 6000 Series
20W 2410lm / 4000K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0202715T
PDF
A8 - White
Aluminium 6000 Series
20W 2284lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0202725T
PDF
A8 - White
Aluminium 6000 Series
20W 2284lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0202740T
PDF
A8 - White
Aluminium 6000 Series
20W 2284lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0202760T
PDF
A8 - White
Aluminium 6000 Series
20W 2284lm / 2700K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0202215T
PDF
A8 - White
Aluminium 6000 Series
20W 2322lm / 2200K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0202225T
PDF
A8 - White
Aluminium 6000 Series
20W 2322lm / 2200K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0202240T
PDF
A8 - White
Aluminium 6000 Series
20W 2322lm / 2200K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0202260T
PDF
A8 - White
Aluminium 6000 Series
20W 2322lm / 2200K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0203515T
PDF
A8 - White
Aluminium 6000 Series
20W 2404lm / 3500K 15 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0203525T
PDF
A8 - White
Aluminium 6000 Series
20W 2404lm / 3500K 25 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0203540T
PDF
A8 - White
Aluminium 6000 Series
20W 2404lm / 3500K 40 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-B0203560T
PDF
A8 - White
Aluminium 6000 Series
20W 2404lm / 3500K 60 24V DC 3-Wire 3-wire PWM 10V Dimming Terminal Block
PDF
AQL-880-A8-A0203015T
PDF
A8 - White
Aluminium 6000 Series
20W 2380lm / 3000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0203025T
PDF
A8 - White
Aluminium 6000 Series
20W 2380lm / 3000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0203040T
PDF
A8 - White
Aluminium 6000 Series
20W 2380lm / 3000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0203060T
PDF
A8 - White
Aluminium 6000 Series
20W 2380lm / 3000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0204015T
PDF
A8 - White
Aluminium 6000 Series
20W 2410lm / 4000K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0204025T
PDF
A8 - White
Aluminium 6000 Series
20W 2410lm / 4000K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0204040T
PDF
A8 - White
Aluminium 6000 Series
20W 2410lm / 4000K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0204060T
PDF
A8 - White
Aluminium 6000 Series
20W 2410lm / 4000K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0202715T
PDF
A8 - White
Aluminium 6000 Series
20W 2284lm / 2700K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0202725T
PDF
A8 - White
Aluminium 6000 Series
20W 2284lm / 2700K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0202740T
PDF
A8 - White
Aluminium 6000 Series
20W 2284lm / 2700K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0202760T
PDF
A8 - White
Aluminium 6000 Series
20W 2284lm / 2700K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0202215T
PDF
A8 - White
Aluminium 6000 Series
20W 2322lm / 2200K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0202225T
PDF
A8 - White
Aluminium 6000 Series
20W 2322lm / 2200K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0202240T
PDF
A8 - White
Aluminium 6000 Series
20W 2322lm / 2200K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0202260T
PDF
A8 - White
Aluminium 6000 Series
20W 2322lm / 2200K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0203515T
PDF
A8 - White
Aluminium 6000 Series
20W 2404lm / 3500K 15 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0203525T
PDF
A8 - White
Aluminium 6000 Series
20W 2404lm / 3500K 25 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0203540T
PDF
A8 - White
Aluminium 6000 Series
20W 2404lm / 3500K 40 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A8-A0203560T
PDF
A8 - White
Aluminium 6000 Series
20W 2404lm / 3500K 60 240V DALI Dimming DALI Integral Terminal Block
PDF
AQL-880-A1-Z020Z210S
PDF
A1 - Clear
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-880-A1-Z020Z225S
PDF
A1 - Clear
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-880-A1-Z020Z235S
PDF
A1 - Clear
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-880-A2-Z020Z210S
PDF
A2 - Black
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-880-A2-Z020Z225S
PDF
A2 - Black
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-880-A2-Z020Z235S
PDF
A2 - Black
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-880-A3-Z020Z210S
PDF
A3 - Bronze
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-880-A3-Z020Z225S
PDF
A3 - Bronze
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-880-A3-Z020Z235S
PDF
A3 - Bronze
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-880-A4-Z020Z210S
PDF
A4 - Basalt
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-880-A4-Z020Z225S
PDF
A4 - Basalt
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-880-A4-Z020Z235S
PDF
A4 - Basalt
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-880-A8-Z020Z210S
PDF
A8 - White
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-880-A8-Z020Z225S
PDF
A8 - White
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
AQL-880-A8-Z020Z235S
PDF
A8 - White
Aluminium 6000 Series
20W 1000lm / 20W RGB+3000K 35 24V DC RGBW 4CH Low-Side PWM 500mm 6-Core Standard Cable
PDF
