LumenaPro

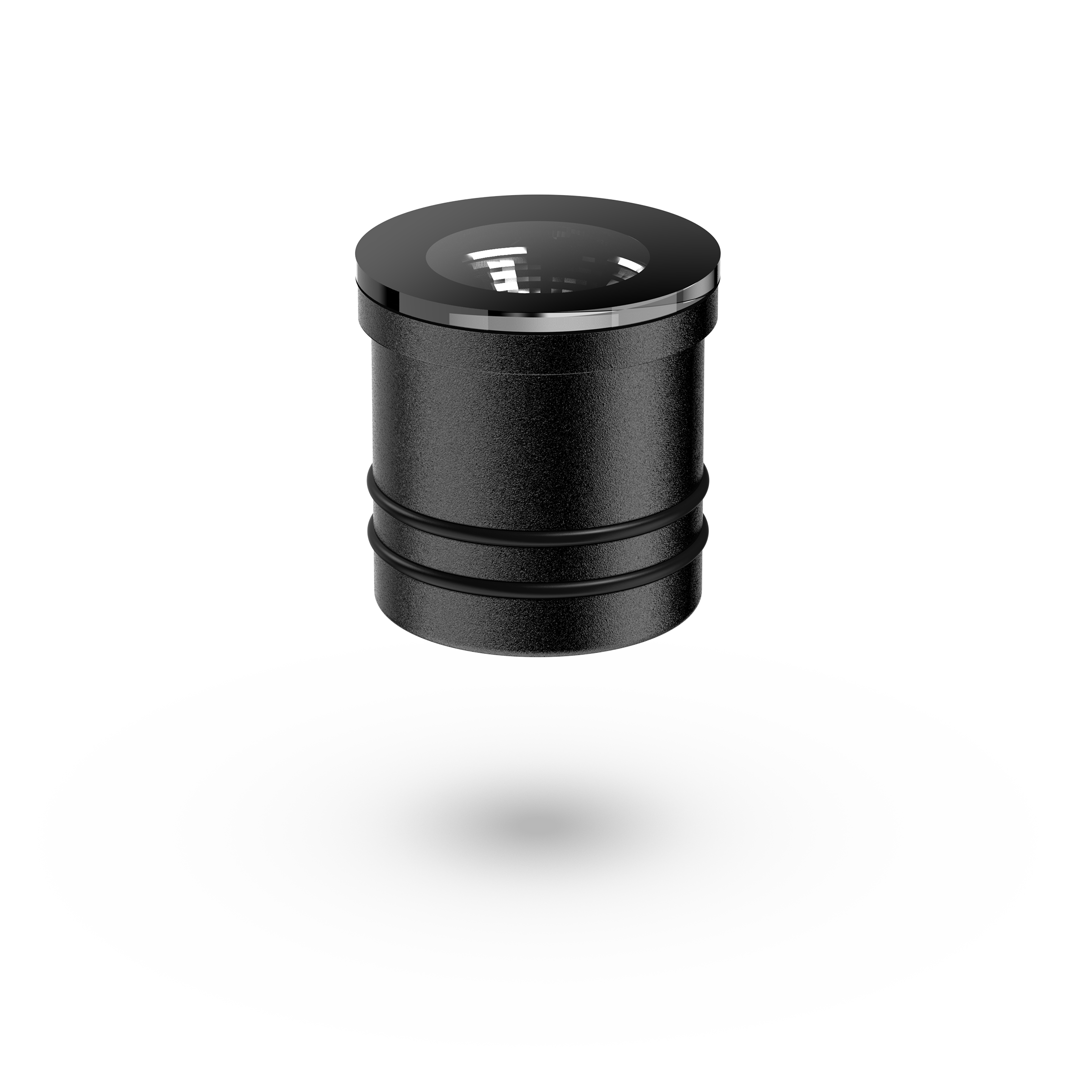

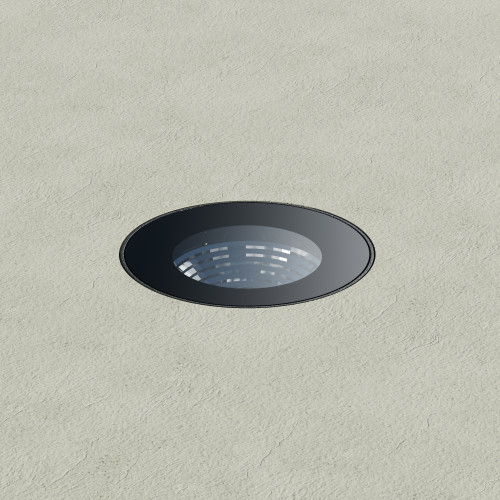

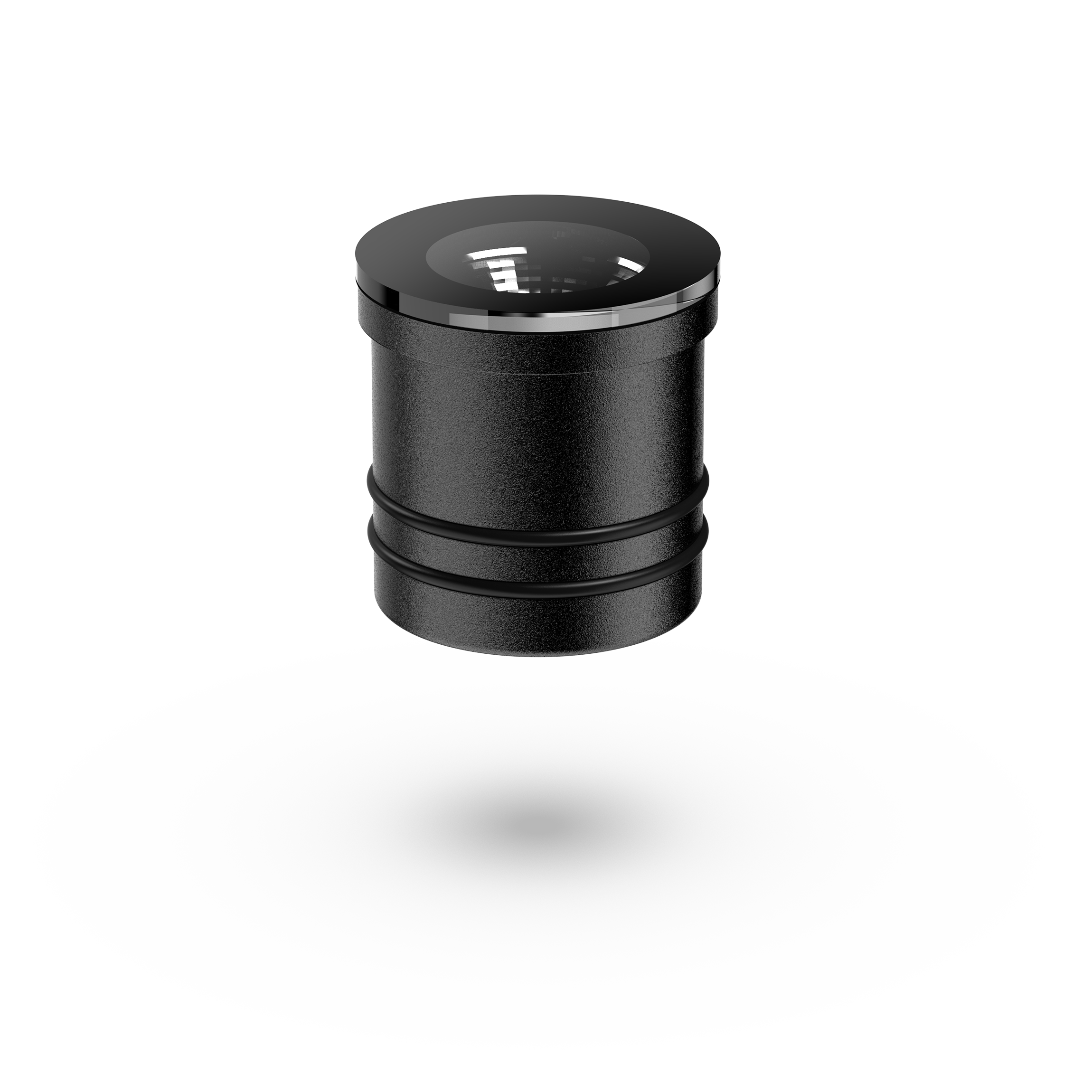

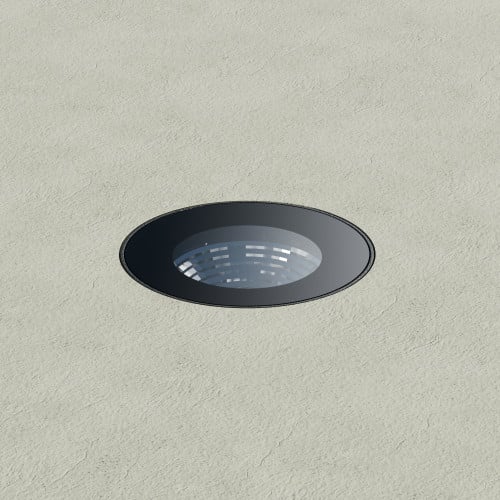

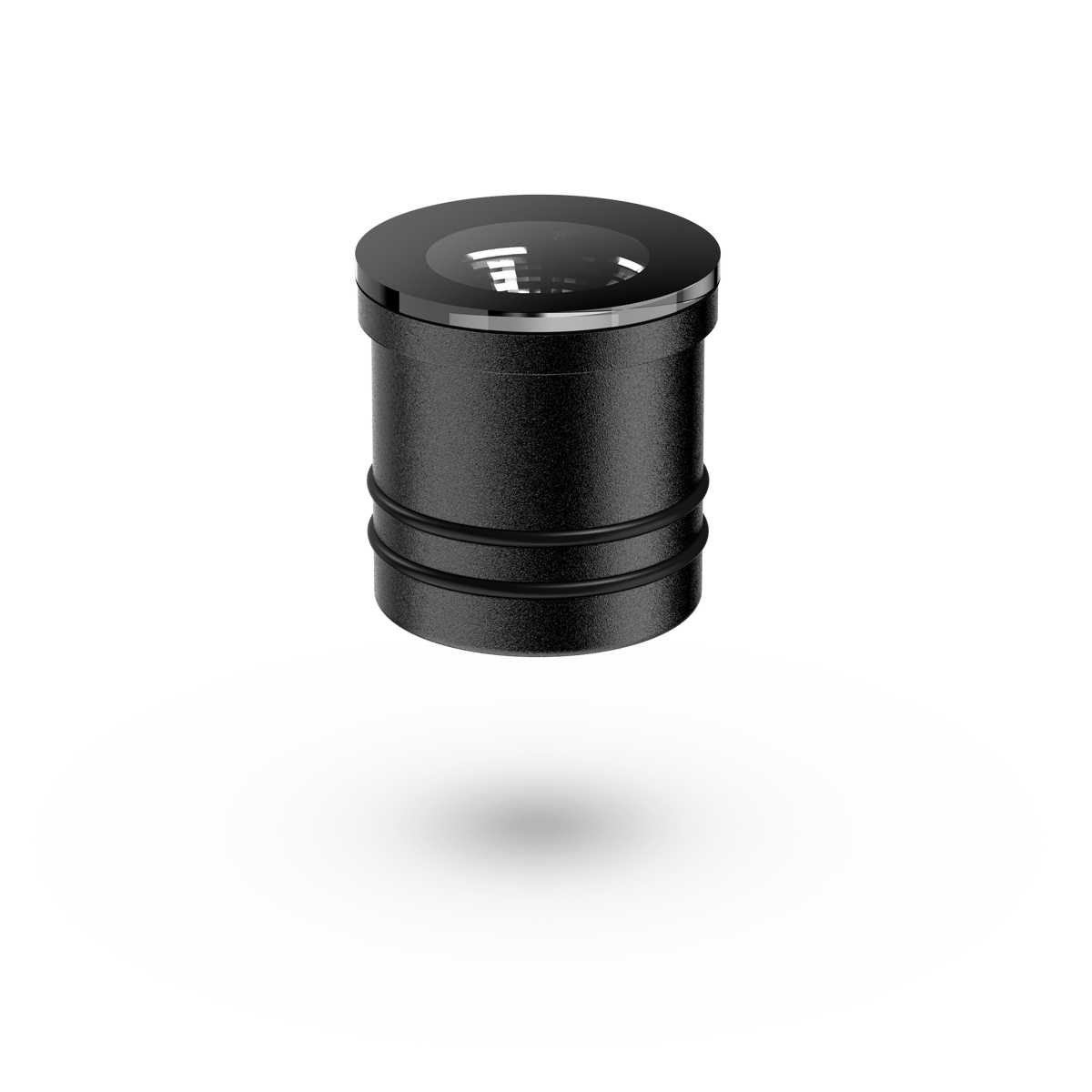

    AQL-190

    Trimless Uplight

    AQL-190
    AQL-190
    AQL-190
    AQL-190

    Introduction

    A modern, minimalist uplight that is completely trimless, the AQL-190 is a mid-power luminaire generating up to 1100lms of low-glare, controlled light for the ultimate in discreet illumination.

    Available in a range of low-UGR optics and CCTs, the AQL-190 comes with a precision machined & powdercoated mounting canister for recessing and forming. A small 1mm ring remains visible to protect the glass and provide a visual boundary for the illuminated surface - this can be powder coated in any of our standard colours.

    Specification

    AQL-190

    LumenaPro

    CNC Machined Aluminium

    3-Core Anti-Siphon Cable

    7 Year Aqualux Warranty

    IP65

    Options

    Body

    • A1 - Clear

      Aluminium 6000 Series

    • A2 - Black

      Aluminium 6000 Series

    • A3 - Bronze

      Aluminium 6000 Series

    • A4 - Basalt

      Aluminium 6000 Series

    • A8 - White

      Aluminium 6000 Series

    Control Gear

    • 24V DC 3-Wire

      Dimming: 3-wire PWM 10V Dimming

    Light Sources

    • 15W / 1500lm

      2700K

    • 15W / 1500lm

      3000K

    • 15W / 1500lm

      4000K

    Optical

    • Narrow (12°) Low Glare

      U2

    • Narrow (18°) Low Glare

      U3

    • Medium (35°) Low Glare

      U4

    • Wide (50°) Low Glare

      U6

    Cable

    • A

      500mm 3-Core Anti-Siphon Cable

    Configure order code

    AQL-190

    To configure your product/s, select from the options below.
    Multiple selections are possible to produce your downloadable datasheet/s.

    Clear Filter
    A1 - Clear Aluminium 6000 Series A2 - Black Aluminium 6000 Series A3 - Bronze Aluminium 6000 Series A4 - Basalt Aluminium 6000 Series A8 - White Aluminium 6000 Series
    24V DC 3-Wire
    15W / 1500lm / 2700K 15W / 1500lm / 3000K 15W / 1500lm / 4000K
    Narrow (12°) Low Glare Narrow (18°) Low Glare Medium (35°) Low Glare Wide (50°) Low Glare
    500mm 3-Core Anti-Siphon Cable

    AQL-190 - has 60 variations

    Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
    AQL-190-A4-B01540U3A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 15W 1500lm / 4000K U3 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A3-B01527U6A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 15W 1500lm / 2700K U6 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A3-B01540U2A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 15W 1500lm / 4000K U2 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A3-B01540U3A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 15W 1500lm / 4000K U3 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A3-B01540U4A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 15W 1500lm / 4000K U4 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A3-B01540U6A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 15W 1500lm / 4000K U6 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A4-B01530U2A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 15W 1500lm / 3000K U2 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A4-B01530U3A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 15W 1500lm / 3000K U3 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A4-B01530U4A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 15W 1500lm / 3000K U4 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A4-B01530U6A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 15W 1500lm / 3000K U6 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A4-B01527U2A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 15W 1500lm / 2700K U2 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A4-B01527U3A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 15W 1500lm / 2700K U3 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A4-B01527U4A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 15W 1500lm / 2700K U4 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A4-B01527U6A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 15W 1500lm / 2700K U6 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A4-B01540U2A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 15W 1500lm / 4000K U2 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A3-B01527U4A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 15W 1500lm / 2700K U4 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A4-B01540U4A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 15W 1500lm / 4000K U4 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A4-B01540U6A
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 15W 1500lm / 4000K U6 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A8-B01530U2A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 15W 1500lm / 3000K U2 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A8-B01530U3A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 15W 1500lm / 3000K U3 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A8-B01530U4A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 15W 1500lm / 3000K U4 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A8-B01530U6A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 15W 1500lm / 3000K U6 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A8-B01527U2A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 15W 1500lm / 2700K U2 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A8-B01527U3A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 15W 1500lm / 2700K U3 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A8-B01527U4A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 15W 1500lm / 2700K U4 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A8-B01527U6A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 15W 1500lm / 2700K U6 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A8-B01540U2A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 15W 1500lm / 4000K U2 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A8-B01540U3A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 15W 1500lm / 4000K U3 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A8-B01540U4A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 15W 1500lm / 4000K U4 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A8-B01540U6A
    PDF
    		A8 - White
    Aluminium 6000 Series    		 15W 1500lm / 4000K U6 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A2-B01530U6A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 15W 1500lm / 3000K U6 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A1-B01530U3A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 15W 1500lm / 3000K U3 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A1-B01530U4A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 15W 1500lm / 3000K U4 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A1-B01530U6A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 15W 1500lm / 3000K U6 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A1-B01527U2A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 15W 1500lm / 2700K U2 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A1-B01527U3A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 15W 1500lm / 2700K U3 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A1-B01527U4A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 15W 1500lm / 2700K U4 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A1-B01527U6A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 15W 1500lm / 2700K U6 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A1-B01540U2A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 15W 1500lm / 4000K U2 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A1-B01540U3A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 15W 1500lm / 4000K U3 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A1-B01540U4A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 15W 1500lm / 4000K U4 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A1-B01540U6A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 15W 1500lm / 4000K U6 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A2-B01530U2A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 15W 1500lm / 3000K U2 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A2-B01530U3A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 15W 1500lm / 3000K U3 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A2-B01530U4A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 15W 1500lm / 3000K U4 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A1-B01530U2A
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 15W 1500lm / 3000K U2 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A2-B01527U2A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 15W 1500lm / 2700K U2 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A2-B01527U3A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 15W 1500lm / 2700K U3 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A2-B01527U4A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 15W 1500lm / 2700K U4 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A2-B01527U6A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 15W 1500lm / 2700K U6 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A2-B01540U2A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 15W 1500lm / 4000K U2 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A2-B01540U3A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 15W 1500lm / 4000K U3 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A2-B01540U4A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 15W 1500lm / 4000K U4 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A2-B01540U6A
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 15W 1500lm / 4000K U6 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A3-B01530U2A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 15W 1500lm / 3000K U2 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A3-B01530U3A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 15W 1500lm / 3000K U3 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A3-B01530U4A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 15W 1500lm / 3000K U4 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A3-B01530U6A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 15W 1500lm / 3000K U6 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A3-B01527U2A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 15W 1500lm / 2700K U2 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
    AQL-190-A3-B01527U3A
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 15W 1500lm / 2700K U3 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Anti-Siphon Cable
    PDF
