Introduction

AQS-505 is encapsulated in multiple silicone channels for IP68 applications. Use for pool copings, in-pavement channels and exterior wall grazing where substantial moisture and mechanical protection is required. As with all IP68 products, the ingress protection is determined by the quality of the cable joins and installation.

IP68 Rated
Multiple silicone encapsulation steps combined with a custom injection moulded end-cap process mean that IP68 performance can be expected in temporarily submerged depths up to 1m. To ensure IP68 performance, there can be no submerged cable joins at all.

Dimming
Dimmable via 1-10V using a compatible power supply, or with PWM based controllers including the Aqualux AQD-400 series. Can also be interfaced with C-BUS and other smart home systems with the appropriate gateway devices.



Specification

AQS-505

LED Flex & Festoon

24V DC

600mm Aqualux 2-Core Silicone / PTFE Cable

3 Year Construction, 3 Year Electrical

IP68

Max Run Length 10m (Single Input) 20m looped

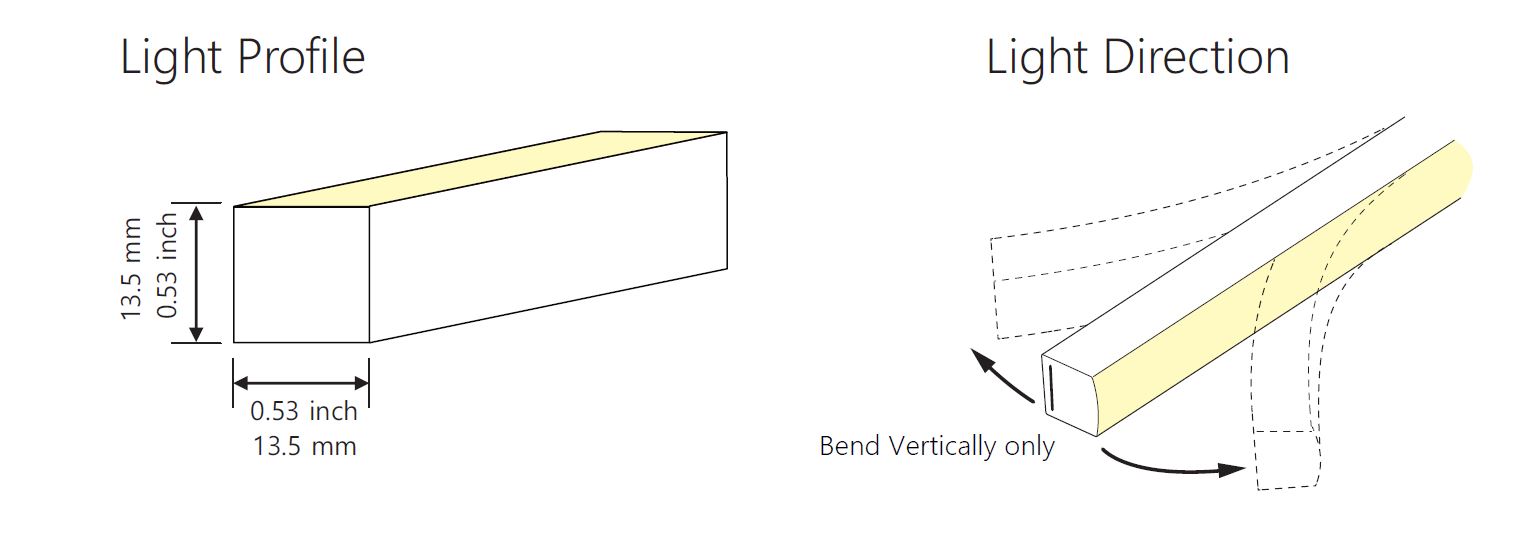

Max Bend Radius 60mm Vertically
Standard tail =600mm
cut interval = 83.3mm

24V PWM


LED Options

  • W

    Warm White (3000K)

  • C

    Cool White (5500-6000K)

  • R

    Red

  • G

    Green

  • B

    Blue

  • A

    Amber

  • W2

    Warm White (2700K)

  • N

    Neutral White (4000K)

Configure order code

AQS-505
