    Introduction

    Micro recessed up light for subtle feature illumination and way finding applications. CNC machined & assembled in Sydney, Australia. Available in the full DULUX Powder coat range or solid brass and multiple plated finishes.

    Specification

    AQL-152

    Lumena

    Solid Cast Brass, CNC Machined Aluminium

    500mm 3 Core Aqualux Cable

    7 Year Aqualux Warranty

    IP67

    ACC Canisters

    Options

    Body

    • A1 - Clear

      Aluminium 6000 Series

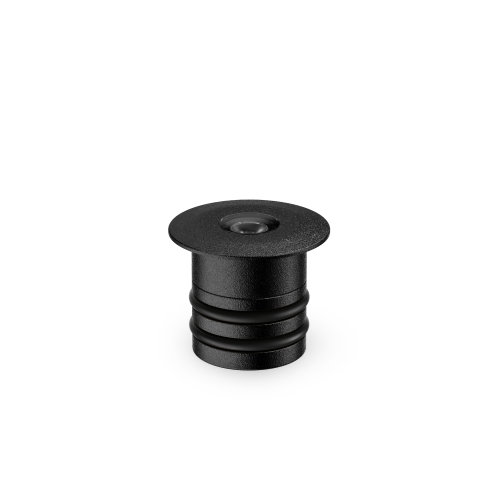

    • A2 - Black

      Aluminium 6000 Series

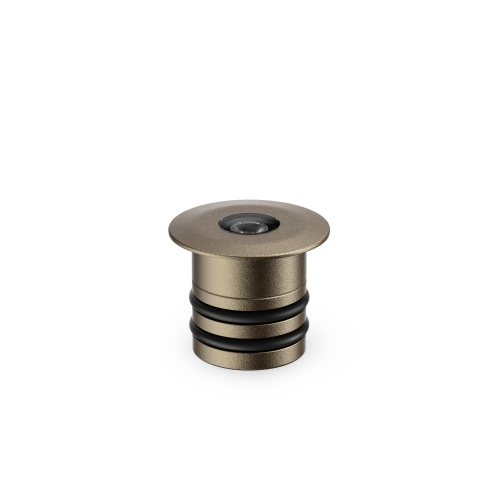

    • A3 - Bronze

      Aluminium 6000 Series

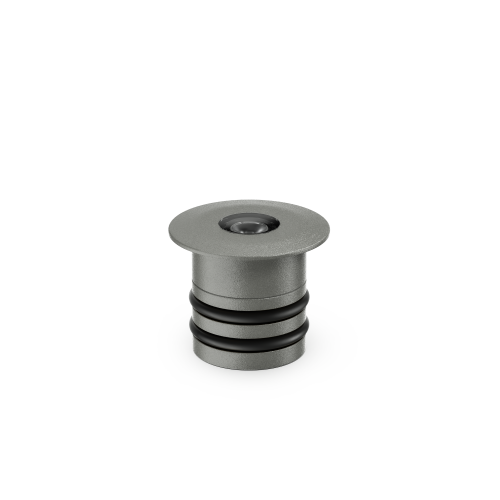

    • A4 - Basalt

      Aluminium 6000 Series

    • B1 - Brushed Chrome

      Brass

    • B2 - Black

      Brass

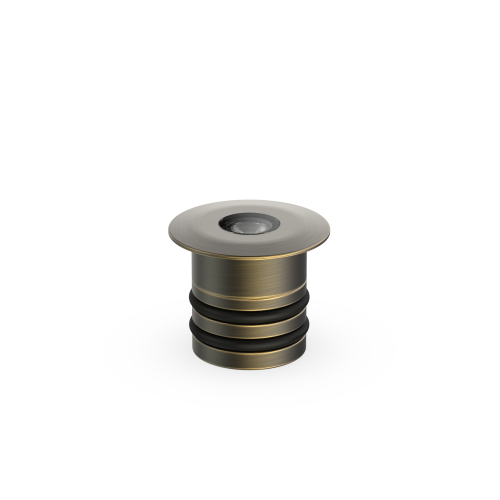

    • B3 - Aged Brass

      Brass

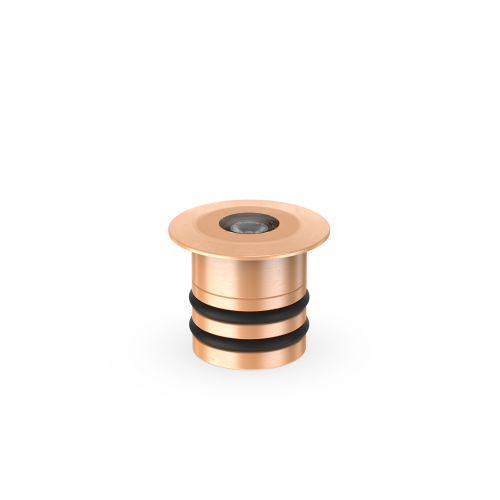

    • B5 - Brushed Copper

      Brass

    • B6 - Natural Waxed

      Brass

    • A8 - White

      Aluminium 6000 Series

    Control Gear

    • 24V DC 3-Wire

      Dimming: 3-wire PWM 10V Dimming

    Light Sources

    • 2W / 150lm

      2700K

    • 2W / 150lm

      3000k

    Optical

    • Wide (50°)

      50

    • Flood (70°)

      70

    • Medium (30°)

      30

    • Narrow (15°)

      15

    Cable

    • S

      500mm 3-Core Standard Cable

    Configure order code

    AQL-152

    To configure your product/s, select from the options below.
    Multiple selections are possible to produce your downloadable datasheet/s.

    Clear Filter
    A1 - Clear Aluminium 6000 Series A2 - Black Aluminium 6000 Series A3 - Bronze Aluminium 6000 Series A4 - Basalt Aluminium 6000 Series B1 - Brushed Chrome Brass B2 - Black Brass B3 - Aged Brass Brass B5 - Brushed Copper Brass B6 - Natural Waxed Brass A8 - White Aluminium 6000 Series
    24V DC 3-Wire
    2W / 150lm / 2700K 2W / 150lm / 3000k
    Wide (50°) Flood (70°) Medium (30°) Narrow (15°)
    500mm 3-Core Standard Cable

    AQL-152 - has 80 variations

    Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
    AQL-152-B3-B0023030S
    PDF
    		B3 - Aged Brass
    Brass    		 2W 150lm / 3000k 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B5-B0023015S
    PDF
    		B5 - Brushed Copper
    Brass    		 2W 150lm / 3000k 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B5-B0023030S
    PDF
    		B5 - Brushed Copper
    Brass    		 2W 150lm / 3000k 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B5-B0023070S
    PDF
    		B5 - Brushed Copper
    Brass    		 2W 150lm / 3000k 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B5-B0023050S
    PDF
    		B5 - Brushed Copper
    Brass    		 2W 150lm / 3000k 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B3-B0022715S
    PDF
    		B3 - Aged Brass
    Brass    		 2W 150lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B3-B0022730S
    PDF
    		B3 - Aged Brass
    Brass    		 2W 150lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B3-B0022770S
    PDF
    		B3 - Aged Brass
    Brass    		 2W 150lm / 2700K 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B3-B0022750S
    PDF
    		B3 - Aged Brass
    Brass    		 2W 150lm / 2700K 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B3-B0023015S
    PDF
    		B3 - Aged Brass
    Brass    		 2W 150lm / 3000k 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B5-B0022750S
    PDF
    		B5 - Brushed Copper
    Brass    		 2W 150lm / 2700K 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B3-B0023070S
    PDF
    		B3 - Aged Brass
    Brass    		 2W 150lm / 3000k 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B3-B0023050S
    PDF
    		B3 - Aged Brass
    Brass    		 2W 150lm / 3000k 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B2-B0022715S
    PDF
    		B2 - Black
    Brass    		 2W 150lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B2-B0022730S
    PDF
    		B2 - Black
    Brass    		 2W 150lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B2-B0022770S
    PDF
    		B2 - Black
    Brass    		 2W 150lm / 2700K 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B2-B0022750S
    PDF
    		B2 - Black
    Brass    		 2W 150lm / 2700K 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B2-B0023015S
    PDF
    		B2 - Black
    Brass    		 2W 150lm / 3000k 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B2-B0023030S
    PDF
    		B2 - Black
    Brass    		 2W 150lm / 3000k 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B2-B0023070S
    PDF
    		B2 - Black
    Brass    		 2W 150lm / 3000k 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B6-B0022730S
    PDF
    		B6 - Natural Waxed
    Brass    		 2W 150lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A8-B0022715S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 2W 150lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A8-B0022730S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 2W 150lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A8-B0022770S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 2W 150lm / 2700K 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A8-B0022750S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 2W 150lm / 2700K 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A8-B0023015S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 2W 150lm / 3000k 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A8-B0023030S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 2W 150lm / 3000k 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A8-B0023070S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 2W 150lm / 3000k 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A8-B0023050S
    PDF
    		A8 - White
    Aluminium 6000 Series    		 2W 150lm / 3000k 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B6-B0022715S
    PDF
    		B6 - Natural Waxed
    Brass    		 2W 150lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B2-B0023050S
    PDF
    		B2 - Black
    Brass    		 2W 150lm / 3000k 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B6-B0022770S
    PDF
    		B6 - Natural Waxed
    Brass    		 2W 150lm / 2700K 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B6-B0022750S
    PDF
    		B6 - Natural Waxed
    Brass    		 2W 150lm / 2700K 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B6-B0023015S
    PDF
    		B6 - Natural Waxed
    Brass    		 2W 150lm / 3000k 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B6-B0023030S
    PDF
    		B6 - Natural Waxed
    Brass    		 2W 150lm / 3000k 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B6-B0023070S
    PDF
    		B6 - Natural Waxed
    Brass    		 2W 150lm / 3000k 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B6-B0023050S
    PDF
    		B6 - Natural Waxed
    Brass    		 2W 150lm / 3000k 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B5-B0022715S
    PDF
    		B5 - Brushed Copper
    Brass    		 2W 150lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B5-B0022730S
    PDF
    		B5 - Brushed Copper
    Brass    		 2W 150lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B5-B0022770S
    PDF
    		B5 - Brushed Copper
    Brass    		 2W 150lm / 2700K 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A2-B0023030S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 2W 150lm / 3000k 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A3-B0023015S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 2W 150lm / 3000k 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A3-B0023030S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 2W 150lm / 3000k 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A3-B0023070S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 2W 150lm / 3000k 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A3-B0023050S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 2W 150lm / 3000k 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A2-B0022715S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 2W 150lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A2-B0022730S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 2W 150lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A2-B0022770S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 2W 150lm / 2700K 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A2-B0022750S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 2W 150lm / 2700K 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A2-B0023015S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 2W 150lm / 3000k 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A3-B0022750S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 2W 150lm / 2700K 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A2-B0023070S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 2W 150lm / 3000k 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A2-B0023050S
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 2W 150lm / 3000k 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A1-B0022715S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 2W 150lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A1-B0022730S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 2W 150lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A1-B0022770S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 2W 150lm / 2700K 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A1-B0022750S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 2W 150lm / 2700K 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A1-B0023015S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 2W 150lm / 3000k 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A1-B0023030S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 2W 150lm / 3000k 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A1-B0023070S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 2W 150lm / 3000k 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A4-B0022730S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 2W 150lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B1-B0022715S
    PDF
    		B1 - Brushed Chrome
    Brass    		 2W 150lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B1-B0022730S
    PDF
    		B1 - Brushed Chrome
    Brass    		 2W 150lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B1-B0022770S
    PDF
    		B1 - Brushed Chrome
    Brass    		 2W 150lm / 2700K 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B1-B0022750S
    PDF
    		B1 - Brushed Chrome
    Brass    		 2W 150lm / 2700K 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B1-B0023015S
    PDF
    		B1 - Brushed Chrome
    Brass    		 2W 150lm / 3000k 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B1-B0023030S
    PDF
    		B1 - Brushed Chrome
    Brass    		 2W 150lm / 3000k 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B1-B0023070S
    PDF
    		B1 - Brushed Chrome
    Brass    		 2W 150lm / 3000k 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-B1-B0023050S
    PDF
    		B1 - Brushed Chrome
    Brass    		 2W 150lm / 3000k 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A4-B0022715S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 2W 150lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A1-B0023050S
    PDF
    		A1 - Clear
    Aluminium 6000 Series    		 2W 150lm / 3000k 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A4-B0022770S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 2W 150lm / 2700K 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A4-B0022750S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 2W 150lm / 2700K 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A4-B0023015S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 2W 150lm / 3000k 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A4-B0023030S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 2W 150lm / 3000k 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A4-B0023070S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 2W 150lm / 3000k 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A4-B0023050S
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 2W 150lm / 3000k 50 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A3-B0022715S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 2W 150lm / 2700K 15 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF

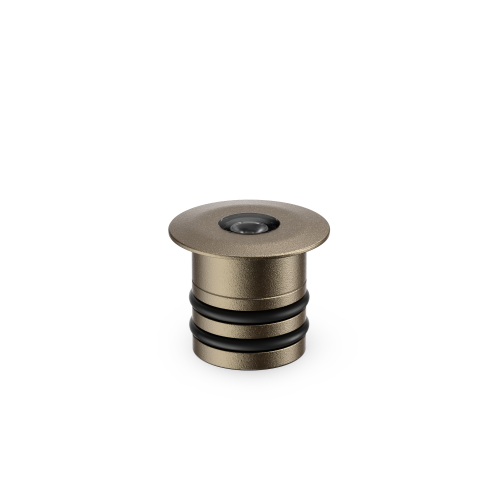

    AQL-152-A3-B0022730S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 2W 150lm / 2700K 30 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF
    AQL-152-A3-B0022770S
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 2W 150lm / 2700K 70 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3-Core Standard Cable
    PDF

    Products that work well with your selection

    AQL-115

    AQL-115

    AQL-116

    AQL-116

    AQL-117

    AQL-117

    AQL-120

    AQL-120

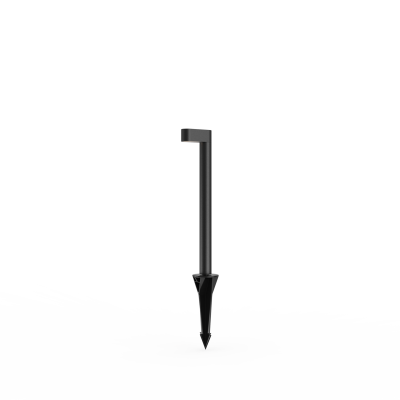

    AQL-121

    AQL-121

    AQL-122

    AQL-122

    AQL-123

    AQL-123
